Diode Dynamics SS3 3” LED Pods (Pair) | Stage Series

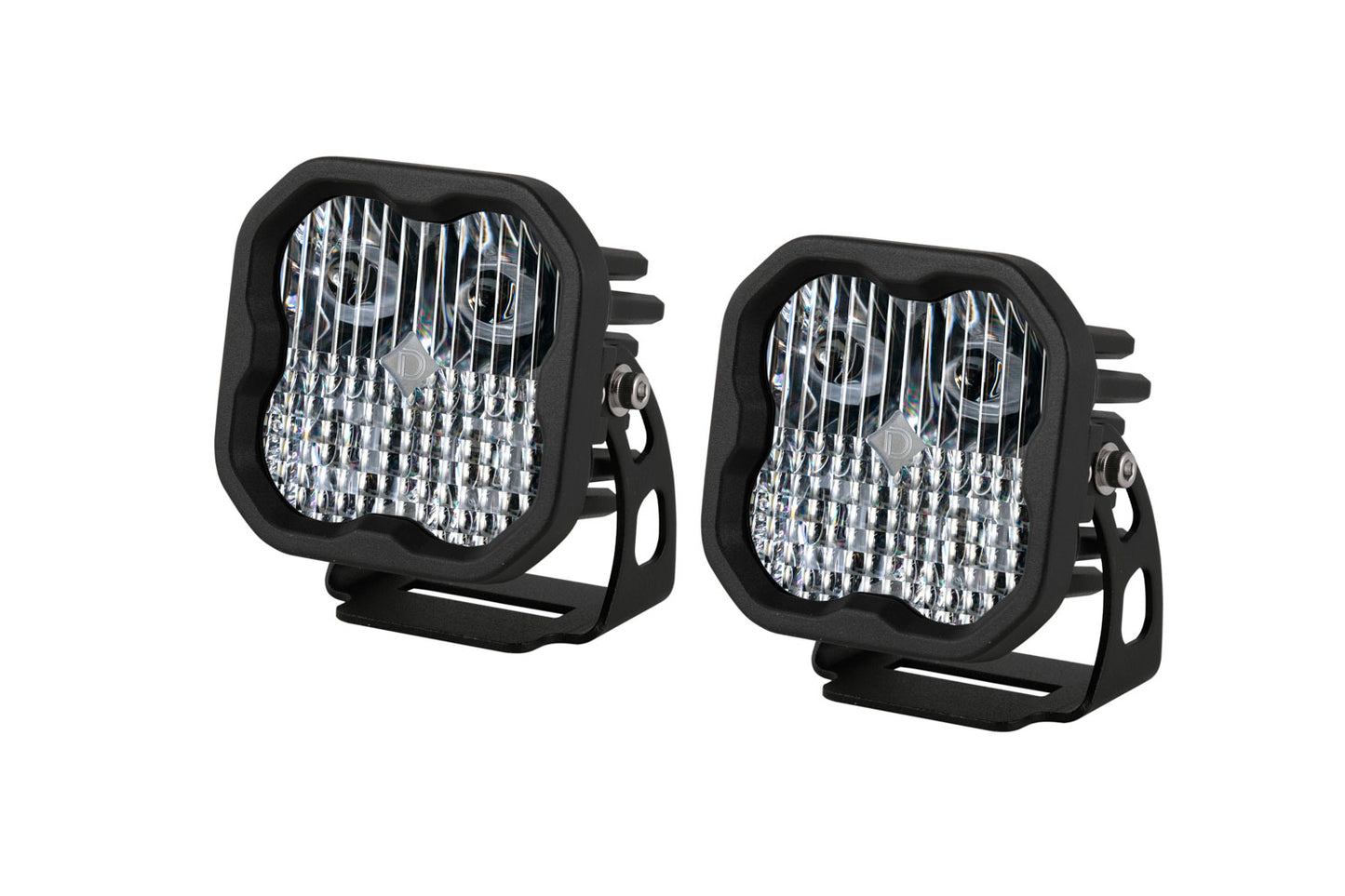

Diode Dynamics SS3 Stage Series 3” LED Pods

Get powerful, precisely controlled auxiliary lighting in a compact package with the Diode Dynamics SS3 Stage Series 3” LED Pods. Featuring custom-engineered TIR optics, multiple functional beam patterns, and your choice of Sport, Pro, or Max output levels, the Diode Dynamics SS3 LED Pods is designed to deliver high-intensity illumination where you need it.

Choose from SAE Driving, SAE Fog, Flood, Combo/Driving, or Spot beam patterns to configure your SS3 LED Pods for your vehicle and application.

Key Features

• Custom-engineered TIR (Total Internal Reflection) optics
• Compact 3-inch LED pod design
• Sport, Pro, and Max output levels available
• SAE Driving, SAE Fog, Flood, Combo/Driving, and Spot beam patterns
• 6000K cool white or 3000K selective yellow output options
• Amber or red backlight options
• Durable powder-coated aluminum construction
• Integrated DT-type Deutsch-style connector
• Interchangeable lenses
• Tested for vibration, moisture intrusion, corrosion, and extreme temperatures
• Made in the USA with global materials
• Lifetime warranty

Precision TIR Optics

Instead of relying on a conventional reflector or simple lens, the SS3 uses a custom-engineered Total Internal Reflection (TIR) optic to collect light from the LED and precisely direct it into a functional beam pattern.

The molded TIR optic serves as both the optic and main lens, helping reduce internal light loss and unwanted glare while maximizing usable output.

Five Functional Beam Patterns

Choose the SS3 beam pattern that best matches how and where you drive.

SAE Driving: An 18x8-degree beam designed to supplement high beams while providing focused forward illumination at higher speeds. When properly installed as a pair and aimed according to applicable regulations, the white Driving pattern meets SAE J581 requirements for a Driving/Auxiliary High Beam Light.

SAE Fog: Uses Diode Dynamics’ FineLine optic to produce a wide 80-degree field of view. When properly installed and aimed, the Fog pattern meets SAE J583 requirements for fog-lamp use.

Flood: Provides a wide 60x60-degree spread for uniform illumination. It’s well suited for backup lighting, trailers, worksites, and low-speed applications.

Combo/Driving: Produces a smooth 80x30-degree spread combining strong forward illumination with a wide field of view, making it a versatile option for varying speeds and terrain.

Spot: Creates a concentrated 6-degree beam for long-distance illumination. The SS3 Sport Spot produces up to 151,000 candela and can project usable illumination approximately half a mile at ¼ lux.

Always check applicable state and local regulations for installation, aiming, and permitted on-road use.

Sport, Pro or Max

Choose from three SS3 performance levels to match your lighting requirements and budget.

Sport: High-intensity LED performance and an excellent choice for everyday auxiliary lighting.

Pro: Steps up output with approximately double the total power of the Sport version.

Max: Uses advanced automotive LED emitters for maximum power and intensity, making it the performance-focused option in the SS3 lineup.

All three versions combine high-intensity LED emitters with Diode Dynamics TIR optics for focused, usable illumination.

White or Selective Yellow

Stage Series SS3 LED Pods are available with two output colors:

• 6000K Cool White – a crisp white output designed to complement many factory LED lighting systems.
• 3000K Selective Yellow – provides a distinctive appearance and high contrast in poor-weather conditions.

Interchangeable replacement lenses also allow you to change the color or beam pattern of your SS3 Pods later.

Amber or Red Backlighting

Add a distinctive accent to your lighting setup with the SS3’s integrated backlight, available in amber or red.

Rather than using a small indicator LED, the backlight illuminates the TIR optic itself for a modern appearance when the main beam isn’t being used. The included wiring allows the backlight to be connected to your desired vehicle function.

Built for Demanding Conditions

Stage Series lighting is tested for long-term operation in temperatures ranging from -40°F to 185°F, as well as vibration, moisture intrusion, and corrosion.

Each SS3 features an integrated DT-type Deutsch-style connector and includes a 6-inch bare-lead pigtail, giving you flexibility when choosing your installation and wiring setup.

What’s Included

• Two (2) Diode Dynamics SS3 Stage Series 3” LED Pods
• Two (2) Deutsch-style wire pigtails
• Two (2) mounting brackets with hardware

Quantity: 2 LED pods
Warranty: Lifetime warranty
Made in: USA with global materials
