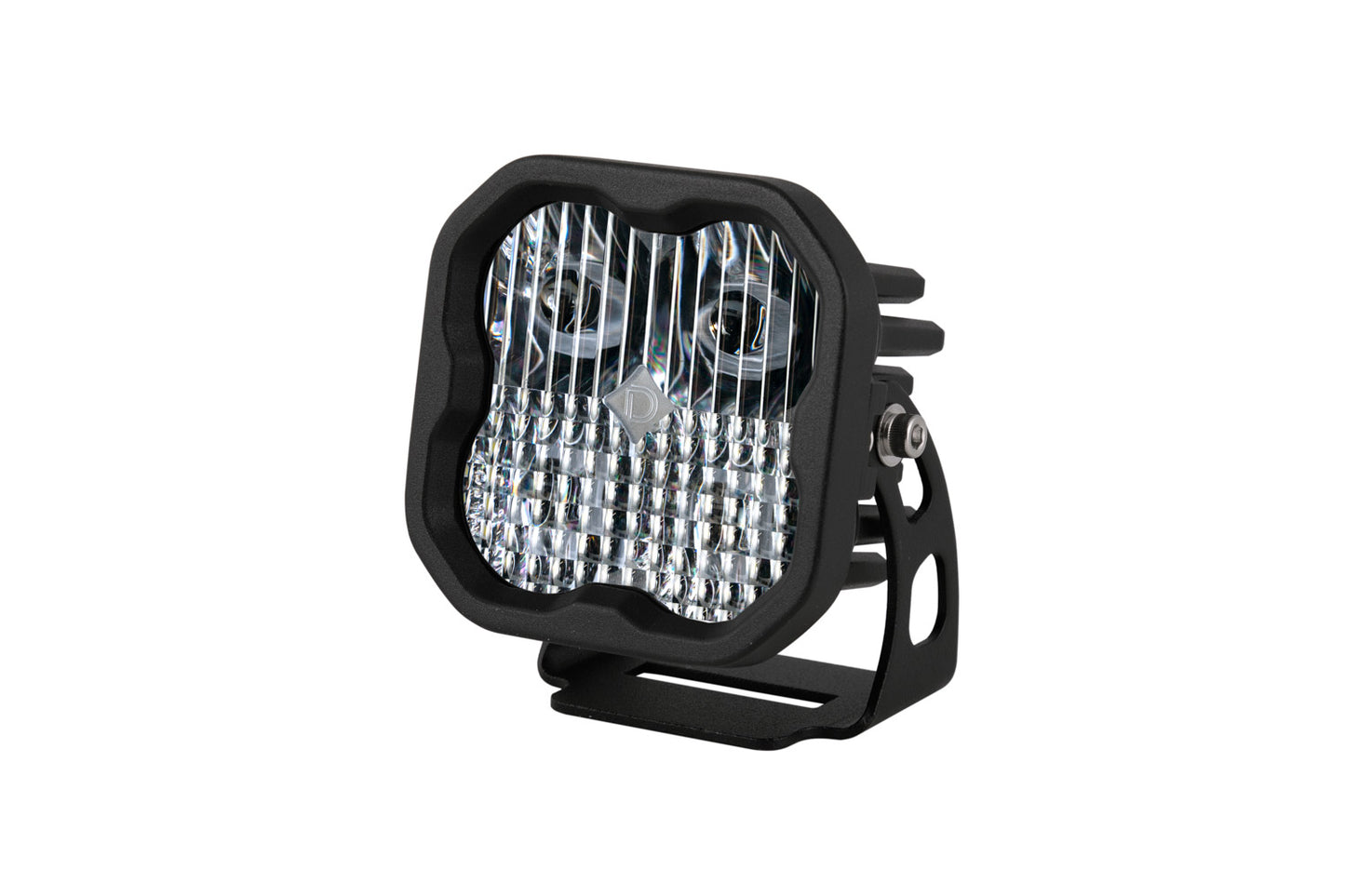

Diode Dynamics SS3 Stage Series 3” LED Pod – Single
Diode Dynamics SS3 Stage Series 3” LED Pod – Single
SKU:DD6865S
Diode Dynamics SS3 Stage Series 3” LED Pod – Single
Description
Diode Dynamics SS3 Stage Series 3” LED Pod – Single
Add powerful, precisely controlled auxiliary lighting in a compact package with the Diode Dynamics SS3 Stage Series 3” LED Pod. Featuring custom-engineered TIR optics, multiple functional beam patterns, and your choice of Sport, Pro, or Max output, the SS3 delivers high-intensity illumination in a durable 3-inch housing.
This listing includes one (1) SS3 LED Pod, making it ideal for single-light applications, replacements, or custom lighting setups.
Key Features
- Single Diode Dynamics SS3 3” LED Pod
- Custom-engineered TIR (Total Internal Reflection) optics
- Sport, Pro, and Max output options
- SAE Driving, SAE Fog, Flood, Combo/Driving, and Spot beam patterns
- Cool white or selective yellow main output options
- Amber or red backlight options
- Durable powder-coated aluminum construction
- Integrated DT-type Deutsch-style connector
- Interchangeable lenses
- Tested for vibration, moisture intrusion, corrosion, and extreme temperatures
- Made in the USA with global materials
- Lifetime warranty
Precision TIR Optics
The SS3 uses custom-engineered Total Internal Reflection (TIR) optics instead of a traditional reflector or simple lens.
The TIR optic collects and directs light from the LED into a precise, functional beam pattern, helping reduce wasted light and glare while maximizing usable illumination. The custom-molded optic also serves as the main lens for greater optical efficiency.
Choose Your Beam Pattern
Configure your SS3 LED Pod for your specific lighting application with multiple available beam patterns.
SAE Driving: Produces a focused 18x8-degree beam designed for strong forward illumination and supplemental high-beam use.
SAE Fog: Uses Diode Dynamics’ FineLine optic to create an extremely wide 80-degree field of view for illuminating the area directly ahead of the vehicle.
Flood: Delivers an even 60x60-degree spread ideal for backup lighting, trailers, worksites, and other low-speed applications.
Combo/Driving: Produces a smooth 80x30-degree spread that balances forward illumination with a wide field of view for versatile use across different speeds and terrain.
Spot: Creates a highly focused 6-degree beam for long-distance illumination. The SS3 Sport Spot produces up to 151,000 candela and can project usable illumination approximately half a mile at ¼ lux.
Sport, Pro or Max
Choose from three SS3 performance levels:
Sport: A value-focused option featuring high-intensity LED emitters and TIR optics.
Pro: Steps up performance with approximately double the total power of the Sport model.
Max: Uses advanced automotive LED emitters for high power and extreme intensity, making it the performance-focused option in the SS3 lineup.
Cool White or Selective Yellow
Choose the main output color that best suits your setup:
- 6000K Cool White – crisp white illumination that complements many factory LED lighting systems.
- 3000K Selective Yellow – high-contrast yellow illumination with a distinctive appearance.
Interchangeable replacement lenses also allow the color or beam pattern to be changed later.
Amber or Red Backlight
The SS3 features an integrated accent backlight available in amber or red. Instead of illuminating a small indicator LED, the backlight illuminates the TIR optic itself for a distinctive appearance when the main beam isn’t in use.
The backlight can be wired into your desired vehicle function using the appropriate wiring setup.
SAE Driving & Fog Applications
When installed as a pair and properly aimed according to applicable regulations, the white Driving pattern meets SAE J581 requirements for a Driving/Auxiliary High Beam Light, while the Fog pattern meets SAE J583 requirements for a fog lamp.
Important: This product listing includes only one SS3 LED Pod. A second pod is required when using the lights as a pair for the referenced SAE applications. Always check applicable state and local regulations for installation, aiming, and permitted on-road use.
Built for Demanding Conditions
Stage Series LED lighting is tested for long-term operation from -40°F to 185°F, along with vibration, moisture intrusion, and corrosion testing.
The SS3 features an integrated DT-type Deutsch-style connector and includes a 6-inch bare-lead pigtail for flexible installation.
What’s Included
- One (1) Diode Dynamics SS3 Stage Series 3” LED Pod
- One (1) Deutsch-style wire pigtail
- One (1) mounting bracket with hardware
Quantity: 1 LED pod
Warranty: Lifetime warranty
Made in: USA with global materials
Specifications
- Operating Voltage: 9-30V
- Color Temp (CCT): 6000K
- Power (watts): Main Beam: 14.5, Backlight: 0.4
- Current (amps @ 12.8V): Main Beam: 1.1, Backlight: 0.03
- Polarity: Polarity Specific
- Operating Temperature: -40C to 85C (-40F to 185F)
- LED Emitter: Luxeon Z ES
- Connector(s): Deutsch DT Input
- Driver Features: Constant Current
- Materials: Polycarbonate Lens, Aluminum Casting, Rubber Gasket
- Cooling: Passive, Pin-Fin heatsink
- Intrusion Ratings: IP69K Waterproof, High Pressure
- Product Dimensions (in): 3.3 x 3.3 x 2.4
- Unit Weight (lb): 0.75
- Product Weight (lb): 1.03
- Shipped Weight (lb): 2
Installation
Installation Time: 30-60 minutes
Tools Needed: Basic Toolset
Installation Guide: Click to download
Wiring Instructions: Click here
