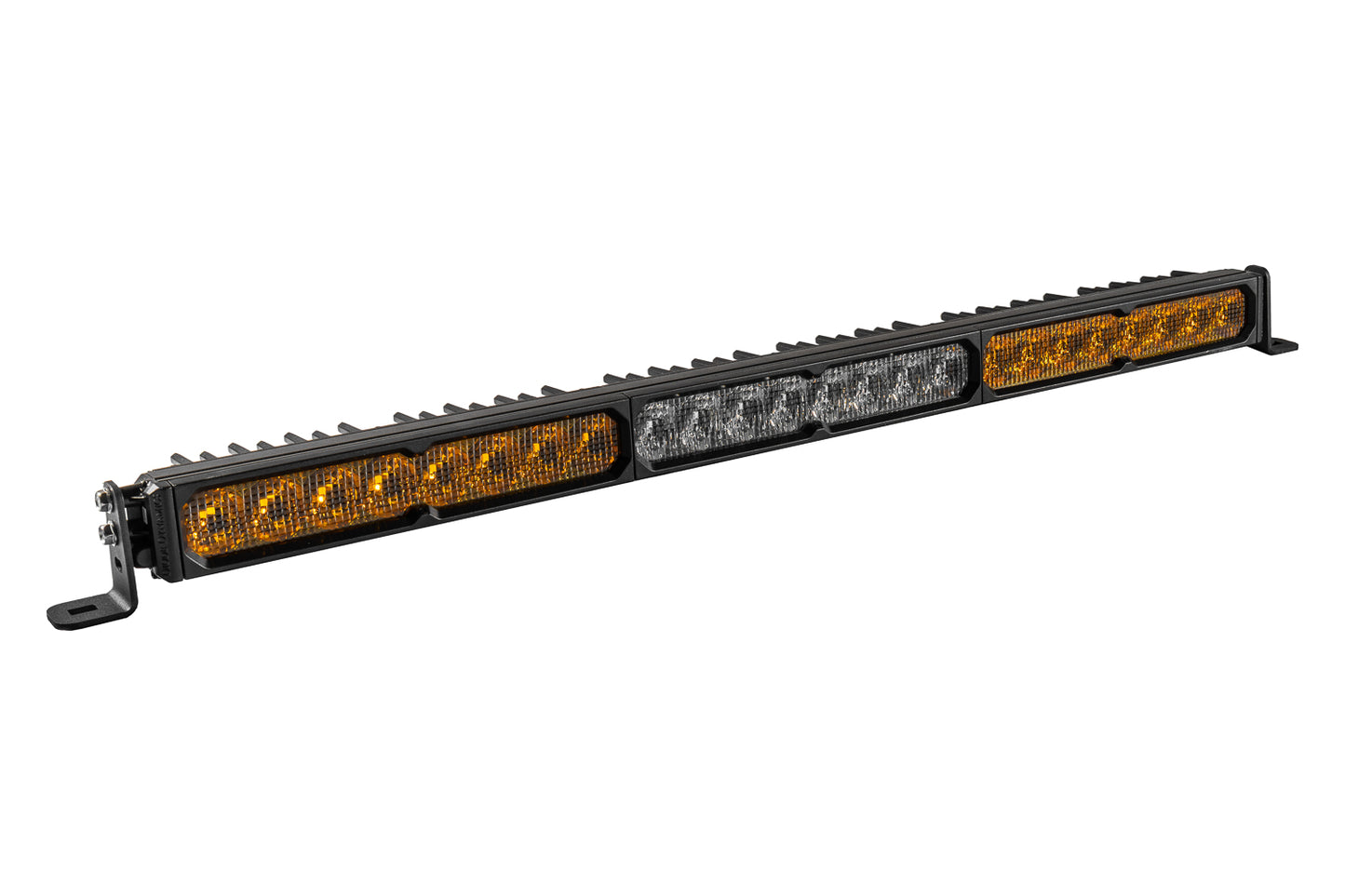

Diode Dynamics SS30 Dual-Color LED Light Bar | SmartSelect TIR LED Off-Road Light Bar

Diode Dynamics SS30 Dual-Color LED Light Bar | SmartSelect TIR LED Off-Road Light Bar

Take your lighting setup to the next level with the Diode Dynamics SS30 Dual-Color LED Light Bar, engineered for drivers who demand maximum visibility, premium styling, and unmatched versatility. Featuring patented TIR (Total Internal Reflection) optics, Diode Dynamics innovative SmartSelect technology, and a dual-color beam design, the SS30 delivers exceptional performance both on and off the road. Whether you’re navigating dark trails, overlanding through changing weather, or upgrading your truck, Jeep, SUV, or UTV, the SS30 offers powerful illumination with customizable functionality—all in one premium LED light bar.

Engineered with Patented TIR Optics for Maximum Performance

Unlike traditional reflector-style LED light bars, the SS30 utilizes patented TIR optics that capture and direct nearly all available LED light exactly where it’s needed. The result is greater usable light output, improved beam control, and significantly reduced glare and wasted light.

Combined with advanced thermal management, copper-core circuit boards (Pro models), premium thermal transfer materials, and optimized aluminum heat sinks, the SS30 maintains peak performance while maximizing LED lifespan—even during extended use in demanding environments.

Dual-Color Beam Patterns for Every Driving Condition

The SS30 combines two purpose-built beam patterns into a single light bar for superior adaptability:

• Outer Yellow Combo/Driving Segments: Wide 60° x 30° beam pattern providing excellent peripheral visibility and foreground illumination in rain, fog, dust, and snow.
• Inner White SAE Driving Segment: Focused 20° x 12° driving beam engineered to supplement high beams with increased distance and clarity for high-speed driving.

This intelligent beam combination allows you to adapt instantly to changing terrain and weather conditions without sacrificing performance.

SmartSelect Technology: Three Lighting Modes Without Extra Switches

The SS30 introduces SmartSelect Technology, allowing you to change beam configurations using the factory power circuit—without installing additional switches or complicated controllers.

Simply cycle power to switch between:

• Yellow outer Combo/Driving beams only
• White center SAE Driving beam only
• Full light bar illumination

This patented system provides unmatched flexibility for trail riding, overlanding, off-road racing, or highway driving with minimal wiring complexity.

Premium RGBWA Backlighting with Dynamic Welcome Sequence

More than just a performance light, the SS30 creates an unmistakable appearance.

Features include:

• Full illuminated TIR optic backlighting
• Dedicated true amber outer backlight
• Selectable 8-color RGBWA center backlight
• Simple color selection without external controllers
• Premium animated startup sequence every time the backlight activates

The result is an OEM-quality appearance during the day and a distinctive custom look at night.

Available in Sport and Pro Power Levels

Choose the output that fits your driving style:

• Sport: Outstanding performance and value using premium automotive-grade LEDs.
• Pro: Increased output and intensity for drivers who demand maximum nighttime visibility.

Both versions utilize the same precision-engineered optics and rugged construction.

Built for Extreme Conditions

Designed and tested for serious adventure, the SS30 is built to withstand the harshest environments.

Features include:

• Heavy-duty aluminum housing
• ASTM-standard powder-coated finish
• IP69K waterproof and dustproof rating
• SAE-tested durability for vibration, corrosion, and moisture resistance
• Operating temperatures from -40°F to 185°F

Whether you’re tackling rocky trails, desert terrain, mud, snow, or heavy rain, the SS30 is engineered to perform reliably.

Modular Design with Swappable Lenses

Like the entire Diode Dynamics Stage Series lineup, the SS30 features interchangeable lenses, allowing you to customize beam patterns and lens colors without replacing the entire light bar.

Compatible snap-on lens covers are also available in:

• Clear
• Smoked
• Yellow
• Amber
• Black

Installation takes only seconds with no tools required, adding protection and customization whenever needed.

Why Choose the Diode Dynamics SS30 Dual-Color LED Light Bar?

• Patented TIR optics maximize usable light output
• SmartSelect technology enables three beam modes without additional switches
• Yellow Combo/Driving and White SAE Driving beam patterns in one light bar
• Selectable RGBWA backlighting with dynamic startup animation
• Available in Sport and Pro output levels
• Durable aluminum housing with premium powder-coated finish
• IP69K waterproof construction for extreme environments
• Swappable lenses and snap-on covers for easy customization
• Lifetime warranty
• Proudly made in the USA with global materials

What’s Included

• One (1) Diode Dynamics SS30 Dual-Color LED Light Bar
• One (1) Wire pigtail
• Universal mounting bracket set
• Installation hardware

Warranty: Limited Lifetime Warranty

Whether you’re building the ultimate overland rig, upgrading your off-road lighting system, or looking for one of the most advanced dual-color LED light bars available, the Diode Dynamics SS30 Dual-Color LED Light Bar delivers industry-leading optical performance, innovative SmartSelect functionality, and premium styling that outperforms conventional LED light bars in every category.
