Diode Dynamics SS5 CrossLink 5-Pod 31.5-Inch Stage Series LED Light Bar (Single)

Diode Dynamics SS5 CrossLink 5-Pod 31.5-Inch Stage Series LED Light Bar (Single)

The Diode Dynamics SS5 CrossLink 5-Pod 31.5-inch LED Light Bar delivers uncompromising performance by combining five premium Stage Series SS5 LED Pods into one ultra-rigid modular light bar using Diode Dynamics’ innovative CrossLink™ mounting system. Designed for serious off-road enthusiasts, overlanders, race vehicles, and work trucks, this high-output light bar provides exceptional long-range visibility, customizable beam patterns, and premium styling with a fully illuminated selectable backlight.

Built around patented Total Internal Reflection (TIR) optics, the SS5 CrossLink captures nearly all available light and focuses it precisely where it’s needed, producing significantly greater intensity with less glare than traditional reflector-style LED light bars. Available in 6000K Cool White or 3000K Selective Yellow, and in Sport or Pro power levels, the SS5 CrossLink offers outstanding performance for everything from trail riding to high-speed desert driving.

The patent-pending CrossLink™ system allows you to link up to eight SS5 LED Pods together using precision CNC-machined aluminum connectors, making it easy to create straight or curved light bar configurations that can grow with your build.

Proudly assembled in the USA and backed by a Limited Lifetime Warranty, the SS5 CrossLink 5-Pod Light Bar is engineered for drivers who demand industry-leading performance, durability, and flexibility.

Key Features

• Sold individually (1 Five-Pod Light Bar Assembly)
• Five SS5 LED Pods create a 31.5-inch LED light bar
• Patent-pending CrossLink™ modular mounting system
• Available in 6000K Cool White or 3000K Selective Yellow
• Choice of Driving or Combo beam patterns
• Available in Sport and Pro power levels
• Patented Total Internal Reflection (TIR) optics
• Selectable 8-color Smart Backlight (white models)
• Amber backlight on yellow lens models
• Expandable design supports up to 8 linked SS5 pods
• Heavy-duty CNC-machined aluminum CrossLinks
• Includes center support bracket for added rigidity
• Deutsch-style connectors for easy installation
• Compatible with Snap-On lens covers
• Assembled in the USA
• Backed by a Limited Lifetime Warranty

Patented TIR Optics

Unlike traditional reflector-style lighting, the SS5 uses patented Total Internal Reflection (TIR) optics that capture nearly all available LED output and direct it precisely where it’s needed.

Benefits include:

• Maximum optical efficiency
• Reduced glare
• Greater usable light output
• Exceptional beam control
• Outstanding long-range visibility

With premium automotive-grade LEDs and precision-engineered optics, the SS5 produces one of the highest-output 5-inch LED pod systems available, capable of projecting light nearly a mile downrange in the proper configuration.

Choose Your Beam Pattern

Select the beam pattern that best fits your driving needs.

Driving Beam

Designed for maximum forward visibility with a controlled 30° x 20° beam that provides excellent long-distance illumination while minimizing foreground glare.

Ideal for:

• Highway driving
• High-speed off-road use
• Desert racing
• Auxiliary driving lights

Combo Beam

Combines Driving and Flood optics into a versatile 70° x 30° beam that delivers excellent downrange visibility while illuminating the surrounding terrain.

Perfect for:

• Overlanding
• Trail riding
• Off-road adventures
• General-purpose auxiliary lighting

White or Selective Yellow

Choose the output color that best matches your driving conditions.

6000K Cool White

Produces crisp, daylight-like illumination that closely matches factory LED lighting and provides outstanding nighttime visibility.

3000K Selective Yellow

Designed to improve visibility and reduce glare in:

• Fog
• Rain
• Snow
• Dust
• Smoke

Yellow versions include a dedicated amber backlight that complements the selective yellow lenses.

Sport or Pro Performance

Choose the performance level that best suits your application.

• Sport: 40 watts of output per pod, delivering exceptional performance and value.
• Pro: 90 watts of output per pod for dramatically increased brightness and maximum long-range performance.

Both options utilize premium automotive-grade LEDs and Diode Dynamics’ patented TIR optics for industry-leading efficiency.

CrossLink™ Modular System

The patent-pending CrossLink™ mounting system allows you to build a lighting setup that grows with your vehicle.

Features include:

• Precision CNC-machined aluminum CrossLinks
• Straight or curved mounting configurations
• Expandable up to 8 SS5 pods
• Integrated center support for additional rigidity
• Adjustable mounting angles
• Compatible with all standard SS5 LED Pods

Create a custom lighting system without replacing your existing components.

Smart Backlight

White SS5 CrossLink kits feature a fully illuminated 8-color selectable backlight that fills the entire TIR optic for a bold, premium appearance.

Features include:

• Eight selectable colors
• Simple power-cycle color selection
• No external controller required
• Fully illuminated optic design

Yellow versions include a dedicated amber backlight for a clean factory-inspired appearance.

Built for Extreme Conditions

Every SS5 Stage Series LED Pod is engineered to perform in the harshest environments.

Features include:

• Heavy-duty aluminum construction
• Durable powder-coated finish
• Premium thermal management
• Weather-resistant Deutsch connectors
• Tested from -40°F to 185°F
• SAE-tested durability
• Resistant to vibration, corrosion, and moisture

Whether you’re exploring remote trails, racing through the desert, or outfitting a work truck, the SS5 CrossLink is built for dependable performance year after year.

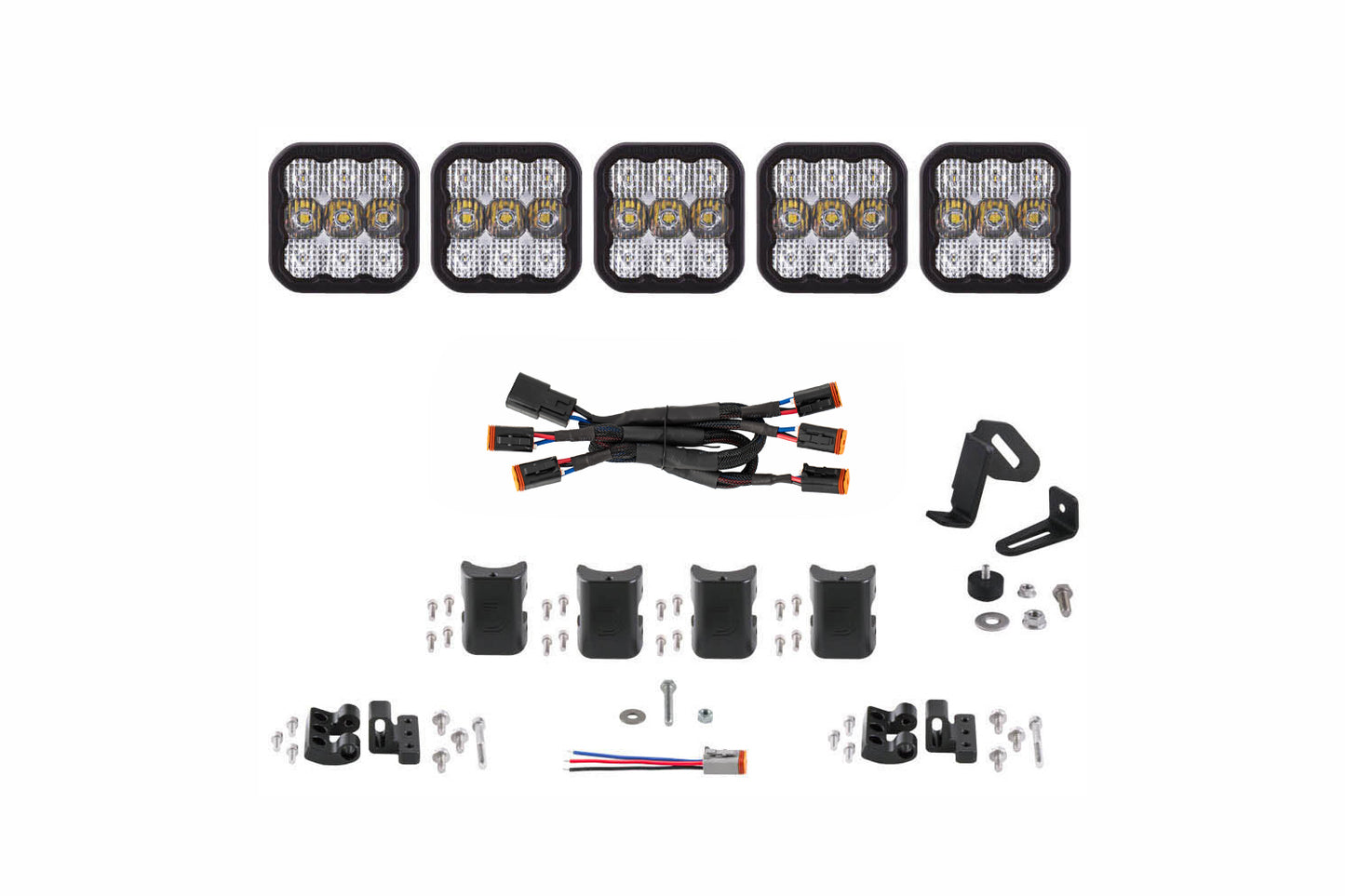

What’s Included

• (5) Diode Dynamics SS5 Stage Series 5-Inch LED Pods
• (4) CrossLink™ Connectors with Hardware
• (1) CrossLink™ Center Support with Hardware
• (1) CrossLink™ End Mount Kit
• (1) DT 5-Pod Connecting Harness
• (1) Deutsch-Style Wire Pigtail

Quantity: One (1)

Warranty: Limited Lifetime Warranty
