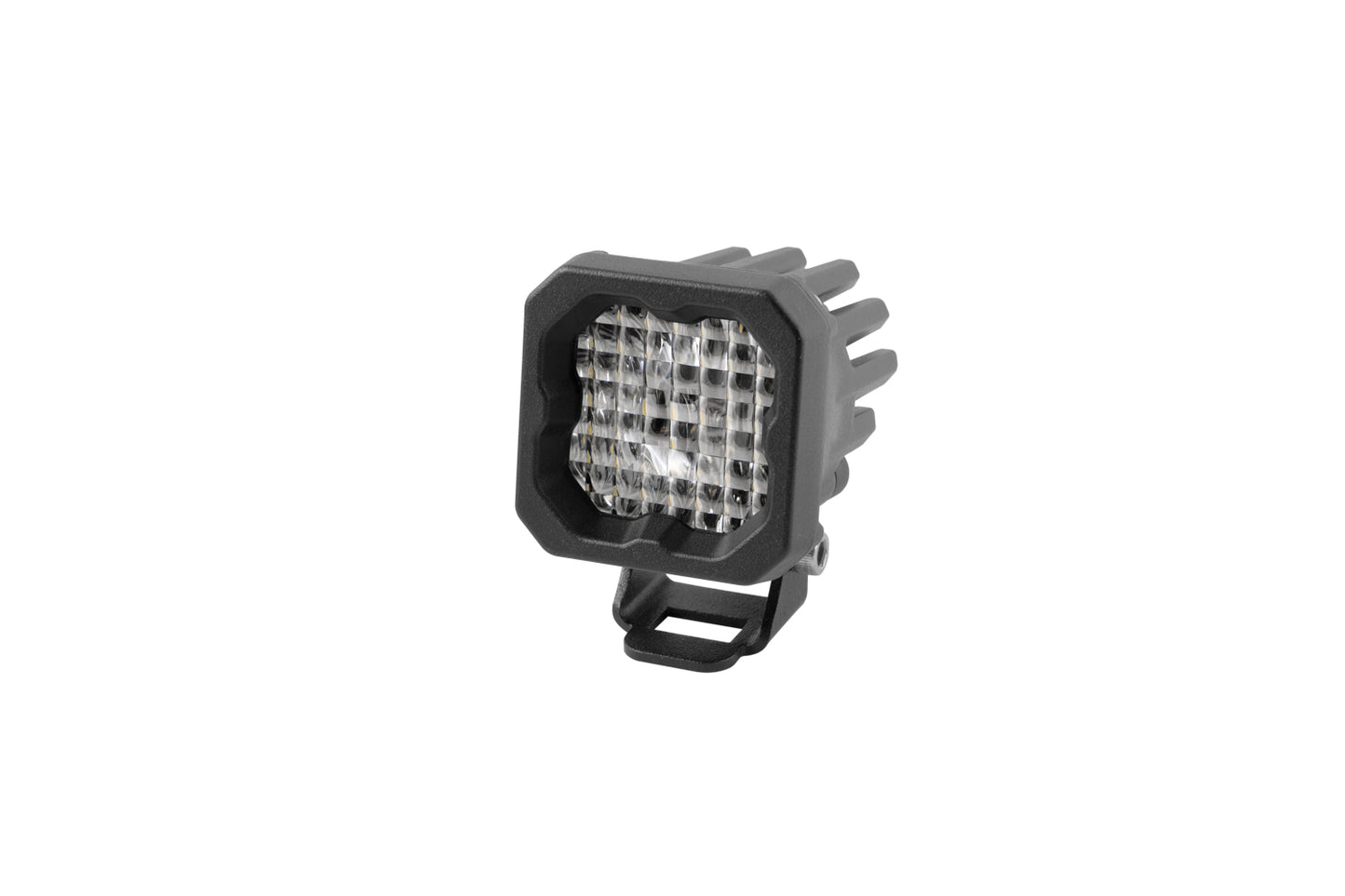

Diode Dynamics SSC1 Stage Series LED Pod – Single

Diode Dynamics SSC1 Stage Series LED Pod – Single

Get powerful auxiliary lighting in an ultra-compact package with the Diode Dynamics SSC1 Stage Series LED Pod. Designed for cars, trucks, motorcycles, UTVs, trailers, and custom lighting applications, the SSC1 combines a single high-intensity LED with custom-engineered TIR optics for focused, efficient output.

Its compact footprint makes the Diode Dynamics SSC1 ideal for tight mounting locations where larger LED pods won’t fit. Choose from multiple beam patterns, output colors, power levels, and backlight options to build the lighting setup that fits your application.

Quantity: One (1) LED Pod

Key Features

• Ultra-compact single-LED design
• Custom-engineered TIR optics
• High-intensity LED output
• Flood, Wide, and Spot beam options
• Cool white or selective yellow output options
• Amber or red backlight options
• Sport and Pro power levels available
• Interchangeable lenses
• Pin-fin heatsink for thermal management
• Integrated DT-type Deutsch-style connector
• Standard mounting bracket included
• Compatible with cars, trucks, motorcycles, UTVs, trailers, and more
• Designed, torture-tested, and assembled in the USA
• Lifetime warranty

Compact Stage Series Auxiliary Lighting

The Diode Dynamics SSC1, also known as the Stage Series C1, is designed to provide useful auxiliary illumination from an extremely compact housing.

Its single-LED form factor allows installation in tight spaces on bumpers, roof racks, motorcycles, UTVs, trailers, and other locations where a larger 2-inch or 3-inch LED pod may not fit.

Custom-Engineered TIR Optics

Instead of relying on a traditional reflector, the SSC1 uses a Total Internal Reflection (TIR) optic to collect and precisely direct light from the LED.

The custom-molded TIR optic also serves as the main lens, helping reduce optical losses while creating controlled, application-specific beam patterns.

Available Beam Patterns

Flood: Produces a broad 50x50-degree pattern for uniform illumination. It’s well suited for backup lighting, scene lighting, trailers, campsites, and low-speed applications.

Wide: Produces a 50x20-degree pattern that combines useful horizontal coverage with a tighter vertical spread. This is a versatile choice for general auxiliary lighting.

Spot: Produces a concentrated 7-degree beam designed for long-distance illumination.

An SAE Fog version is also available separately for applications requiring an SAE-specific fog-light pattern.

White or Yellow Output

Stage Series C1 LED Pods are available in two output colors:

Cool White – 6000K: Provides a clean, modern white output designed to complement many factory LED lighting systems.

Selective Yellow – 3000K: Provides a distinctive yellow appearance and high visual contrast.

Available configurations vary by beam pattern and power level.

Amber or Red Backlight

The SSC1 features an integrated backlight that illuminates the TIR optic for a distinctive accent-light appearance.

Depending on the selected configuration, amber or red backlighting is available. This allows the SSC1 to provide accent lighting in addition to its primary auxiliary-light function.

Always check local regulations regarding auxiliary and accent lighting use on public roads.

Sport & Pro Power Levels

The Stage Series SSC1 is offered in Sport and Pro configurations. Both use high-intensity LED emitters paired with Diode Dynamics TIR optics, while the Pro version uses a higher amount of total power for increased performance.

Select the appropriate power level based on your desired output and application.

Interchangeable Lenses

Want to change your lighting setup later? The SSC1 uses interchangeable lenses, allowing compatible beam pattern or output-color changes without replacing the entire pod.

This makes the C1 platform particularly useful for custom and evolving vehicle builds.

Flexible Mounting Options

The SSC1 can be used in standard or flush-mount configurations, depending on the hardware selected. Compatible mounting adapters can also allow installation on GoPro-style mounting points.

Its small footprint makes it a versatile option for:

• Trucks and SUVs
• Off-road vehicles
• UTVs and side-by-sides
• Motorcycles
• Trailers
• Roof racks
• Backup lighting
• Scene and work lighting

Deutsch-Style Connection

The SSC1 features an integrated DT-type Deutsch-style connector and includes a 6-inch pigtail with bare leads.

This provides a durable connection point while allowing the pod to be integrated into an appropriate vehicle or auxiliary lighting harness.

Proven Stage Series Reliability

Diode Dynamics Stage Series lighting is tested for long-term operation from -40°F to 185°F, along with vibration, moisture intrusion, and corrosion testing.

A pin-fin heatsink helps manage heat from the LED while the durable housing is designed for demanding automotive and powersports applications.

What’s Included

• One (1) Diode Dynamics Stage Series C1 / SSC1 LED Pod
• One (1) Deutsch-style wire pigtail
• One (1) mounting bracket
• Mounting hardware

Quantity: One (1)
Series: Stage Series C1 / SSC1
Beam Options: Flood, Wide, Spot
Output Colors: 6000K Cool White or 3000K Selective Yellow
Backlight Options: Amber or Red
Power Levels: Sport or Pro
Connector: DT-type Deutsch-style
Mounting: Standard bracket included
Warranty: Lifetime warranty
Designed, tested and assembled in: USA
