Diode Dynamics C1R White Flood LED Pod – Single | DD7423S

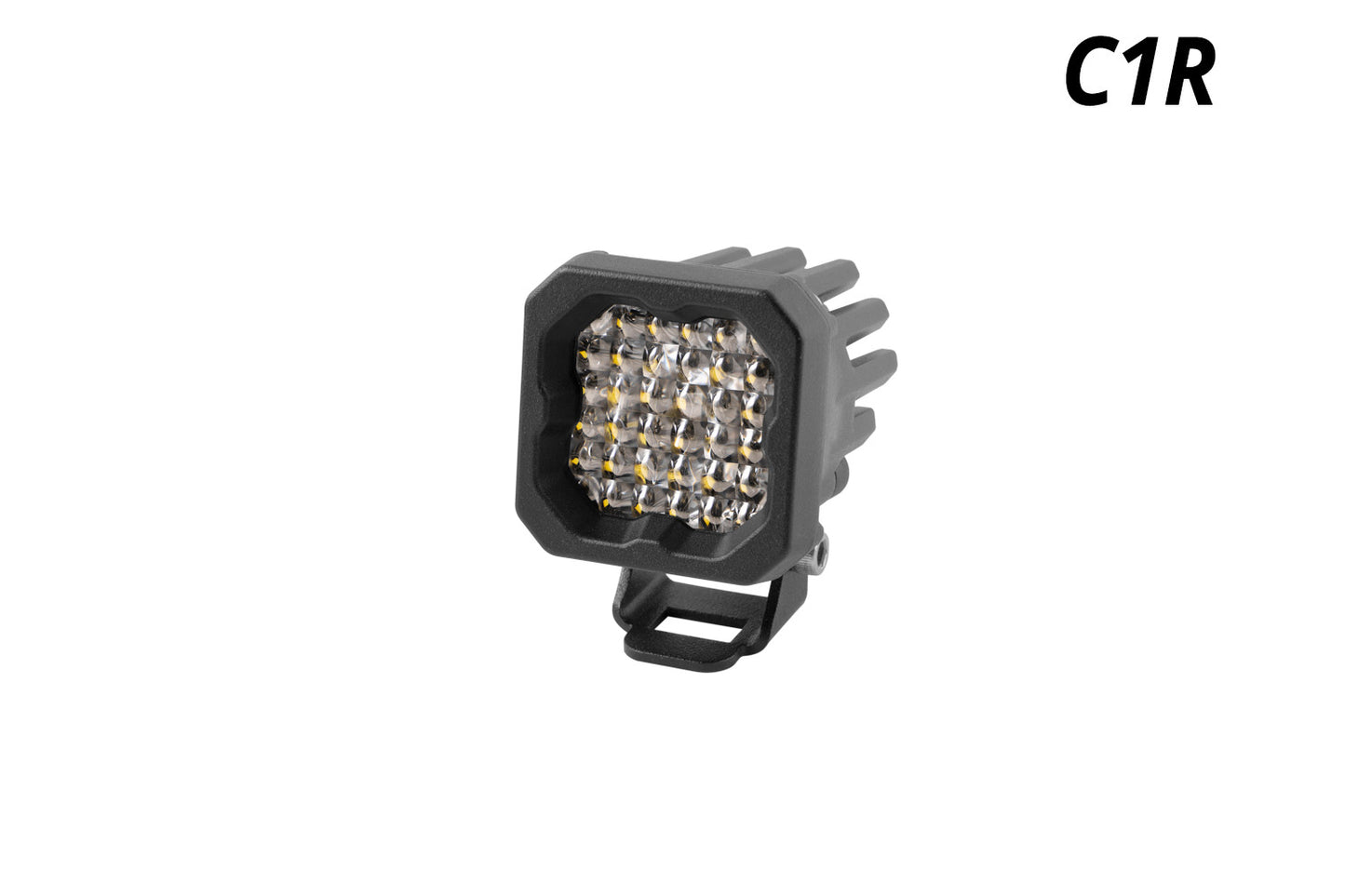

Diode Dynamics Stage Series C1R White Flood LED Pod – Single

Add three lighting functions in one ultra-compact package with the Diode Dynamics Stage Series C1R White Flood LED Pod (DD7423S). The Diode Dynamics C1R combines a high-power white main beam, high-power red main beam, and low-power red accent light, allowing one compact LED pod to handle multiple rear-facing lighting functions.

With custom-engineered TIR optics and a wide 80x50-degree Flood beam, the C1R is an excellent choice for reverse lighting, brake-light integration, running lights, scene lighting, trailers, and other custom automotive or powersports applications.

Part Number: DD7423S
Quantity: One (1) LED Pod

Key Features

• Single Diode Dynamics Stage Series C1R LED Pod
• Triple-function LED lighting
• High-power cool white main beam
• High-power red main beam
• Low-power red accent light
• Wide 80x50-degree Flood pattern
• Custom-engineered TIR optics
• Ultra-compact single-LED design
• Pin-fin heatsink for thermal management
• Integrated DT-type Deutsch-style connector
• 4-pin wiring pigtail included
• Interchangeable lens design
• Standard mounting bracket and hardware included
• Designed, torture-tested, and assembled in the USA
• Lifetime warranty

Three Lighting Functions in One Pod

The C1R LED Pod is designed to combine three independently activated lighting functions into a single compact housing.

The high-power white output can be integrated as an auxiliary reverse light, providing additional illumination behind the vehicle.

The high-power red output can be used as an additional brake light, while the low-power red output can function as a secondary running light.

This combination makes the C1R particularly useful for trucks, SUVs, UTVs, trailers, and custom rear-lighting installations where mounting space is limited.

Wide 80x50° Flood Beam

The DD7423S features Diode Dynamics’ Flood beam pattern, designed to produce smooth and even illumination across a broad area.

Its 80x50-degree spread makes it well suited for close-range visibility rather than concentrated long-distance lighting. This makes the white main beam useful for applications such as:

• Auxiliary reverse lighting
• Trailer lighting
• Scene lighting
• Campsite lighting
• Roof rack lighting
• Work and utility lighting

Custom-Engineered TIR Optics

The Stage Series C1R uses Total Internal Reflection (TIR) optics instead of relying solely on a conventional reflector.

The TIR optic collects and controls the LED’s output, directing the light into the intended beam pattern while minimizing wasted light. The custom-molded optic also serves as the main lens for an efficient, compact design.

Ultra-Compact C1R Design

With its single-LED form factor, the C1R is designed for installations where larger LED pods may not fit.

Its compact size makes it a versatile lighting option for cars, trucks, SUVs, motorcycles, UTVs, trailers, and custom vehicle builds.

The C1R platform can also be used with compatible flush-mount and GoPro-style mounting solutions for additional installation flexibility.

Interchangeable Lens

The Stage Series C1R features an interchangeable lens design. Compatible replacement lenses allow the lighting configuration to be changed without replacing the entire pod.

This provides additional flexibility for custom builds and changing lighting requirements.

4-Pin Deutsch-Style Connection

The C1R uses an integrated DT-type Deutsch-style connector and includes a 4-pin, 6-inch pigtail with bare leads.

Wiring functions are:

• Yellow wire: High-power red
• Red wire: High-power white
• Blue wire: Low-power red
• Black wire: Ground

This allows the three lighting functions to be wired independently according to your application.

Built for Demanding Applications

Diode Dynamics Stage Series LED lighting is tested for long-term operation from -40°F to 185°F, along with vibration, moisture intrusion, and corrosion testing.

The C1R also uses a pin-fin heatsink design to help dissipate heat during operation.

What’s Included

• One (1) Stage Series C1R White Flood LED Pod
• One (1) Deutsch-style 4-pin wire pigtail
• One (1) mounting bracket
• Mounting hardware

Part Number: DD7423S
Quantity: One (1)
Series: Stage Series C1R
Main Output: Cool White
Secondary Output: High-Power Red
Accent Output: Low-Power Red
Beam Pattern: Flood
Beam Spread: 80x50 degrees
Connector: DT-type Deutsch-style, 4-pin
Mounting: Standard
Warranty: Lifetime warranty
Designed, tested and assembled in: USA
