Diode Dynamics RGBW Multicolor Footwell LED Kit
Description
Features
- Adds RGBW color-changing ability to your footwell area.
- Highly flexible, waterproof LED strips.
- High-density LEDs for brighter output.

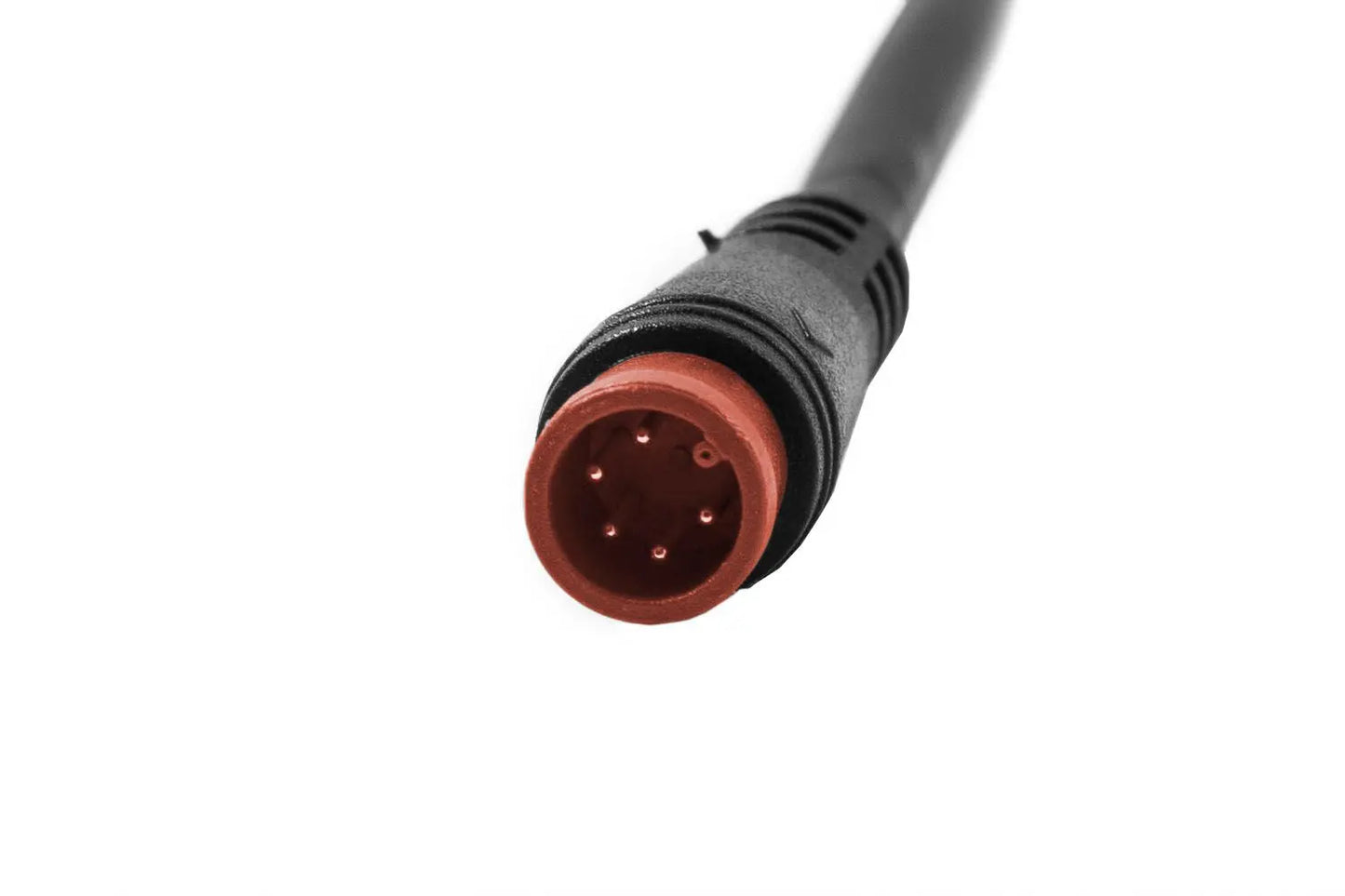

- Barrel-style M8 connectors, for secure connection.
Overview

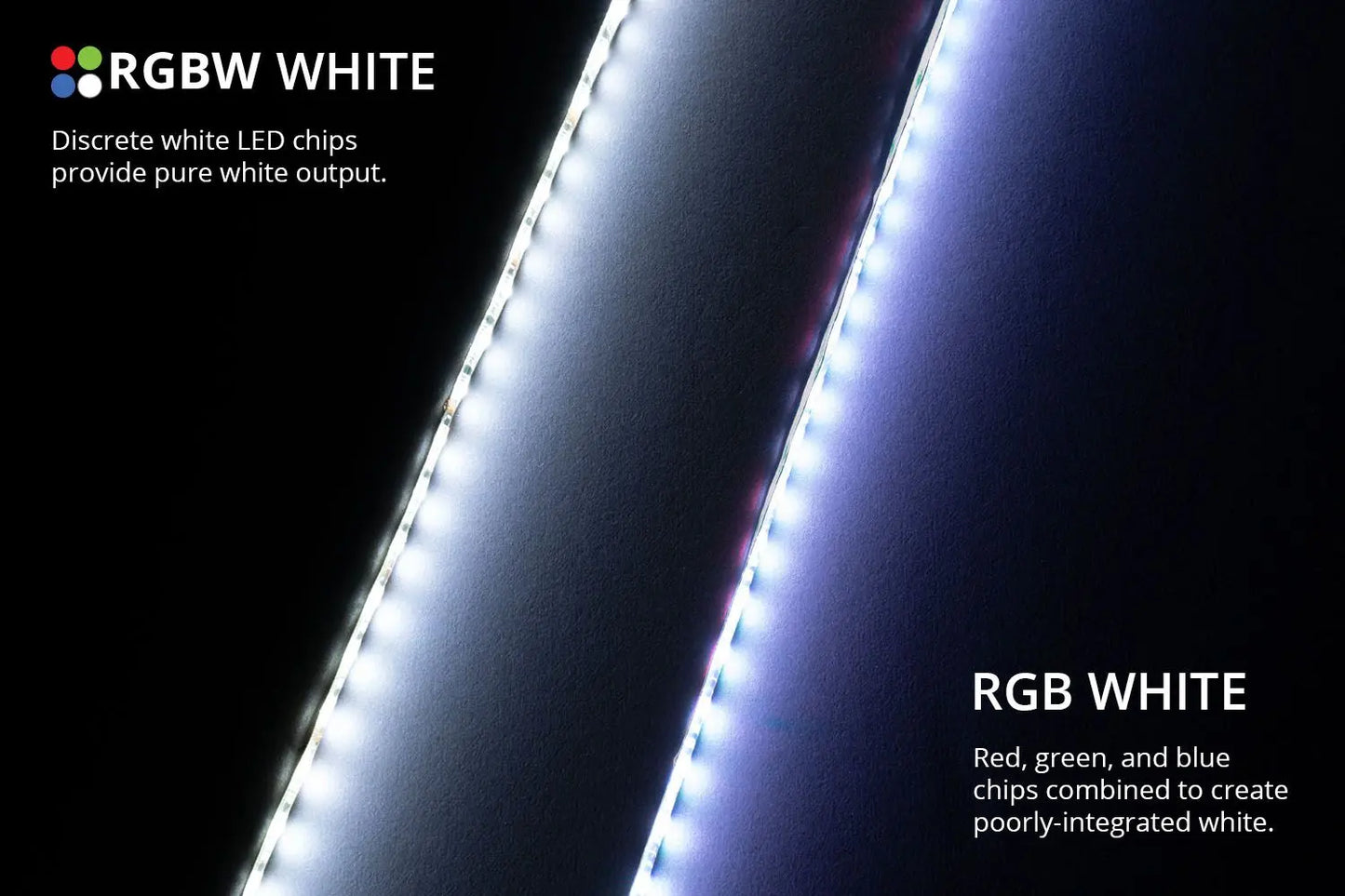

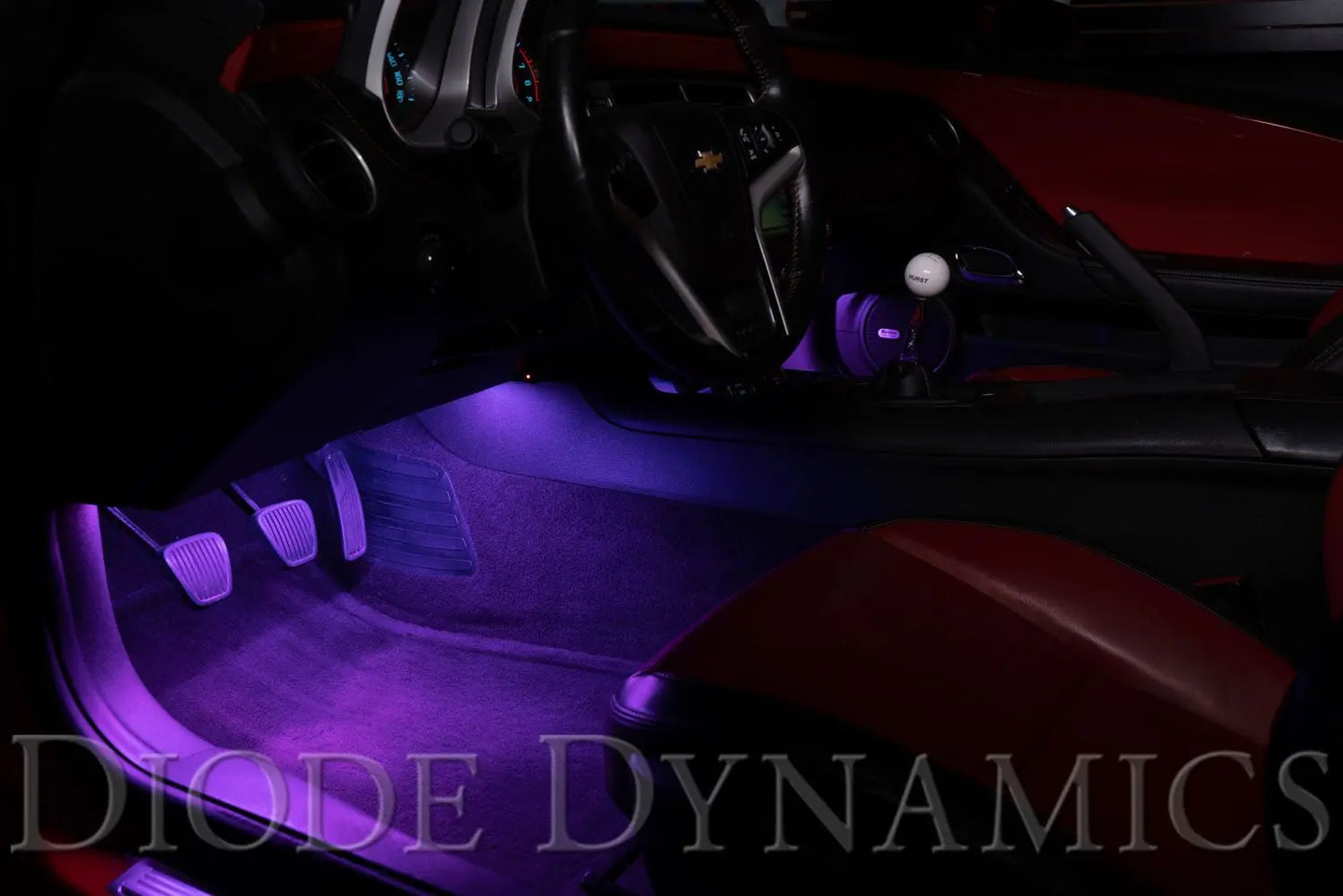

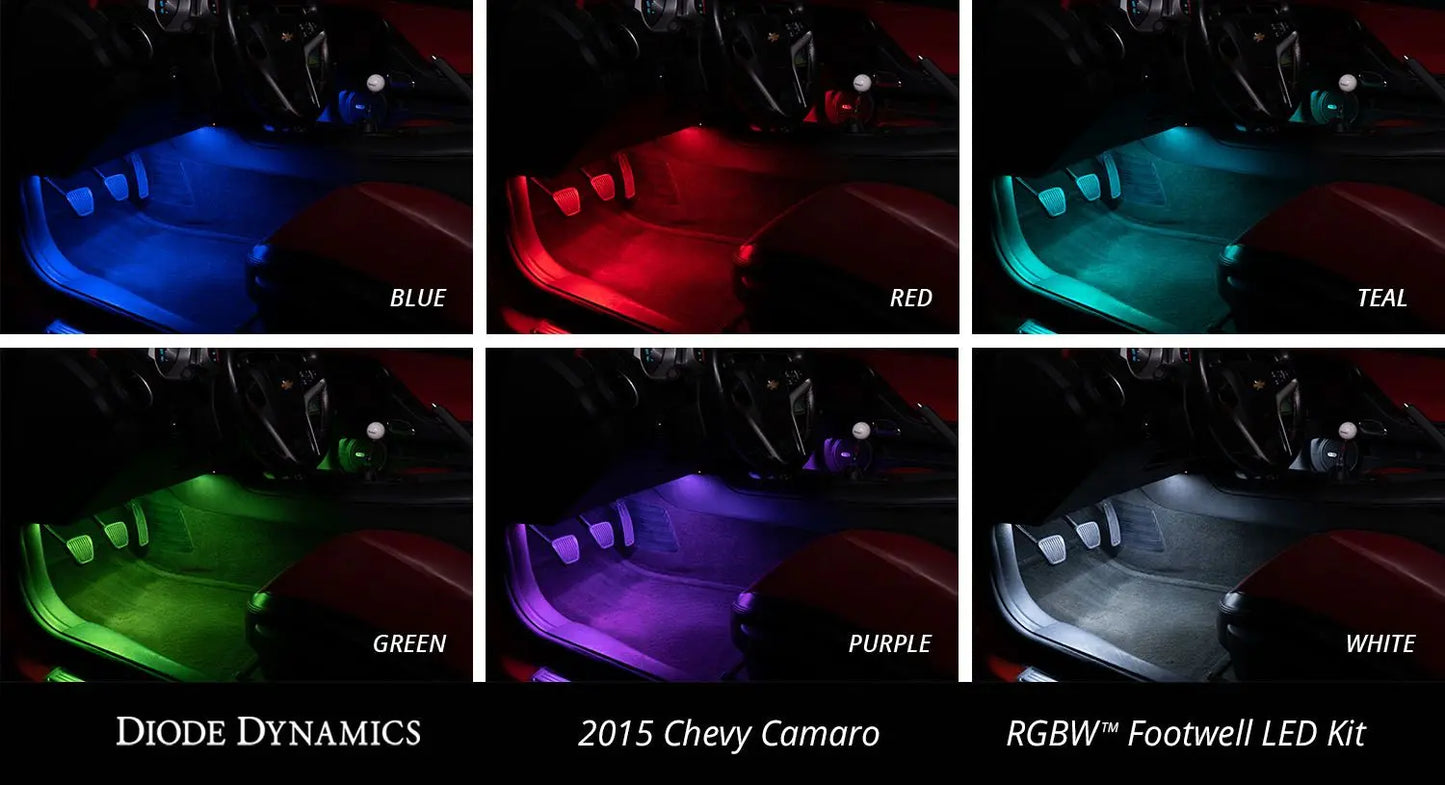

Multicolor. Add RGBW color-changing ability to your vehicle with our Multicolor Footwell LED Strip Kit! This product is not just RGB, it is RGBW! That means there is an extra integrated LED chip that is specifically white in color, right next to the standard red, green, and blue LEDs. By using an RGBW controller, you can activate and control the white chip independently of the colors. This provides a much more uniform, pure, and bright white color than the traditional method of combining all RGB signals. With our multicolor LED strips installed, the possibilities are endless!

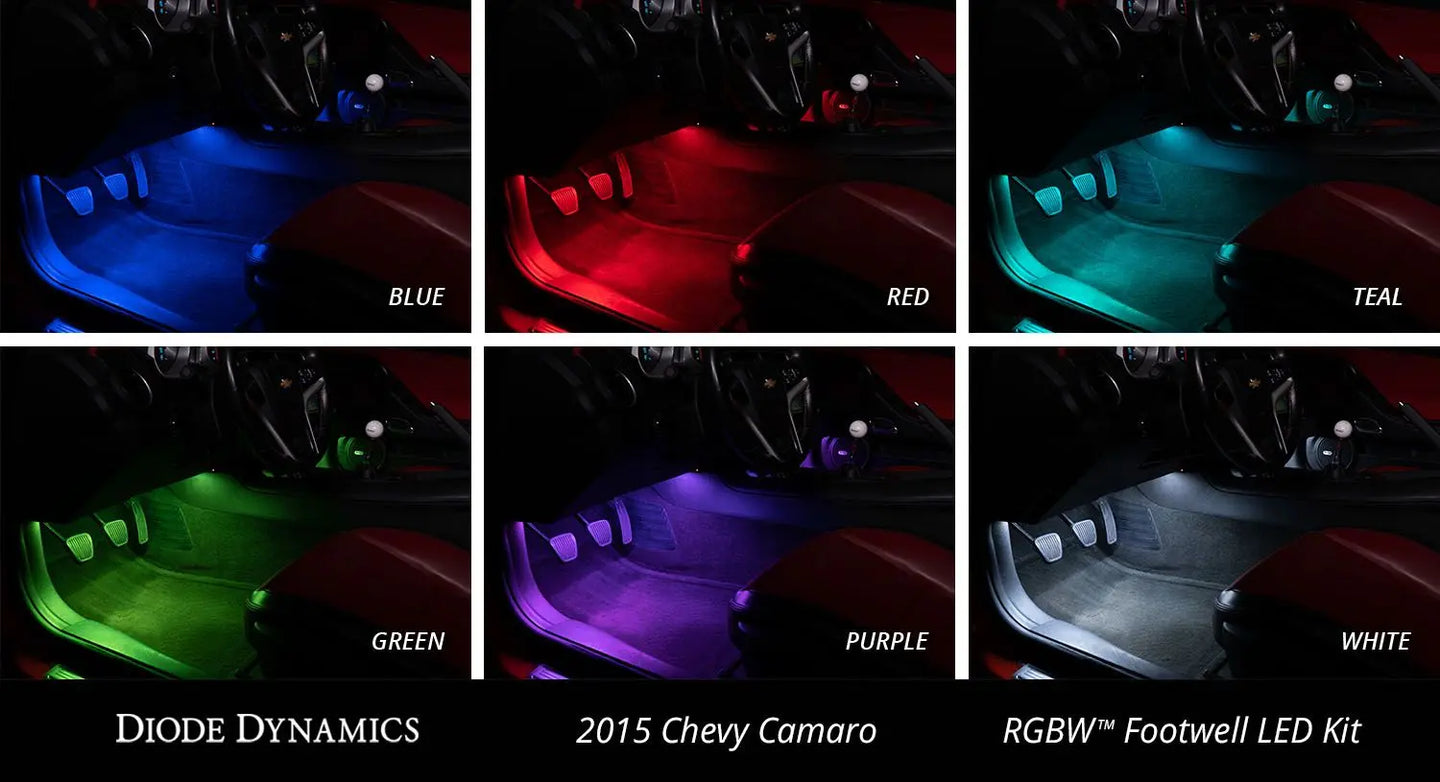

Control. Diode Dynamics Bluetooth Controller will allow you to choose any color under the sun, including True White, directly from your phone! Our mobile app includes a wide variety of features including strobe and fade effects, preset colors, Camera Match, Music Sync, and much more. Our controller will also allow you to adjust the brightness of the LED strips. Any time you power up your strips, they will default to the last color that was previously selected.

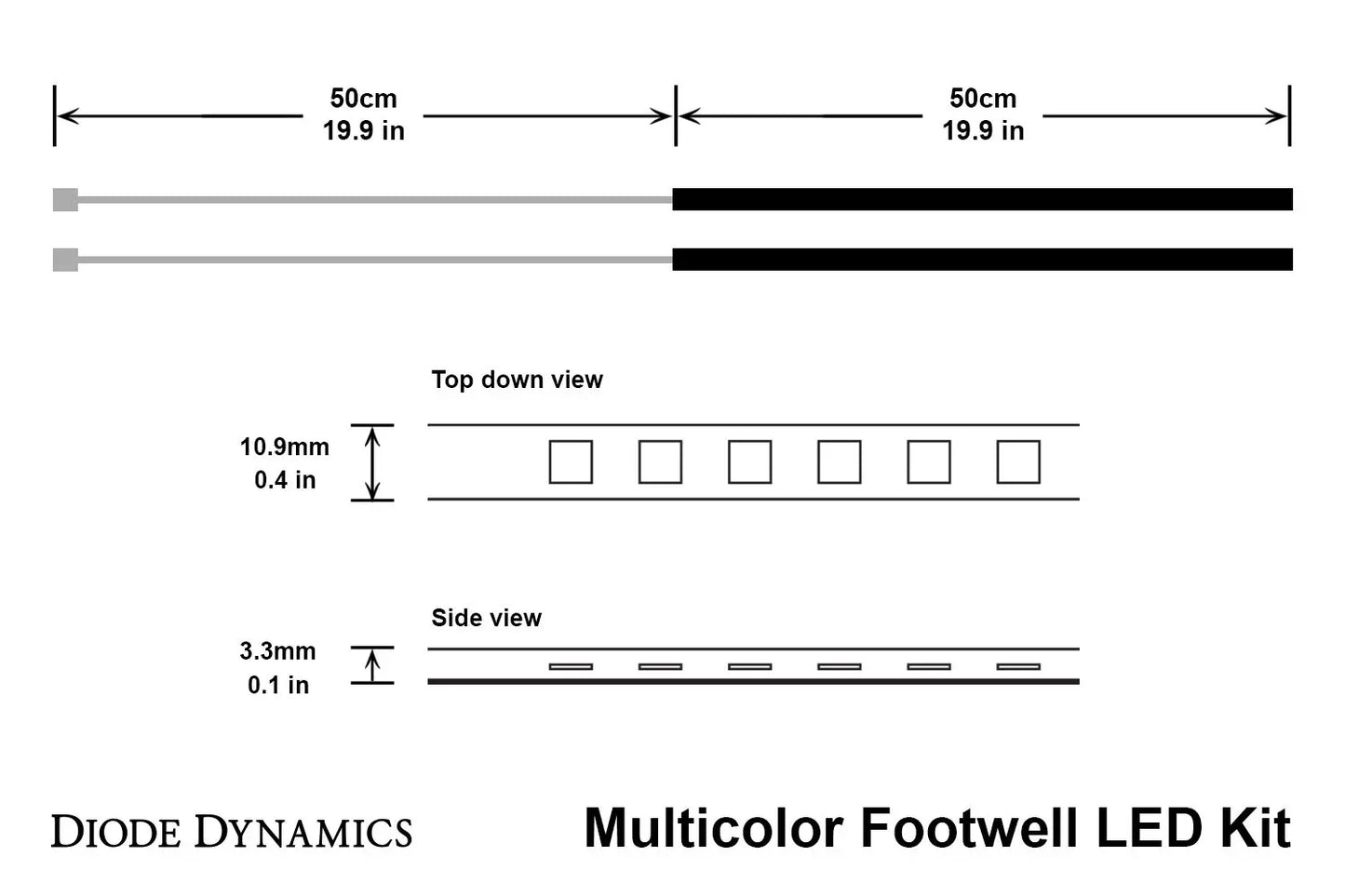

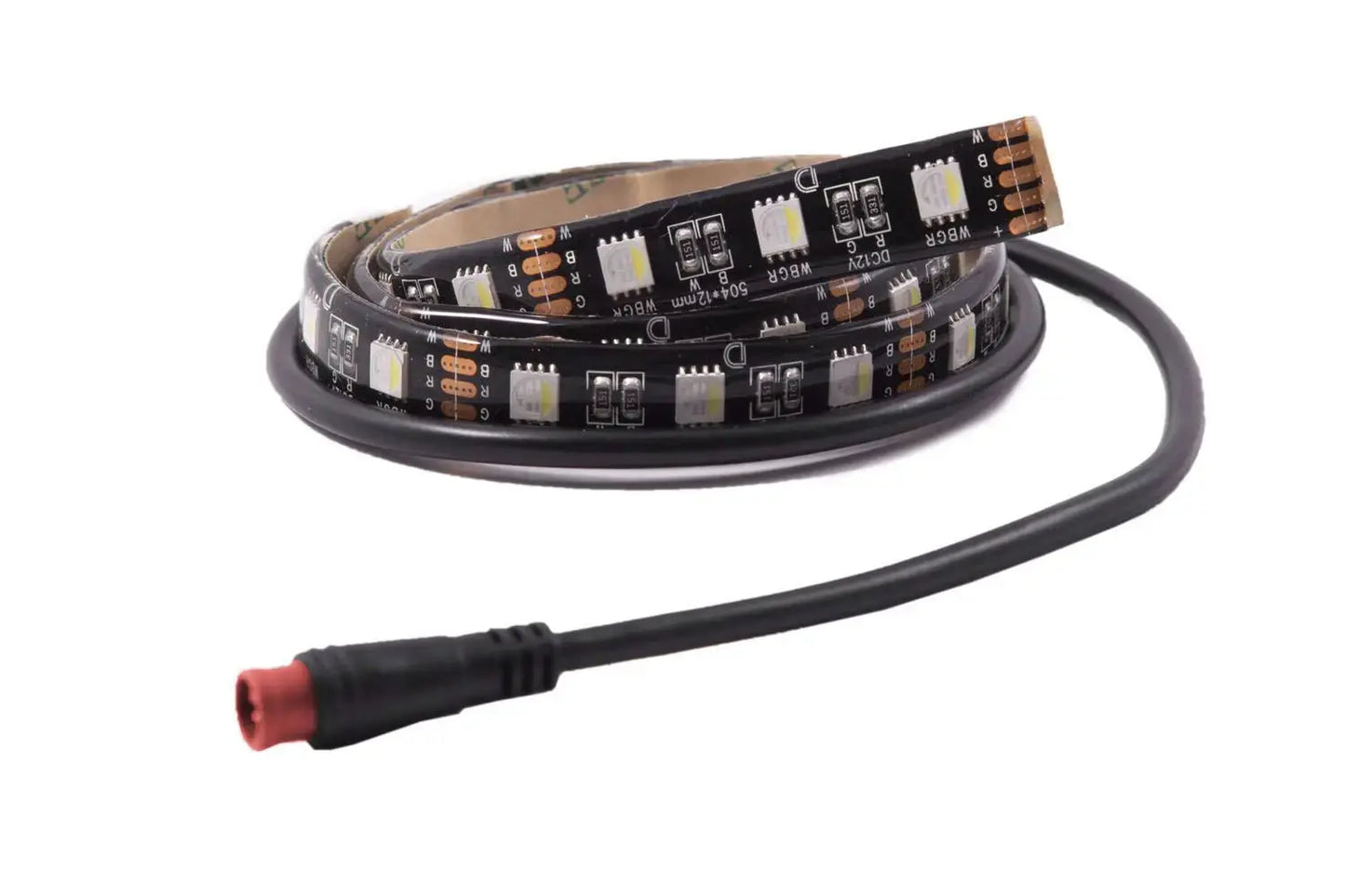

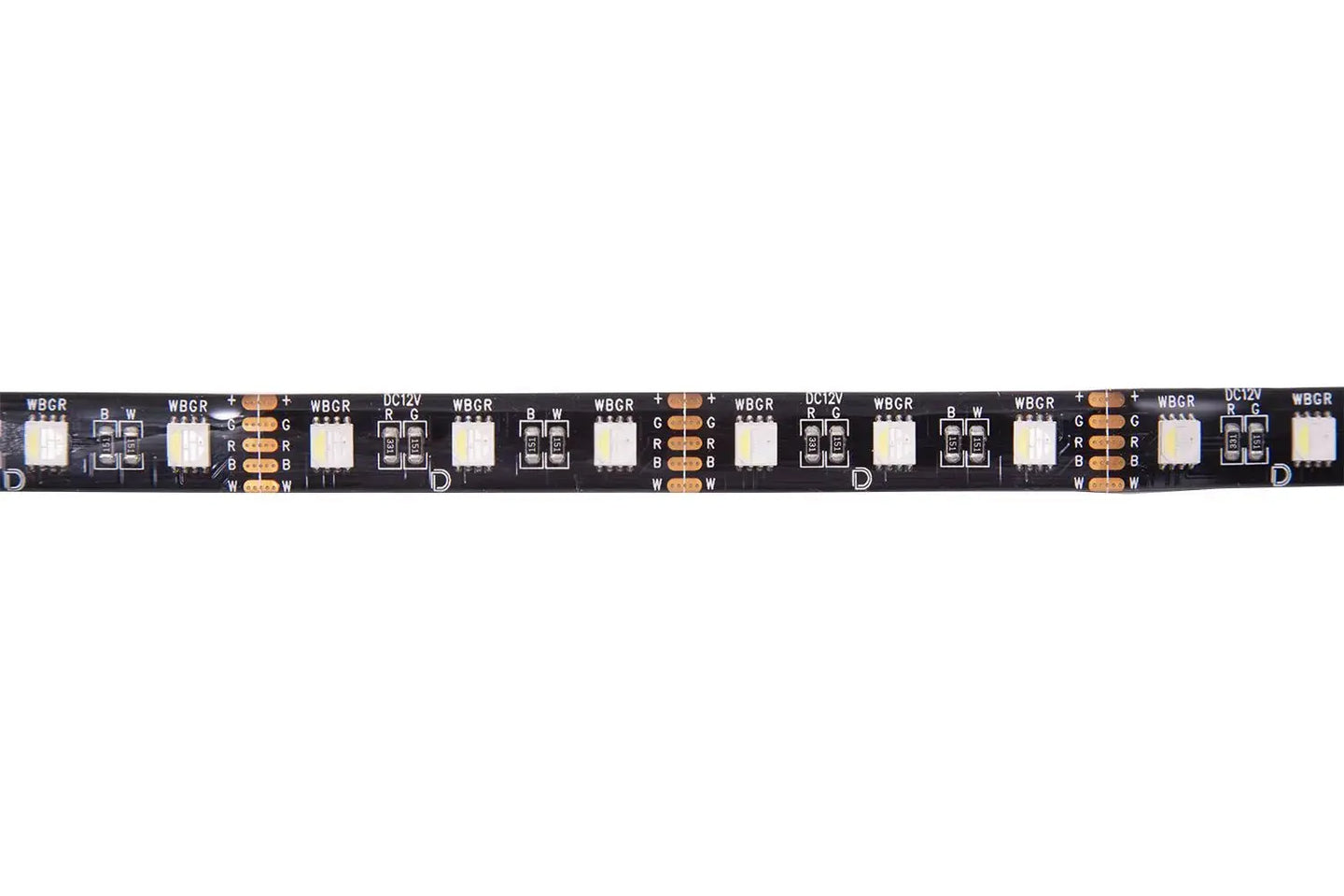

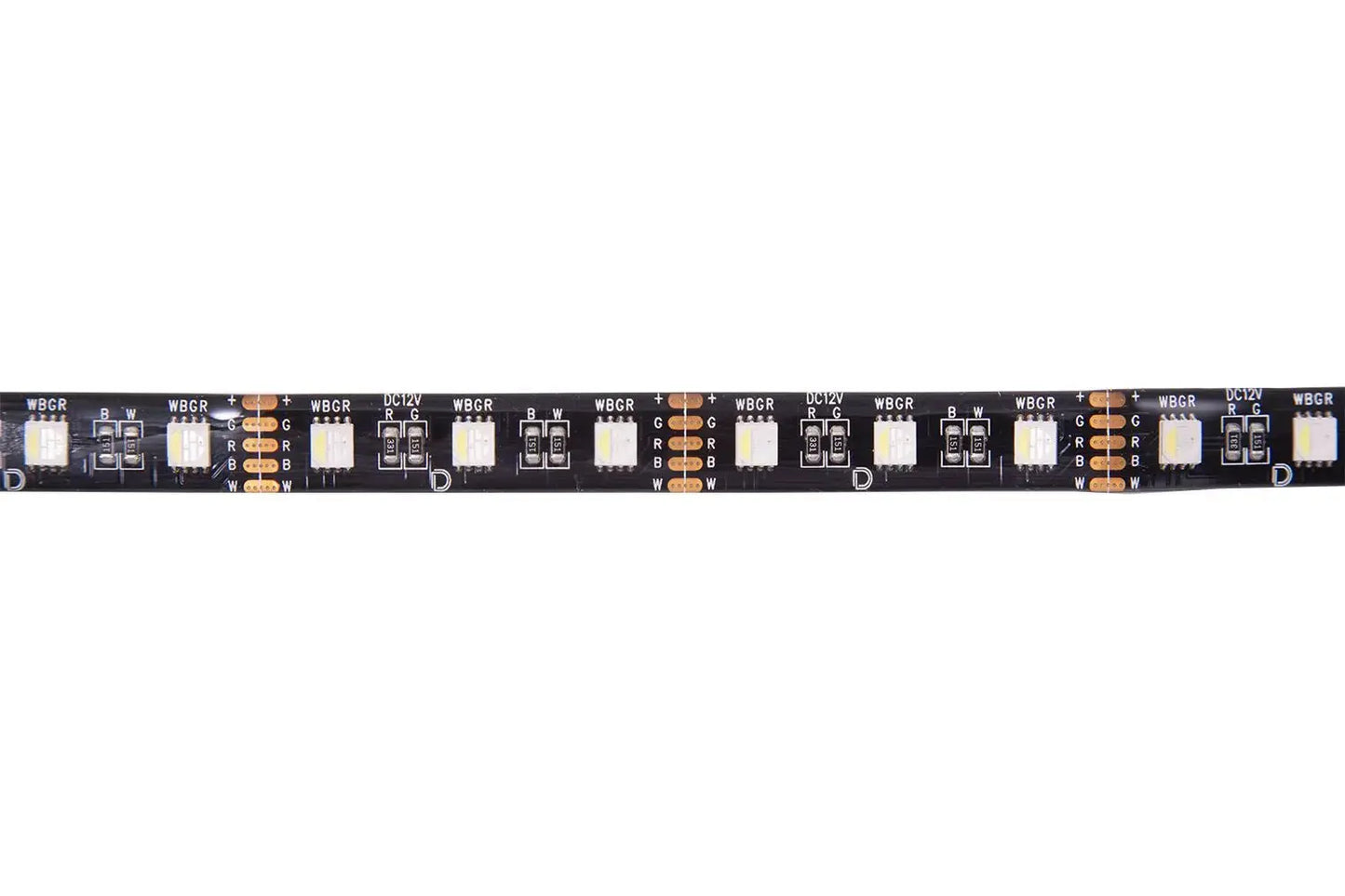

Cut to size. These LED strips are flexible, IP67 weatherproof SMD-type LED strips, with 3 SMDs per 5 cm. They are cuttable every 3 chips, to size to your need, and come with 3M adhesive backing. Due to the weatherproofing, cut portions cannot be reattached without manual soldering, which removes the weatherproofing properties. Weatherproofing can be reapplied through waterproofing products.

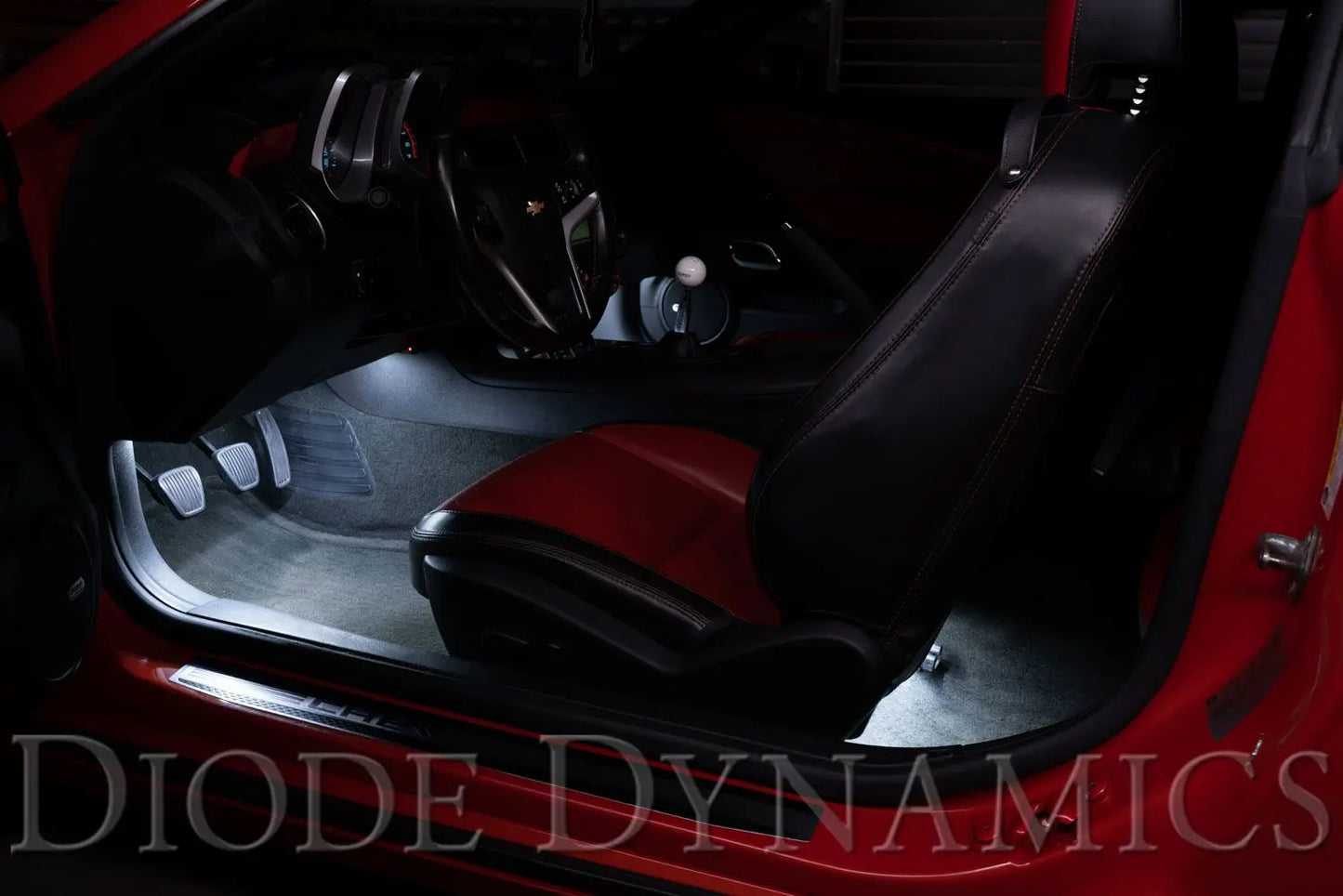

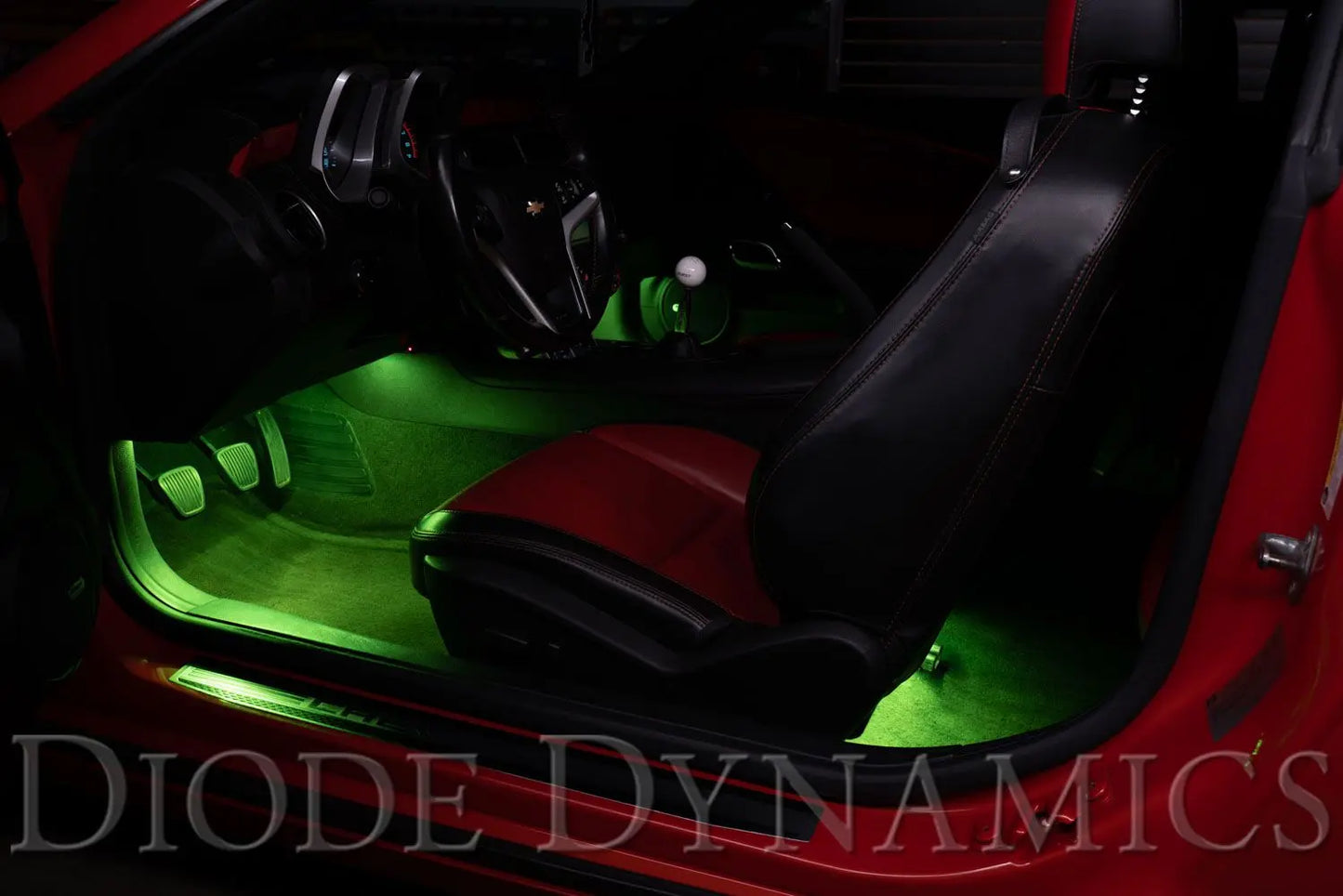

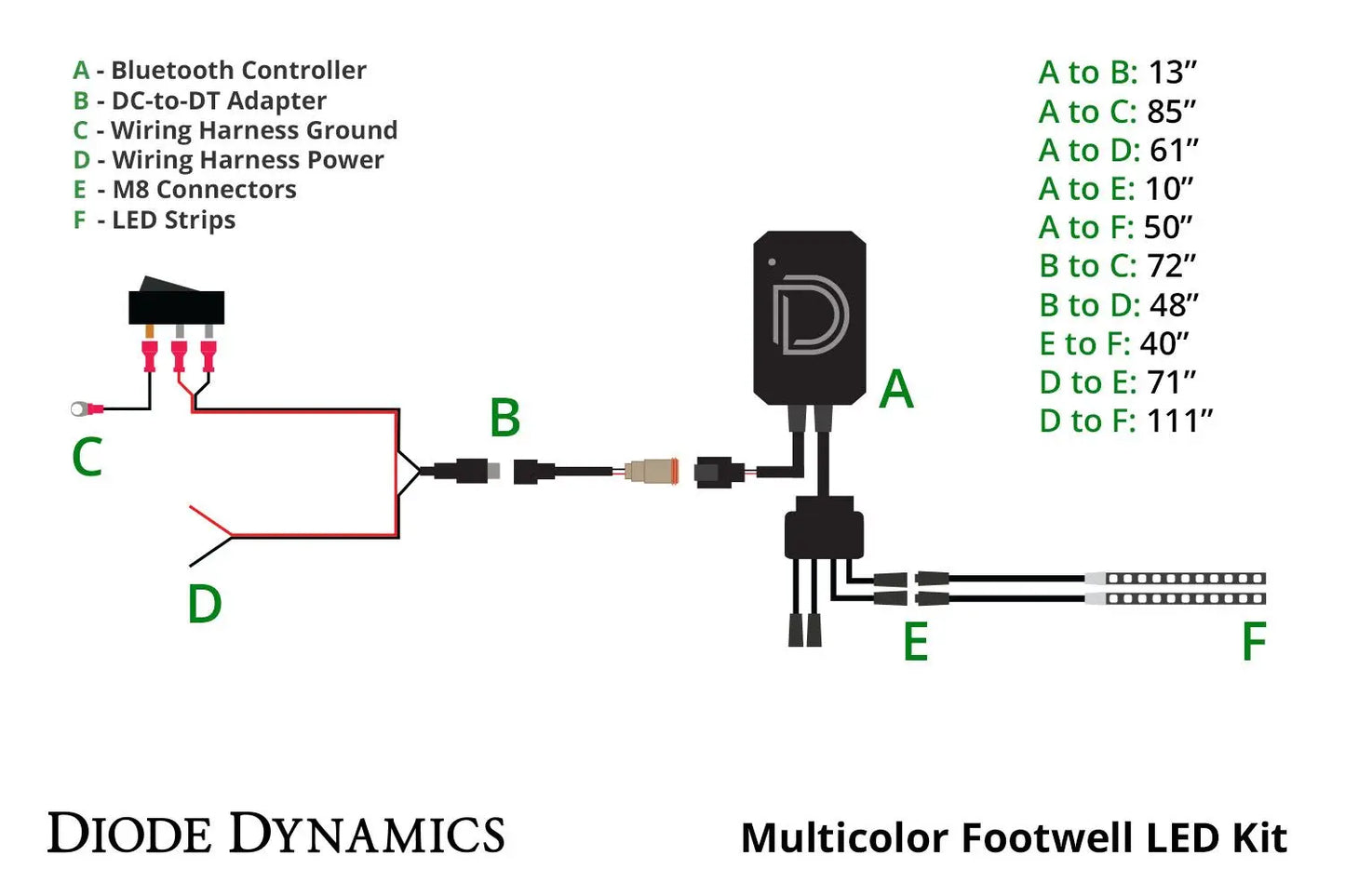

Installation. The 2-piece kit includes everything you need to install LED strips in the front footwell area on both the driver and passenger side of your vehicle. The 4-piece kit includes everything you need to install LED strips in the front and rear footwell areas on both the driver and passenger side of your vehicle. This kit is very universal in nature, and can be tapped into any 12V power source that you would like when installing.
What's Included

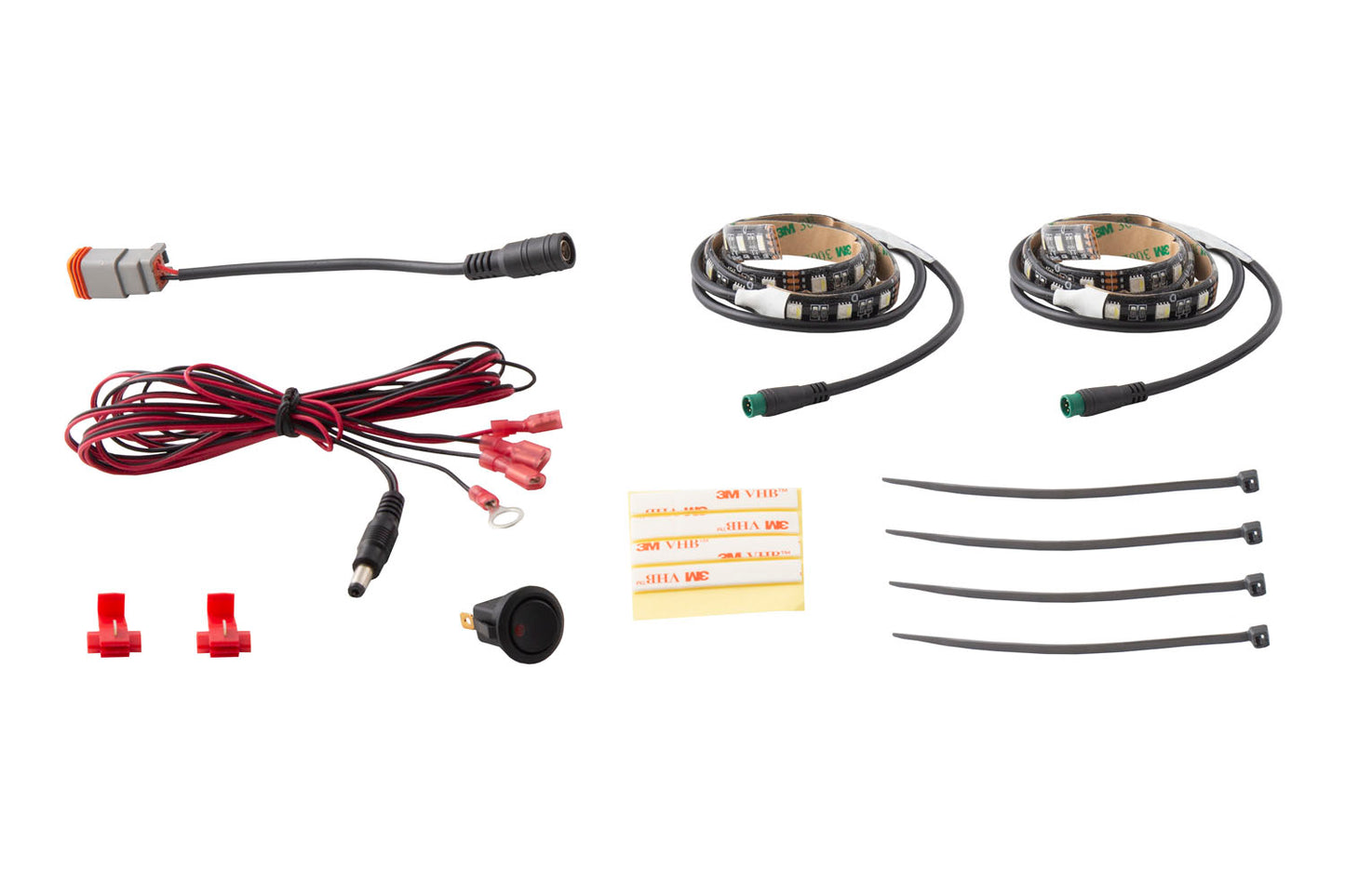

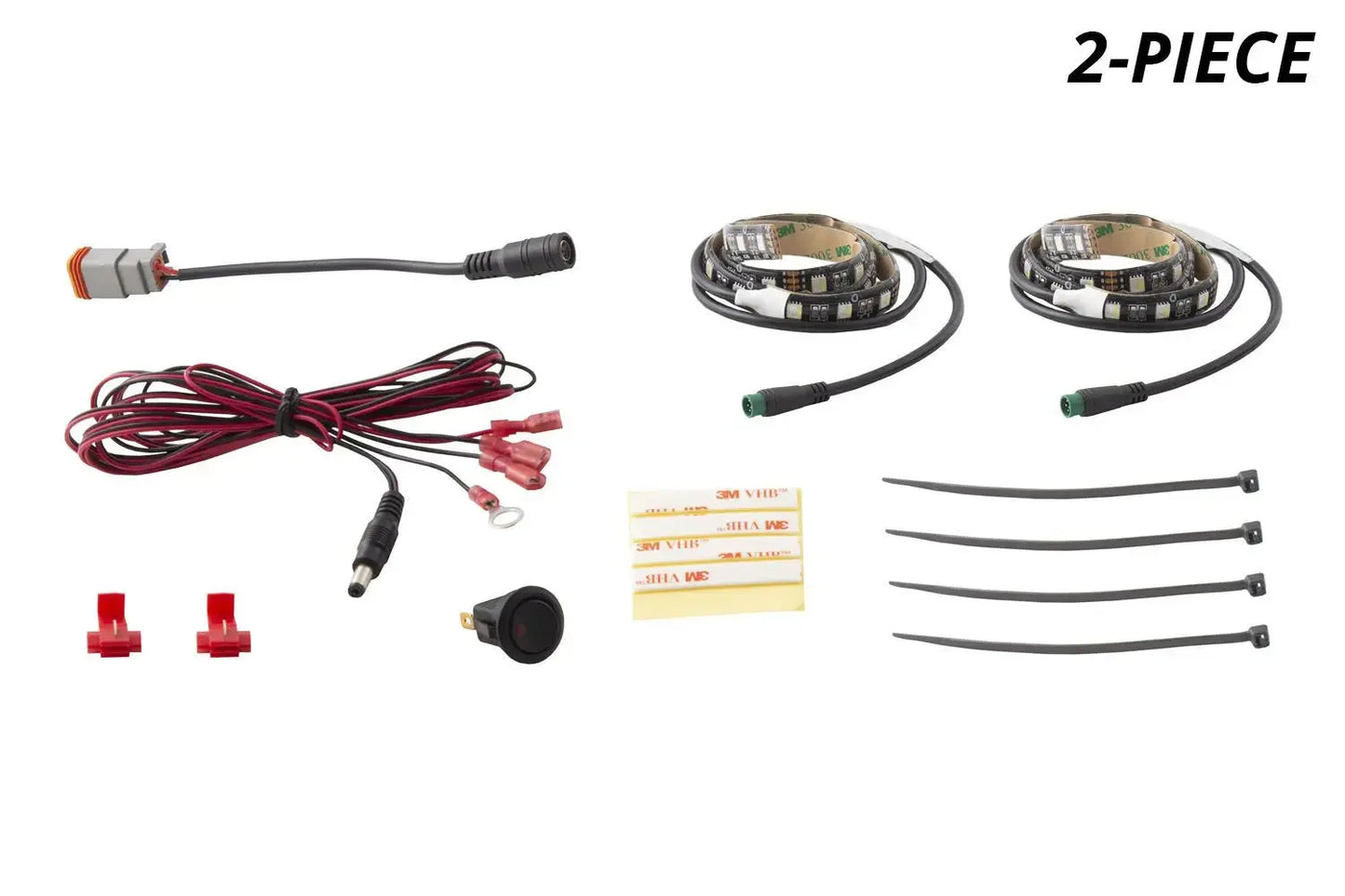

2 Piece Kit
- Two (2) 50cm RGBW SMD30 Strips
- One (1) wiring harness (4-foot)
- Two (2) quick splices
- One (1) red LED toggle switch
- One (1) DC-to-DT adapter
- Four (4) zip-ties
- One (1) 3M outdoor adhesive pad

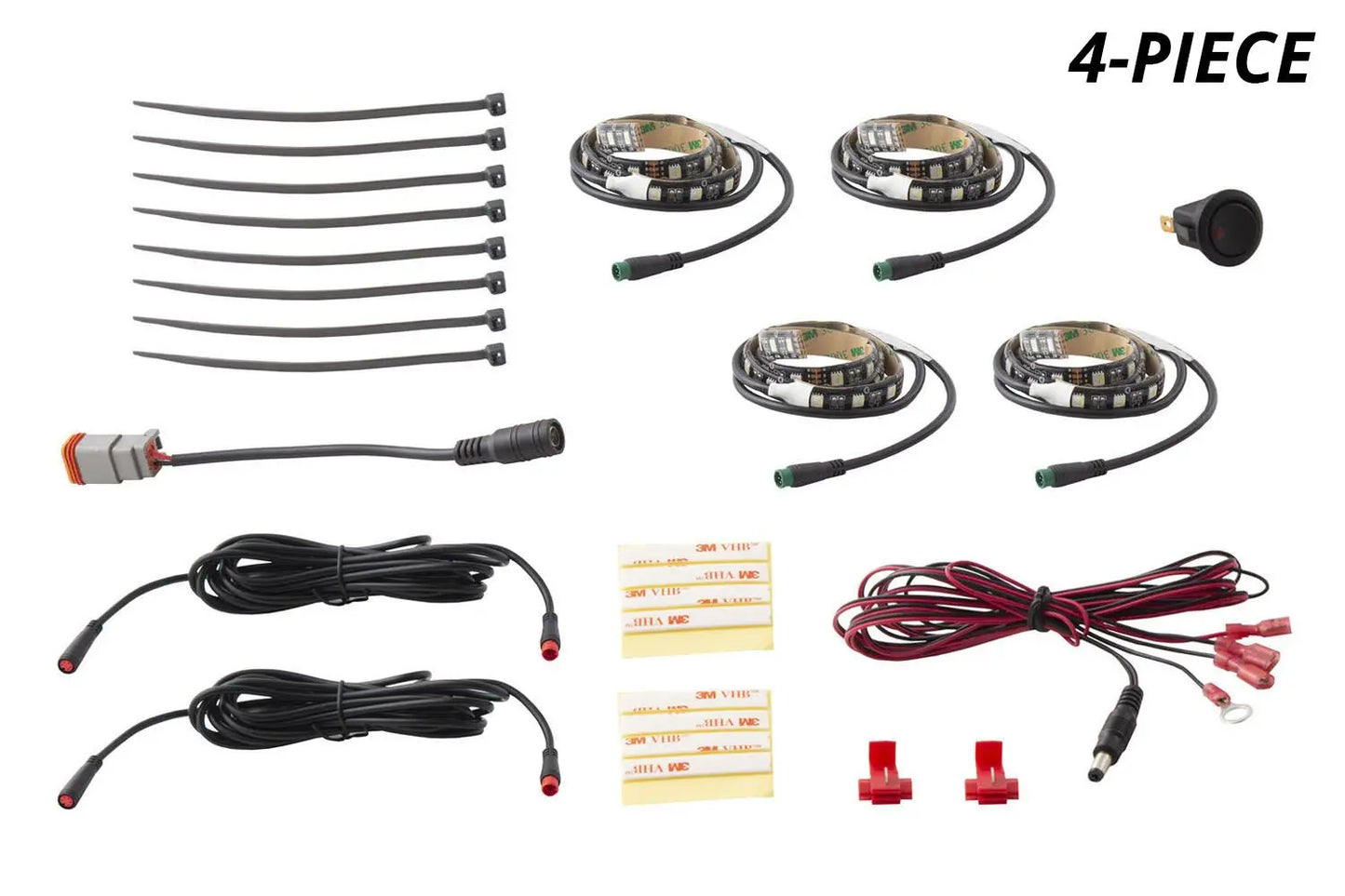

4 Piece Kit
- Four (4) 50cm RGBW SMD30 Strips
- One (1) wiring harness (4-foot)
- Two (2) quick splices
- One (1) red LED toggle switch
- One (1) DC-to-DT adapter
- Eight (8) zip-ties
- Two (2) 3M outdoor adhesive pads
- Two (2) RGBW M8 extension wires
A Bluetooth Controller is required for operation (not included, sold separately).
Fitment
NOTE: Larger vehicles may need a 1M M8 extension wire to complete the installation.
