Diode Dynamics Stage Series Backlit Ditch Light Kit for 2010-2024 Toyota 4Runner
Diode Dynamics Stage Series Backlit Ditch Light Kit for 2010-2024 Toyota 4Runner
SKU:DD6750
Diode Dynamics Stage Series Backlit Ditch Light Kit for 2010-2024 Toyota 4Runner
Description
Diode Dynamics Stage Series Backlit Ditch Light Kit for 2010-2024 Toyota 4Runner

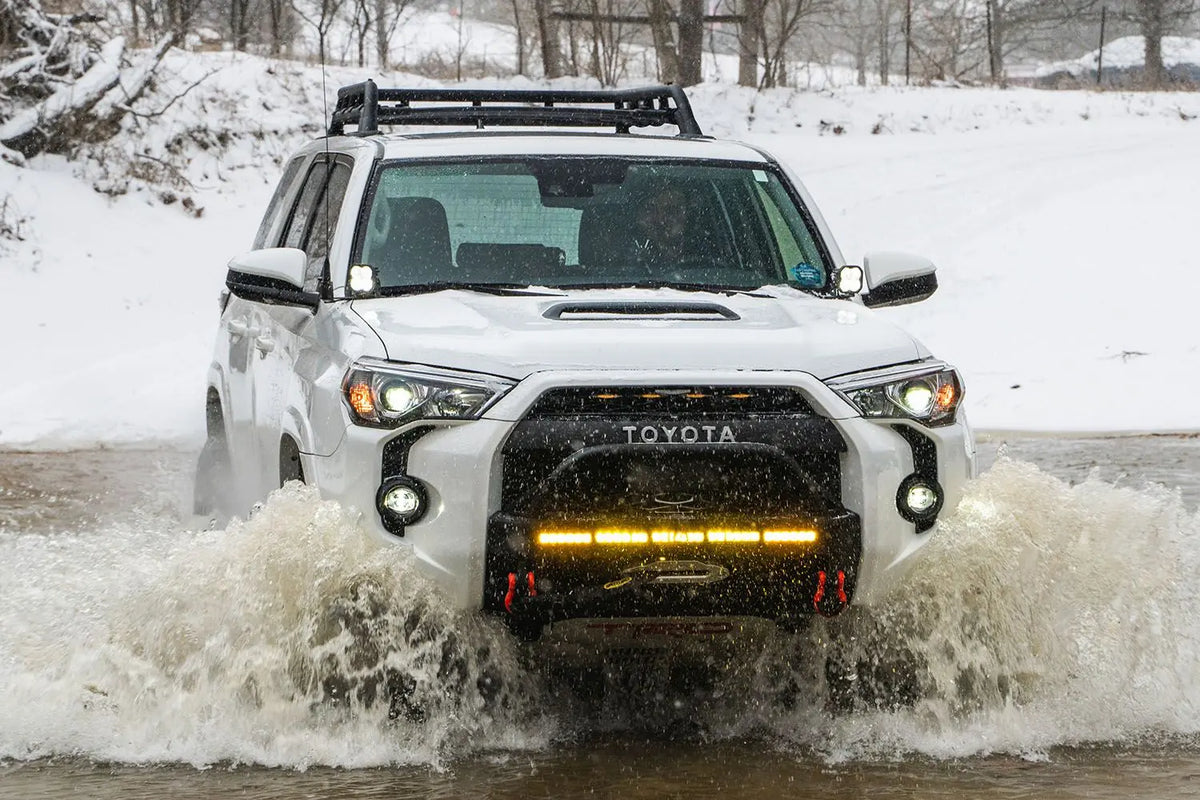

Add powerful side and forward-facing auxiliary lighting to your 2010-2024 Toyota 4Runner with the Diode Dynamics Stage Series Backlit Ditch Light Kit. Designed for a clean bolt-on installation, this kit mounts two Diode Dynamics SS3 or C2 2.0 LED Pods above the hood using factory mounting points.
The vehicle-specific brackets are CAD-designed for a low-profile fit, require no cutting or drilling, and are positioned to avoid interfering with normal hood operation.
Key Features
- Direct-fit ditch light kit for 2010-2024 Toyota 4Runner
- Includes two SS3 or C2 2.0 Stage Series LED Pods
- Factory mounting-point installation
- No cutting or drilling required
- Low-profile hood/A-pillar mounting position
- Thick-gauge stainless steel brackets
- Patented TIR optics
- Combo/Driving beam pattern
- 6000K Cool White or 3000K Selective Yellow output
- Amber backlight
- Sport or Pro power levels
- Heavy-duty 4-pin wiring harness included
- Tested with no confirmed electrical compatibility issues
- Made in the USA with global materials
- Lifetime warranty
Vehicle-Specific Bolt-On Fitment
This kit is engineered specifically for the Toyota 4Runner and uses existing factory mounting locations for installation.
The brackets position the pods just above the hood line, helping provide additional visibility along the sides of the vehicle and farther downrange without requiring permanent body modification.
The low-profile design also keeps the lights tucked close to the vehicle and does not interfere with raising or lowering the hood.
Thick-Gauge Stainless Steel Brackets
The included ditch light brackets are built from thick-gauge stainless steel rather than mild steel.
This helps resist corrosion while providing the rigidity needed to reduce unwanted light vibration and bouncing on rough roads or trails.
SS3 or C2 2.0 Pod Options
Choose between two popular Diode Dynamics Stage Series pod platforms.
SS3: A compact 3-inch pod with a smooth 80x30-degree Combo/Driving beam, providing a wide field of view with strong forward illumination.
C2 2.0: A smaller 2-inch platform with a 55x20-degree Combo/Driving beam, ideal for drivers who prefer a more compact setup while retaining useful width and distance.
Both options use high-intensity LEDs and custom-engineered TIR optics.
Patented TIR Optics
Traditional reflectors can lose usable output inside the housing or scatter light into unwanted areas. Diode Dynamics’ Total Internal Reflection (TIR) optics are engineered to collect and direct LED output more efficiently.
The custom-molded optic also serves as the main lens, helping improve focus and reduce unnecessary glare.
Combo/Driving Beam
The included Stage Series pods use a Combo/Driving beam pattern designed to balance width and distance.
The SS3 produces an approximately 80x30-degree spread, while the C2 2.0 produces an approximately 55x20-degree pattern.
Both are designed to provide useful forward illumination while also widening the field of view along the sides of the vehicle.
White or Selective Yellow
Choose between:
6000K Cool White for a crisp modern appearance that pairs well with factory LED lighting.
3000K Selective Yellow for high-contrast output and a distinctive look in dust, fog, rain, snow, and off-road conditions.
Compatible replacement lenses are also available separately for future color or optic changes.
Sport or Pro
The Stage Series pod options are available in Sport or Pro power levels.
Sport offers strong performance and value for daily driving and recreational off-road use.
Pro increases total power for greater overall output and intensity.
Amber Backlight
Both SS3 and C2 2.0 pod options include an integrated amber backlight.
The backlight illuminates the entire TIR optic for a distinctive accent-light appearance rather than relying on a small indicator LED.
The included wiring harness allows the backlight to be integrated with the desired vehicle lighting function.
Proven Stage Series Reliability
Diode Dynamics Stage Series lighting is tested for long-term operation from -40°F to 185°F, along with vibration, moisture intrusion, and corrosion testing.
Combined with the stainless steel mounting hardware, this makes the kit well suited for daily driving, overlanding, trail use, and other demanding environments.
What’s Included
- Two (2) SS3 or C2 2.0 Stage Series LED Pods
- Two (2) vehicle-specific ditch light brackets
- Two (2) SS3 or C2 2.0 pod mounting brackets
- One (1) Heavy Duty Dual Output 4-pin Wiring Harness
- Mounting hardware
- Mounting guide
Quantity: Pair – Left and Right
Warranty: Lifetime Warranty
Vehicle Fitment
Make: Toyota
Model: 4Runner
Years: 2010-2024
Electrical Compatibility: Tested and confirmed with no known electrical issues
Specifications
- SS3 Current (amps @ 13.2V): Sport: 1.1, Pro: 2.7
- C2 2.0 Current (amps @ 12.8V): Sport: 1.17, Pro: 1.8
- Color Temp (CCT): 3000K, 6000K
- Beam Angle: Combo (Driving and Flood)
- Power (watts): SS3 Sport: 14.5, SS3 Pro: 36, C2 2.0 Sport: 15, C2 2.0 Pro: 23
- Polarity: Polarity Specific
- Operating Temperature: -40C to 85C (-40F to 185F)
- LED Emitter: Osram Ostar Projection Compact, Lumileds Automotive Grade LED
- Connector(s): Deutsch DT Input
- Driver Features: Constant Current
- Materials: Polycarbonate Lens, Powdercoated Steel, Aluminum Casting, Rubber Gasket
- Cooling: Passive, Pin-Fin heatsink
- Compliance Ratings: SAE J575 Durability Test
- Intrusion Ratings: IP69K Waterproof, High Pressure
Installation
Installation Time: 20-30 minutes
Tools Needed: Basic Toolset
Modification: None
Installation Guide: Click to download
