Diode Dynamics C1R White Flood Flush Mount LED Pods – Pair | DD7427P

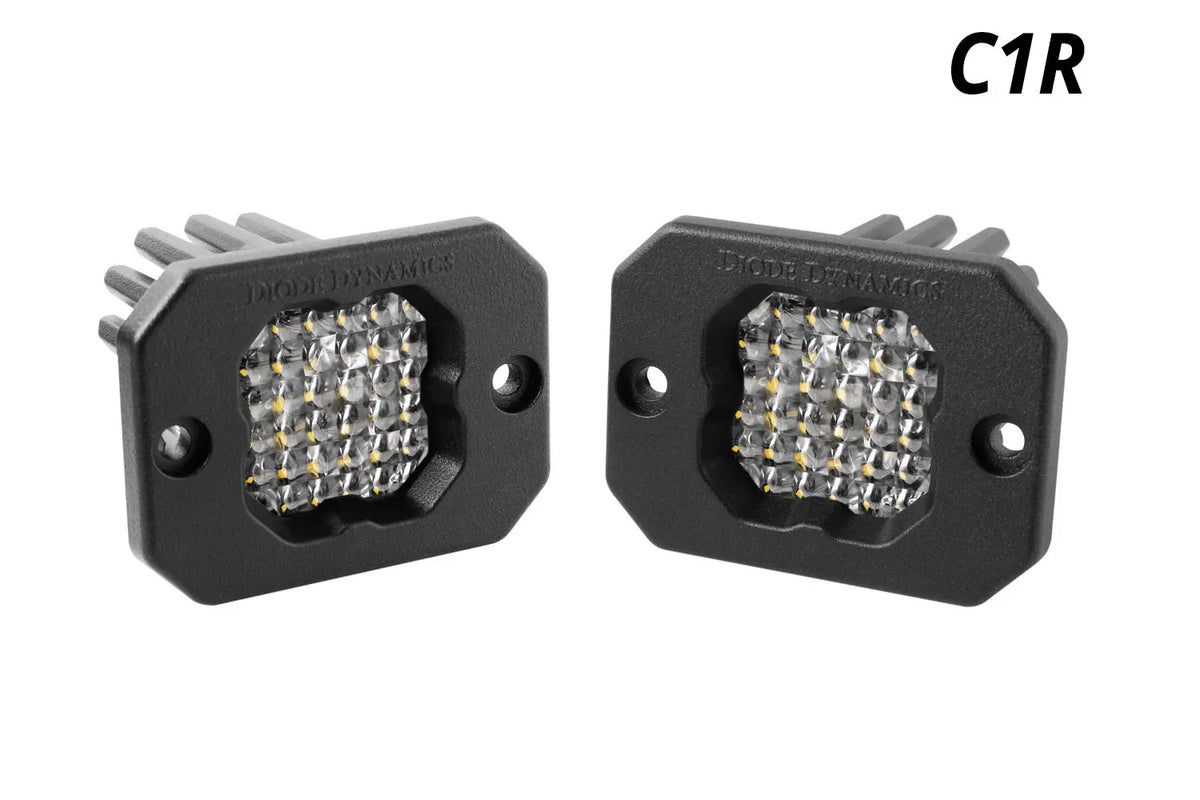

Diode Dynamics Stage Series C1R White Flood Flush Mount LED Pods – Pair

Add compact, multifunction rear lighting to your vehicle with the Diode Dynamics Stage Series C1R White Flood Flush Mount LED Pods (DD7427P). This pair of LED Pods combines a high-power white flood beam, high-power red output, and low-power red accent light in an ultra-compact flush-mount package.

Designed for bumpers, truck beds, and other custom mounting locations, the Diode Dynamics C1R provides three independently controlled lighting functions while maintaining a clean, integrated appearance.

Part Number: DD7427P
Quantity: Two (2) LED Pods

Key Features

• Pair of Stage Series C1R LED Pods
• Flush-mount design for bumpers and truck beds
• High-power white main beam
• High-power red main beam
• Low-power red accent light
• Three independently activated lighting functions
• Wide 80x50-degree Flood beam
• Custom-engineered TIR optics
• Ultra-compact single-LED design
• Pin-fin heatsink for thermal management
• Integrated DT-type Deutsch-style connectors
• Interchangeable lens design
• Designed, torture-tested, and assembled in the USA
• Lifetime warranty

Triple-Function C1R Lighting

The Stage Series C1R combines three lighting functions into one compact LED pod. Each pod provides a high-power cool white main beam, high-power red output, and low-power red accent light that can be controlled independently.

This makes the C1R particularly useful for rear-facing installations. The white output can supplement factory reverse lights, while the high-power red output can be integrated as an additional brake light and the low-power red output can function as an auxiliary running light.

Proper installation and use depend on the vehicle and applicable lighting regulations.

Clean Flush-Mount Installation

The DD7427P C1R Flush Mount Kit is designed for low-profile installation on compatible bumpers, truck beds, and other mounting surfaces.

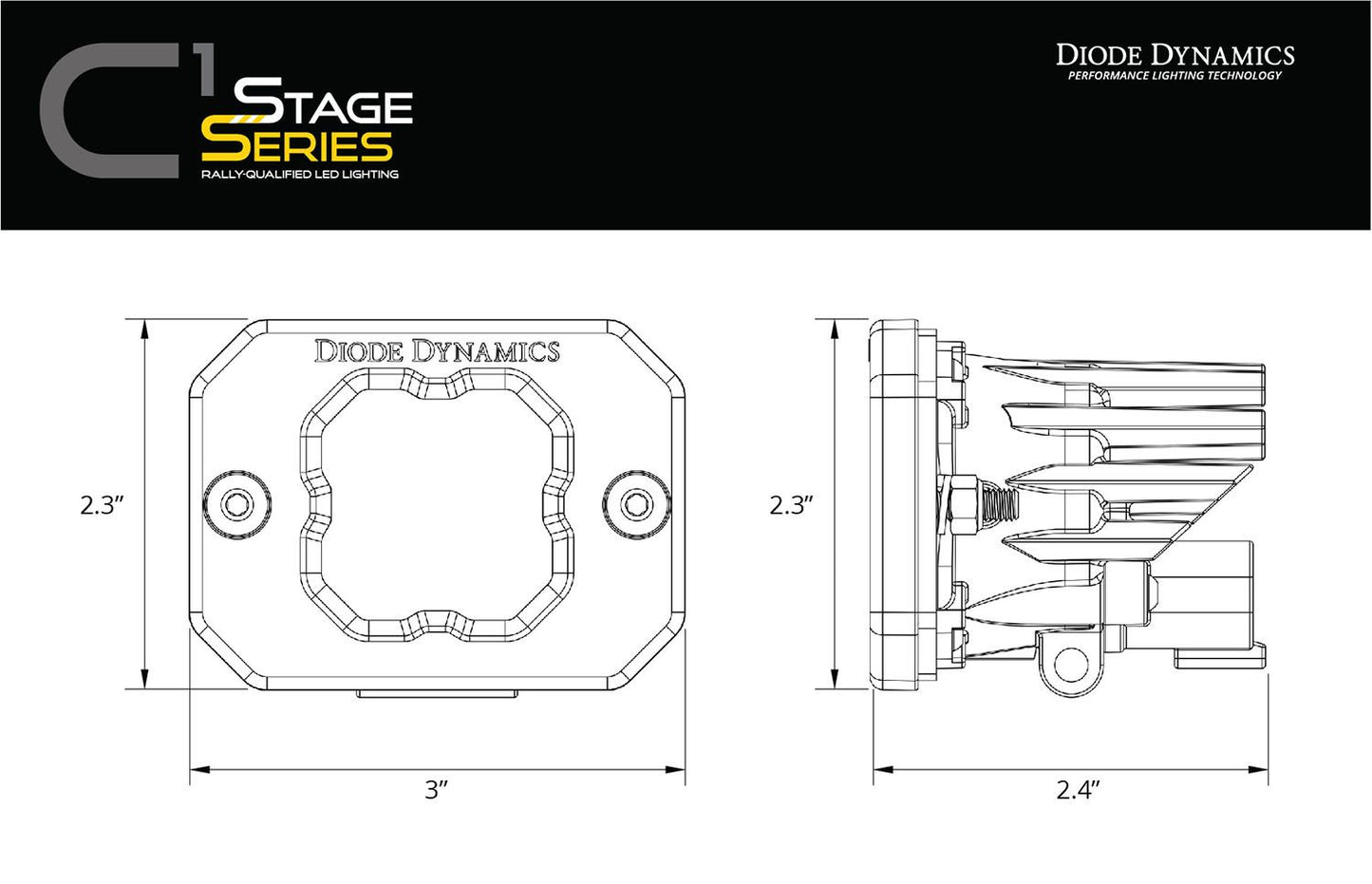

Its compact single-LED form factor makes it well suited for locations where conventional auxiliary lights or larger LED pods won’t fit.

White Flood Beam

The white main beam uses a wide 80x50-degree Flood pattern designed to deliver smooth, uniform illumination.

Advanced pillow optics distribute the output across a broad area rather than relying on a heavily diffused spotlight. This makes the C1R a practical option for reverse lighting, scene lighting, truck beds, trailers, and other low-speed applications.

Custom-Engineered TIR Optics

Diode Dynamics uses a custom-engineered Total Internal Reflection (TIR) optic to collect light from the LED and direct it into the intended beam pattern.

The optic also functions as the main lens, helping improve optical efficiency while maintaining the C1R’s extremely compact dimensions.

Interchangeable Lens

The C1R features an interchangeable lens design, allowing compatible replacement lenses to be installed if you want to change the optic or output configuration later.

This makes it easier to adapt your Stage Series lighting setup as your vehicle or application changes.

Deutsch-Style Connections

Each C1R LED Pod features a custom-molded DT-type Deutsch-style connector and includes a 4-pin, 6-inch pigtail with bare leads.

The included wiring functions are:

• Yellow wire: High-power red
• Red wire: White main beam
• Blue wire: Low-power red
• Black wire: Ground

This configuration allows each of the C1R’s lighting functions to be wired according to the intended application.

Built for Demanding Environments

Stage Series LED lighting undergoes testing for long-term operation from -40°F to 185°F, along with vibration, moisture intrusion, and corrosion testing.

The durable housing and pin-fin heatsink help manage heat during operation, while the compact construction makes the C1R suitable for a wide variety of automotive and powersports installations.

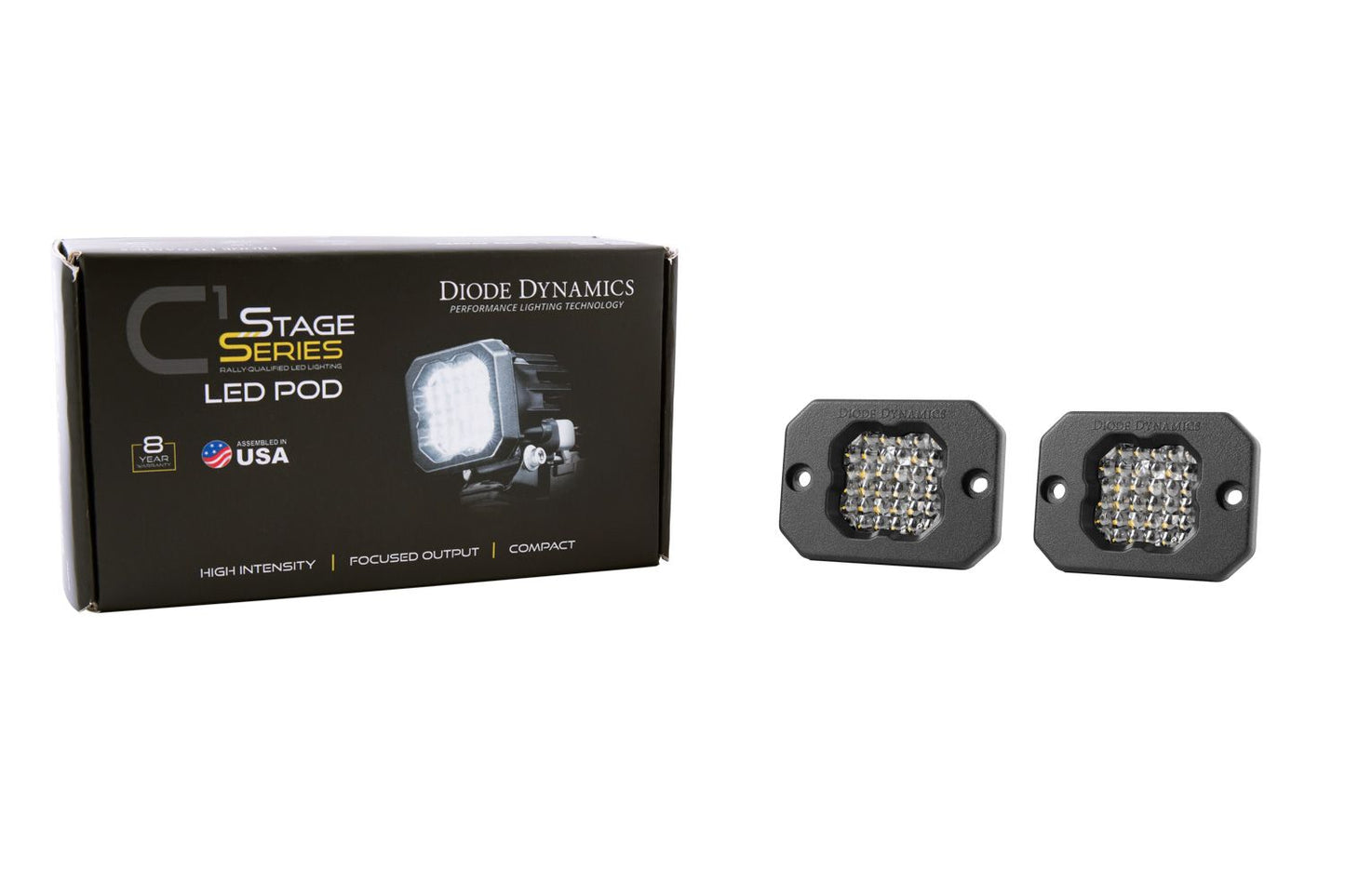

What’s Included

• Two (2) Stage Series C1R LED Pods
• Two (2) Deutsch-style wire pigtails
• Two (2) flush-mount brackets
• Mounting hardware

Part Number: DD7427P
Quantity: Two (2)
Series: Stage Series C1R
Mounting Style: Flush Mount
Main Output: Cool White
Secondary Output: High-Power Red
Accent Output: Low-Power Red
Beam Pattern: Flood
Beam Spread: 80x50 degrees
Connector: DT-type Deutsch-style
Warranty: Lifetime warranty
Designed, tested and assembled in: USA
