Diode Dynamics C1R White Flood Flush Mount LED Pod – Single | DD7427S

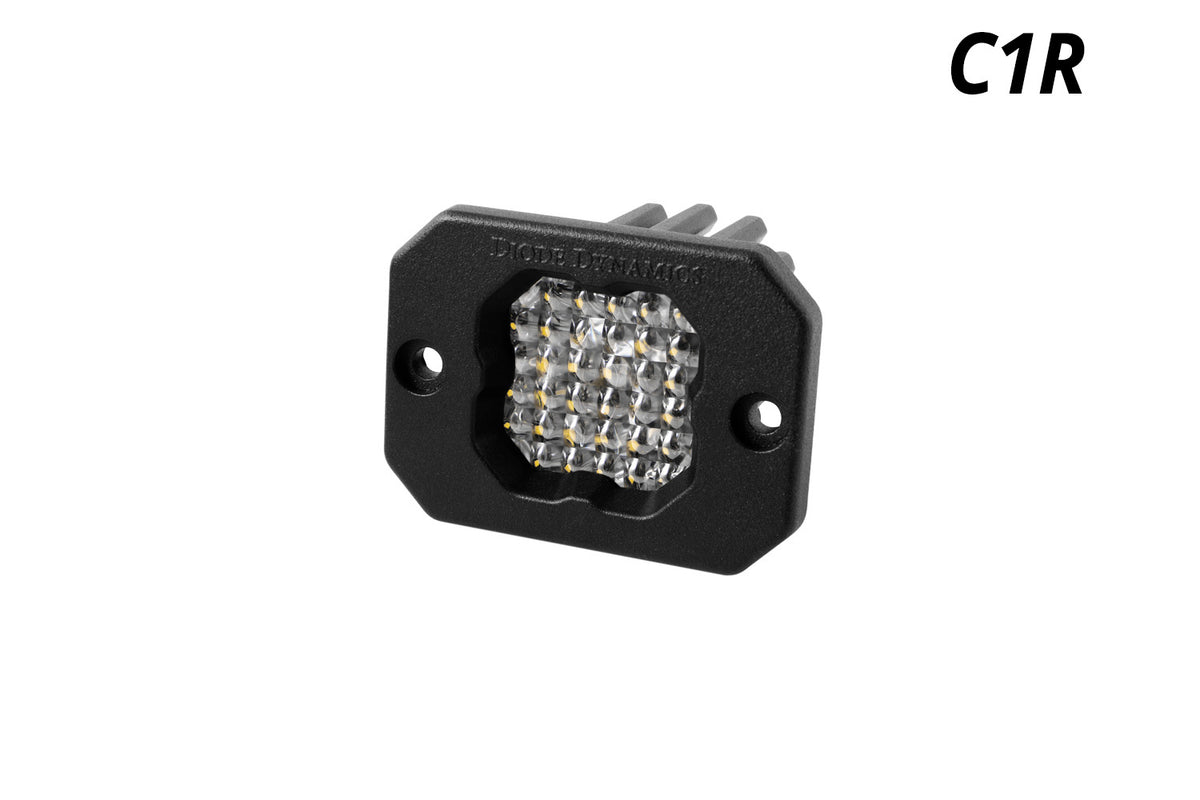

Diode Dynamics Stage Series C1R White Flood Flush Mount LED Pod – Single

Get three lighting functions from one ultra-compact housing with the Diode Dynamics Stage Series C1R White Flood Flush Mount LED Pod (DD7427S). Designed for clean installation on bumpers, truck beds, and other tight mounting locations, the Diode Dynamics C1R combines a high-power white flood beam, high-power red output, and low-power red accent light.

Its compact single-LED construction and flush-mount design make the C1R an excellent choice for custom rear lighting installations where larger LED pods won’t fit.

Part Number: DD7427S
Quantity: One (1)

Key Features

• Single Stage Series C1R LED Pod
• Compact flush-mount installation
• High-power cool white main beam
• High-power red main beam
• Low-power red accent light
• Three independently activated lighting functions
• Wide 80x50-degree Flood pattern
• Custom-engineered TIR optics
• Ultra-compact single-LED design
• Pin-fin heatsink for thermal dissipation
• Integrated DT-type Deutsch-style connector
• Interchangeable lens
• Designed, torture-tested, and assembled in the USA
• Lifetime warranty

Three Lighting Functions in One Pod

The C1R provides three independently controlled outputs from a single compact LED pod.

The high-power white main beam is designed for auxiliary reverse lighting. The high-power red output can be integrated as an additional brake light, while the low-power red output can function as an auxiliary running light.

This triple-function design makes the C1R especially useful for trucks, SUVs, off-road vehicles, UTVs, trailers, and custom rear-lighting applications.

Wide White Flood Beam

The C1R’s white main beam uses an 80x50-degree Flood pattern engineered for broad, even illumination.

Rather than creating a narrow hotspot, the Flood optic distributes light across a wide area, making it well suited for backup lighting, scene lighting, trailers, cargo areas, and other close-range applications.

Flush-Mount Installation

The DD7427S is designed for flush installation, giving the pod a clean, integrated appearance once mounted.

Its ultra-compact form factor allows installation in compatible bumpers, truck beds, and other locations where conventional auxiliary lights may be too large.

Custom-Engineered TIR Optics

Diode Dynamics uses a custom-engineered Total Internal Reflection (TIR) optic to collect and control the LED’s output.

The optic directs the light into the intended beam pattern while reducing wasted light and glare. The TIR optic also serves as the primary lens, helping maintain the C1R’s compact dimensions.

Interchangeable Lens

The C1R features an interchangeable lens design. Compatible replacement lenses can be used to change the optic or color configuration without replacing the complete LED pod.

This provides additional flexibility for custom Stage Series lighting setups.

Integrated Deutsch-Style Connector

The C1R features a custom-molded DT-type Deutsch-style connector and includes a 4-pin, 6-inch pigtail with bare leads.

Wiring functions are:

• Yellow: High-power red
• Red: White main beam
• Blue: Low-power red
• Black: Ground

The independent circuits allow the three lighting functions to be integrated according to the intended vehicle application.

Proven Stage Series Reliability

Stage Series LED lighting has undergone testing for long-term operation from -40°F to 185°F, along with vibration, moisture intrusion, and corrosion testing.

The C1R also features a pin-fin heatsink design for efficient thermal dissipation in its compact housing.

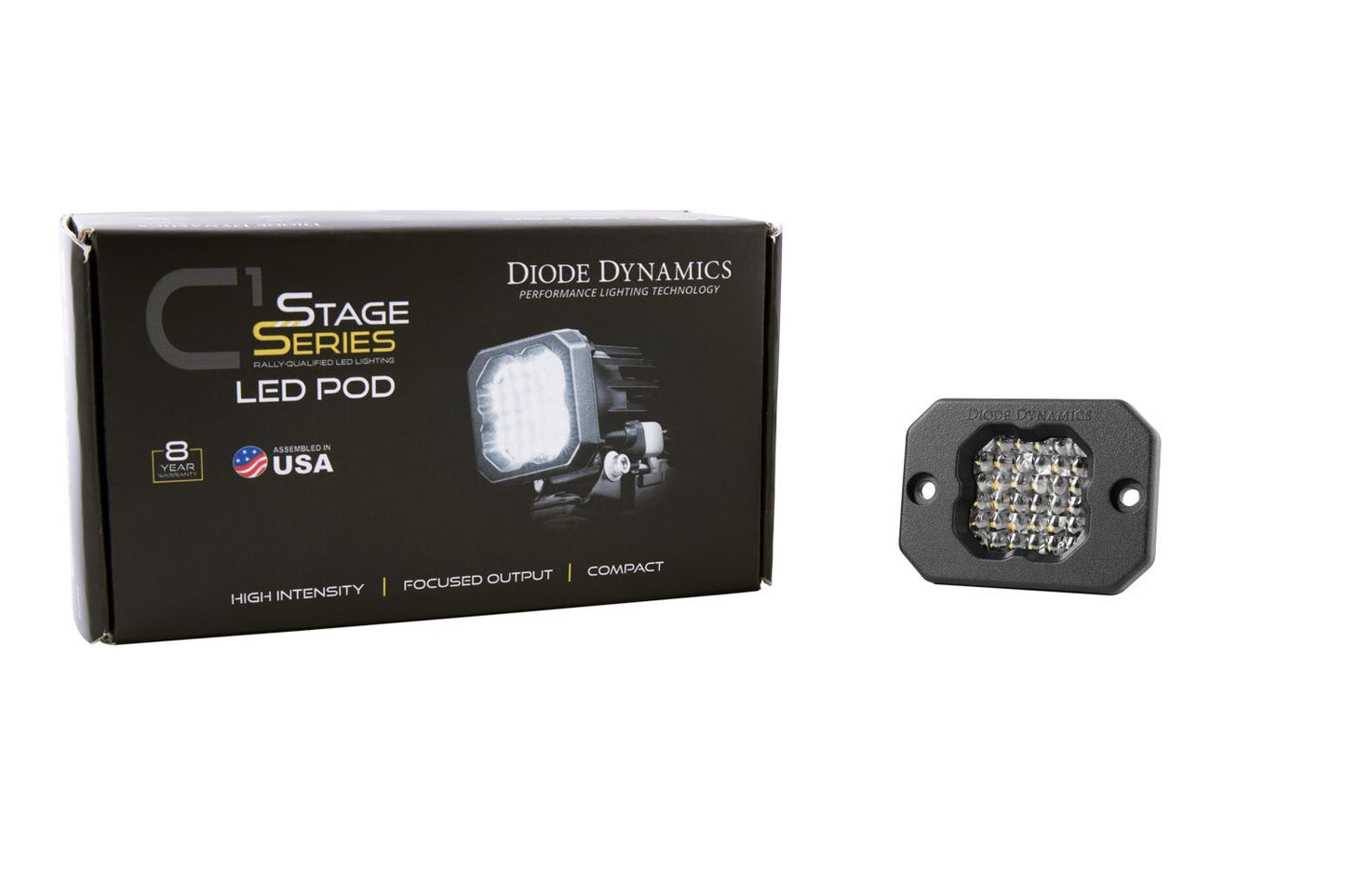

What’s Included

• One (1) Stage Series C1R LED Pod
• One (1) Deutsch-style wire pigtail
• One (1) flush-mount bracket
• Mounting hardware

Part Number: DD7427S
Quantity: One (1)
Series: Stage Series C1R
Mounting Style: Flush Mount
Main Output: Cool White
Secondary Output: High-Power Red
Accent Output: Low-Power Red
Beam Pattern: Flood
Beam Spread: 80x50 degrees
Connector: DT-type Deutsch-style
Warranty: Lifetime warranty
Designed, tested and assembled in: USA
