Diode Dynamics Stage Series C1R White Flood LED Pods – Pair | DD7423P

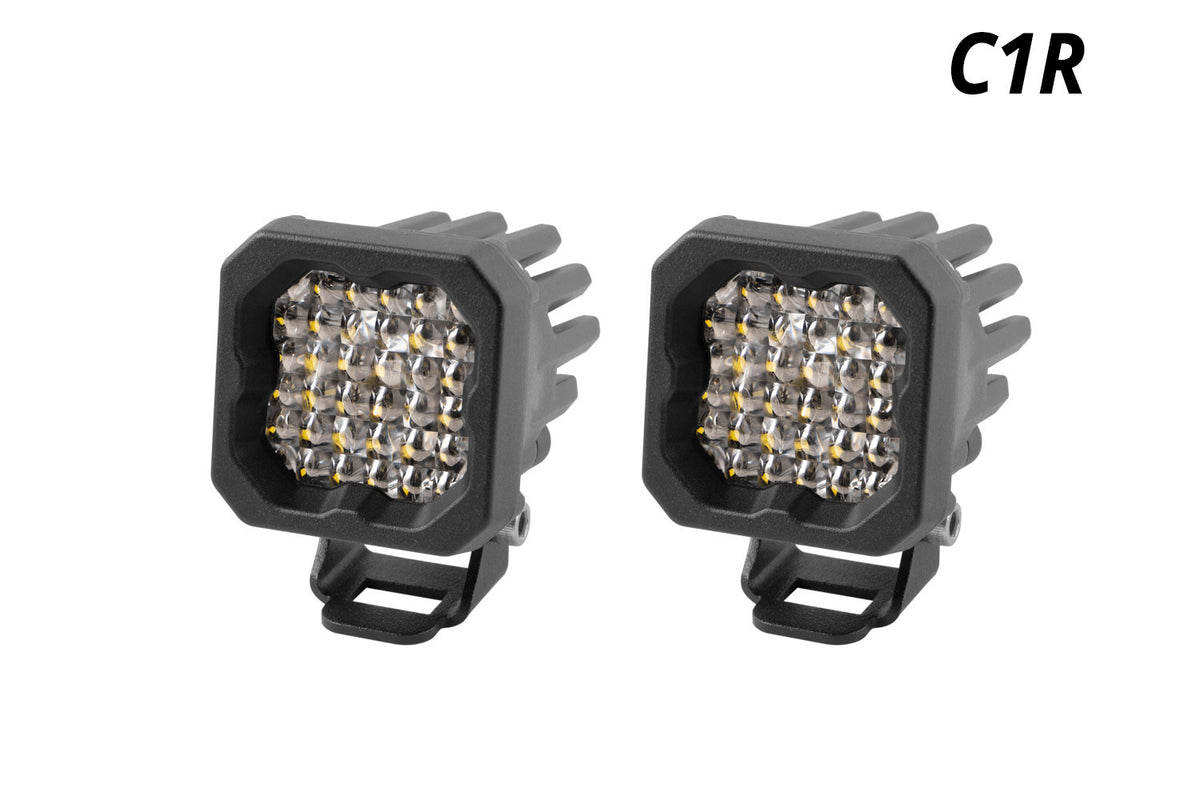

Diode Dynamics Stage Series C1R White Flood LED Pods – Pair

Add three rear-lighting functions in an ultra-compact package with the Diode Dynamics Stage Series C1R White Flood LED Pods (DD7423P). Each Diode Dynamics C1R combines a high-power white main beam, high-power red main beam, and low-power red accent light, with each function independently controlled.

Designed for compact installations on cars, trucks, motorcycles, UTVs, trailers, and custom builds, the C1R is an excellent solution for adding auxiliary reverse, brake, and running lights without the bulk of larger LED pods.

Part Number: DD7423P
Quantity: Two (2) LED Pods

Key Features

• Pair of Diode Dynamics Stage Series C1R LED Pods
• Ultra-compact single-LED form factor
• Three independently controlled lighting functions
• High-power cool white main beam
• High-power red main beam
• Low-power red accent light
• 80x50-degree Flood beam pattern
• Custom-engineered TIR optics
• Ideal for auxiliary reverse lighting
• Pin-fin heatsink design
• Integrated DT-type Deutsch-style connectors
• 4-pin wiring pigtails included
• Interchangeable lenses
• Standard mounting brackets included
• Compatible with optional mounting solutions
• Designed, torture-tested, and assembled in the USA
• Lifetime warranty

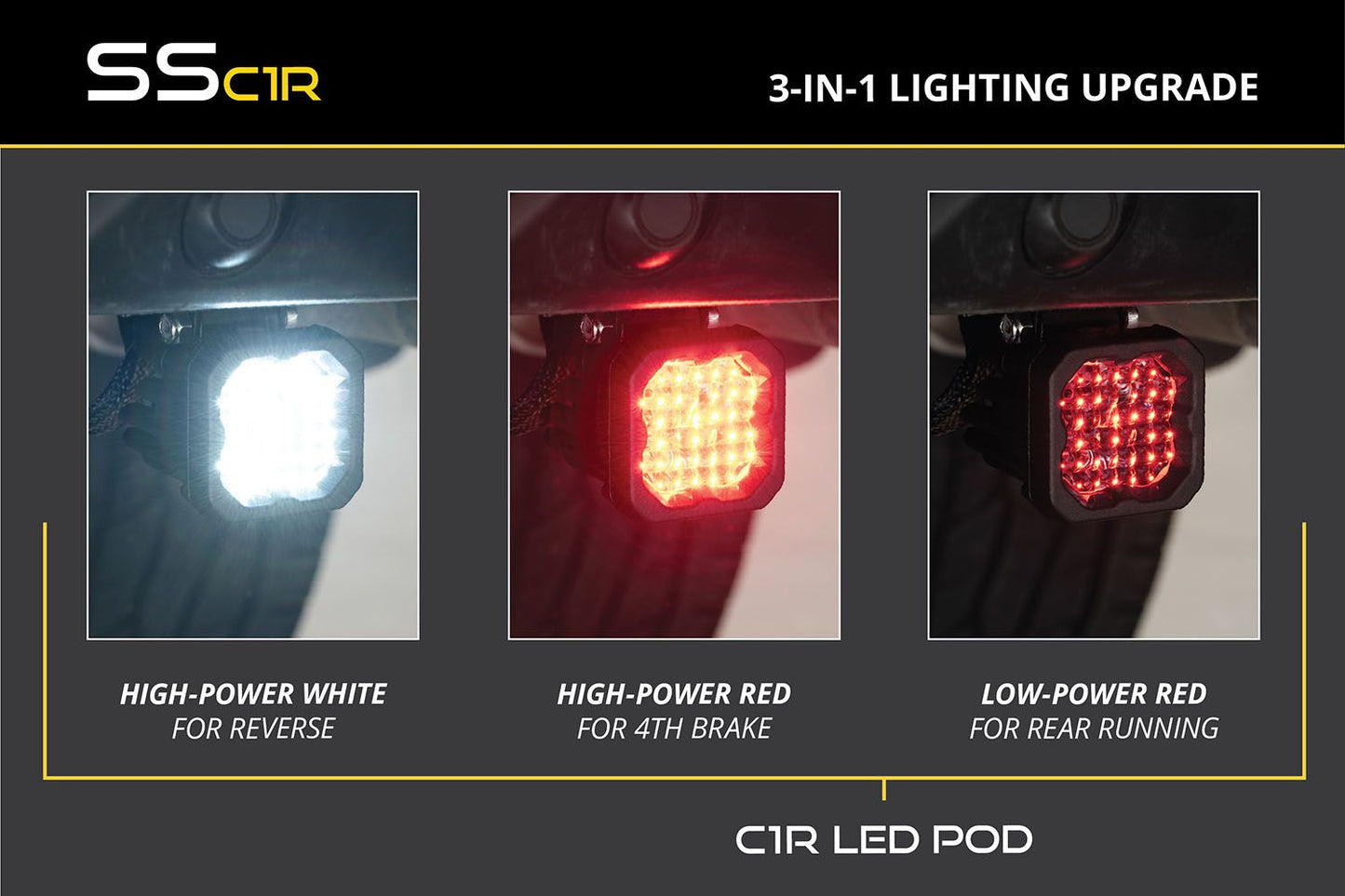

Three Lighting Functions in One Compact Pod

The C1R is designed to perform three different rear-lighting functions from a single compact housing.

High-Power White: Provides a powerful white main beam designed to supplement your factory reverse lights.

High-Power Red: Can be integrated as an auxiliary brake light that activates when the brakes are applied.

Low-Power Red: Provides a lower-intensity red output that can be used as a secondary running light with your taillights.

Because each output can be activated independently, the C1R provides a versatile solution for custom rear-lighting setups.

Wide 80x50° Flood Beam

The Stage Series C1R uses a Flood beam pattern with an 80x50-degree spread, providing broad and even illumination.

Rather than relying on a heavily diffused spotlight, the Flood optic uses pillow optics on the lens surface to distribute light across a controlled field.

The wide output makes the C1R especially useful for backup and reverse lighting, along with scene lighting, trailers, roof racks, and other applications requiring broad illumination.

Custom-Engineered TIR Optics

The C1R uses custom-engineered Total Internal Reflection (TIR) optics to collect and precisely control the light produced by its LED.

Instead of relying on a traditional reflector and separate outer lens, the custom-molded TIR optic serves as both the optic and main lens. This design helps reduce wasted light and glare while improving overall optical efficiency.

Ultra-Compact Design

With its compact single-LED form factor, the C1R can be installed in locations where larger auxiliary lights may not fit.

It’s a versatile lighting option for cars, trucks, motorcycles, UTVs, trailers, and custom vehicle builds.

The Stage Series C1R platform supports both standard and flush-mount configurations, and an optional mounting adapter can be used with compatible GoPro-style mounting points.

Independent 4-Wire Connection

Each C1R features an integrated DT-type Deutsch-style connector and includes a 4-pin, 6-inch pigtail with bare leads.

The wiring functions are:

Yellow Wire: High-power red
Red Wire: High-power white
Blue Wire: Low-power red
Black Wire: Ground

This independent wiring allows the white, high-power red, and low-power red outputs to be connected to the appropriate vehicle functions for your installation.

Interchangeable Lens

Compatible Stage Series C1R replacement lenses allow you to change the optic or color without replacing the entire LED pod.

This provides additional flexibility for custom installations and future lighting changes.

Snap-On Cover Compatible

Compatible snap-on covers are available separately to help protect the C1R from dirt, dust, and road debris while providing additional customization options.

Always check local laws and regulations regarding auxiliary lighting installation, aiming, color, and use.

Proven Stage Series Reliability

Diode Dynamics Stage Series lighting has been extensively tested for long-term operation from -40°F to 185°F, along with vibration, moisture intrusion, and corrosion testing.

A pin-fin heatsink design also helps efficiently dissipate heat from the compact housing for dependable performance.

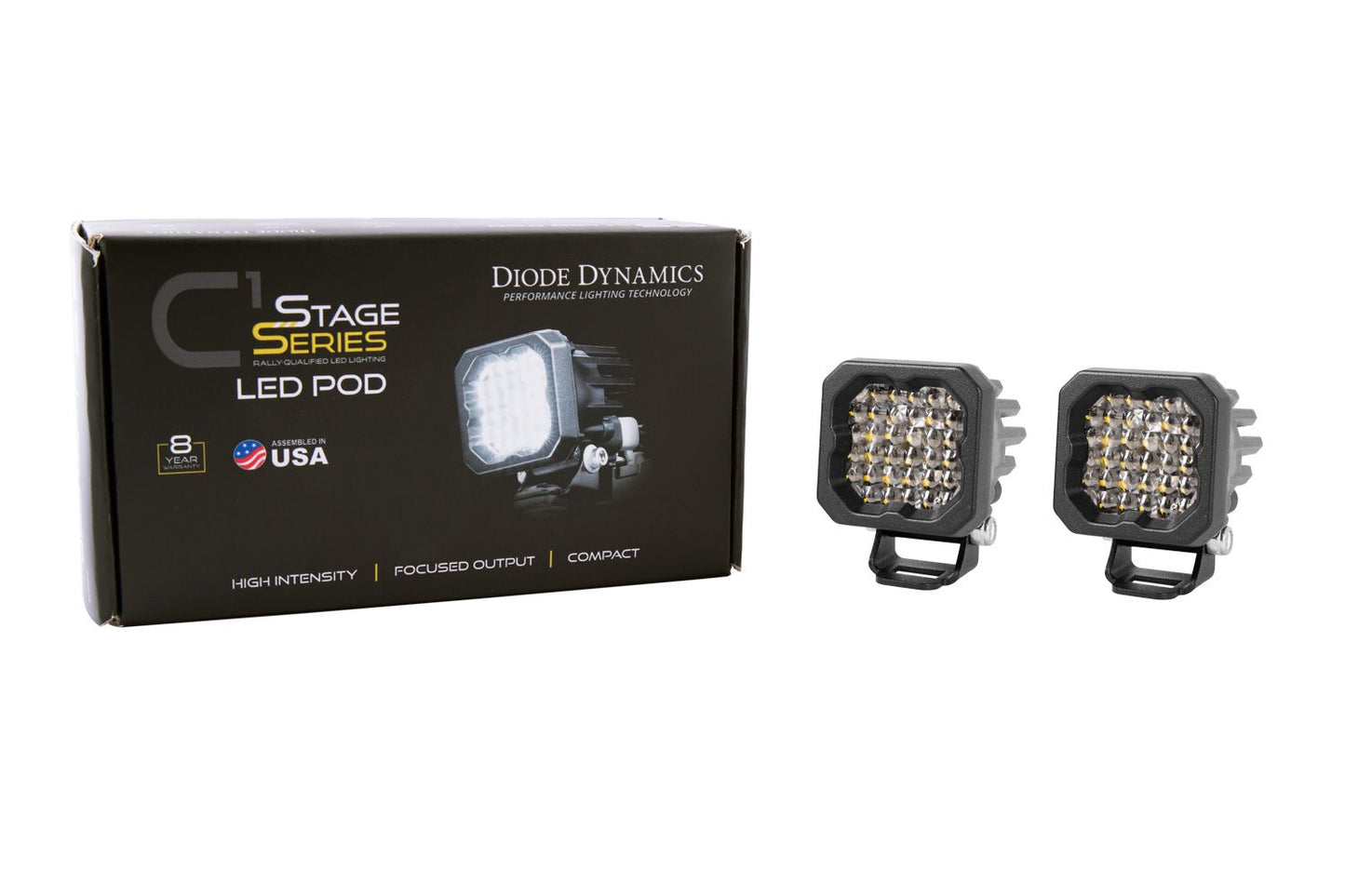

What’s Included

• Two (2) Diode Dynamics Stage Series C1R LED Pods
• Two (2) 4-pin Deutsch-style wire pigtails
• Two (2) mounting brackets
• Mounting hardware

Part Number: DD7423P
Quantity: Two (2)
Series: Stage Series C1R
Mounting Style: Standard
Main Output: Cool White
Beam Pattern: Flood
Beam Spread: 80x50 degrees
Secondary Output: High-Power Red
Accent Output: Low-Power Red
Connector: DT-type Deutsch-style
Warranty: Lifetime warranty
Designed, tested and assembled in: USA
