Diode Dynamics C2 1.0 SAE 2” Flush Mount LED Pod – Single

Diode Dynamics C2 1.0 SAE 2” Flush Mount LED Pod – Single

Add compact Stage Series lighting with a clean, integrated installation using the Diode Dynamics C2 1.0 2” Flush Mount LED Pod. Designed for bumpers, truck beds, and custom mounting applications, the C2 1.0 combines a compact 2-inch footprint with custom-engineered TIR optics and functional beam patterns.

Choose from Sport or Pro power levels, cool white or selective yellow output, and SAE Fog, Flood, or Combo beam patterns to configure the pod for your application.

This listing includes one (1) C2 1.0 Flush Mount LED Pod.

Key Features

• Single Stage Series C2 1.0 2” LED Pod
• Flush-mount design for a clean installation
• Ideal for bumpers, truck beds, and custom applications
• Custom-engineered TIR optics
• Sport or Pro power levels
• SAE Fog, Flood, and Combo beam patterns
• 6000K cool white or 3000K selective yellow output
• Amber or red backlight options
• Durable powder-coated aluminum housing
• Integrated DT-type Deutsch-style connector
• Pin-fin heatsink design
• Interchangeable lenses
• Tested for vibration, moisture intrusion, corrosion, and extreme temperatures
• Designed, torture-tested, and assembled in the USA
• Lifetime warranty

Clean Flush-Mount Installation

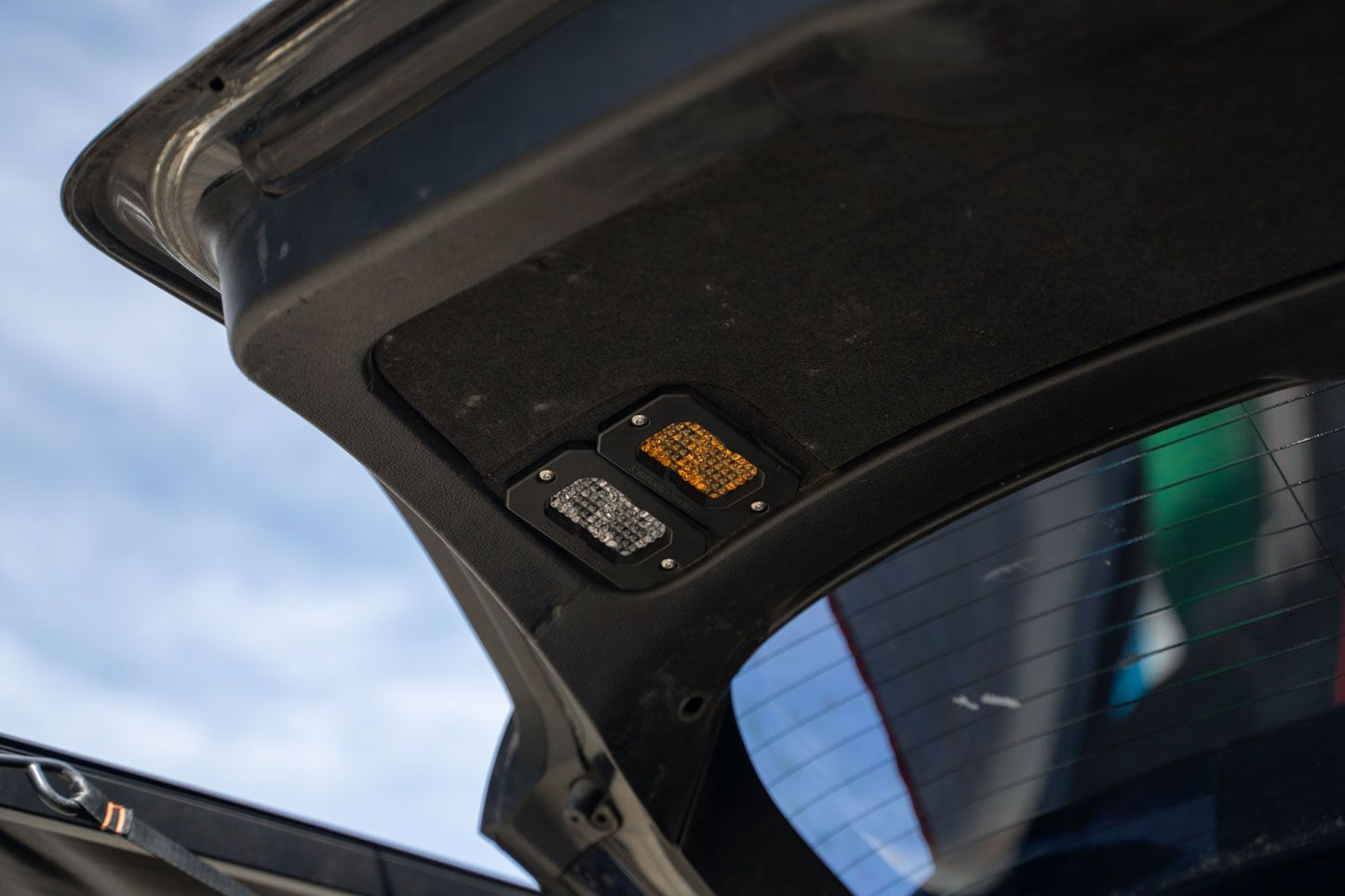

The C2 1.0 Flush Mount Kit allows you to integrate a compact LED pod directly into a bumper, truck bed, or another suitable mounting surface.

The flush-mount design creates a clean, factory-style appearance and makes the C2 1.0 especially useful for custom installations where a traditional surface-mounted LED pod may be too exposed or bulky.

Modern TIR Optics

The C2 1.0 uses custom-engineered Total Internal Reflection (TIR) optics to collect and precisely direct light from the LED.

Compared with traditional reflectors and simple lenses, the TIR design reduces wasted light and glare while improving optical efficiency. The custom-molded TIR optic also serves as the main lens, helping maximize usable output from the compact 2-inch pod.

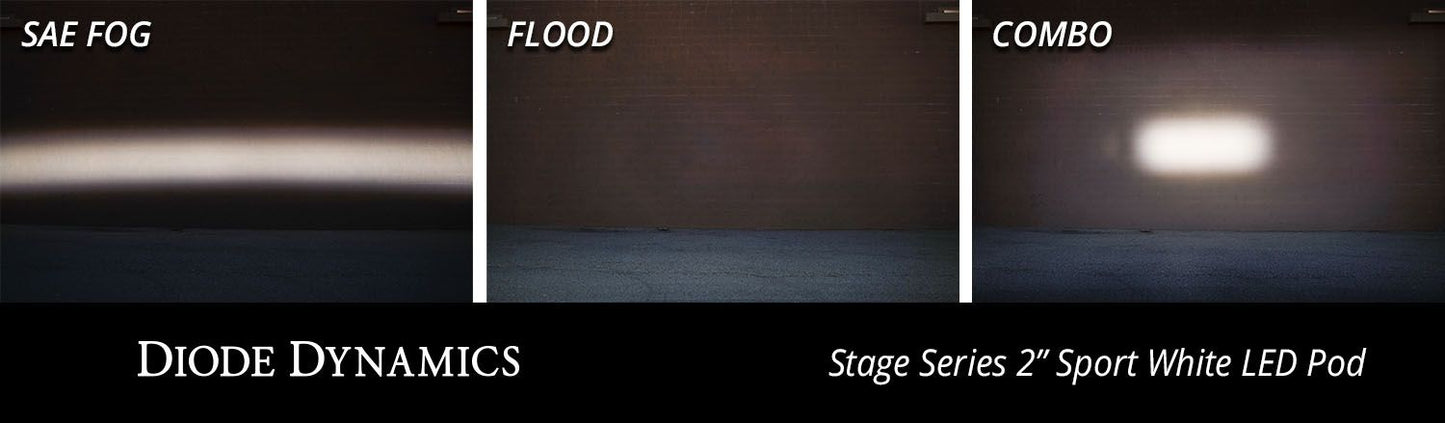

Choose Your Beam Pattern

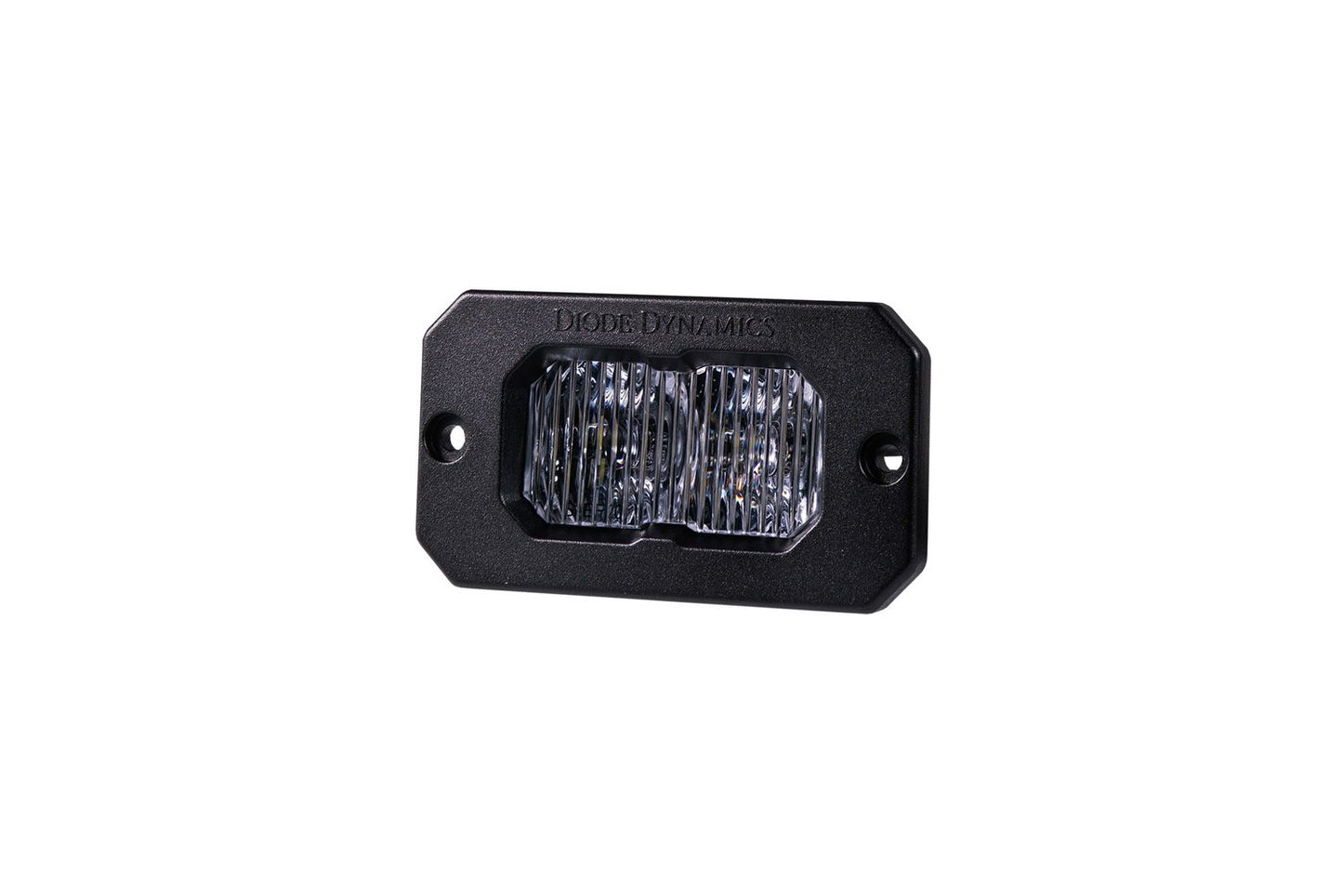

SAE Fog: Uses Diode Dynamics’ FineLine optic to provide an extremely wide field of view across an 80-degree spread. It’s designed to illuminate the area directly ahead of the vehicle and is ideal for compatible fog-light applications.

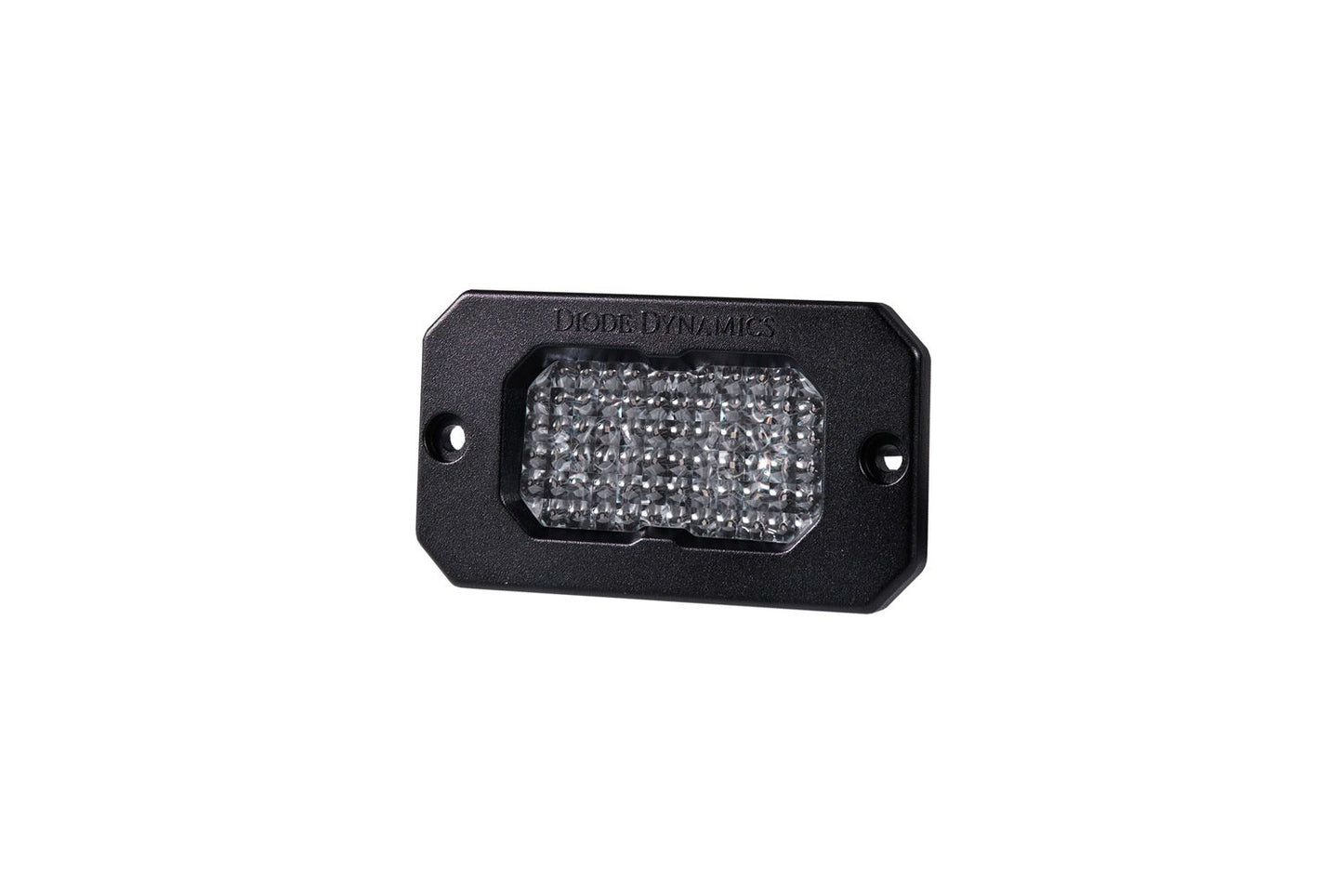

Flood: Produces an even 60x60-degree spread for broad illumination. It’s well suited for backup lighting, truck beds, trailers, worksites, and other low-speed applications.

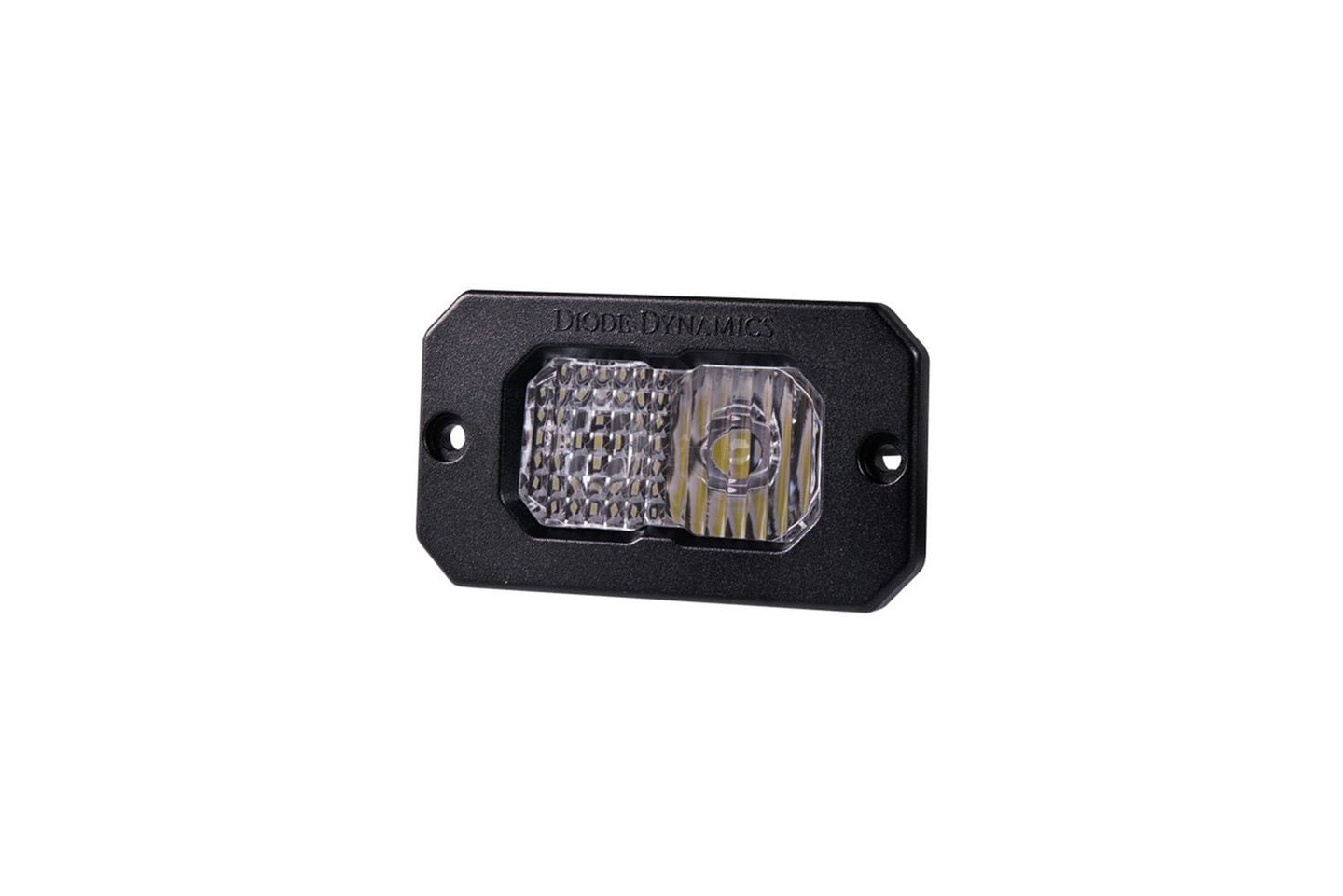

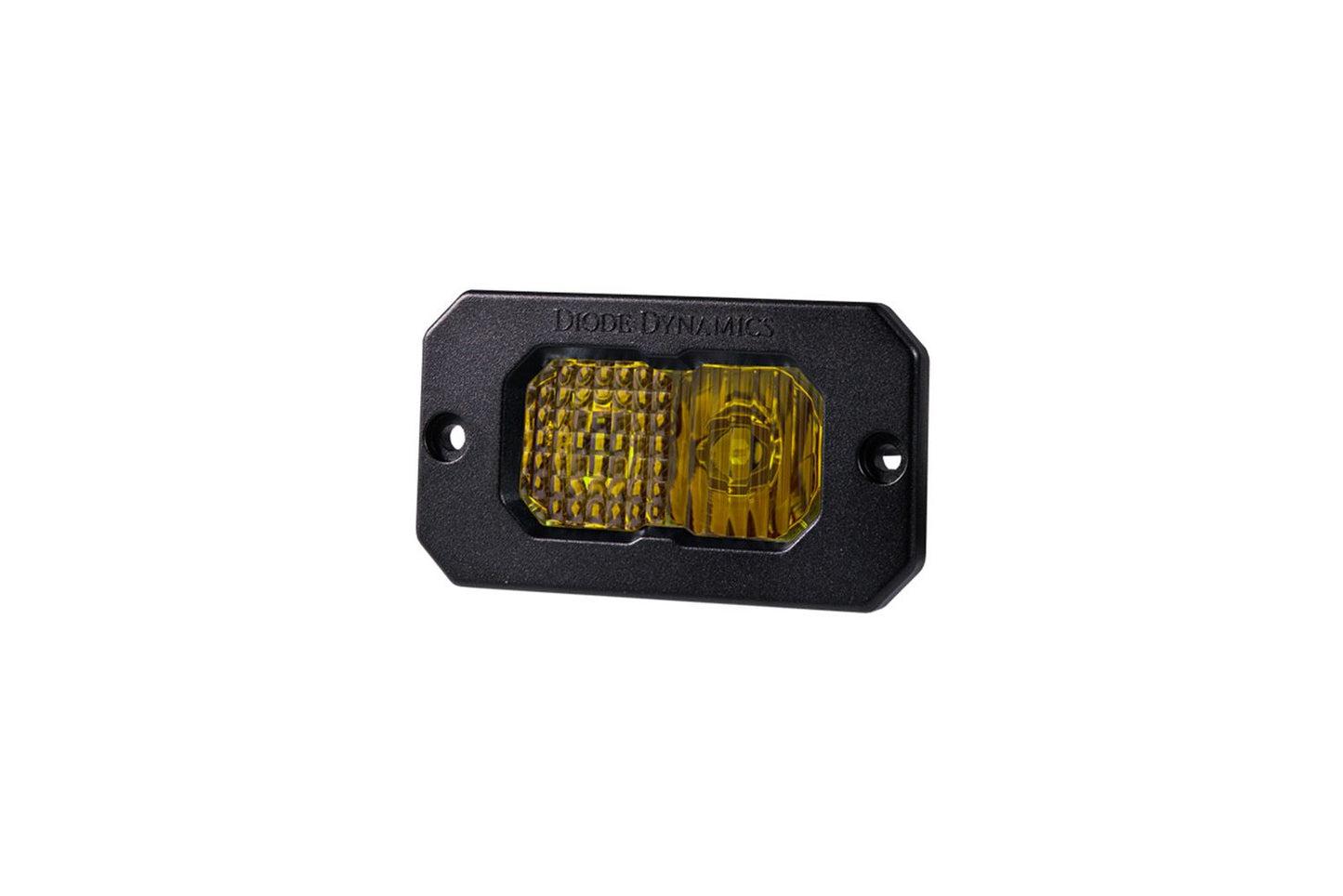

Combo: Combines Flood and Driving optics to produce a focused 40x20-degree rectangular pattern, providing a useful balance of forward distance and surrounding illumination.

SAE Fog Performance

When the Fog configuration is installed as a pair and properly aimed according to applicable regulations, it meets the SAE J583 standard for fog lamps.

Because this product page is for a single pod, one pod by itself should not be represented as meeting the pair-based SAE configuration described by the manufacturer.

Always check applicable state and local regulations for installation, aiming, output color, and permitted on-road use.

Cool White or Selective Yellow

The C2 1.0 is available in two output colors.

6000K Cool White: Provides crisp white illumination designed to complement many factory LED lighting systems.

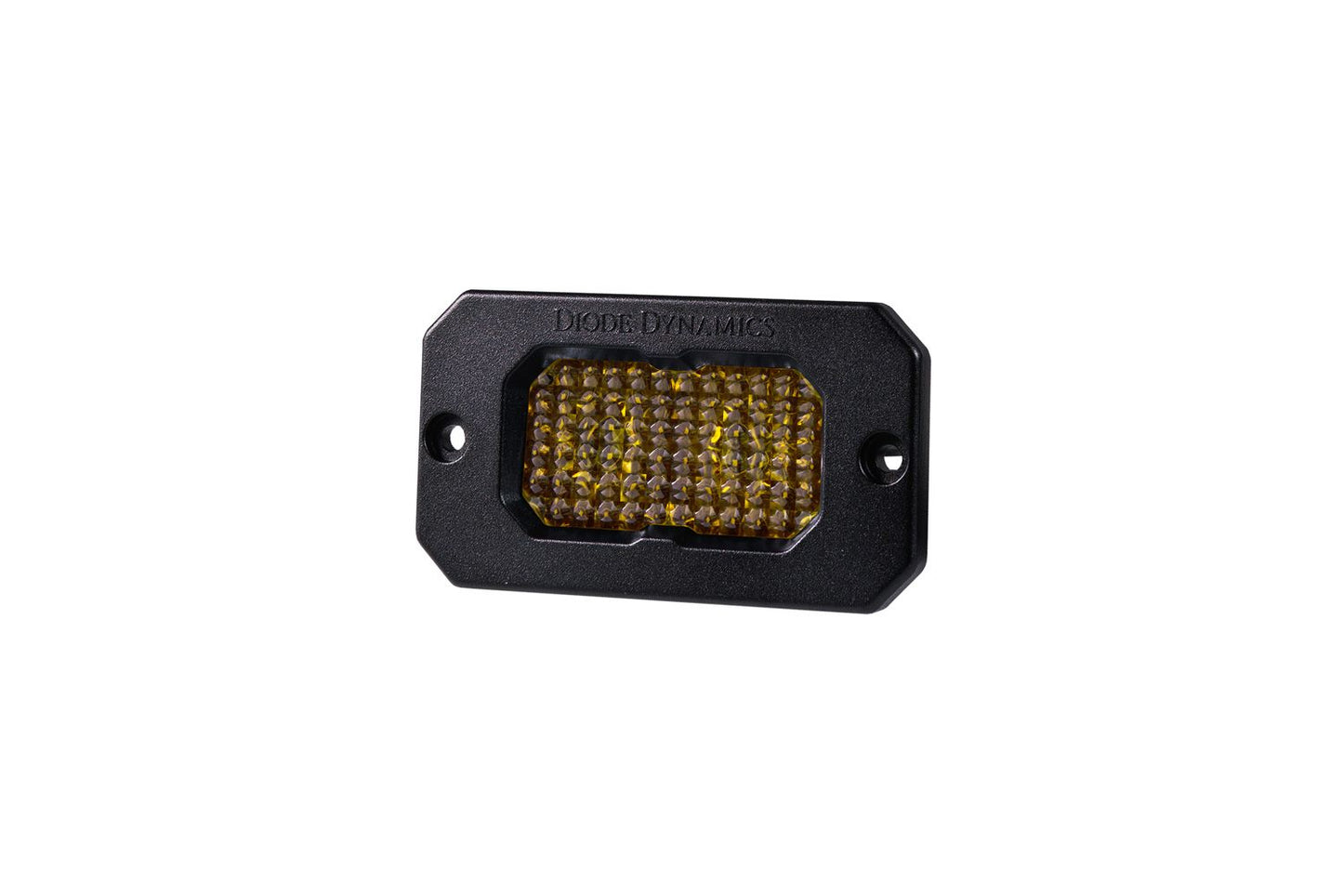

3000K Selective Yellow: Provides a distinctive yellow output and increased visual contrast.

Replacement lenses are also available separately, allowing you to change the color or optic of compatible C2 1.0 pods.

Sport or Pro Power

Choose between two Stage Series performance levels.

Sport: Uses high-intensity LED emitters and precision TIR optics for a strong balance of performance and value.

Pro: Delivers double the total power of the Sport configuration for increased lighting performance.

Backlight

The C2 1.0 features an integrated amber backlight.

Rather than illuminating only a small indicator LED, the backlight illuminates the TIR optic itself, creating a distinctive accent when the main beam isn’t being used.

Check applicable vehicle-lighting regulations before using accent lighting on public roads.

Simple Deutsch-Style Connection

Each C2 1.0 LED Pod features a custom-molded DT-type Deutsch-style connector and includes a 6-inch pigtail with bare leads.

This provides flexibility for custom wiring or integration with a compatible Deutsch-style wiring harness.

Proven Stage Series Reliability

Stage Series LED lighting has been extensively tested for operation from -40°F to 185°F, along with vibration, moisture intrusion, and corrosion testing.

Combined with its powder-coated aluminum housing and pin-fin heatsink design, the C2 1.0 is built for demanding automotive, off-road, trailer, and utility applications.

What’s Included

• One (1) Stage Series C2 1.0 2” LED Pod
• One (1) Deutsch-style wire pigtail
• Mounting hardware

Quantity: One (1)
Mounting Style: Flush Mount
Power Level: Sport or Pro
Output Color: 6000K White or 3000K Yellow
Beam Pattern: SAE Fog, Flood, or Combo
Backlight: Amber
Warranty: Lifetime warranty
