Description

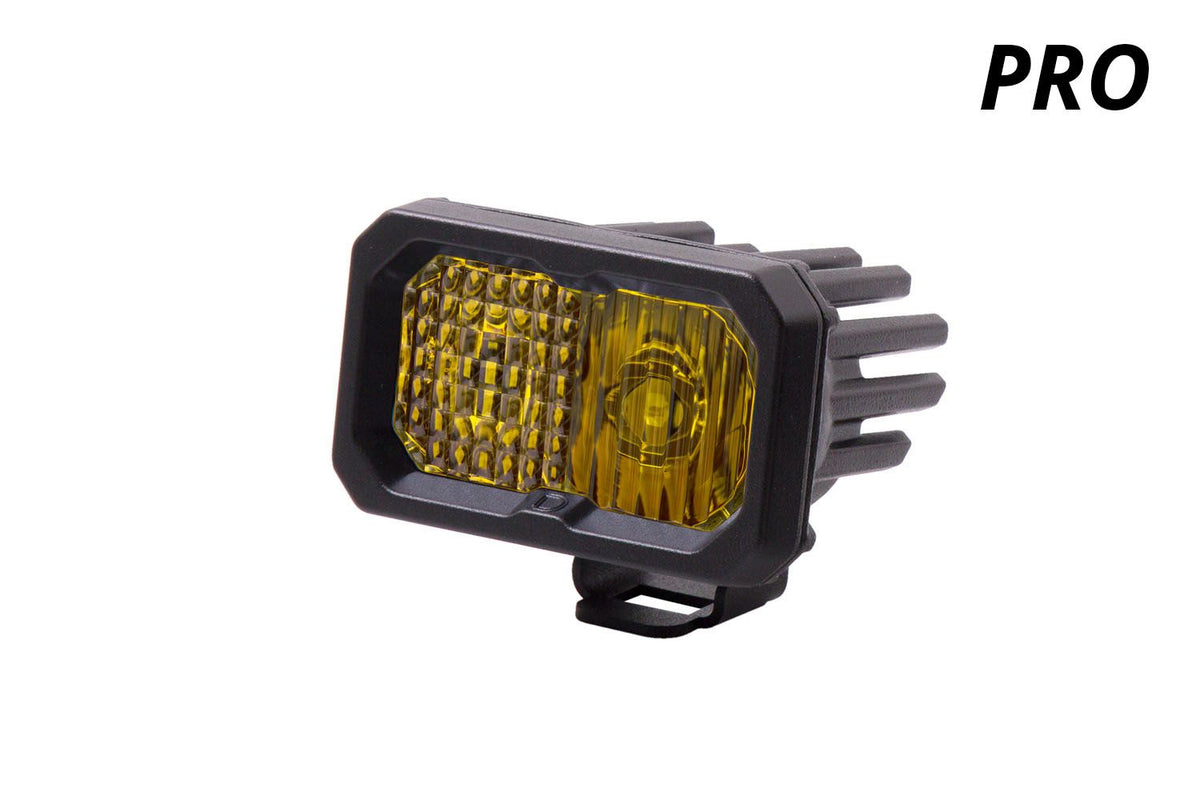

Diode Dynamics C2 1.0 Pro 2” Yellow LED Pod – Single
Get high-output auxiliary lighting in a compact package with the Diode Dynamics C2 1.0 Pro 2” Yellow LED Pod. Featuring a 3000K selective yellow output, Combo beam pattern, amber backlight, and custom-engineered TIR optics, this Stage Series pod delivers focused, functional illumination from a durable 2-inch housing.
The Pro power level provides double the total power of the Sport version, making this configuration an excellent choice when you want increased performance without moving to a larger LED pod.
Part Number: DD6412S
Quantity: One (1) LED Pod
Key Features
- One Stage Series C2 1.0 2” LED Pod
- Pro power level
- 3000K selective yellow output
- Amber accent backlight
- Combo beam pattern
- 40x20-degree beam spread
- Custom-engineered TIR (Total Internal Reflection) optics
- Durable powder-coated aluminum construction
- Pin-fin heatsink design
- Integrated DT-type Deutsch-style connector
- Interchangeable lens
- Tested for vibration, moisture intrusion, corrosion, and extreme temperatures
- Designed, torture-tested, and assembled in the USA
- Lifetime warranty
3000K Selective Yellow Output
This C2 1.0 Pro features a 3000K selective yellow output, providing high visual contrast and a distinctive appearance.
The yellow output makes this compact pod a versatile choice for auxiliary-lighting applications where selective yellow illumination is preferred.
Compatible replacement lenses are also available, allowing you to change the color or optic of the C2 1.0 later.
Pro Power Level
This C2 1.0 uses the Pro power level for increased lighting performance.
Both Sport and Pro configurations use high-intensity LED emitters and precision TIR optics, but the Pro version provides double the total power of the Sport model.
That additional power makes the Pro an excellent option for drivers who want more output from the compact C2 platform.
Combo Beam Pattern
The Combo beam pattern combines Driving and Flood optics to provide both downrange illumination and additional surrounding light.
The optic produces a focused 40x20-degree rectangular beam, with a Flood optic on one side and Driving optic on the other.
This balanced pattern makes the C2 1.0 Pro Combo a versatile option for general auxiliary-lighting applications.
Custom-Engineered TIR Optics
The C2 1.0 uses custom-engineered Total Internal Reflection (TIR) optics rather than relying on a conventional reflector or simple lens.
The TIR optic collects light from the LED and precisely directs it into the intended beam pattern, helping reduce wasted light and unwanted glare while improving optical efficiency.
The custom-molded TIR optic also serves as the main lens, helping maximize usable output from the compact housing.

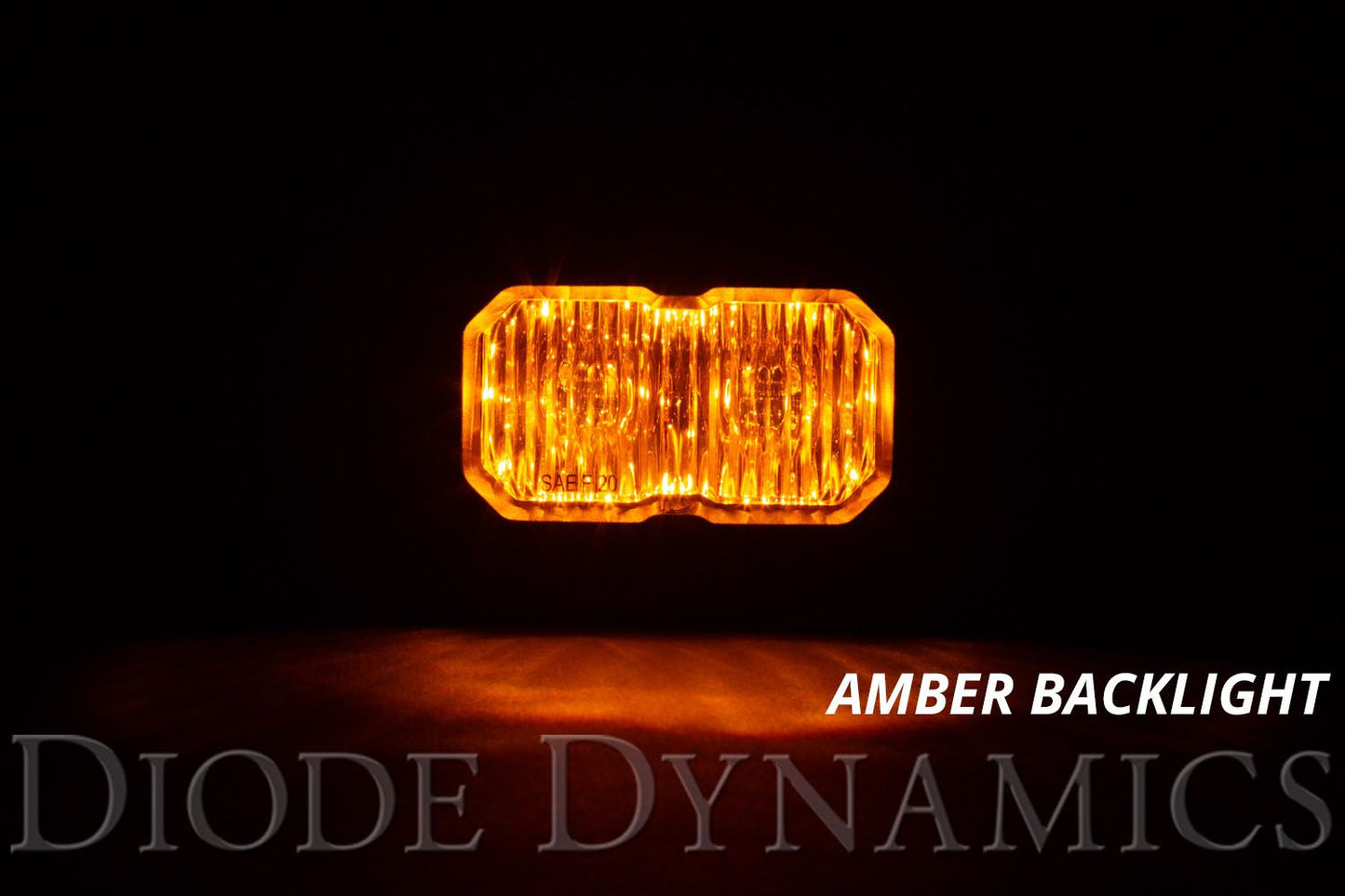

Amber Backlight
In addition to the 3000K selective yellow main beam, this C2 1.0 features an integrated amber backlight.
The backlight illuminates the TIR optic itself rather than relying on a small indicator LED, creating a distinctive appearance when the main beam isn’t being used.
Always check applicable state and local regulations regarding auxiliary and accent-light use on public roads.
Compact 2-Inch Design
The C2 1.0 combines Stage Series performance with a compact 2-inch footprint, making it well suited for installations where larger auxiliary lights may not fit.
Its compact dimensions provide additional flexibility for custom vehicle and auxiliary-lighting setups.
Durable Stage Series Construction
The C2 1.0 features a durable powder-coated aluminum housing and pin-fin heatsink design for effective thermal management.
Stage Series lighting is tested for long-term operation from -40°F to 185°F, along with vibration, moisture intrusion, and corrosion testing.
Simple Connections
The C2 1.0 features an integrated DT-type Deutsch-style connector and includes a 6-inch pigtail with bare leads.
This allows the pod to be integrated using an appropriate compatible wiring solution for your specific installation.
What’s Included
- One (1) Diode Dynamics Stage Series C2 1.0 2” LED Pod
- One (1) Deutsch-style wire pigtail
- One (1) mounting bracket with hardware
Part Number: DD6412S
Power Level: Pro
Output Color: 3000K Selective Yellow
Beam Pattern: Combo
Beam Spread: 40x20 degrees
Backlight: Amber
Quantity: 1 LED pod
Warranty: Lifetime warranty
Designed, tested and assembled in: USA
Specifications
- Datasheet(s) (click to download): SSC2 Pro Yellow Standard
- Color Temp (CCT): 3000K
- Power (watts): Main Beam: 25.6, Backlight: 0.7
- Operating Voltage: 9-16V
- Current (amps @ 12.8V): Main Beam: 2, Backlight: 0.06
- Polarity: Polarity Specific
- Operating Temperature: -40C to 85C (-40F to 185F)
- LED Emitter: Cree XP-L HI
- Connector(s): Deutsch DT Input
- Driver Features: Constant Current
- Materials: Polycarbonate Lens, Aluminum Casting, Rubber Gasket
- Cooling: Passive, Pin-Fin heatsink
- Compliance Ratings: SAE J575 Durability Test
- Intrusion Ratings: IP69K Waterproof, High Pressure
- Product Dimensions (in): 2 x 3.3 x 2.4
- Unit Weight (lb): 0.52
- Product Weight (lb): 0.52
Installation
Installation Time: 30-60 minutes
Tools Needed: Basic Toolset
Installation Guide: Click to download
Wiring Instructions: Click here
