Diode Dynamics C2 2.0 2” Flush Mount LED Pods – Pair
Diode Dynamics C2 2.0 2” Flush Mount LED Pods – Pair
SKU:DD8122P
Diode Dynamics C2 2.0 2” Flush Mount LED Pods – Pair
Description
Diode Dynamics C2 2.0 2” Flush Mount LED Pods – Pair
Add powerful auxiliary lighting with a clean, low-profile installation using the Diode Dynamics C2 2.0 Stage Series 2” Flush Mount LED Pods. Designed for mounting on flat surfaces such as bumpers, cargo areas, trailers, and custom panels, the Diode Dynamics C2 2.0 Flush Mount LED Pod Kit combines compact dimensions with high-output Stage Series performance.
Choose from Sport, Pro, or Max power levels, cool white or selective yellow output, and functional Combo/Driving or Flood beam patterns.
This listing includes two (2) C2 2.0 Flush Mount LED Pods.
Key Features
- Pair of Stage Series C2 2.0 2” Flush Mount LED Pods
- Low-profile installation on flat mounting surfaces
- Ideal for bumpers, cargo areas, trailers, and custom installations
- Patented TIR (Total Internal Reflection) optics
- Sport, Pro, and Max power levels
- Max model produces up to 3,900 raw lumens
- Up to 95% more power than the C2 1.0
- Combo/Driving and Flood beam patterns
- 6000K cool white or 3000K selective yellow output
- Integrated low-power red backlight
- Swappable optics and output colors
- Improved copper-core circuit board
- Durable powder-coated aluminum housing
- Tested for vibration, moisture intrusion, corrosion, and extreme temperatures
- Made in the USA with global materials
- Limited Lifetime Warranty

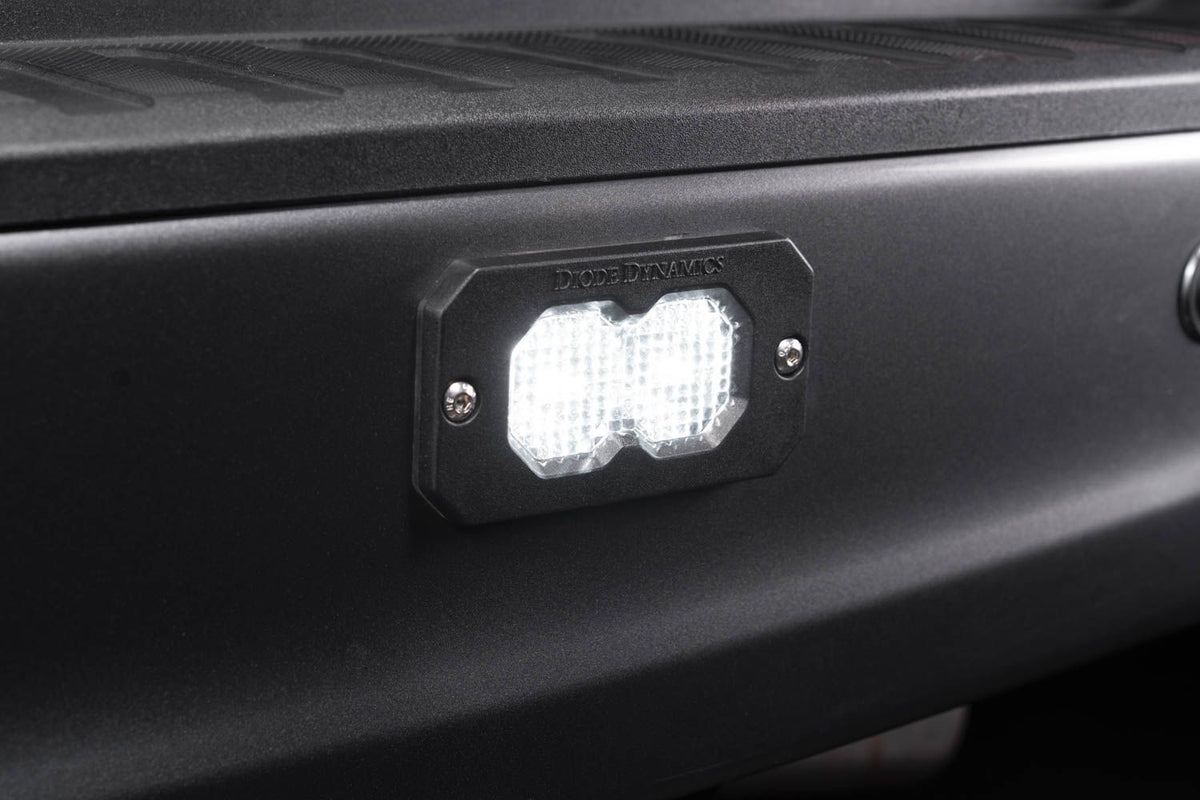

Clean Flush-Mount Installation
The C2 2.0 Flush Mount Kit is designed for a low-profile installation on flat surfaces, making it an excellent option when you want auxiliary lighting without an exposed traditional pod bracket.
Common mounting locations include bumpers, cargo areas, trailers, and other custom flat surfaces.
The flush-mount design also helps keep the compact pods protected while providing a clean, integrated appearance.
Next-Generation C2 2.0 Performance
The C2 2.0 has been re-engineered internally for increased performance compared with the original C2.
A new copper-core circuit board is bonded directly to the LED chips to improve thermal efficiency, while the redesigned powder-coated aluminum housing provides improved heat dissipation.
Together, these upgrades allow the compact C2 2.0 to produce greater power and light output while maintaining its 2-inch footprint.
Sport, Pro or Max
Choose from three performance levels depending on your lighting requirements.
Sport: Uses high-intensity, automotive-grade LED emitters to provide a strong balance of performance and value.
Pro: Steps up total power for increased lighting performance.
Max: Uses Osram HX Boost LEDs to produce up to 3,900 raw lumens from a compact 2-inch pod.
All three options use precision TIR optics for focused, usable illumination.
Patented TIR Optics
The C2 2.0 features re-engineered Total Internal Reflection (TIR) optics designed to precisely control and distribute light from the LEDs.
Compared with the C2 1.0, the redesigned optics provide up to 120% more intensity, directing more usable light where it’s needed while reducing wasted light and glare.
Choose Your Beam Pattern
The C2 2.0 Flush Mount LED Pods are available with two functional beam patterns.
Combo/Driving: Produces a 55x20-degree rectangular pattern designed to provide a useful combination of width and downrange illumination. It’s an excellent all-around auxiliary-lighting option.
Flood: Produces broad, uniform illumination with a 70x45-degree spread. The wide pattern is ideal for reverse lighting, cargo areas, trailers, campsites, worksites, and other applications where broad illumination is preferred.
Cool White or Selective Yellow
Choose between two output colors:
6000K Cool White: Provides crisp white illumination for a clean, modern appearance.
3000K Selective Yellow: Provides distinctive yellow illumination with high visual contrast.
The C2 2.0 uses the same high-output Cool White LED chips for both configurations. Compatible replacement lenses allow you to change between white and yellow or swap the optic without replacing the complete pod.
Integrated Red Backlight
The C2 2.0 Flush Mount LED Pods include a distinctive low-power red backlight.
Rather than illuminating only a small indicator LED, the red backlight illuminates the TIR optic itself for a modern appearance and additional rear visibility.
The red color is particularly well suited to rear-facing installations where it can complement the appearance of factory taillighting.
Always verify applicable vehicle-lighting regulations for your installation and intended use.
Built for Demanding Conditions
Stage Series LED lighting is extensively tested for long-term operation from -40°F to 185°F, along with vibration, moisture intrusion, and corrosion testing.
Combined with the compact housing and flush-mount installation, the C2 2.0 is well suited for demanding automotive, trailer, and auxiliary-lighting applications.

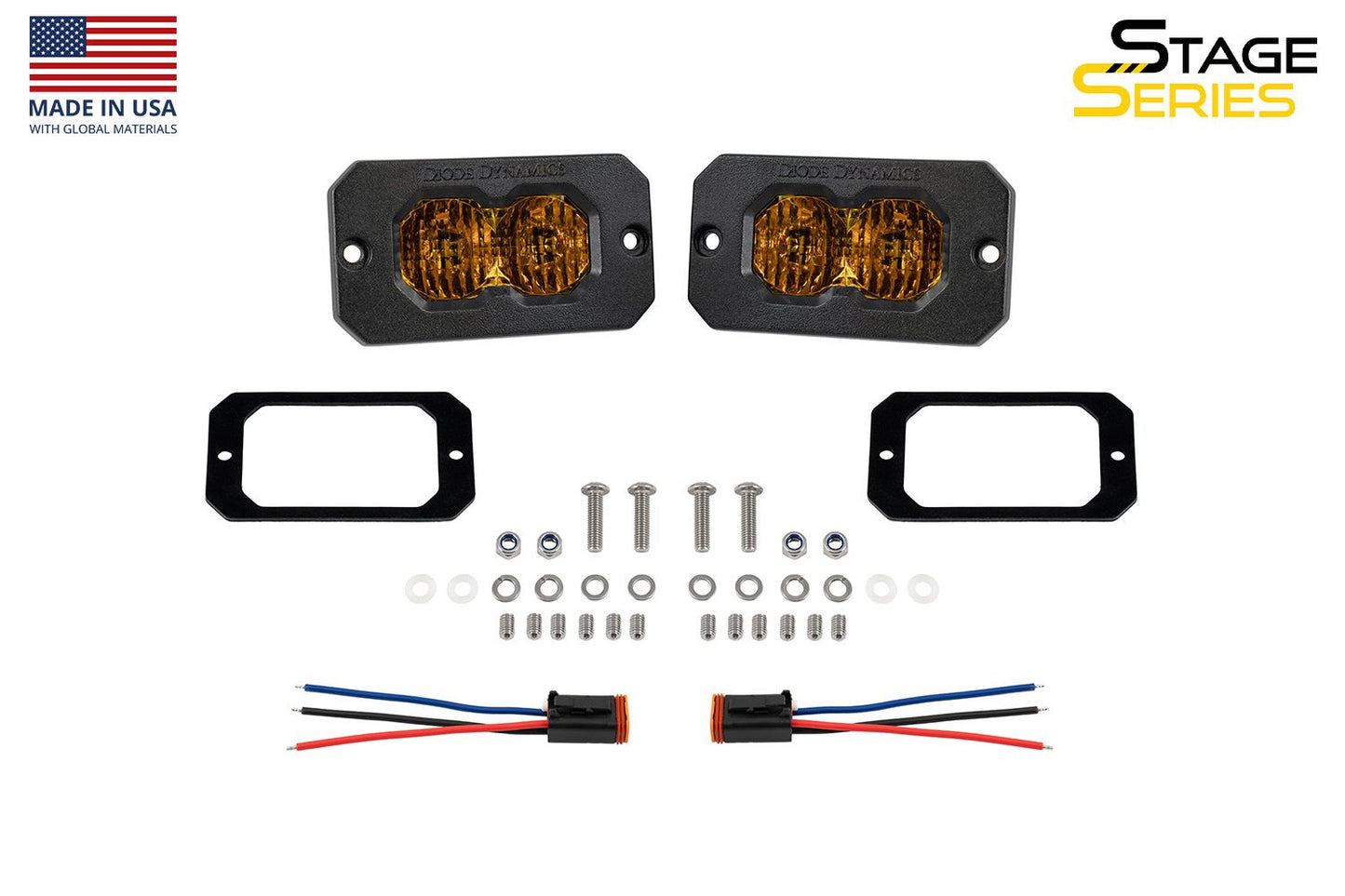

What’s Included
- Two (2) Diode Dynamics Stage Series C2 2.0 LED Pods
- Two (2) Deutsch-style wire pigtails
- Flush-mount hardware
- Required mounting hardware
Quantity: 2 LED pods
Output Color: 6000K White or 3000K Yellow
Beam Pattern: Combo/Driving or Flood
Backlight: Red
Warranty: Limited Lifetime Warranty
Made in: USA with global materials
Specifications
- Raw Lumens: 1,190 lm
- Color Temp (CCT): 6000K
- Power (watts): Main Beam: 15, Backlight: 0.38
- Operating Voltage: 9-30V
- Current (amps @ 12.8V): Main Beam: 1.17, Backlight: 0.03
- Polarity: Polarity Specific
- Operating Temperature: -40C to 85C (-40F to 185F)
- LED Emitter: Lumileds Automotive Grade LED
- Connector(s): Deutsch DT Input
- Driver Features: Constant Current
- Materials: Polycarbonate Lens, Aluminum Casting, Rubber Gasket
- Cooling: Passive, Pin-Fin heatsink
- Compliance Ratings: SAE J575 Durability Test
- Intrusion Ratings: IP69K Waterproof, High Pressure
- Product Dimensions (in): 2.5 x 4.5 x 2.4
- Unit Weight (lb): 0.55
- Product Weight (lb): 1.4
Installation
Installation Time: 30-60 minutes
Tools Needed: Basic Toolset
Installation Guide: Click to download
Wiring Instructions: Click here
