Diode Dynamics C2R White Flood Flush Mount LED Pods – Pair | DD8573P

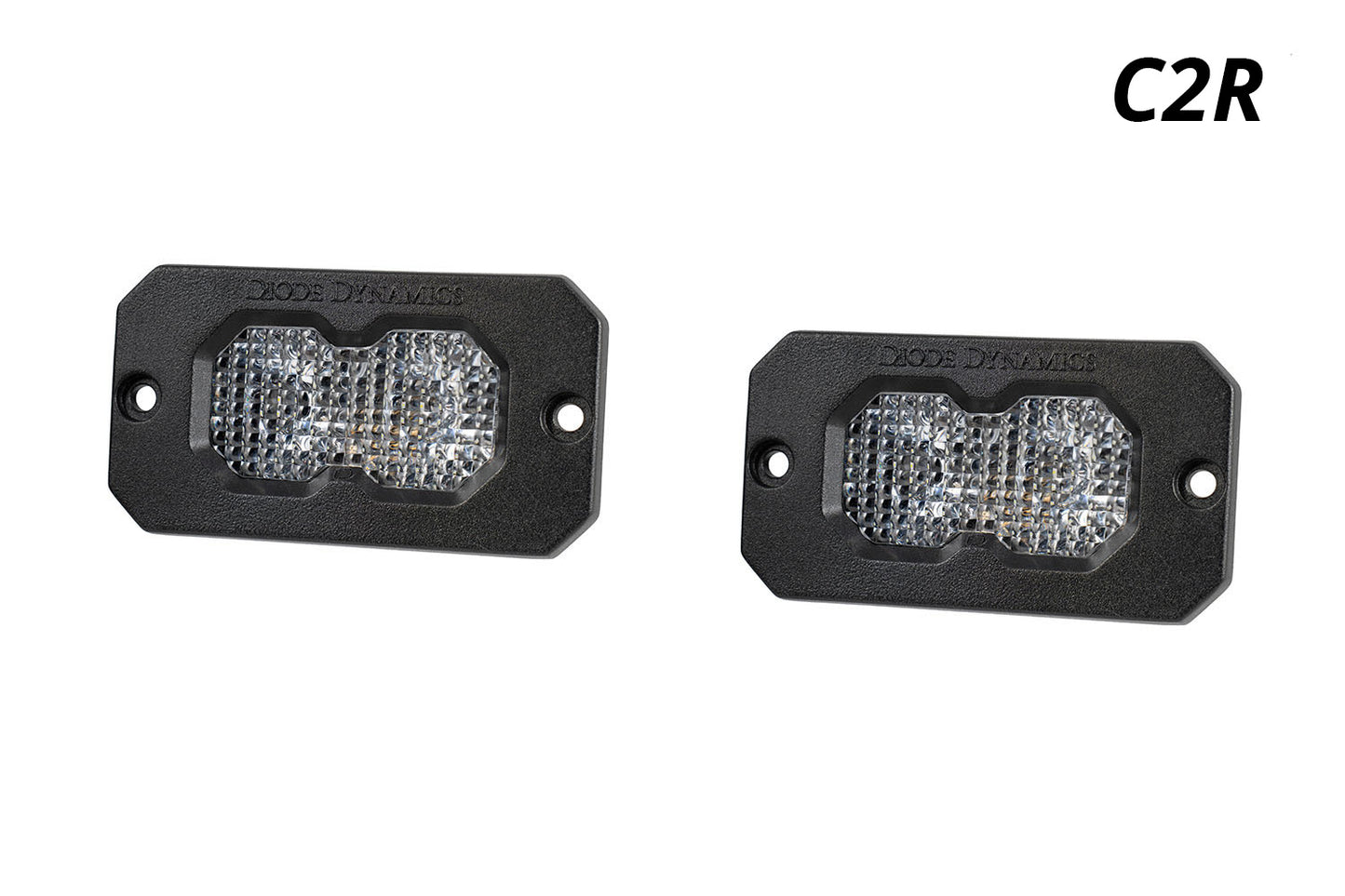

Diode Dynamics C2R White Flood Flush Mount LED Pods – Pair

Upgrade your rear lighting with the Diode Dynamics Stage Series C2R White Flood Flush Mount LED Pods. Designed for clean, low-profile installation on bumpers, truck beds, and other flat mounting surfaces, the Diode Dynamics C2R combines three independently controlled lighting functions into one ultra-compact LED pod.

Each C2R provides a high-power white main beam, high-power red output, and low-power red accent light, allowing the pods to function as auxiliary reverse lights, brake lights, and running lights when properly integrated into your vehicle.

Part Number: DD8573P
Quantity: Two (2) LED Pods

Key Features

• Pair of Diode Dynamics Stage Series C2R LED Pods
• Compact flush-mount design
• Ideal for bumpers, truck beds, and custom rear-lighting installations
• Three independently controlled lighting functions
• High-power cool white main beam
• High-power red output
• Low-power red accent output
• 70x45-degree Flood beam pattern
• Patented TIR (Total Internal Reflection) optics
• Copper-core circuit board
• Powder-coated aluminum construction
• Pin-fin heatsink design for thermal management
• Integrated DT-type Deutsch-style connectors
• 4-pin wiring pigtails included
• Tested for vibration, moisture intrusion, corrosion, and extreme temperatures
• Made in the USA with global materials
• Limited Lifetime Warranty

3-in-1 Rear Lighting

The Stage Series C2R combines three lighting functions into a single compact pod, giving you a versatile solution for custom rear vehicle lighting.

High-Power White: Designed to supplement your factory reverse lights with additional illumination behind the vehicle.

High-Power Red: Can be integrated as an auxiliary brake-light function for additional rear visibility when braking.

Low-Power Red: Provides a lower-intensity output suitable for a secondary running or accent-light function.

Each function can be activated independently, giving you flexibility when integrating the C2R into your vehicle’s lighting system.

Flush-Mount Design

The C2R Flush Mount is designed for a clean, integrated installation on bumpers, truck beds, and other suitable flat surfaces.

Its ultra-compact footprint makes it particularly useful when larger auxiliary lights won’t fit, while the flush installation creates a low-profile appearance and helps protect the pods from exposed mounting situations.

Wide Flood Beam for Reverse Lighting

The C2R features a 70x45-degree Flood beam pattern designed to provide broad, even illumination.

Instead of simply diffusing a narrow spotlight, advanced pillow optics distribute light across a controlled field of view. This wide output makes the C2R especially useful as an auxiliary LED reverse or backup light, where illuminating a broad area behind the vehicle is important.

Patented TIR Optics

Diode Dynamics’ patented Total Internal Reflection (TIR) optics collect light from the LEDs and precisely direct it into the intended beam pattern.

The custom-molded TIR optic also serves as the main lens, helping reduce internal light loss and unwanted glare while maximizing usable output and optical efficiency.

Performance-Driven Construction

Building on the C2 2.0 platform, the C2R uses a copper-core circuit board bonded directly to the LED chips for efficient thermal transfer and consistent performance.

Combined with a powder-coated aluminum housing and pin-fin heatsink design, the C2R is engineered to efficiently dissipate heat while delivering high-output performance from its compact housing.

Simple 4-Wire Connections

Each C2R LED Pod features an integrated DT-type Deutsch-style connector and includes a 4-pin, 6-inch bare-lead pigtail.

Yellow Wire: High-power red output
Red Wire: High-power white main beam
Blue Wire: Low-power red output
Black Wire: Ground

This independent wiring allows the three lighting functions to be connected to the appropriate vehicle circuits for your application.

Always verify vehicle wiring requirements and applicable lighting regulations before installation.

Built for Demanding Conditions

Stage Series LED lighting is extensively tested for long-term operation from -40°F to 185°F, along with vibration, moisture intrusion, and corrosion testing.

This durable construction makes the C2R well suited for demanding truck, off-road, utility, and custom automotive applications.

Snap-On Cover Compatible

Compatible Diode Dynamics Snap-On Lens Covers are available separately for added protection and customization.

Cover options include clear, yellow, amber, smoked, and black, with a tool-free snap-on design.

What’s Included

• Two (2) Diode Dynamics Stage Series C2R LED Pods
• Two (2) Deutsch-style wire pigtails
• Mounting hardware

Part Number: DD8573P
Quantity: 2 LED pods
Mounting Style: Flush Mount
Main Output: Cool White
Beam Pattern: Flood
Beam Spread: 70x45 degrees
Additional Outputs: High-Power Red / Low-Power Red
Warranty: Limited Lifetime Warranty
Made in: USA with global materials
