Diode Dynamics C2R White Flood 2” LED Pod – Single | DD8450S
Diode Dynamics C2R White Flood 2” LED Pod – Single | DD8450S
SKU:DD8450S
Diode Dynamics C2R White Flood 2” LED Pod – Single | DD8450S
Description

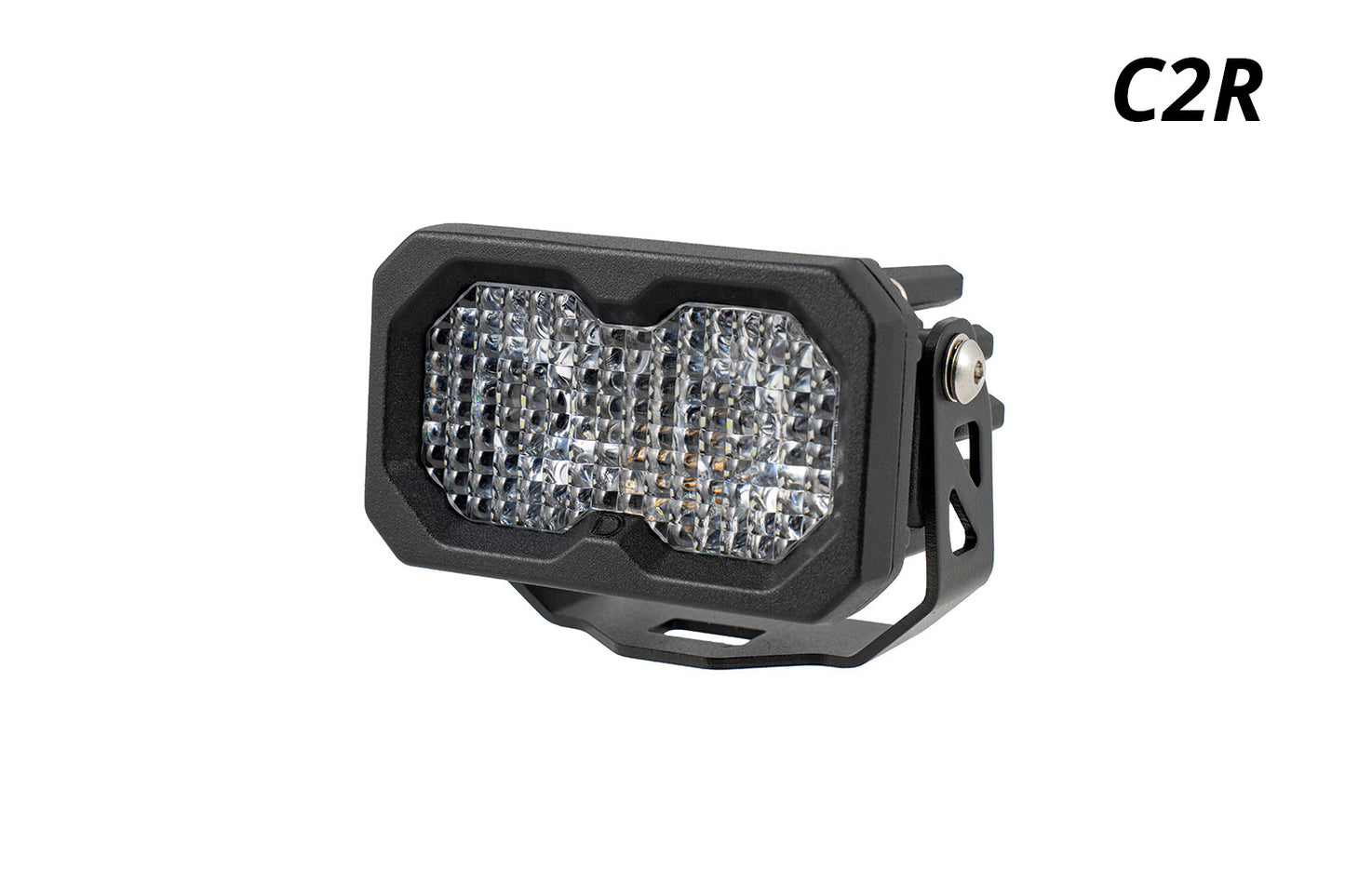

Diode Dynamics C2R White Flood 2” LED Pod – Single
Add three rear-lighting functions in one ultra-compact package with the Diode Dynamics Stage Series C2R White Flood LED Pod. The Diode Dynamics C2R combines a high-power cool white main beam, high-power red output, and low-power red accent light, with each function independently controlled.
Designed for tight mounting locations where larger LED pods won’t fit, the C2R is ideal for custom rear-lighting applications where you want additional reverse illumination, brake-light output, and running-light functionality from a single compact pod.
Part Number: DD8450S
Quantity: One (1) LED Pod
Key Features
- One Stage Series C2R LED Pod
- Triple-function white and red lighting
- High-power white reverse-light output
- High-power red brake-light output
- Low-power red running/accent light
- 70x45-degree Flood beam pattern
- Patented TIR (Total Internal Reflection) optics

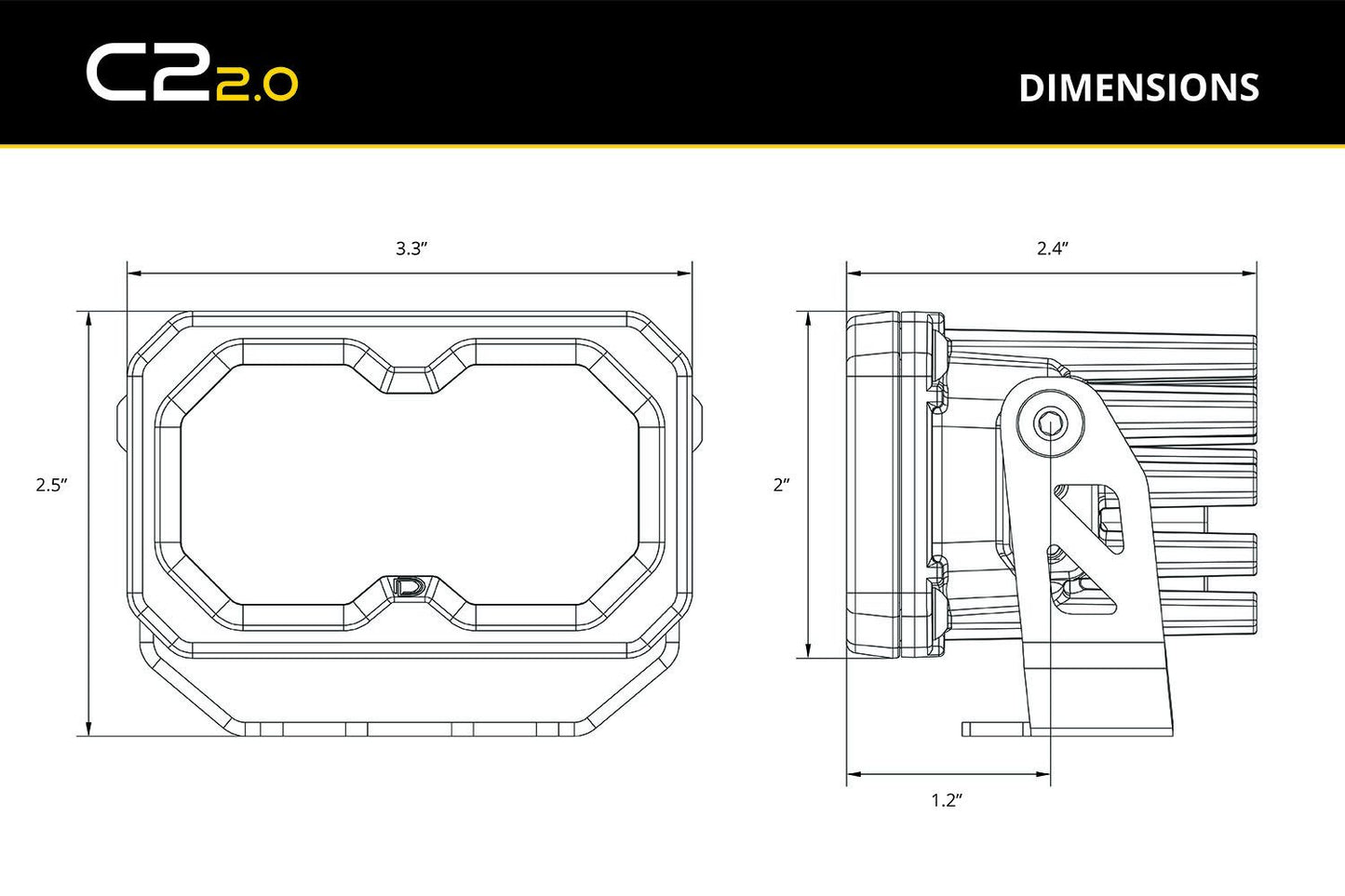

- Ultra-compact 2-inch design
- Adjustable mounting height and angle
- Copper-core circuit board for improved thermal performance
- Pin-fin heatsink design
- Durable powder-coated aluminum housing
- Integrated DT-type Deutsch-style connector
- 4-pin wiring pigtail included
- Snap-on lens cover compatible
- Tested for vibration, moisture intrusion, corrosion, and extreme temperatures
- Made in the USA with global materials
- Limited Lifetime Warranty

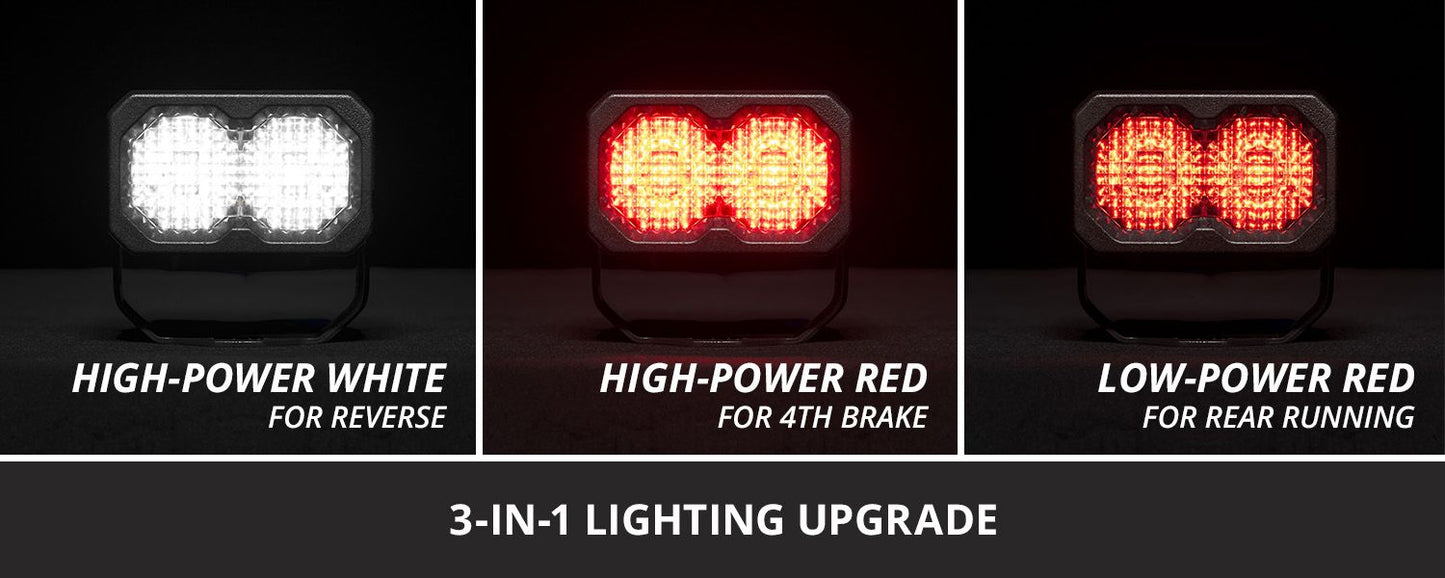

Three Functions in One Compact LED Pod
The Stage Series C2R provides three independently controlled lighting functions from a single compact housing.
High-Power White: Designed to provide additional illumination when reversing, supplementing your vehicle’s factory reverse lights.

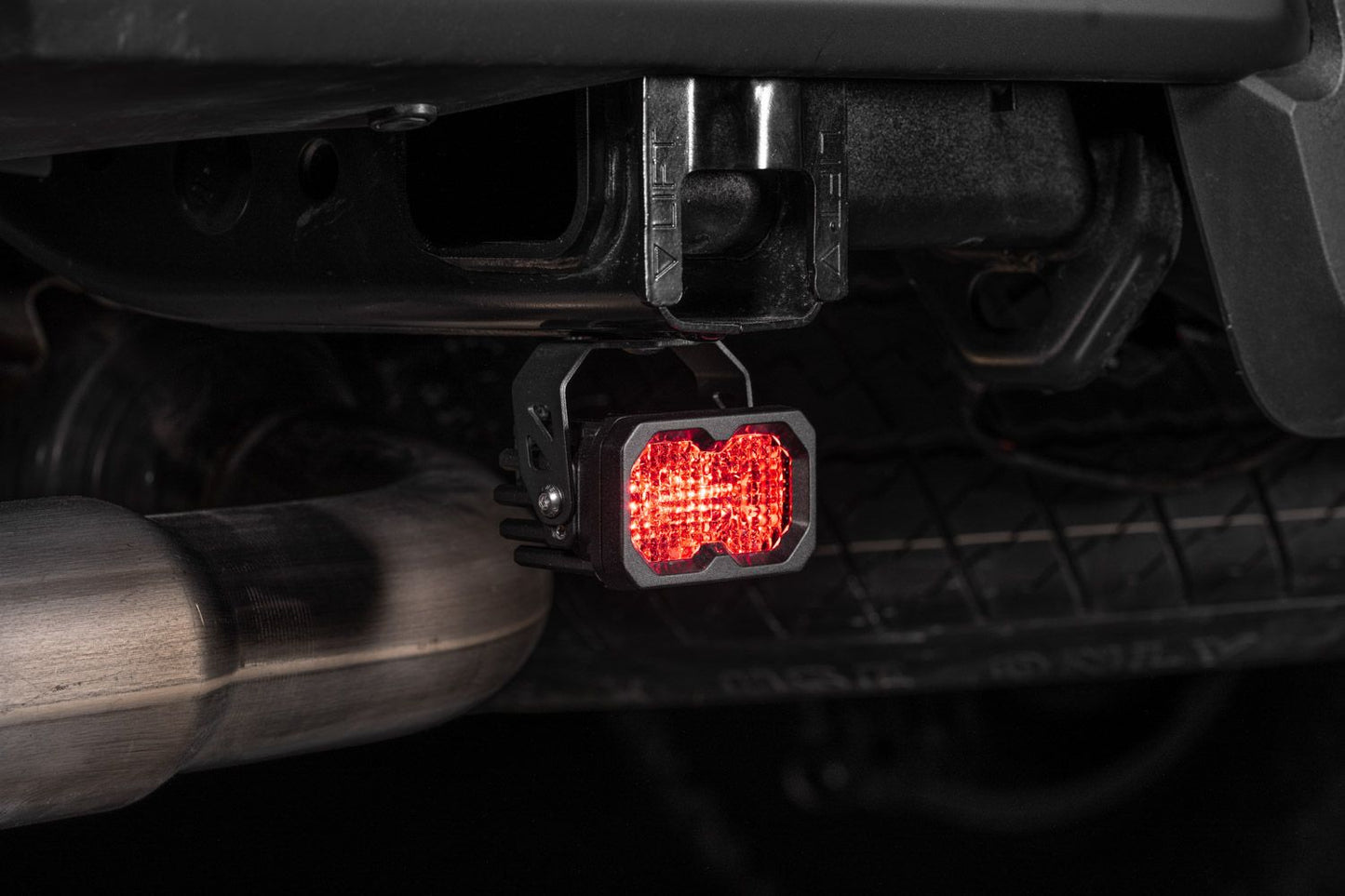

High-Power Red: Can be integrated as an auxiliary brake-light function for additional rear visibility when braking.
Low-Power Red: Provides a lower-intensity red output that can be used as a secondary running or accent light.

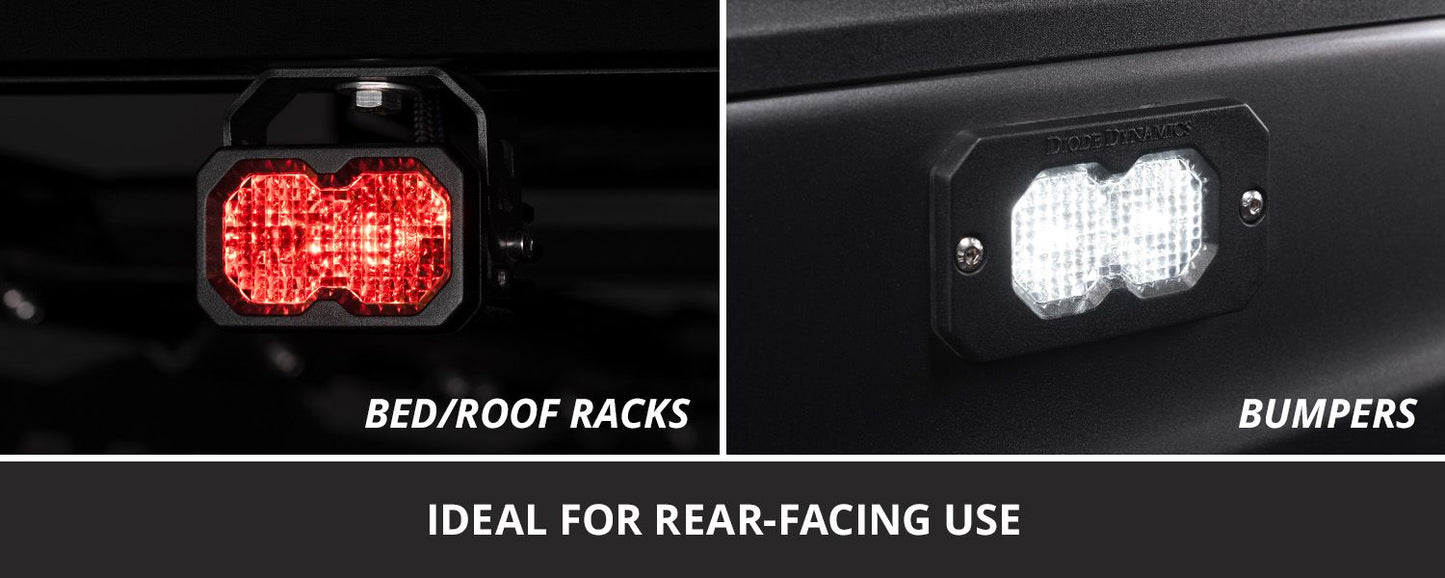

This 3-in-1 configuration makes the C2R especially useful for custom rear-lighting installations where mounting space is limited.

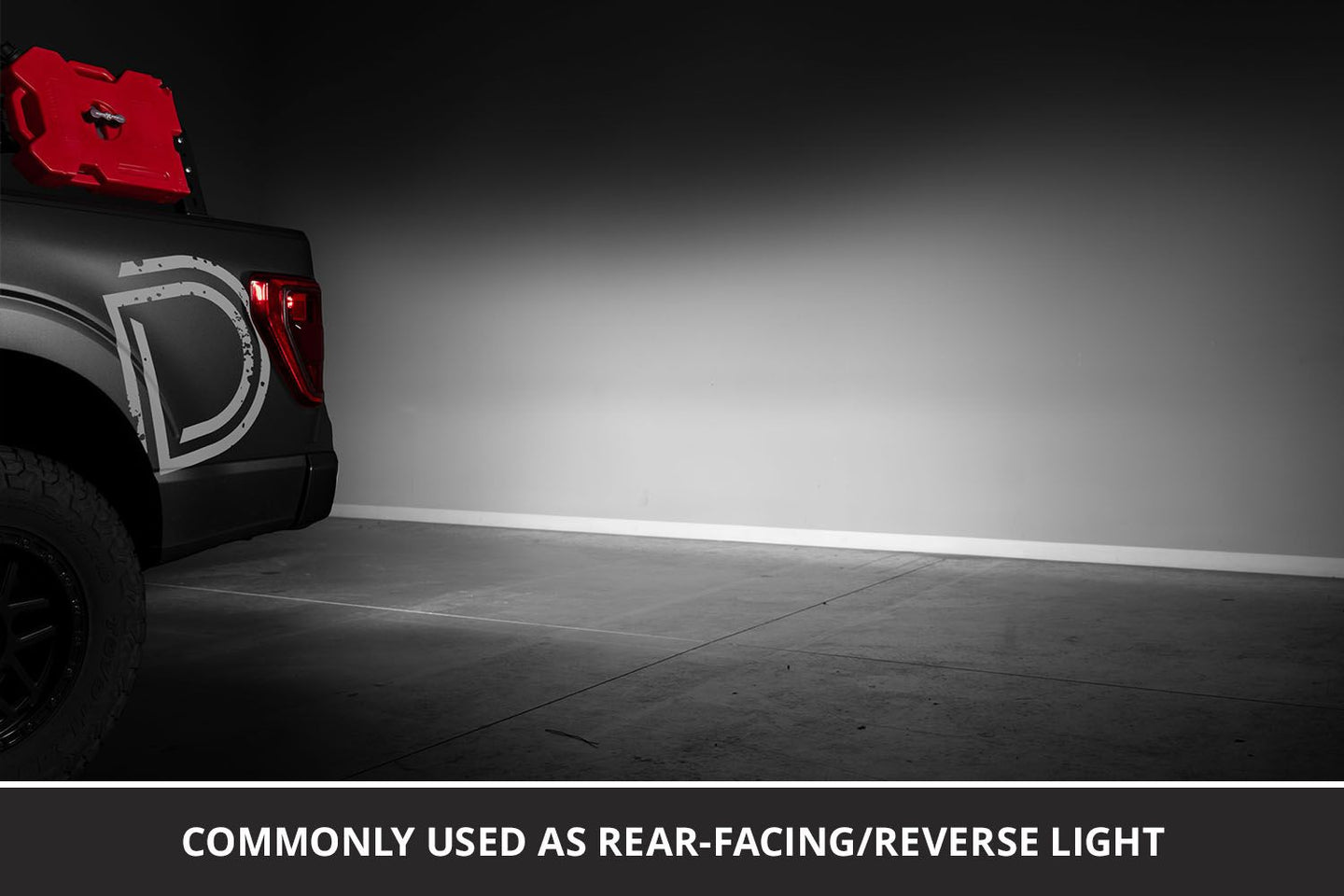

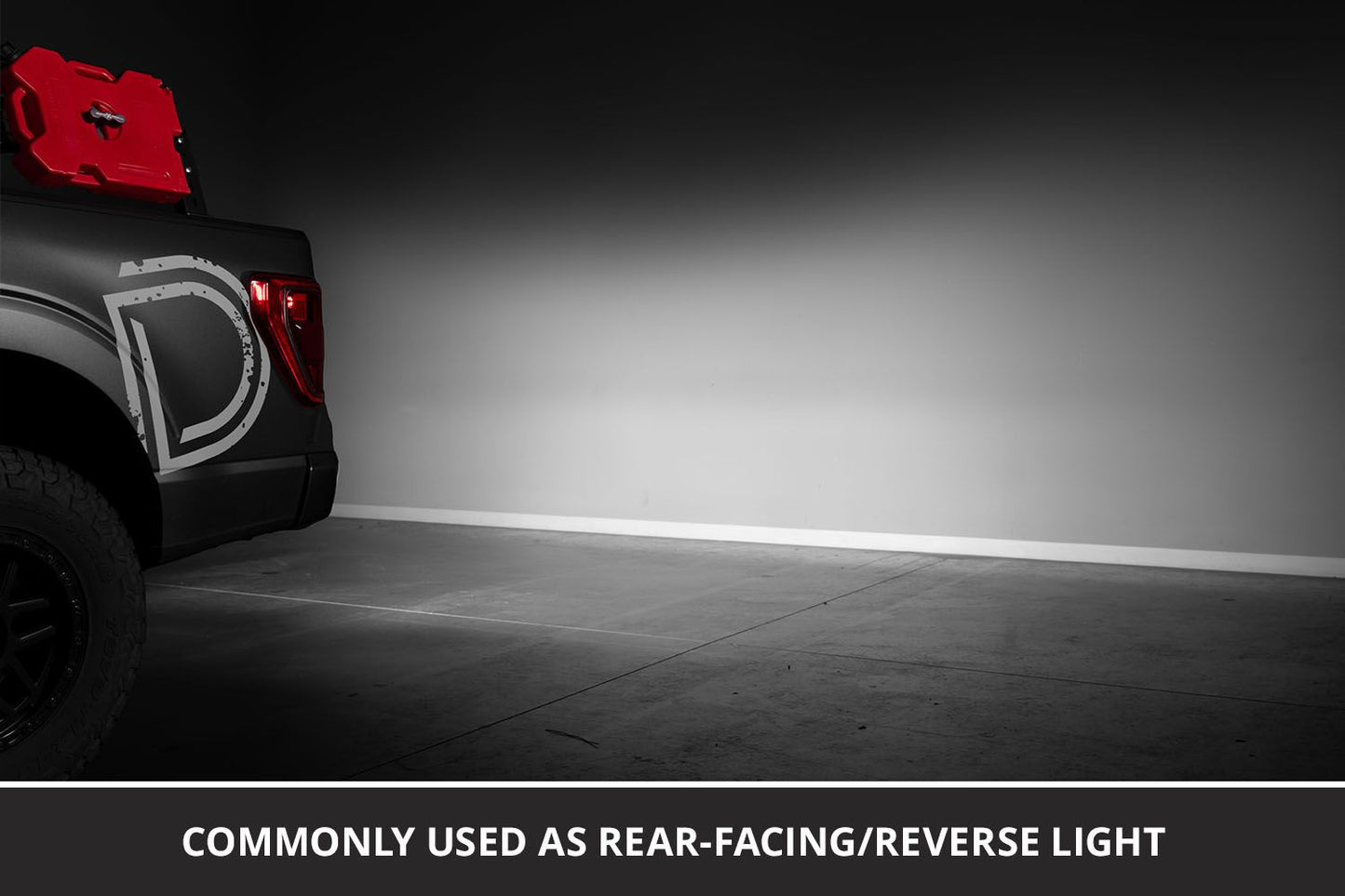

White Flood Output for Reverse Lighting
The C2R uses a wide 70x45-degree Flood beam pattern to provide broad, uniform illumination behind your vehicle.
Advanced pillow optics distribute the output across a controlled field rather than simply diffusing a narrow spotlight. This makes the Flood pattern particularly useful for backup and reverse-light applications where broad illumination is more valuable than a concentrated long-distance beam.
Patented TIR Optics
The C2R uses Diode Dynamics’ patented Total Internal Reflection (TIR) optic to collect light from the LED and precisely direct it into the intended beam pattern.
The custom-molded TIR optic also functions as the main lens, helping reduce internal light loss and unwanted glare while maximizing usable illumination and efficiency.
Performance-Driven Construction

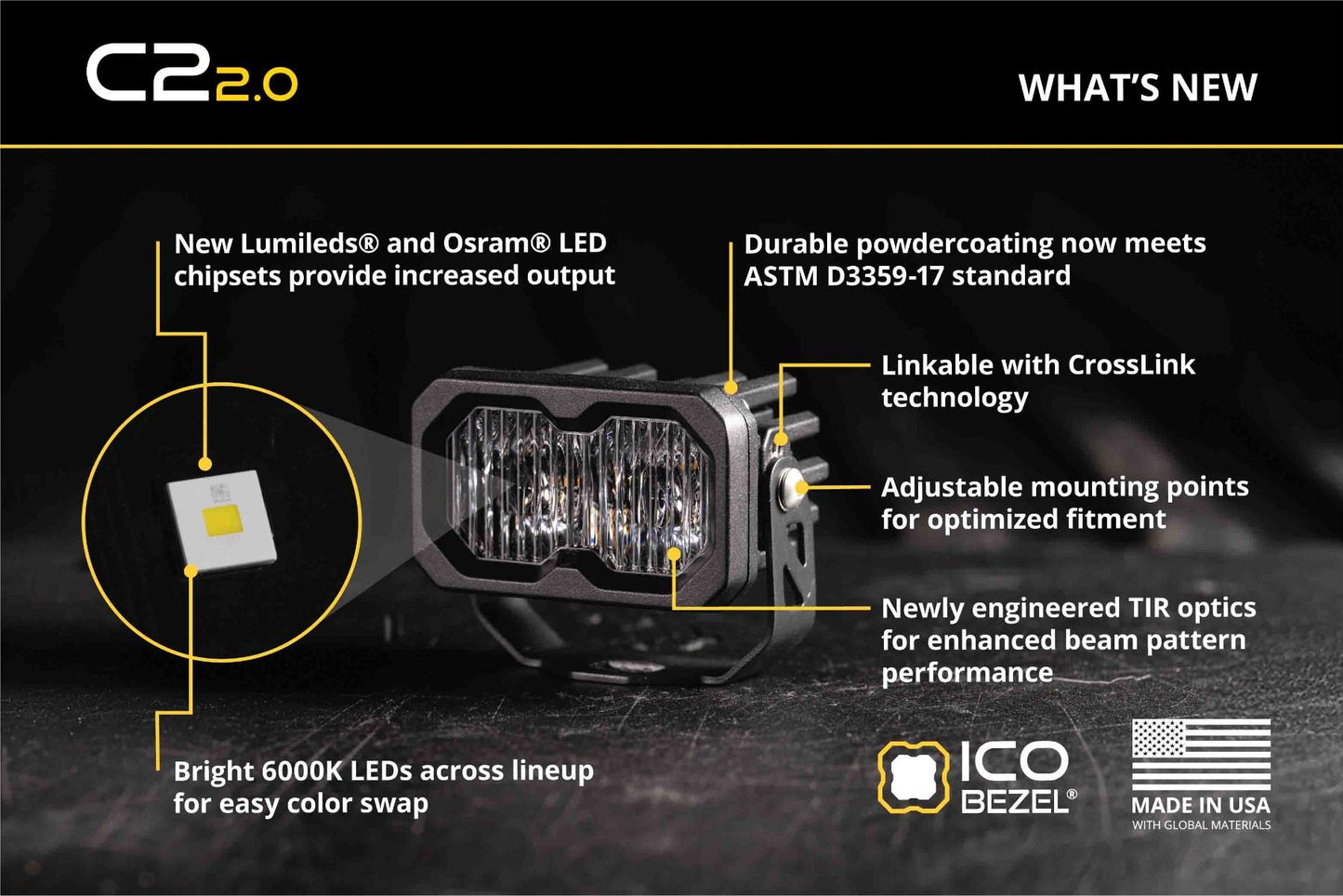

Building on the C2 2.0 platform, the C2R features a copper-core circuit board bonded directly to the LED chips for improved thermal efficiency and performance.
Combined with its powder-coated aluminum housing and heat-dissipating design, the C2R efficiently manages heat while delivering high-output performance from a compact package.

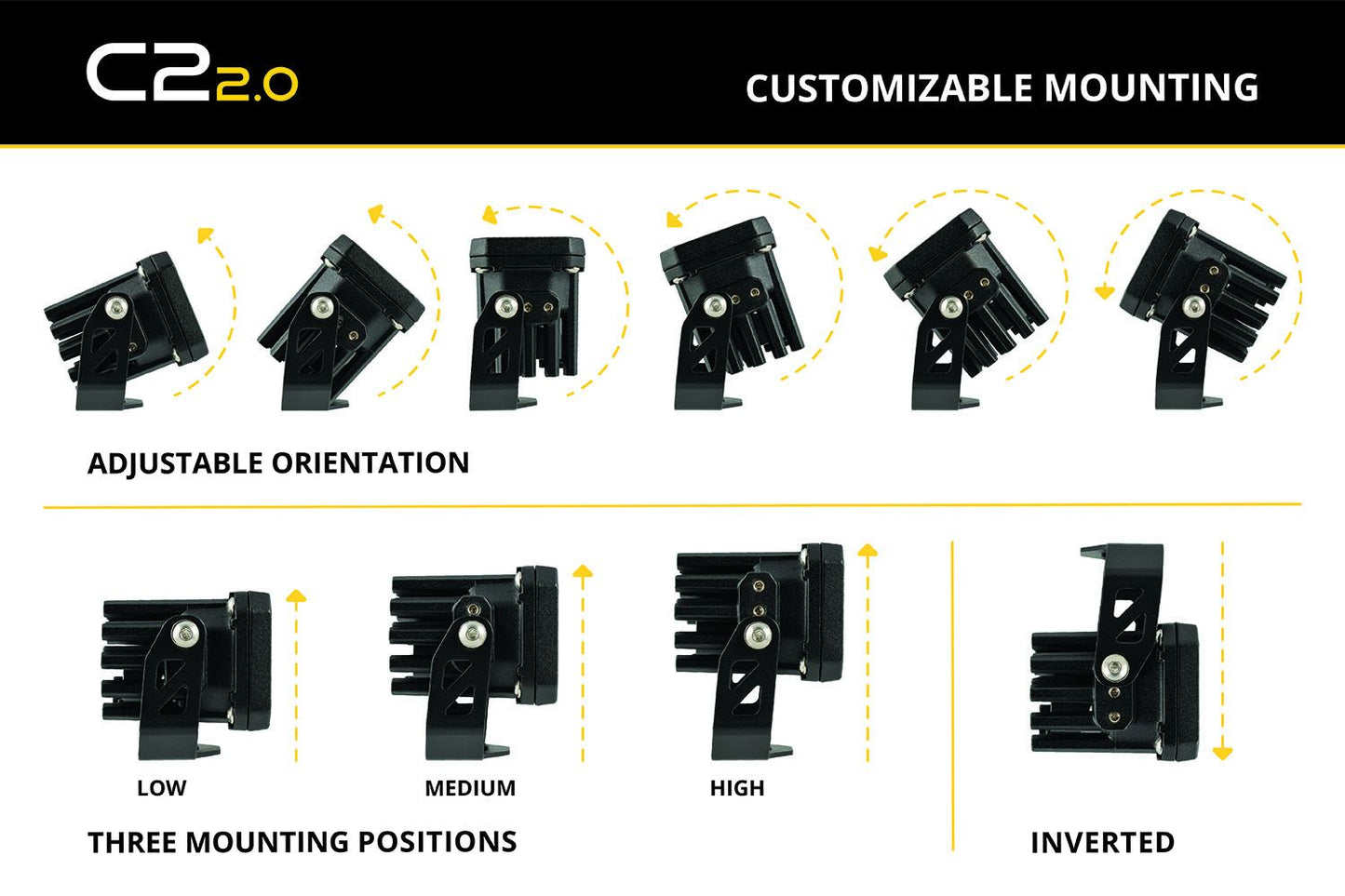

Adjustable Mounting
The C2R is designed for flexible installation in tight mounting locations.
Three mounting points allow you to adjust the pod’s height, while the revised mounting bracket provides additional angle adjustment. This gives you greater flexibility when positioning and aiming the light for your specific application.
Simple 4-Wire Connection
The C2R features an integrated DT-type Deutsch-style connector and includes a 4-pin, 6-inch pigtail with bare leads.
Yellow Wire: High-power red output
Red Wire: High-power white main beam
Blue Wire: Low-power red output
Black Wire: Ground
Because each lighting function can be activated independently, the C2R can be integrated into the appropriate vehicle lighting circuits for your installation.
Always verify your vehicle’s wiring requirements and applicable lighting regulations before installation.
Snap-On Cover Compatible
Compatible Diode Dynamics snap-on lens covers are available separately for additional protection and customization.
Available cover options include amber, clear, yellow, smoked, and black. No tools are required for installation.
Built for Demanding Conditions
Stage Series LED lighting is extensively tested for long-term operation from -40°F to 185°F, along with vibration, moisture intrusion, and corrosion testing.
The compact aluminum construction, thermal-management system, and high-efficiency optics make the C2R well suited to demanding automotive applications.
What’s Included
- One (1) Diode Dynamics Stage Series C2R LED Pod
- One (1) 4-pin Deutsch-style wire pigtail
- One (1) mounting bracket with hardware
Part Number: DD8450S
Quantity: 1 LED pod
Beam Pattern: White Flood
Warranty: Limited Lifetime Warranty
Made in: USA with global materials
Specifications
- Raw Lumens: 2900 lm
- Intensity (cd): Reverse: 1800 cd, Brake: 250 cd, Parking: 12 cd
- Color Temp (CCT): 6000K
- Beam Angle: Flood, 70°x45°
- Power (watts): Reverse: 18.3, Brake: 3.3, Parking: 0.36
- Operating Voltage: 9-30V
- Current (amps @ 12.8V): Reverse: 1.43, Brake: 0.25, Parking: 0.03
- Polarity: Polarity Specific
- Operating Temperature: -40C to 85C (-40F to 185F)
- LED Emitter: Cree XP-L HI, Osram 1414 Pure
- Connector(s): Deutsch DT Input
- Driver Features: Constant Current
- Materials: Copper PCB, Polycarbonate Lens, Aluminum Casting, Rubber Gasket
- Cooling: Passive, Pin-Fin heatsink
- Compliance Ratings: SAE J575 Durability Test
- Intrusion Ratings: IP69K Waterproof, High Pressure
- Unit Weight (lb): 0.55
- Product Weight (lb): 1.4
- Shipped Weight (lb): 1.9
Installation
Installation Time: 30-60 minutes
Tools Needed: Basic Toolset
