Diode Dynamics C2R 2” White Flood LED Pods (Pair) – DD8450P
Diode Dynamics C2R 2” White Flood LED Pods (Pair) – DD8450P
SKU:DD8450P
Diode Dynamics C2R 2” White Flood LED Pods (Pair) – DD8450P
Description

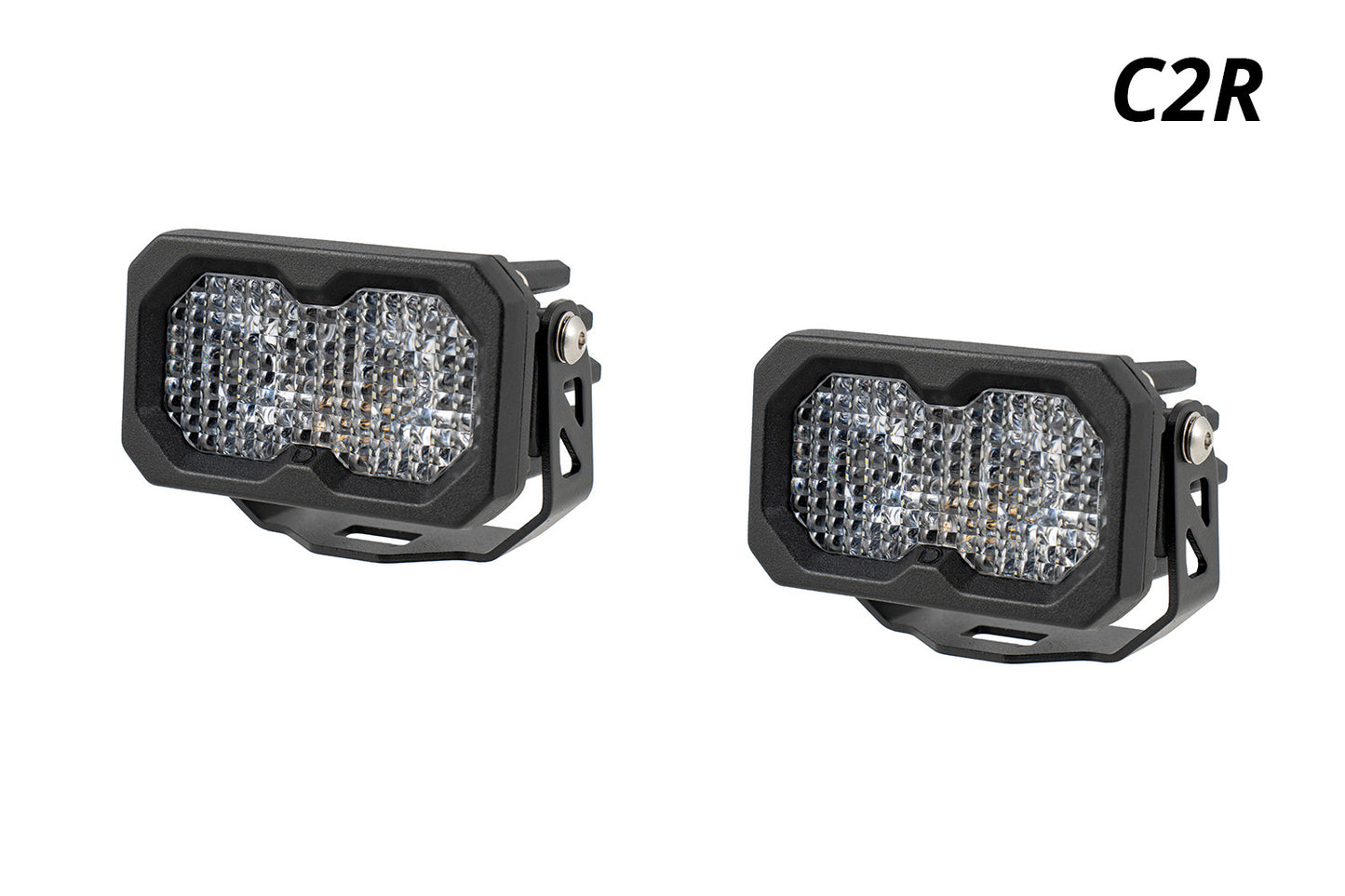

Diode Dynamics C2R 2” White Flood LED Pods – Pair
Upgrade your rear lighting with the Diode Dynamics C2R White Flood LED Pods. Combining three lighting functions in one ultra-compact package, the Diode Dynamics Stage Series C2R LED Pods provides a powerful white reverse light, high-power red brake light, and low-power red running light.
Designed for tight mounting locations where larger LED pods won’t fit, the C2R pairs patented TIR optics with a wide Flood beam pattern to deliver useful, evenly distributed illumination behind your vehicle.
Part Number: DD8450P
Quantity: Two (2) LED Pods
Key Features
- Pair of Stage Series C2R LED Pods
- Triple-function white and red lighting
- High-power white reverse light
- High-power red brake light
- Low-power red running/accent light
- Wide 70x45-degree Flood beam pattern
- Patented TIR (Total Internal Reflection) optics
- Ultra-compact 2-inch design
- Adjustable mounting height and angle
- Copper-core circuit board for improved thermal performance
- Powder-coated aluminum housing
- Integrated DT-type Deutsch-style connectors
- 4-pin wiring pigtails included
- Tested for vibration, moisture intrusion, corrosion, and extreme temperatures
- Made in the USA with global materials
- Limited Lifetime Warranty
Three Lighting Functions in One Compact LED Pod
The Stage Series C2R combines three independently controlled lighting functions into one compact housing.
White Main Beam: A high-power cool white output designed to provide additional illumination when reversing.
Red Main Beam: High-power red output that can be connected for use as an auxiliary brake light.
Red Accent Light: Low-power red output designed to function as secondary running or accent lighting.
This combination makes the C2R a versatile rear-lighting solution for vehicles where mounting space is limited.
Wide Flood Pattern for Reverse Lighting
The C2R uses a 70x45-degree Flood beam pattern to provide broad, uniform illumination behind your vehicle.
Instead of simply diffusing a narrow spotlight, the Flood optic uses advanced pillow optics to create an optically designed spread. This makes the C2R particularly well suited for backup and reverse-light applications where a wide field of illumination is more useful than a concentrated long-distance beam.
Patented TIR Optics
The C2R uses Diode Dynamics’ patented Total Internal Reflection (TIR) optic to collect light from the LEDs and precisely direct it where it’s needed.
The custom-molded TIR optic functions as both the optic and main lens, helping reduce light loss and glare while maximizing usable output and efficiency.
Performance-Driven Construction
The C2R incorporates the upgraded architecture developed for the C2 2.0 platform.
A copper-core circuit board is bonded directly to the LED chips to improve thermal efficiency and performance. Combined with the powder-coated aluminum housing and heat-dissipating design, this allows the compact pod to effectively manage heat while producing high-output illumination.
Adjustable Mounting
Compact dimensions make the C2R an excellent option for tight mounting locations.
Three mounting points allow the height of the pod to be adjusted, while the revised mounting bracket provides additional angle adjustment. This gives you greater flexibility when positioning and aiming the lights for your specific installation.
Simple 4-Wire Connections
Each C2R features an integrated DT-type Deutsch-style connector and includes a 4-pin, 6-inch pigtail with bare leads.
Yellow Wire: High-power red output
Red Wire: White main beam
Blue Wire: Low-power red output
Black Wire: Ground
The three lighting functions can be activated independently, allowing the C2R to be integrated into the appropriate vehicle lighting circuits.
Always verify wiring requirements and applicable vehicle-lighting regulations before installation.
Snap-On Cover Compatible
Compatible snap-on lens covers are available separately for additional protection and customization.
Cover options include amber, clear, yellow, smoked, and black. Installation requires no tools—simply snap the compatible cover into place.
Built for Demanding Conditions
Stage Series LED lighting is extensively tested for long-term operation from -40°F to 185°F, along with vibration, moisture intrusion, and corrosion testing.
This testing, combined with the compact aluminum housing and high-efficiency optical design, makes the C2R suitable for demanding automotive applications.

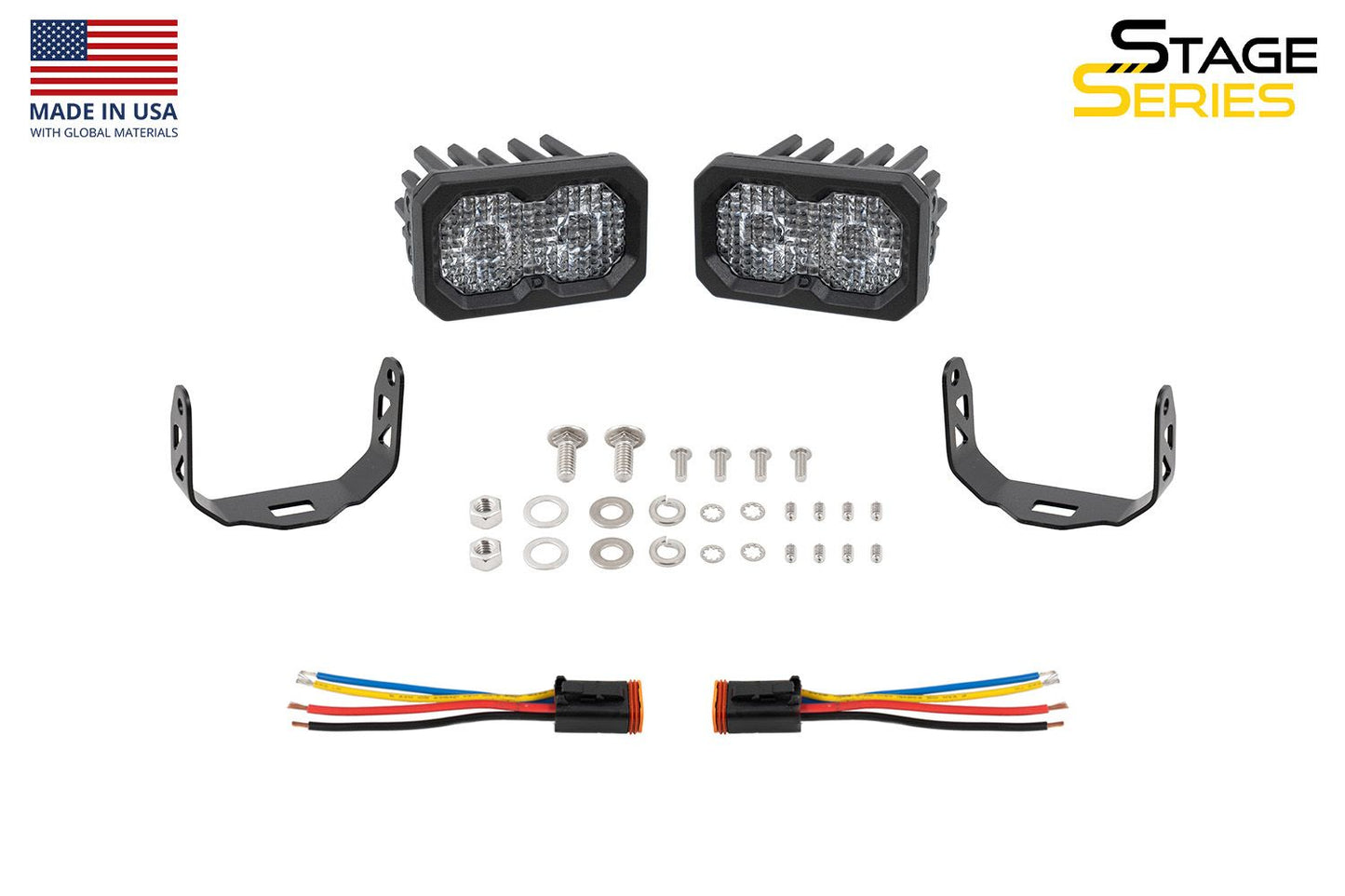

What’s Included
- Two (2) Diode Dynamics Stage Series C2R LED Pods
- Two (2) 4-pin Deutsch-style wire pigtails
- Two (2) mounting brackets with hardware
Part Number: DD8450P
Quantity: 2 LED pods
Warranty: Limited Lifetime Warranty
Made in: USA with global materials
Specifications
- Raw Lumens: 2900 lm
- Intensity (cd): Reverse: 1800 cd, Brake: 250 cd, Parking: 12 cd
- Color Temp (CCT): 6000K
- Beam Angle: Flood, 70°x45°
- Power (watts): Reverse: 18.3, Brake: 3.3, Parking: 0.36
- Operating Voltage: 9-30V
- Current (amps @ 12.8V): Reverse: 1.43, Brake: 0.25, Parking: 0.03
- Polarity: Polarity Specific
- Operating Temperature: -40C to 85C (-40F to 185F)
- LED Emitter: Cree XP-L HI, Osram 1414 Pure
- Connector(s): Deutsch DT Input
- Driver Features: Constant Current
- Materials: Copper PCB, Polycarbonate Lens, Aluminum Casting, Rubber Gasket
- Cooling: Passive, Pin-Fin heatsink
- Compliance Ratings: SAE J575 Durability Test
- Intrusion Ratings: IP69K Waterproof, High Pressure
- Unit Weight (lb): 0.55
- Product Weight (lb): 1.4
- Shipped Weight (lb): 3.3
Installation
Installation Time: 30-60 minutes
Tools Needed: Basic Toolset
