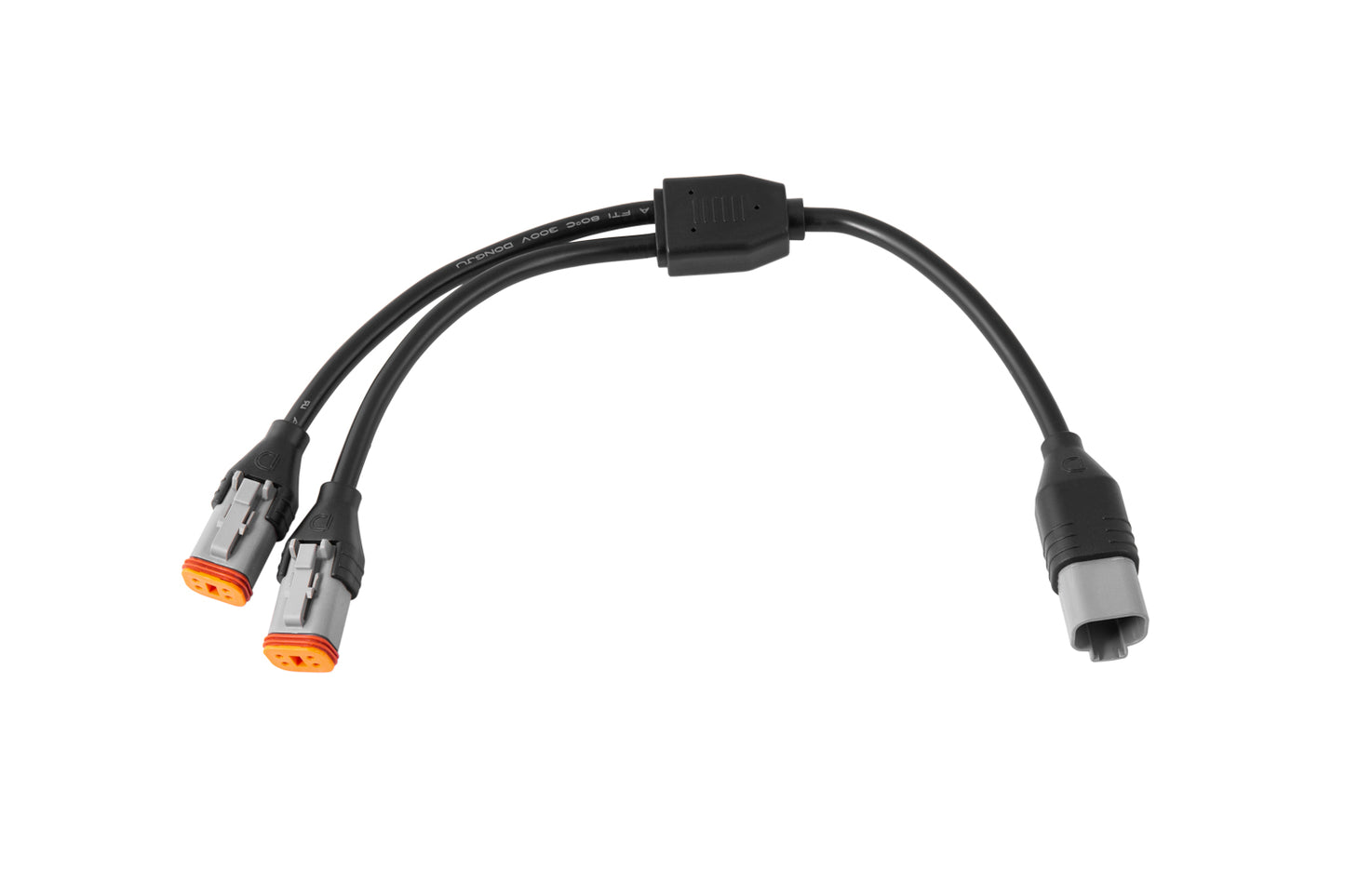

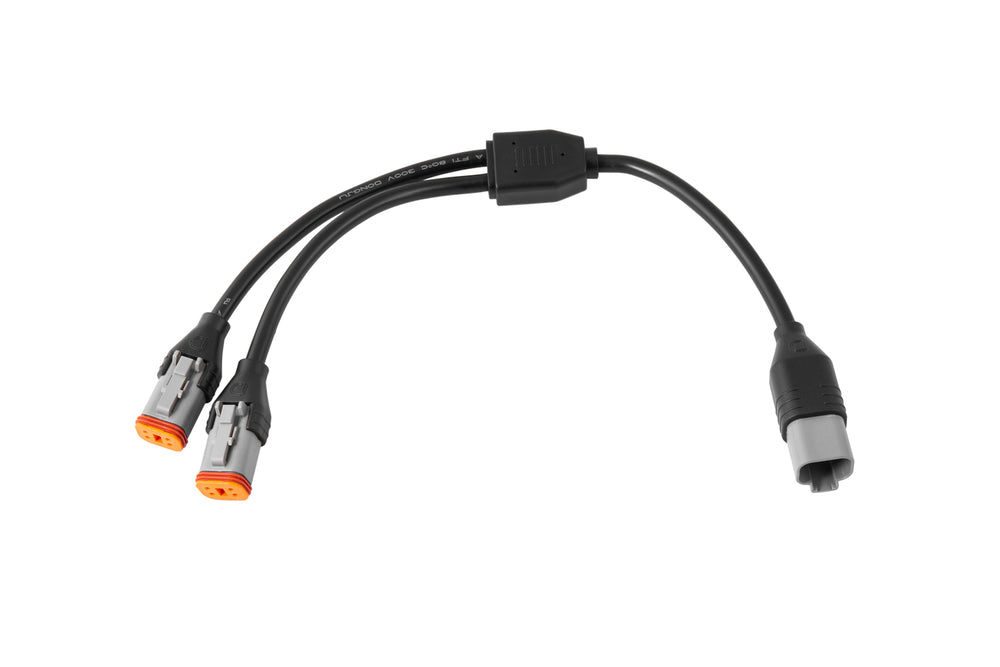

Diode Dynamics Deutsch DT 4-Pin Splitter Wire (one)

Features

• 16-inch 2-way splitter wire for Stage Series LED Pods with backlight functionality
• Standard Deutsch DT 4-pin connectors
• Heavy-duty 14AWG wire

Overview

Plug-and-Play. This Deutsch DT Splitter Wire can be used anywhere you would like to split DT 4-pin power wires. This splitter wire uses standard DT 4-pin connectors, and is intended for use with our Stage Series LED Pods with backlight functionality. This splitter wire features over-molded connectors with an embossed Diode Dynamics logo, providing strain relief and protection from the elements. It includes one female DT connector and two male connectors, for plug-and-play installation.

This splitter safely powers up to 20A of auxiliary lamps. Please refer to the current draw data below.

• C1 Sport: 1.0A
• C1 Pro: 1.5A
• C1R: 1.1A
• C2 1.0 Sport: 0.6A
• C2 1.0 Pro: 2.0A
• C2 2.0 Sport: 1.17A
• C2 2.0 Pro: 1.8A
• C2 2.0 Max: 2.3A
• SS3 Sport: 1.1A
• SS3 Pro: 2.7A
• SS3 Max: 3.0A
• SS5 Sport: 2.75A
• SS5 Pro: 6.7A
