SKU:DD5134P
Diode Dynamics Elite Series Type B LED Fog Lamps – White, Yellow & Dual Color
Description
Diode Dynamics Elite Series Type B LED Fog Lamps – White, Yellow & Dual Color
Upgrade your factory fog lights with Diode Dynamics Elite Series Type B LED Fog Lamps, available in White (DD5134P), Yellow (DD5137P), or Dual Color (DD5185P) configurations. Engineered as high-performance OEM-grade replacements, Elite Series fog lamps combine advanced automotive LED technology with a purpose-built optical system for powerful, controlled illumination and a clean factory-style installation.
Whether you prefer crisp white illumination, high-contrast selective yellow, or the versatility of a dual-color configuration, the Elite Series Type B platform provides a premium fog light upgrade for compatible vehicles.
Choose Your Fog Light Configuration
DD5134P – White
Choose the White configuration for crisp, modern illumination and excellent nighttime visibility.

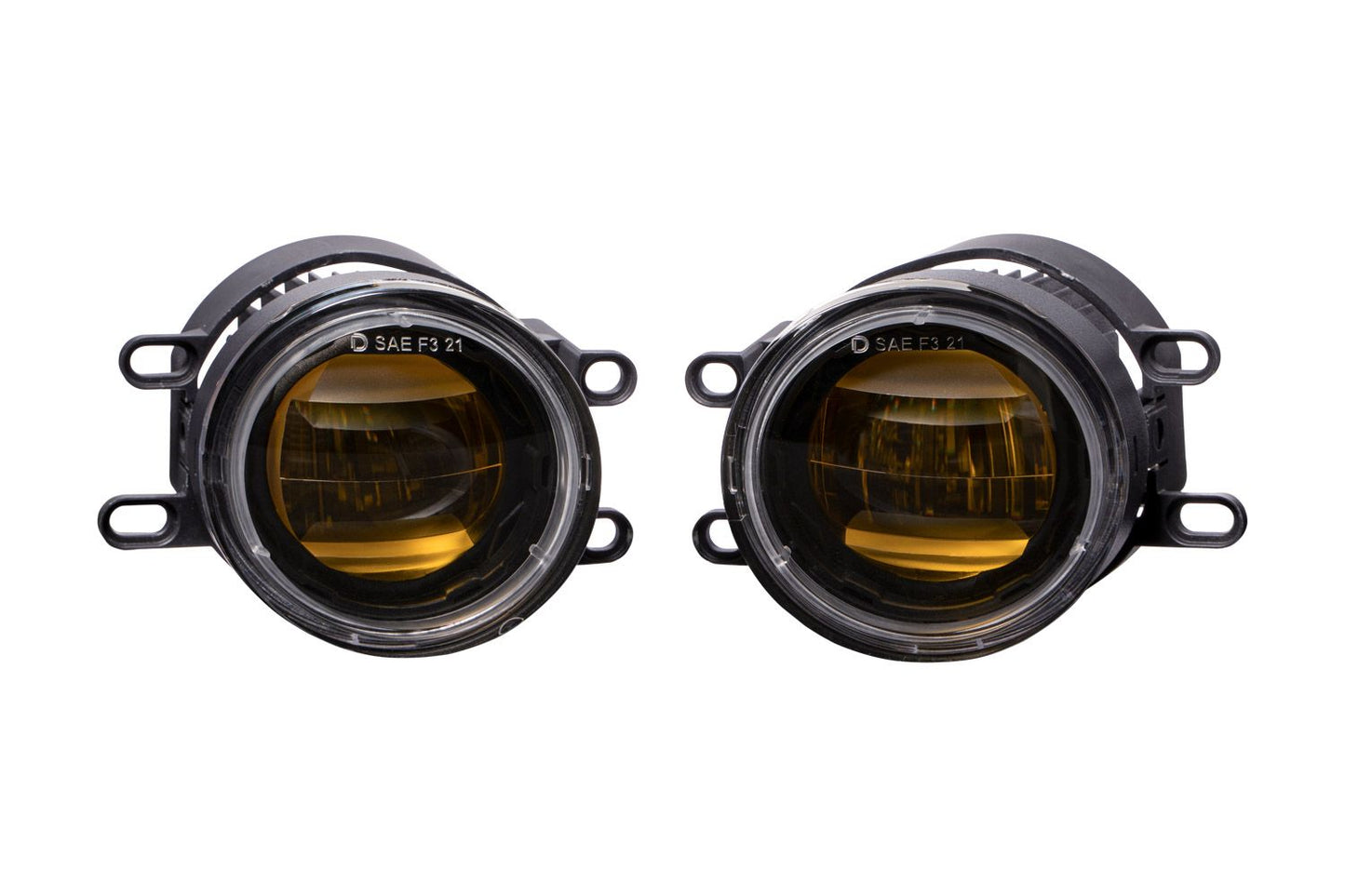

DD5137P – Yellow

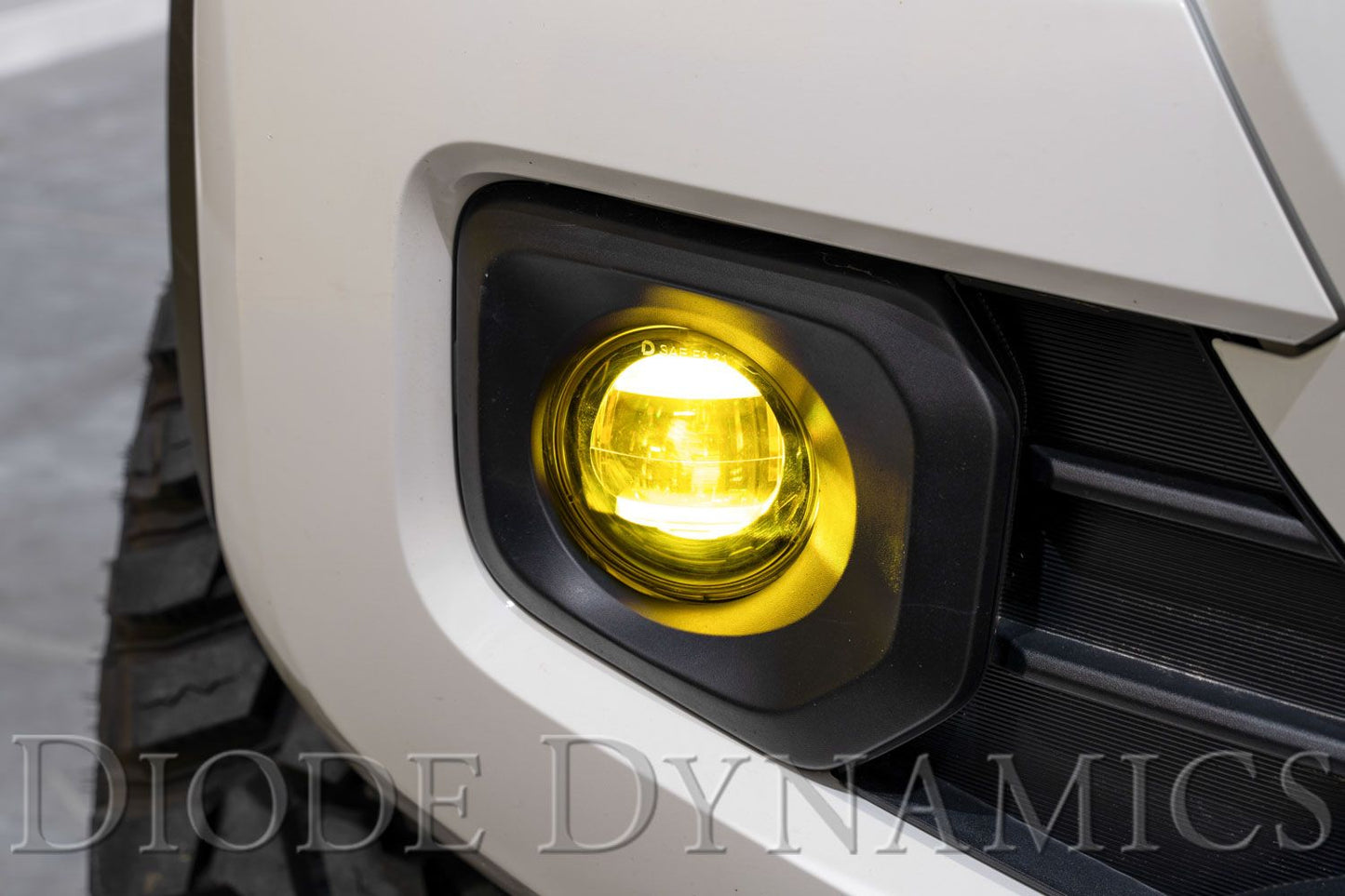

The Yellow configuration provides selective-yellow illumination for increased visual contrast and a distinctive performance-inspired appearance.
DD5185P – Dual Color
The Dual Color configuration provides the flexibility of both white and yellow output in one Elite Series fog lamp system.
High-Performance Fog Optics
Elite Series fog lamps aren’t simply LED bulbs installed inside factory-style housings. Diode Dynamics engineered the complete optical system around automotive-grade LED emitters to produce a highly functional fog beam.

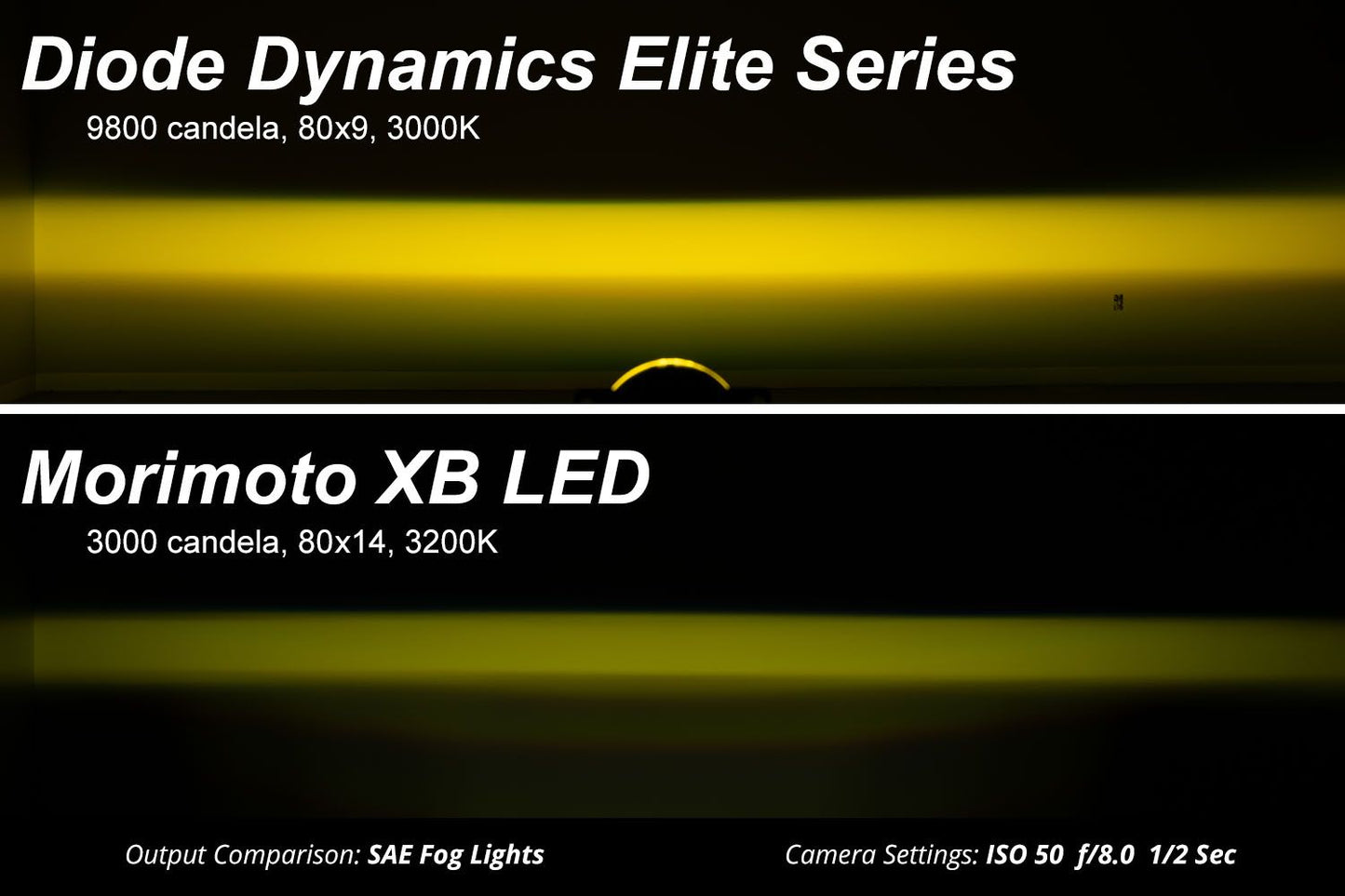

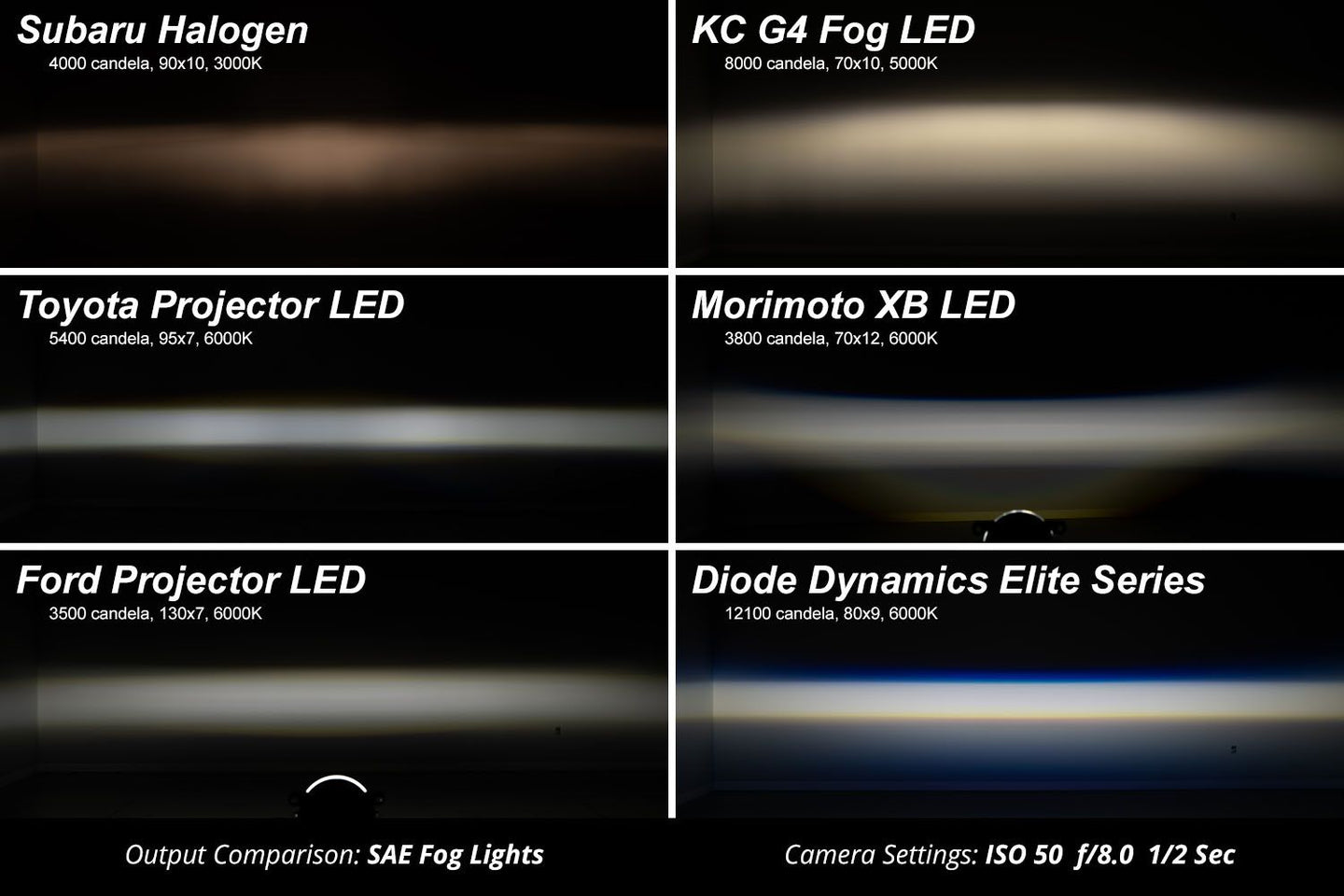

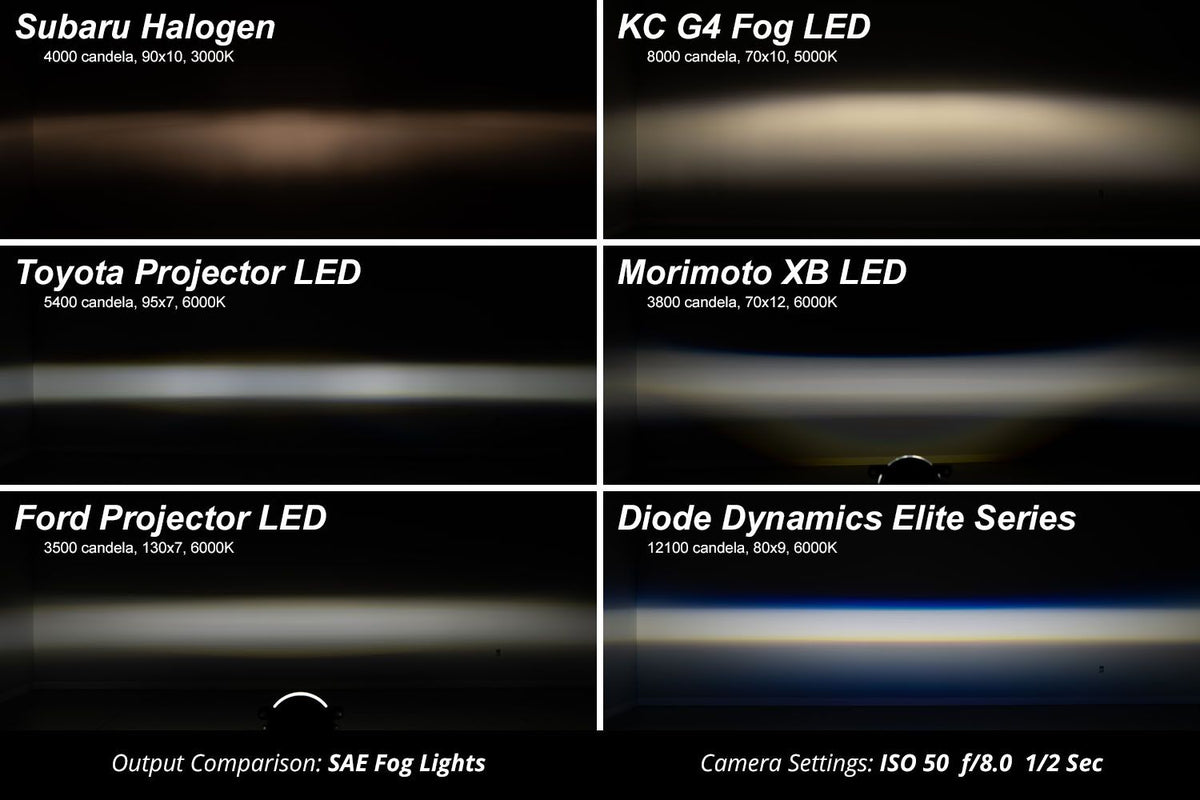

The custom-engineered optic creates an exceptionally wide 80-degree spread with smooth illumination and a sharp cutoff designed to keep light where it’s useful while minimizing glare for other drivers.
SAE F3-Compliant Fog Beam
The Elite Series optical system is engineered to meet SAE F3 fog-light standards, providing a road-legal fog beam when properly installed and aimed.
Always check applicable local regulations regarding installation, aiming, and auxiliary lighting use.

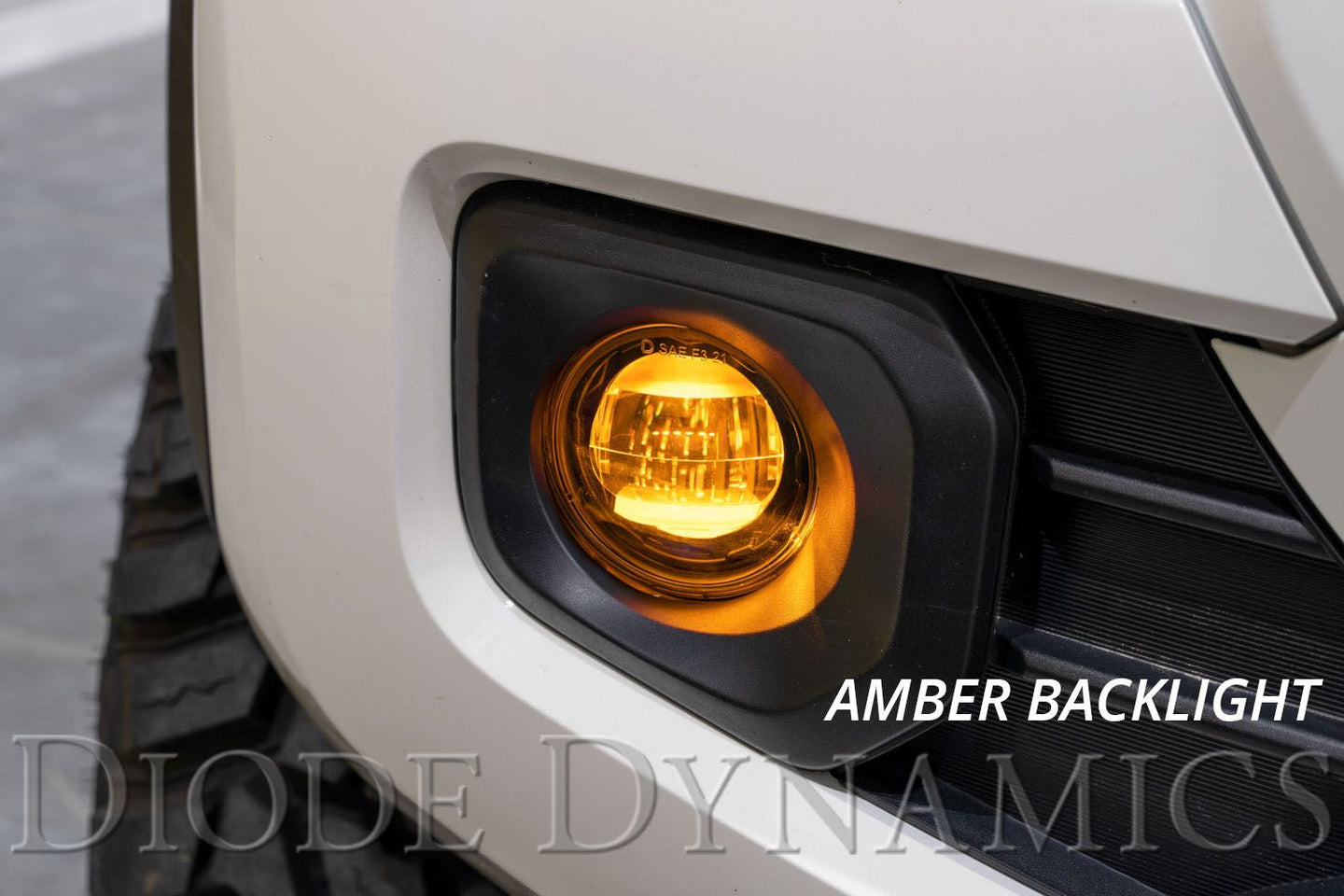

Integrated Amber Backlighting
Elite Series Type B fog lamps feature an integrated amber accent backlight that illuminates the main lens, adding a distinctive appearance when the primary fog beam isn’t operating.
The backlight can be connected to your desired constant 12V vehicle function using the appropriate included connection. When the main fog beam is activated, the amber backlight automatically turns off.
OEM-Grade Replacement Design
Designed as a complete replacement for compatible factory fog lamps, the Elite Series Type B provides an OEM-style installation without requiring modification to the primary fog light connection.
The main beam connects directly to compatible factory wiring for straightforward plug-and-play installation.
Built for Automotive Use
Diode Dynamics engineers the Elite Series for demanding automotive environments using premium components and construction techniques designed for long-term reliability.
Key benefits include:
- High-performance OEM-grade replacement
- Custom-engineered fog optic
- Extremely wide, controlled light output
- Integrated amber accent backlight
- SAE F3-compliant fog beam
- Plug-and-play primary fog light connection
- No modification required for the main beam on compatible applications
- Engineered and assembled in the USA
Available Variants
- DD5134P – Elite Type B White Fog Lamps
- DD5137P – Elite Type B Yellow Fog Lamps
- DD5185P – Elite Type B Dual Color Fog Lamps

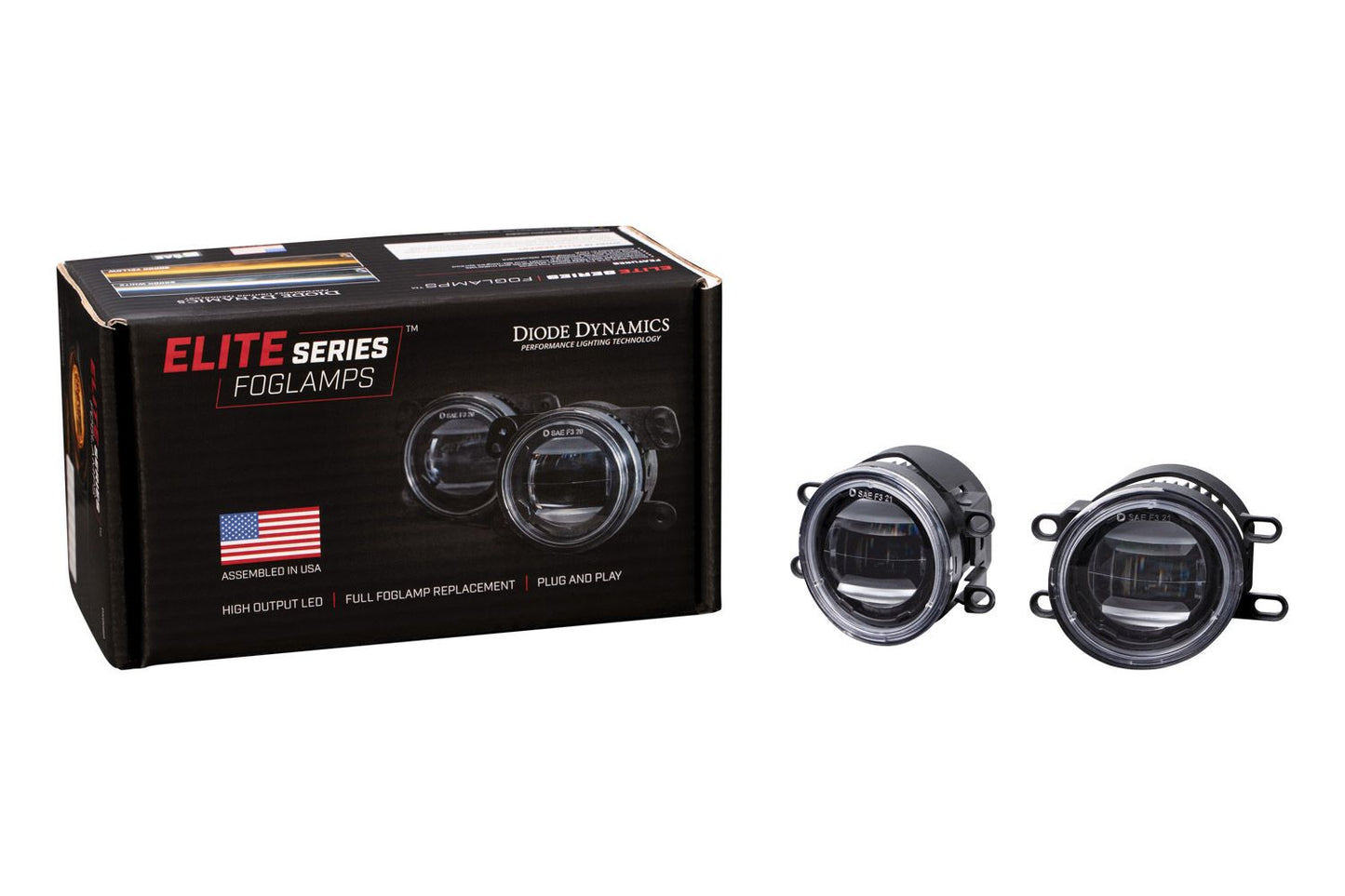

All three configurations are sold as a pair.
Vehicle Fitment
Diode Dynamics Elite Series Type B Fog Lamps are compatible with a variety of vehicle-specific applications. Exact compatibility depends on the vehicle’s year, make, model, trim, and factory fog light configuration.
Verify that your vehicle uses the Diode Dynamics Type B fog lamp fitment before ordering.
For drivers looking for a significant upgrade over conventional factory fog lighting, Diode Dynamics Elite Series Type B LED Fog Lamps combine advanced optics, OEM-style installation, integrated accent lighting, and your choice of White, Yellow, or Dual Color output in one premium fog light platform.
California Proposition 65 Warning
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov.
Specifications
- Measured Lumens: White Main Beam: 1,850 lm, Yellow Main Beam: 1,650 lm, Dual Color White: 590 lm, Dual Color Yellow: 400 lm
- Raw Lumens: White: 1,850 lm, Yellow: 1,650 lm, Dual Color White: 1,500 lm, Dual Color Yellow: 1,250 lm, Backlight: 14 lm
- Intensity (cd): White: 10,200 cd, Yellow: 8,700 cd, Dual Color White: 12,900 cd, Dual Color Yellow: 9,200 cd
- Color Temp (CCT): 3000K, 6000K
- Beam Angle: Fog, 80°x6°
- Power (watts): Main Beam White: 17, Main Beam Yellow: 15, Dual Color White: 13.2, Dual Color Yellow: 13.5, Backlight: 0.3
- Operating Voltage: 9-16V
- Current (amps @ 13.2V): Main Beam White: 1.3, Main Beam Yellow: 1.2, Dual Color White: 1.0A, Dual Color Yellow: 1.0A, Backlight: 0.025
- Polarity: Polarity Specific
- Operating Temperature: -40C to 85C (-40F to 185F)
- LED Emitter: Multi-Die Automotive Emitters
- Connector(s): Deutsch DT Input
- Driver Features: Constant Current
- Materials: Copper PCB, UV Coated Polycarbonate Lens, Precision Aluminum Casting

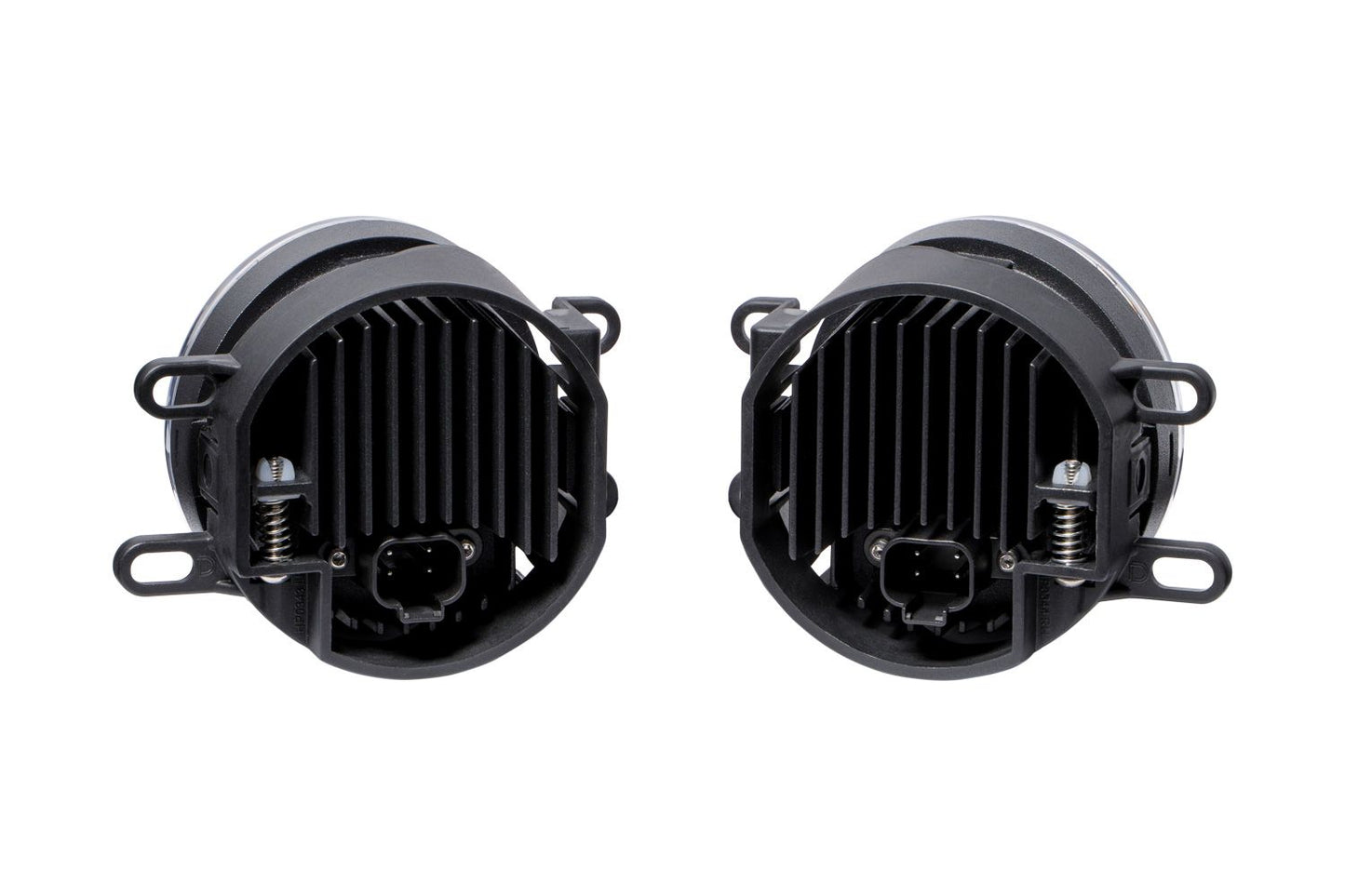

- Cooling: Passive, Pin-Fin heatsink
- Compliance Ratings: SAE J575 Durability Test, SAE J583 Foglamp Beam Pattern
- Intrusion Ratings: IP68 Waterproof
- Unit Weight (lb): 0.85
- Product Weight (lb): 2.25
- Shipped Weight (lb): 2.75
Installation
Installation Time: 30-60 minutes
Tools Needed: Basic Toolset
Modification: None
Installation Guide: Click to download
