Diode Dynamics Stage Series LED Bed Light Kit for Kuat IBEX Bed Rack | DD8440

Diode Dynamics Stage Series LED Bed Light Kit for Kuat IBEX Bed Rack

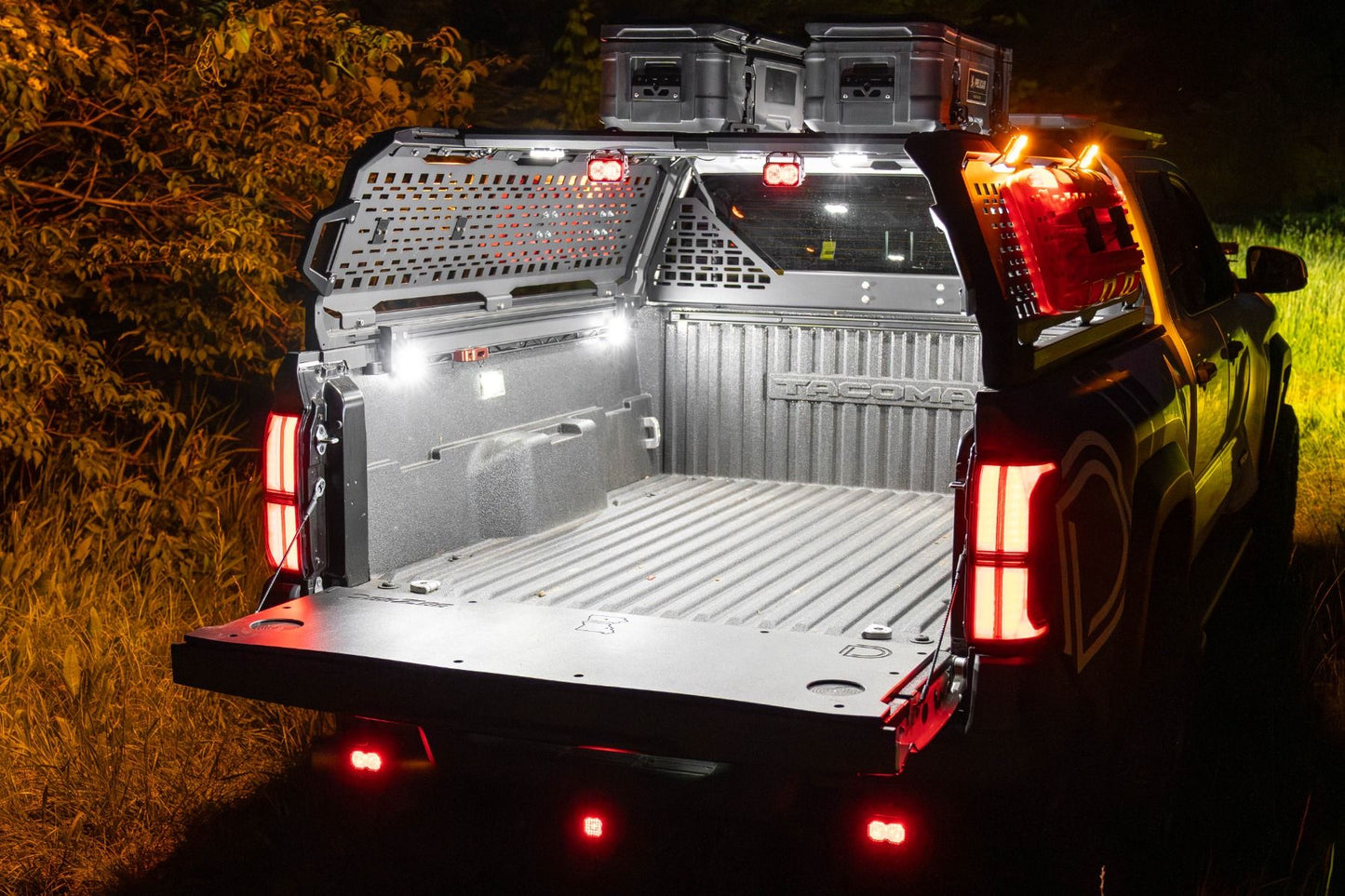

Light up your truck bed with the Diode Dynamics Stage Series LED Bed Light Kit for the Kuat IBEX Bed Rack. Designed to integrate directly with the IBEX crossbars, this complete lighting kit adds four Diode Dynamics Stage Series LED Rock Lights for dramatically improved visibility when loading gear, setting up camp, or working around your truck after dark.

With up to 4,000 lumens of peak output, interchangeable cool white and amber lenses, and a clean bolt-on installation, the DD8440 provides powerful, evenly distributed bed lighting without compromising the streamlined appearance of your Kuat IBEX rack.

Key Features

• Designed specifically for the Kuat IBEX Bed Rack
• Mounts four Stage Series LED Rock Lights to the rack crossbars
• Up to 4,000 lumens of peak output
• Includes both cool white diffused and amber lenses
• Dual low- and high-power capability
• Optically engineered lenses for smooth, even illumination
• T-slot mounting for clean integration
• Connects to compatible factory truck bed lighting
• No cutting or drilling required
• IP68 waterproof construction
• Engineered and assembled in the USA
• Limited lifetime warranty

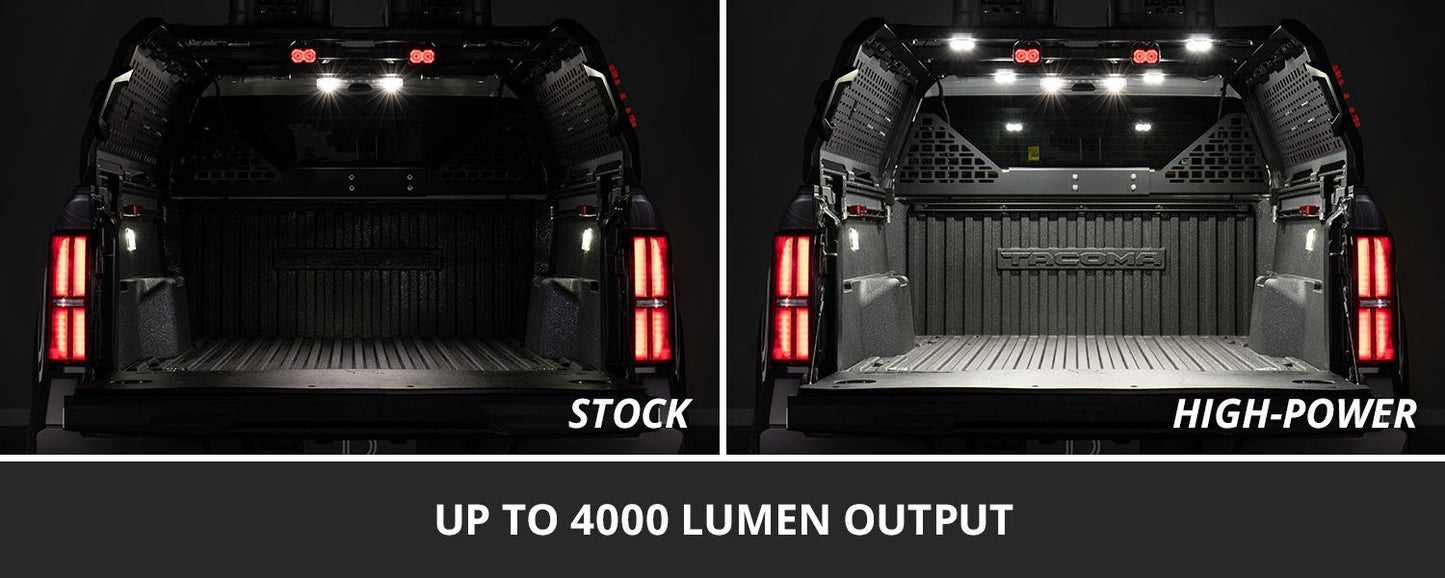

Up to 4,000 Lumens of Truck Bed Lighting

Factory bed lights can leave large areas of your truck bed poorly illuminated. The Stage Series LED Bed Light Kit uses four high-output Stage Series Rock Lights to provide significantly more usable illumination throughout the bed.

With up to 4,000 lumens of peak output, the system makes it easier to load cargo, organize camping equipment, find tools, and work around your truck at night.

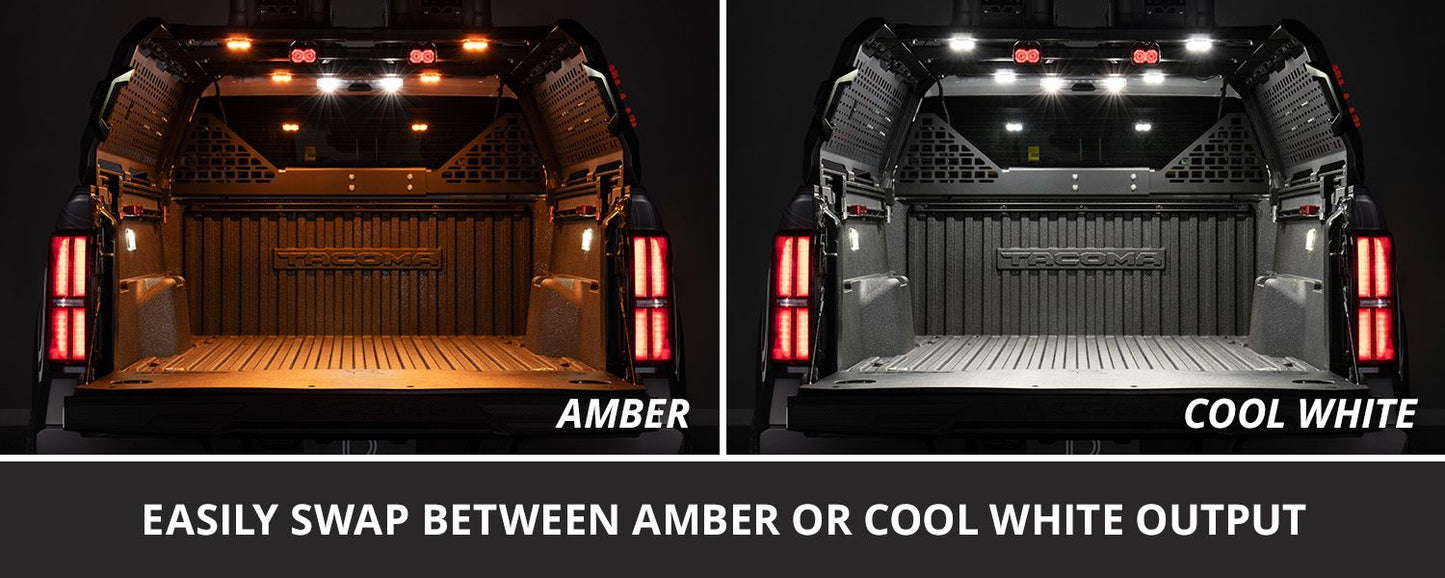

Cool White or Amber Lighting

Each kit includes two complete sets of interchangeable lenses:

White Diffused Lenses provide crisp illumination and maximum visibility when working or loading cargo.

Amber Lenses produce a softer output that can help reduce glare while providing a distinctive appearance.

Four white diffused lenses and four amber lenses are included, so you can change the lighting color without purchasing another set of lights.

Dual Power Levels

The included Stage Series Rock Lights use a simple three-wire design with both low-power and high-power modes.

During installation, select the desired output level by connecting the appropriate power wire from the harness. This gives you flexibility to configure the lights for your preferred level of bed illumination.

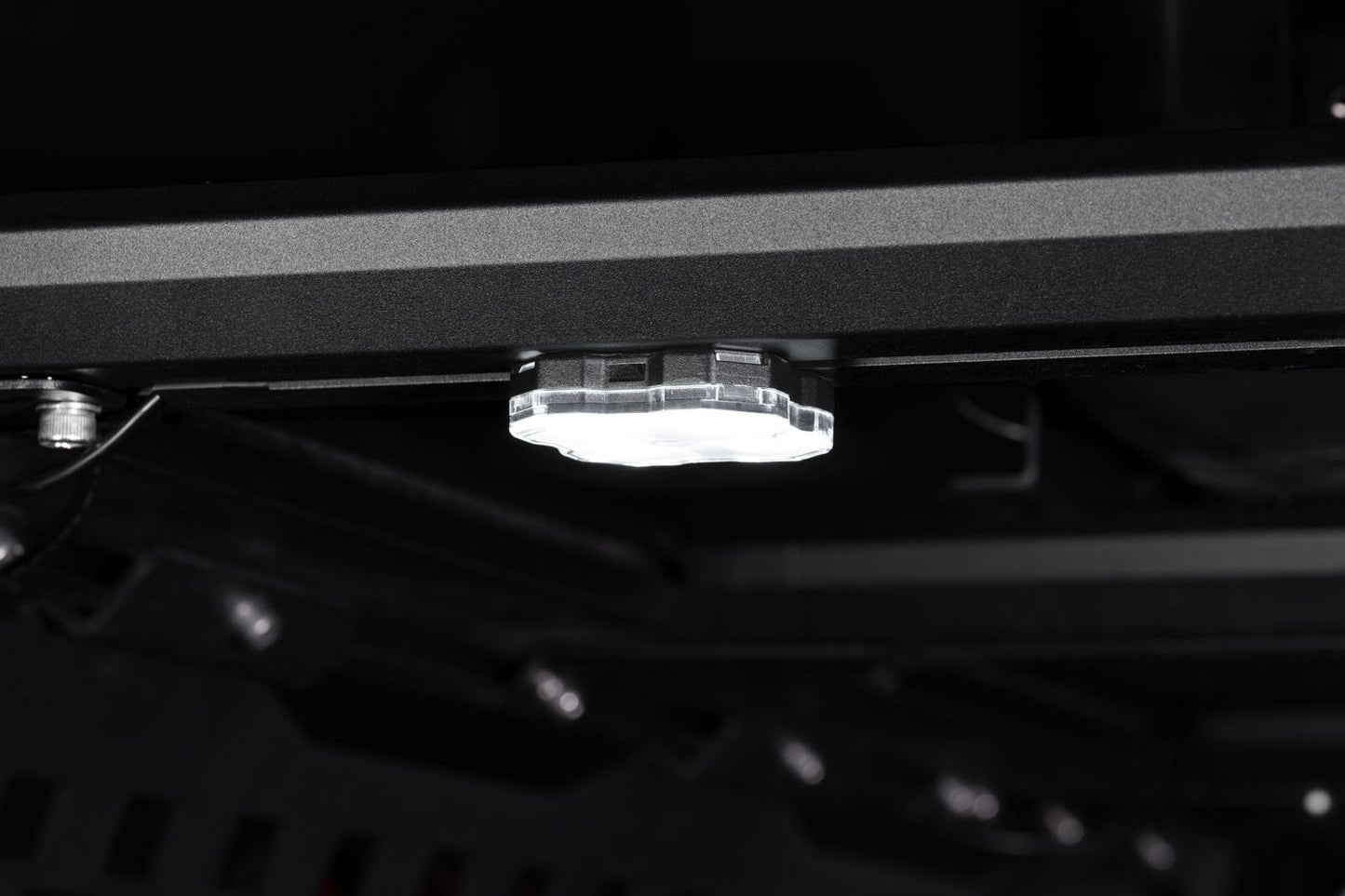

Optically Engineered Stage Series Rock Lights

Instead of relying on a basic clear cover, Diode Dynamics incorporates four individual optical elements directly into each outer lens. These optics help spread the LED output evenly for consistent illumination across the truck bed.

Each lens is manufactured from thick automotive-grade polycarbonate and features a UV-resistant coating for long-term durability.

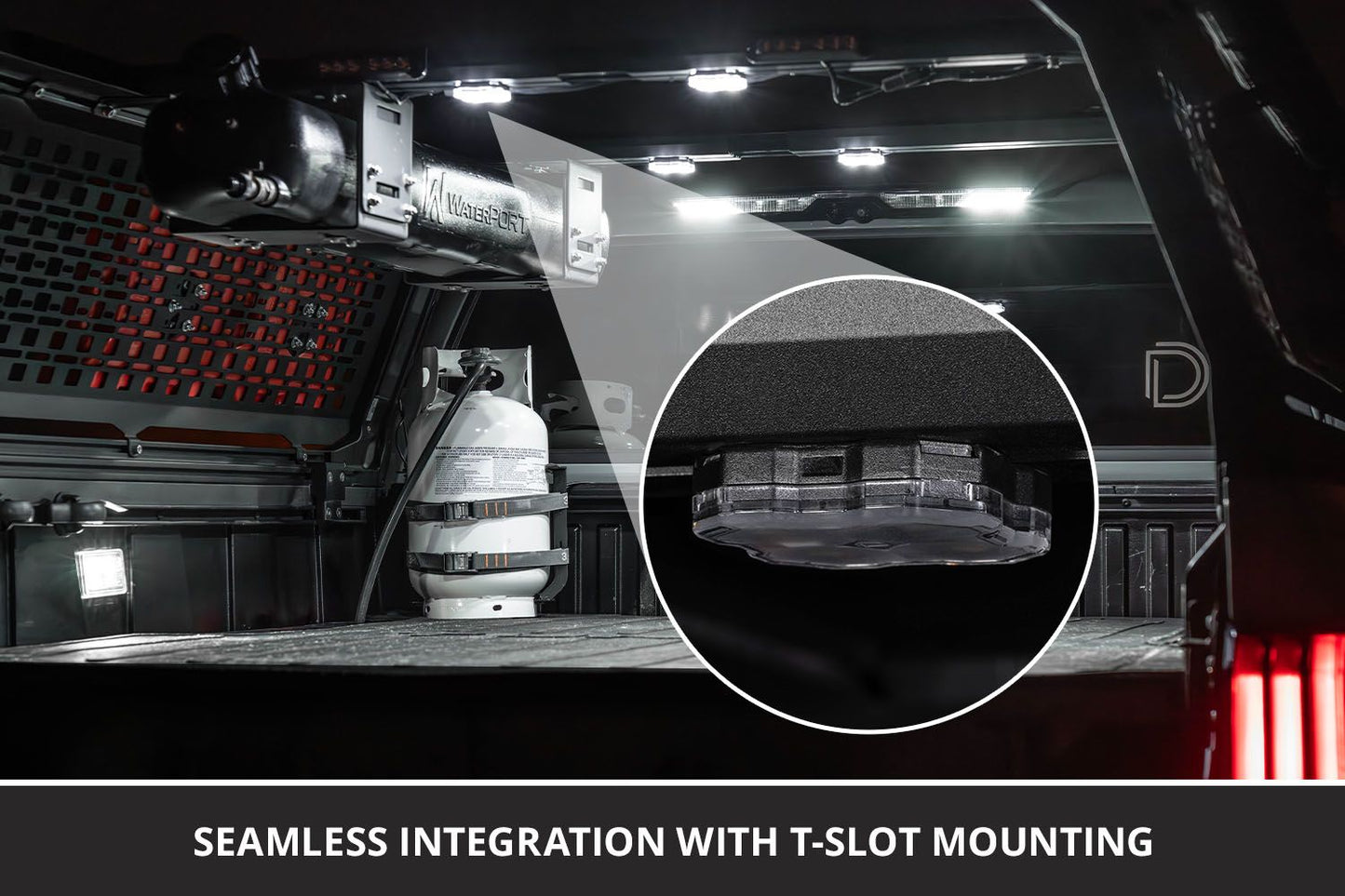

Seamless Kuat IBEX Integration

The DD8440 kit is engineered specifically around the Kuat IBEX Bed Rack. Included T-slot hardware allows each rock light to mount directly along the rack crossbars for a clean, integrated appearance.

For trucks equipped with factory bed lighting, the included T-Tap harness and connectors allow the Stage Series lights to integrate with the existing bed light circuit for convenient everyday operation.

No cutting or drilling is required.

If your truck does not have factory bed lights, a Diode Dynamics Stage Series Single-Color Rock Light Harness is required and sold separately.

Built for Outdoor Use

These Stage Series Rock Lights are designed for the demanding environments encountered by trucks, overland vehicles, and adventure builds.

They feature:

• IP68 waterproof rating
• Cast aluminum housings
• Pin-fin heatsinks for effective thermal management
• Automotive-grade polycarbonate lenses
• UV-resistant lens coating
• Tested operating range from -40°F to 185°F
• Vibration, moisture intrusion, and corrosion testing

Whether you’re on the trail, at a campsite, or working in poor weather, the system is engineered for dependable long-term performance.

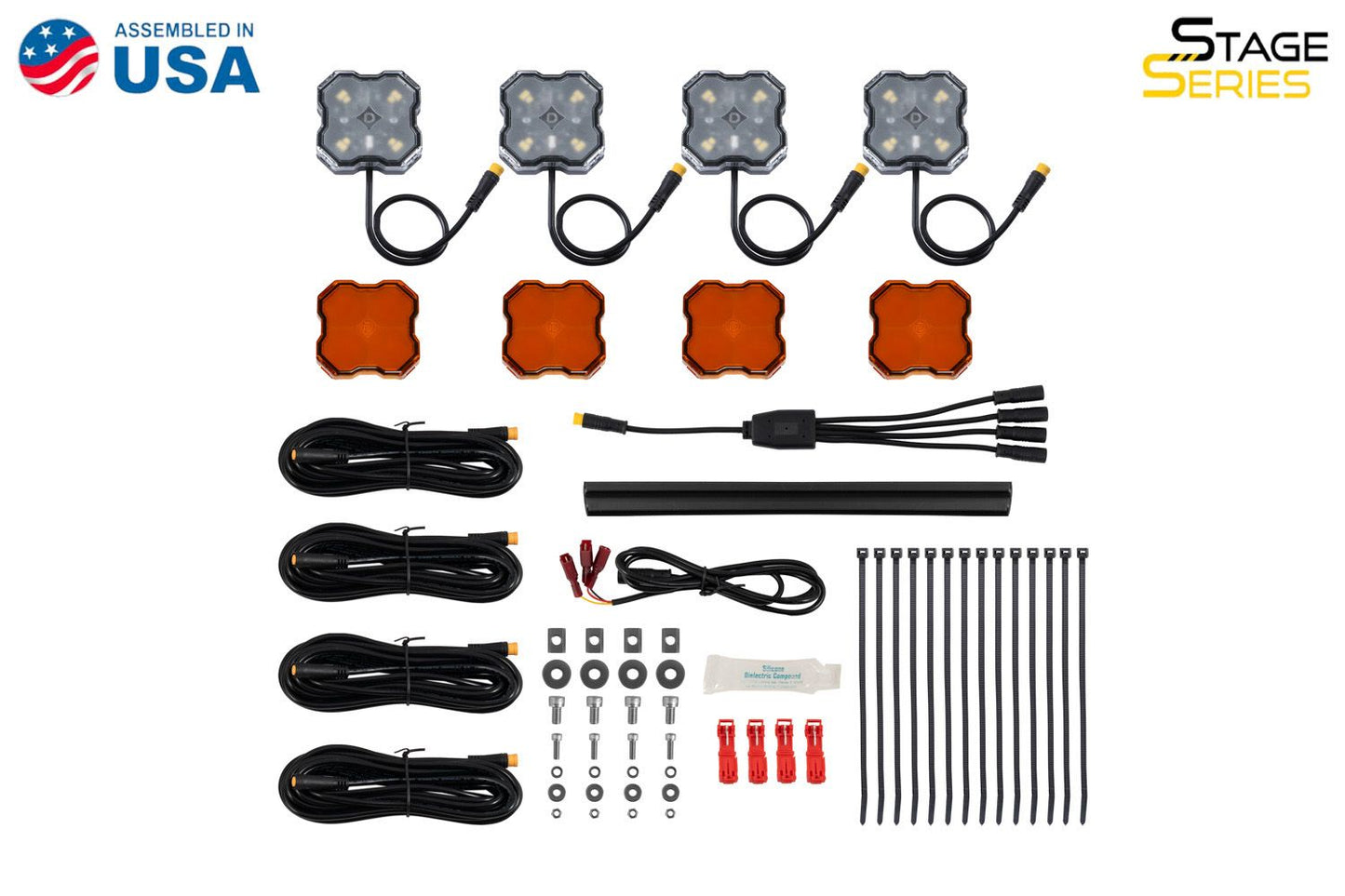

What’s Included

• Four (4) Stage Series Rock Lights
• Four (4) White Diffused Rock Light Lenses
• Four (4) Amber Rock Light Lenses
• Four (4) 5-meter M8 Extension Wires
• One (1) M8 4-Way Splitter
• One (1) T-Tap Harness
• Four (4) T-Taps
• Fourteen (14) Zip Ties
• Wire Retention Strip
• Mounting Hardware
• Installation Guide

Quantity: Four (4) Lights
Part Number: DD8440
Application: Truck Bed Lighting
Warranty: Limited Lifetime Warranty

Fitment & Compatibility

Rack: Kuat IBEX Bed Rack
Application: Bed Light

Important Fitment Notes

• Not compatible with the Kuat IBEX Panel Kit.
• Vehicles without factory bed lights require the Stage Series Single-Color Rock Light Harness, sold separately
