Diode Dynamics Stage Series Reverse Light Kit for 2010-2024 Toyota 4Runner

Diode Dynamics Stage Series Reverse Light Kit for 2010-2024 Toyota 4Runner

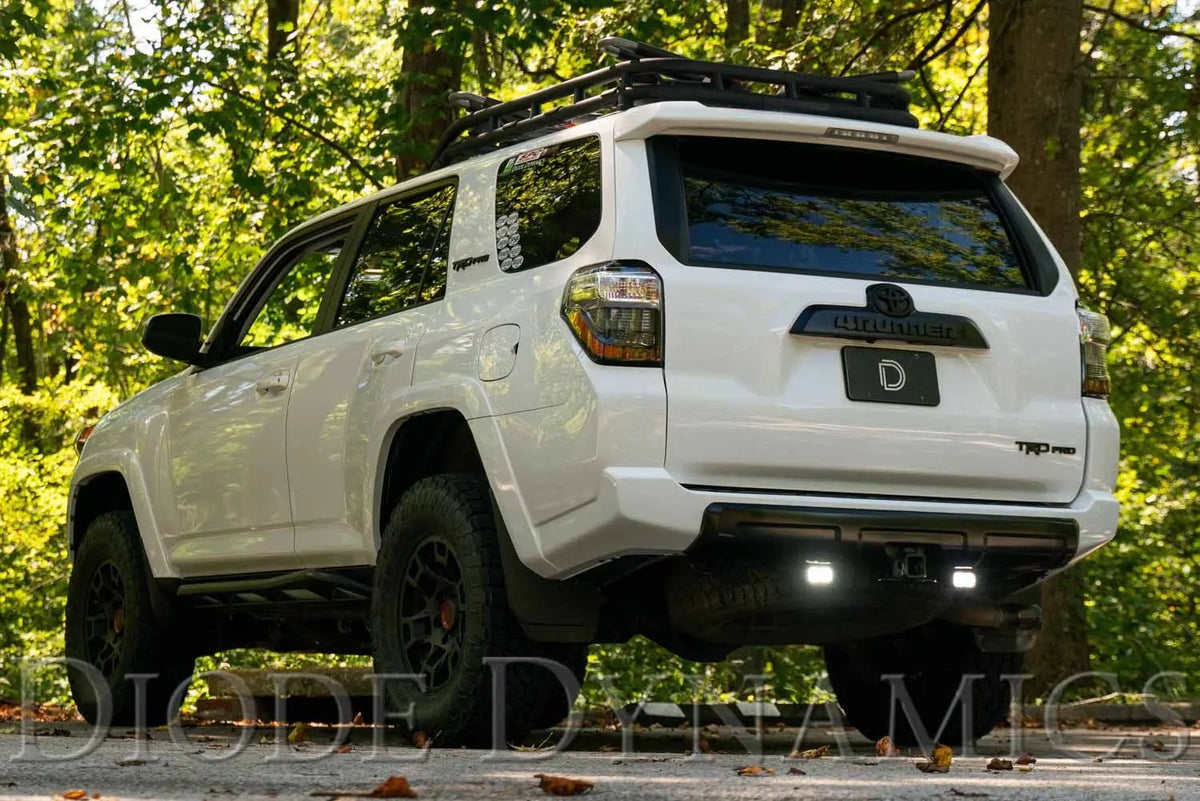

Add significantly more usable light behind your 2010-2024 Toyota 4Runner with the Diode Dynamics Stage Series Reverse Light Kit. Designed specifically for the 4Runner, this complete auxiliary lighting kit mounts two Diode Dynamics SSC1 or C2 2.0 Stage Series LED Pods underneath the rear bumper for powerful, evenly distributed backup illumination.

A vehicle-specific plug-and-play harness connects directly to the factory tail light wiring, allowing the pods to automatically activate with your reverse lights. An integrated red accent backlight operates with the tail lights, while the included override switch lets you turn on the main white lights whenever additional rear illumination is needed.

Key Features

• Direct fit for 2010-2024 Toyota 4Runner
• Mounts two LED pods underneath the rear bumper
• Choose SSC1 or C2 2.0 Stage Series pods
• High-power white reverse lighting
• Integrated red accent backlighting
• Plug-and-play factory tail light connections
• Automatic activation when shifting into reverse
• Manual override switch for on-demand lighting
• Custom-engineered TIR optics
• Wide Flood beam pattern
• Sport and Pro power options
• No cutting or drilling required
• Designed and assembled in the USA
• Lifetime warranty

Plug-and-Play Toyota 4Runner Installation

The included vehicle-specific adapter harness uses custom-molded OEM-style connectors to integrate the reverse light kit with your Toyota 4Runner’s factory tail lights.

There’s no need to cut into the factory wiring or perform extensive electrical modifications. Once installed, the system works automatically with your existing vehicle lighting.

When your tail lights are on, the Stage Series pods provide a distinctive red accent light. Shift into reverse and the pods automatically activate their high-power white main beams for substantially more illumination behind the vehicle.

Manual Override Function

Need rear lighting without putting your 4Runner in reverse? The included toggle switch provides manual control of the main beam.

This functionality is especially useful for camp lighting, loading and unloading gear, hooking up a trailer, working behind the vehicle, or illuminating a trail or campsite after dark.

SSC1 or C2 2.0 LED Pod Options

Configure the kit with either SSC1 or C2 2.0 Stage Series LED Pods.

SSC1 Flood provides a wide 50x50-degree beam pattern, delivering evenly distributed light behind the vehicle in an ultra-compact package.

C2 2.0 Flood expands coverage to approximately 70x45 degrees, providing a broad field of illumination for backing up, working around the vehicle, and off-road use.

Both options use Diode Dynamics Stage Series optical technology to provide controlled, functional illumination rather than an unfocused wash of light.

Integrated Red Backlight

The Stage Series pods feature a vibrant red backlight that functions as an additional accent light with your vehicle’s tail lights.

Instead of relying on a few small indicator LEDs, the backlight illuminates the TIR optic for a clean, distinctive appearance underneath the rear bumper.

Custom-Engineered TIR Optics

Diode Dynamics Stage Series pods use Total Internal Reflection (TIR) optics to collect LED output and direct it where it’s needed.

The custom-molded optic also functions as the main lens, improving efficiency while reducing wasted light and unwanted glare compared with basic reflector-style auxiliary lights.

Functional Flood Beam

This kit uses a true optically engineered Flood beam pattern designed for uniform illumination.

The SSC1 provides a 50x50-degree spread, while the C2 2.0 provides a 70x45-degree spread.

The broad pattern is ideal for reverse lighting because it illuminates a large area behind and around the vehicle instead of concentrating output into a narrow hotspot.

Sport or Pro Power Levels

Choose the performance level that fits your build.

Sport provides strong auxiliary reverse lighting and excellent value for daily drivers, weekend adventures, and general utility.

Pro doubles the total power for drivers who want greater output for off-road driving, overlanding, nighttime trail use, or work applications.

Tested for Demanding Conditions

Stage Series LED lighting is extensively tested for long-term operation in temperatures ranging from -40°F to 185°F, along with vibration, moisture intrusion, and corrosion testing.

This rugged construction makes the kit suitable for everything from everyday driving to demanding trail and overland environments.

What’s Included

• Two (2) SSC1 or C2 2.0 Stage Series LED Pods
• One (1) Universal Reverse Light Wiring Harness
• One (1) 2010-2024 Toyota 4Runner Adapter Harness
• Two (2) Mounting brackets
• Ten (10) zip ties
• Two (2) T-Taps
• Mounting hardware

Quantity: Pair – Left and Right Side
Warranty: Lifetime Warranty

Vehicle Fitment

Make: Toyota
Model: 4Runner
Years: 2010-2024

Fits Toyota 4Runner model years:

2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023, and 2024.
