Diode Dynamics Reverse Light Wiring Kit (w/ running light)
Diode Dynamics Reverse Light Wiring Kit (w/ running light)
SKU:DD4102
Diode Dynamics Reverse Light Wiring Kit (w/ running light)
Description
Features
- Powers Diode Dynamics lights with backlight functionality.
- Connects to vehicle wiring for simple, everyday operation of lights.
- High capacity 14AWG & 18AWG wiring.
- Dual Deutsch DT output connectors.
- 10A waterproof fuse to safeguard the electrical systems in your lights.
Overview

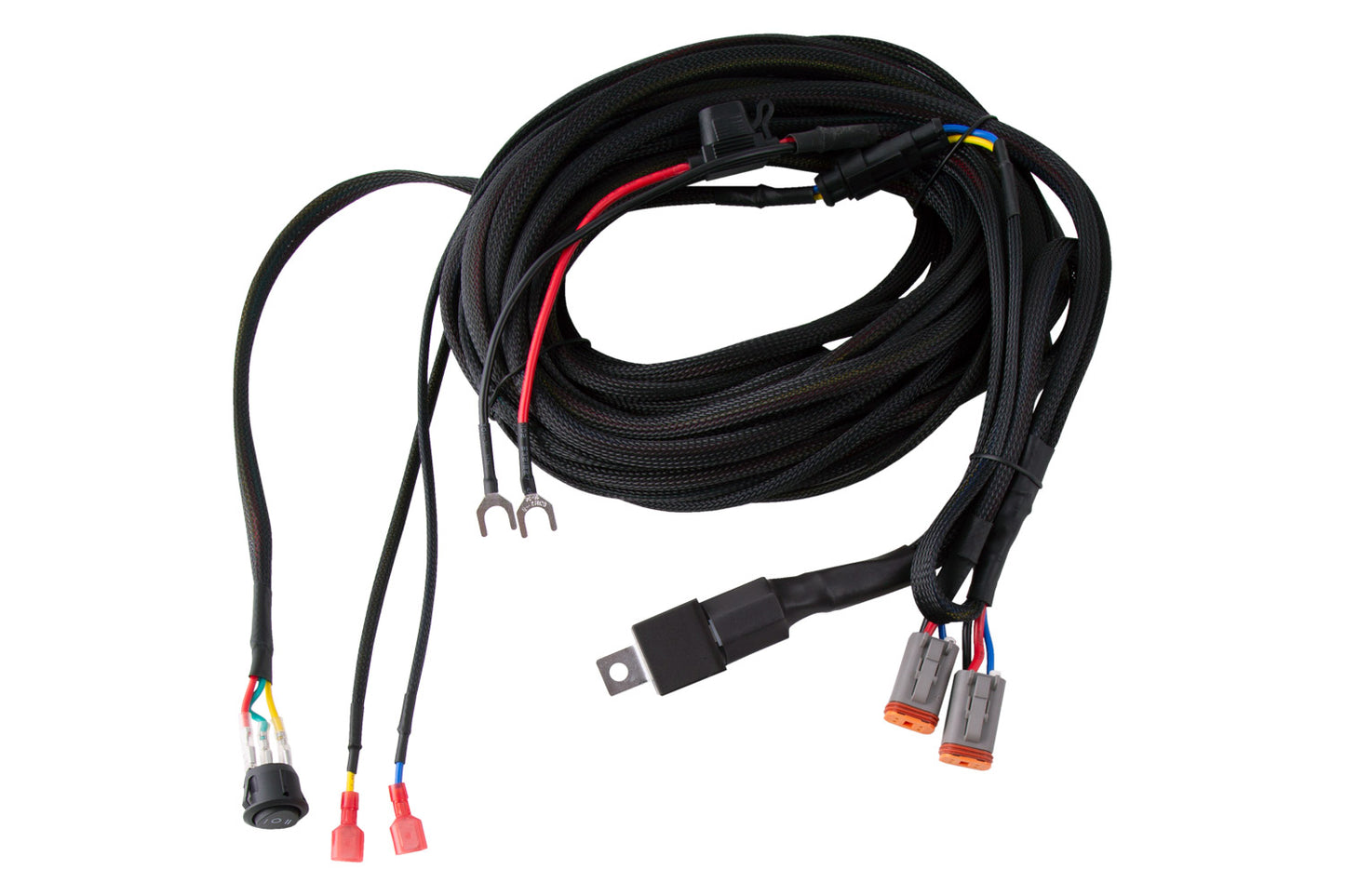

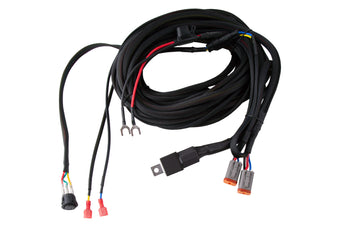

Easy Operation. This wiring harness allows you to connect your Diode Dynamics lights with backlight functionality to your vehicle's wiring for simple, everyday operation. When paired with our LED pods with a white main beam and red backlight, this harness allows your lights to operate as an additional red accent light, with your tail lights, and then automatically switches to a high-power backup light when your vehicle is in reverse. The included toggle switch allows you to override the vehicle signals and turn on the main beam anytime.
This harness safely powers up to 5A of auxiliary lamps per DT connector. Please refer to the individual product listings for specific amperage draw information.
What's Included
- One (1) Universal Wiring Harness
- Ten (10) Zip Ties
- Two (2) T-Taps
Specifications
Specifications
- Operating Voltage:9-16V
- Wire Size:14AWG & 18AWG
- Operating Temperature:-40C to 85C (-40F to 185F)
- Connector(s):Deutsch DT Input
- Unit Weight (lb):2.5
- Product Weight (lb):2.5
- Shipped Weight (lb):3
Installation
Installation

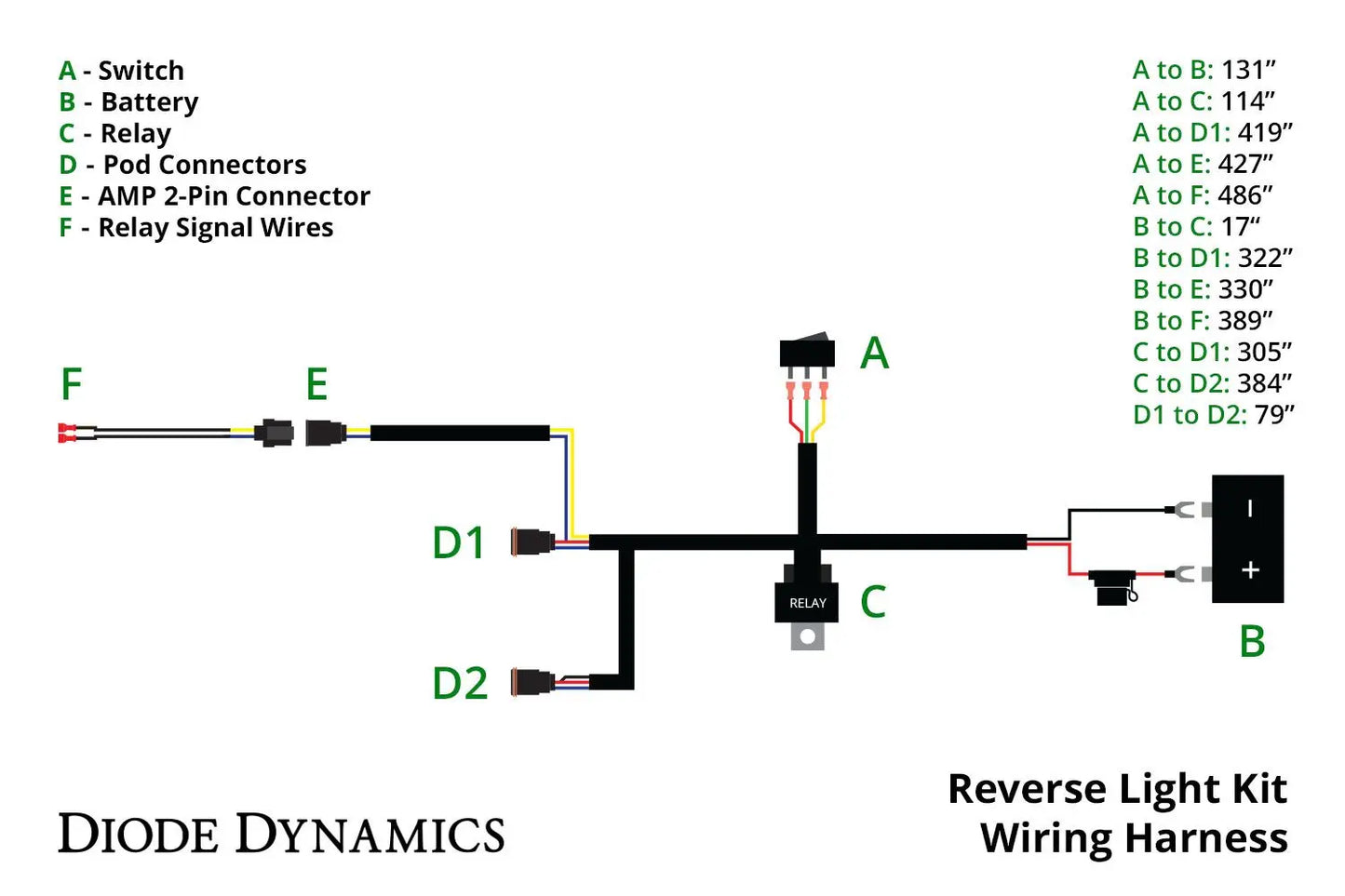

Wire Colors:
- Yellow: Reverse signal
- Green: Relay
- Red: Power
Installation Time: 10-20 minutes
Tools Needed: Basic Toolset
Modification: Basic Wiring Only
Installation Guide: Click to download
