Diode Dynamics SS10 LED Chase Light Bar – 3-in-1 Chase, Brake & Reverse Light
Diode Dynamics SS10 LED Chase Light Bar – 3-in-1 Chase, Brake & Reverse Light
SKU:DD8931
Diode Dynamics SS10 LED Chase Light Bar – 3-in-1 Chase, Brake & Reverse Light
Description
Diode Dynamics SS10 LED Chase Light Bar – Programmable 3-in-1 LED Safety Light
Increase visibility and safety on every adventure with the Diode Dynamics SS10 LED Chase Light. Designed for off-road enthusiasts, overlanders, trucks, Jeeps, and UTVs, the SS10 combines a programmable amber chase light, high-output red brake light, and powerful white reverse light into one compact, durable LED light bar.
With 20 selectable chase patterns, SmartTap® programming, and Diode Dynamics’ patented TIR optics, the SS10 delivers outstanding performance in dust, rain, fog, and low-light conditions. Whether you’re leading a trail ride, backing into camp after dark, or improving brake light visibility, the SS10 provides dependable lighting when it matters most.
Built to withstand harsh environments, the SS10 features an IP69K waterproof rating, SAE-tested durability, and is proudly Made in the USA with global materials, backed by a Limited Lifetime Warranty.
Key Features

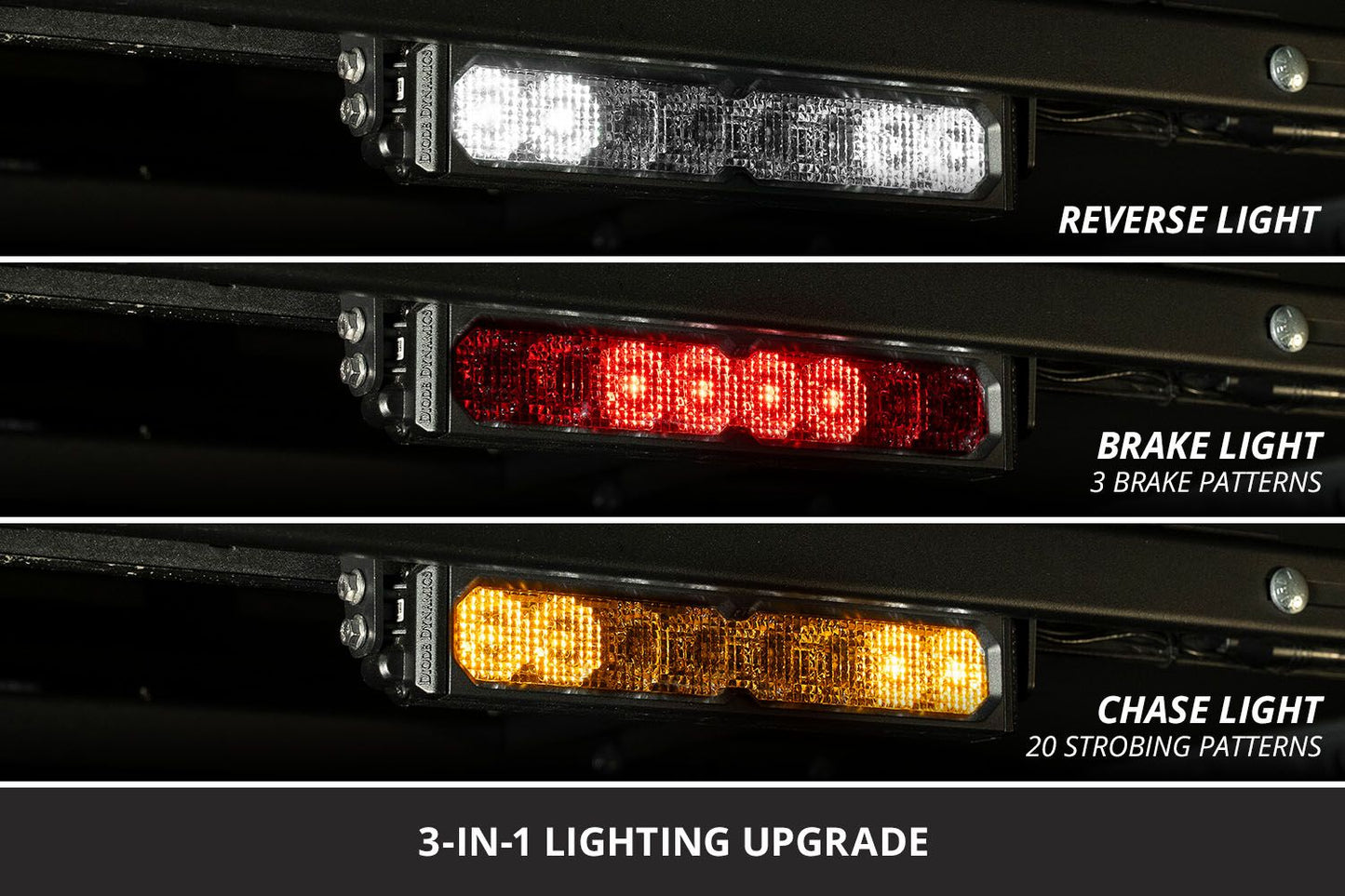

- 3-in-1 LED Light Bar with amber chase, red brake, and white reverse light
- 20 programmable chase light patterns for improved off-road visibility

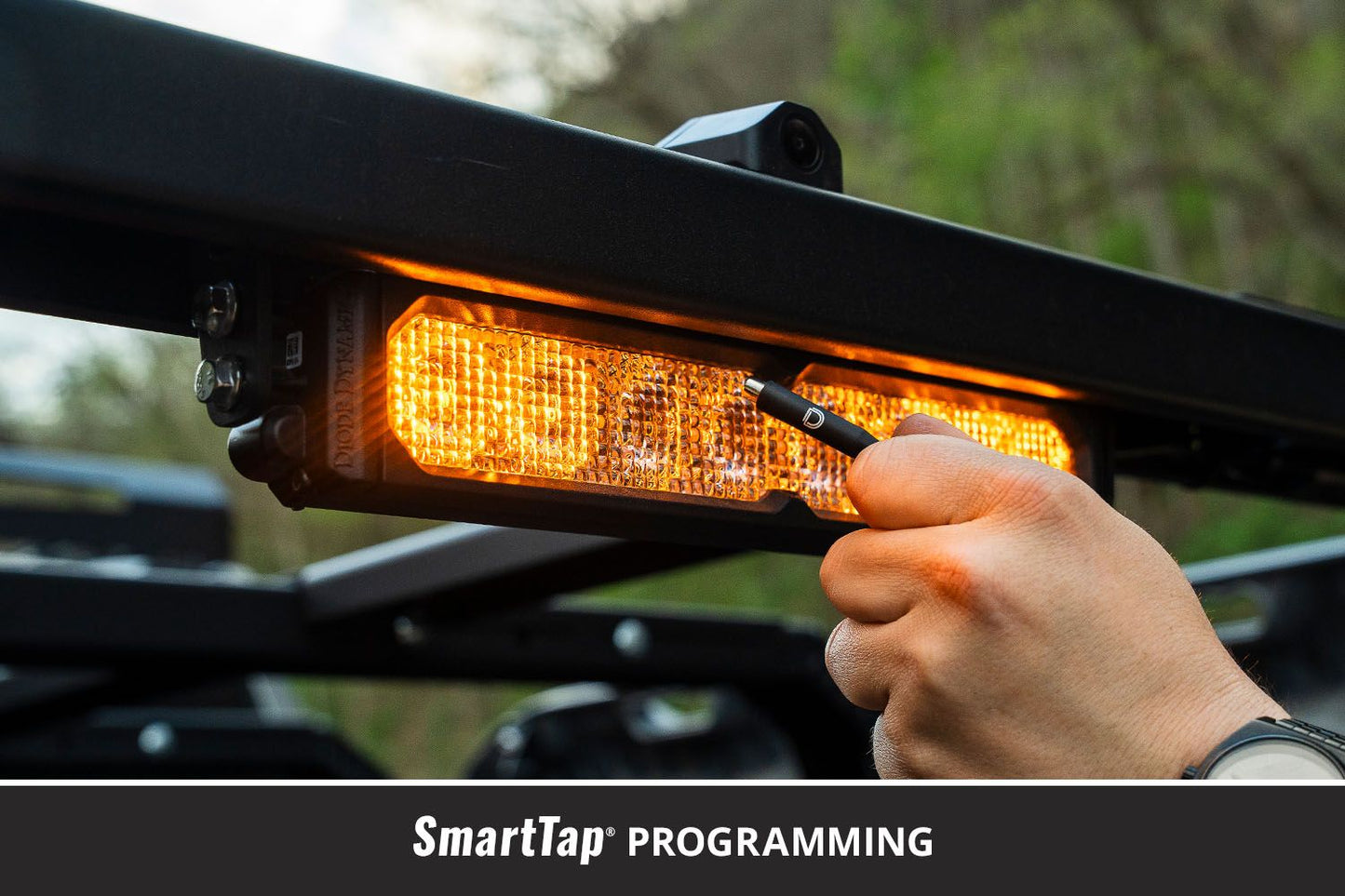

- SmartTap® magnetic programming for quick pattern selection
- SafetyStrobe® brake light with three programmable operating modes
- High-output LED reverse light using patented TIR optics
- Optional reverse signal activation for automatic operation
- Compact design with adjustable mounting brackets
- Includes 3-meter extension cable for flexible installation
- IP69K-rated for water, dust, mud, and extreme weather protection
- Tested to SAE standards for vibration, corrosion, and moisture resistance
- Operating temperature: -40°F to 185°F
- Made in USA with Global Materials
- Limited Lifetime Warranty
Built for Maximum Visibility

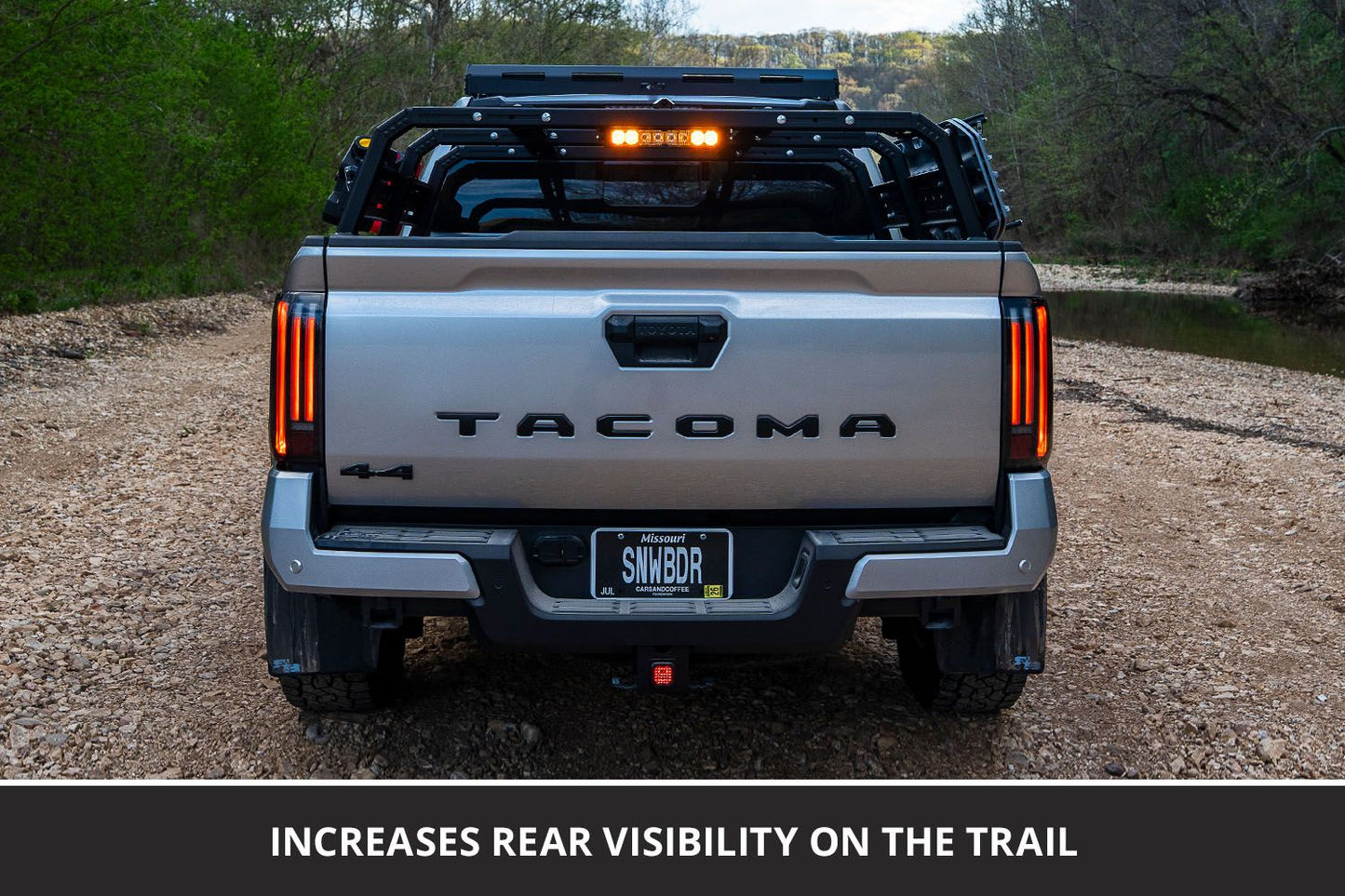

The SS10’s integrated amber chase light helps your vehicle remain visible in dusty trails, heavy rain, snow, and other low-visibility environments. With 20 programmable flash patterns, you can customize your lighting to suit your driving conditions or group rides.
SafetyStrobe® Brake Light
Enhance rear visibility with three selectable brake light modes, including solid illumination, triple-flash SafetyStrobe®, and a slower off-road pulse mode to help alert drivers and fellow trail riders.
Powerful Reverse Lighting
Factory reverse lights often fall short when backing up off-road or at night. The SS10’s high-output white LEDs provide significantly more usable light, making reversing safer and easier. For added convenience, the reverse light can be wired to activate automatically when the vehicle is shifted into reverse.
Easy Installation
The compact housing, adjustable mounting brackets, and included 3-meter DT extension wire make the SS10 easy to mount on:
- Bed racks
- Roll bars
- Roof racks
- Overland builds
- Trucks
- Jeeps
- SUVs
- UTVs
- Custom off-road vehicles

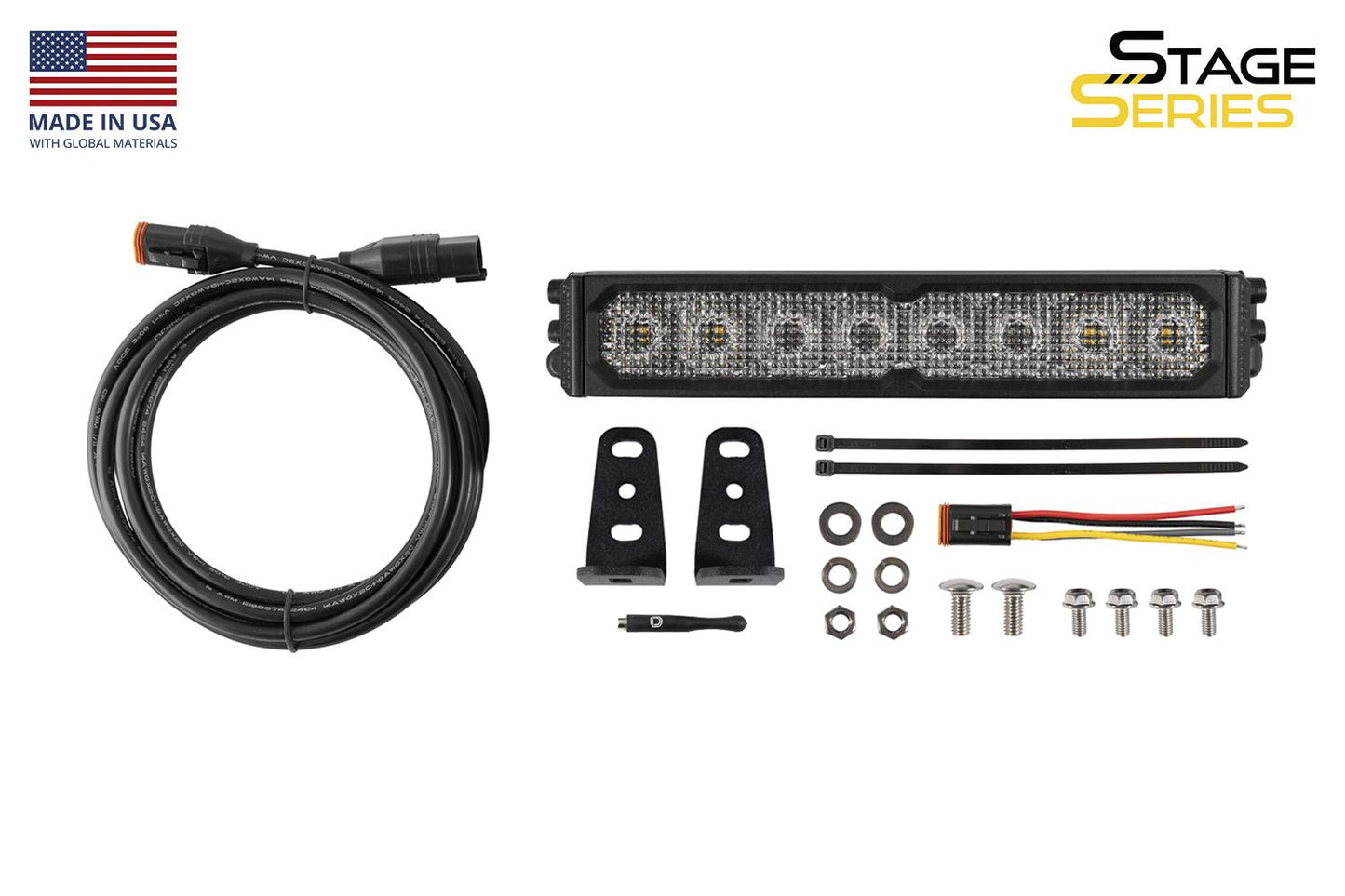

What’s Included
- (1) Diode Dynamics SS10 LED Chase Light Bar
- (1) SmartTap® Magnet Tool
- (1) 3m DT Extension Wire
- (2) Zip Ties
- Mounting Brackets
- Mounting Hardware
Quantity: 1 Light Bar
Warranty: Limited Lifetime Warranty
Specifications
- Raw Lumens: White: 960, Red: 220, Amber: 220
- Intensity (cd): White: 650, Red: 125, Amber: 450
- Color Temp (CCT): 6000K
- Beam Angle: Flood, 80°x50°
- Power (watts): White: 4, Red: 2.5, Amber: 4
- Operating Voltage: 9-16V
- Current (amps @ 12.8V): White: .3, Red: .2, Amber: .3
- Wire Size: 18AWG
- Polarity: Polarity Specific
- Operating Temperature: -40C to 85C (-40F to 185F)
- Connector(s): Deutsch DT Input
- Driver Features: Constant Current
- Materials: FR4 PCB, Polycarbonate Lens, Rubber Gasket, Cast A360 Aluminum
- Cooling: Passive, Pin-Fin heatsink
- Compliance Ratings: SAE J575 Durability Test, SAE J1957 Center High Mounted Stop Lamp
- Intrusion Ratings: IP69K Waterproof, High Pressure
- Unit Weight (lb): 2.3
- Product Weight (lb): 2.9
- Shipped Weight (lb):3.5
Installation
Diode Dynamics SS10 LED Chase Light Bar – 3-in-1 Chase, Brake & Reverse Light
Diode Dynamics SS10 LED Chase Light Bar – Programmable 3-in-1 LED Safety Light
Increase visibility and safety on every adventure with the Diode Dynamics SS10 LED Chase Light. Designed for off-road enthusiasts, overlanders, trucks, Jeeps, and UTVs, the SS10 combines a programmable amber chase light, high-output red brake light, and powerful white reverse light into one compact, durable LED light bar.
With 20 selectable chase patterns, SmartTap® programming, and Diode Dynamics’ patented TIR optics, the SS10 delivers outstanding performance in dust, rain, fog, and low-light conditions. Whether you’re leading a trail ride, backing into camp after dark, or improving brake light visibility, the SS10 provides dependable lighting when it matters most.
Built to withstand harsh environments, the SS10 features an IP69K waterproof rating, SAE-tested durability, and is proudly Made in the USA with global materials, backed by a Limited Lifetime Warranty.
Key Features
- 3-in-1 LED Light Bar with amber chase, red brake, and white reverse light
- 20 programmable chase light patterns for improved off-road visibility
- SmartTap® magnetic programming for quick pattern selection
- SafetyStrobe® brake light with three programmable operating modes
- High-output LED reverse light using patented TIR optics
- Optional reverse signal activation for automatic operation
- Compact design with adjustable mounting brackets
- Includes 3-meter extension cable for flexible installation
- IP69K-rated for water, dust, mud, and extreme weather protection
- Tested to SAE standards for vibration, corrosion, and moisture resistance
- Operating temperature: -40°F to 185°F
- Made in USA with Global Materials
- Limited Lifetime Warranty
Built for Maximum Visibility
The SS10’s integrated amber chase light helps your vehicle remain visible in dusty trails, heavy rain, snow, and other low-visibility environments. With 20 programmable flash patterns, you can customize your lighting to suit your driving conditions or group rides.
SafetyStrobe® Brake Light
Enhance rear visibility with three selectable brake light modes, including solid illumination, triple-flash SafetyStrobe®, and a slower off-road pulse mode to help alert drivers and fellow trail riders.
Powerful Reverse Lighting
Factory reverse lights often fall short when backing up off-road or at night. The SS10’s high-output white LEDs provide significantly more usable light, making reversing safer and easier. For added convenience, the reverse light can be wired to activate automatically when the vehicle is shifted into reverse.
Easy Installation
The compact housing, adjustable mounting brackets, and included 3-meter DT extension wire make the SS10 easy to mount on:
- Bed racks
- Roll bars
- Roof racks
- Overland builds
- Trucks
- Jeeps
- SUVs
- UTVs
- Custom off-road vehicles
What’s Included
- (1) Diode Dynamics SS10 LED Chase Light Bar
- (1) SmartTap® Magnet Tool
- (1) 3m DT Extension Wire
- (2) Zip Ties
- Mounting Brackets
- Mounting Hardware
Quantity: 1 Light Bar
Warranty: Limited Lifetime Warranty
