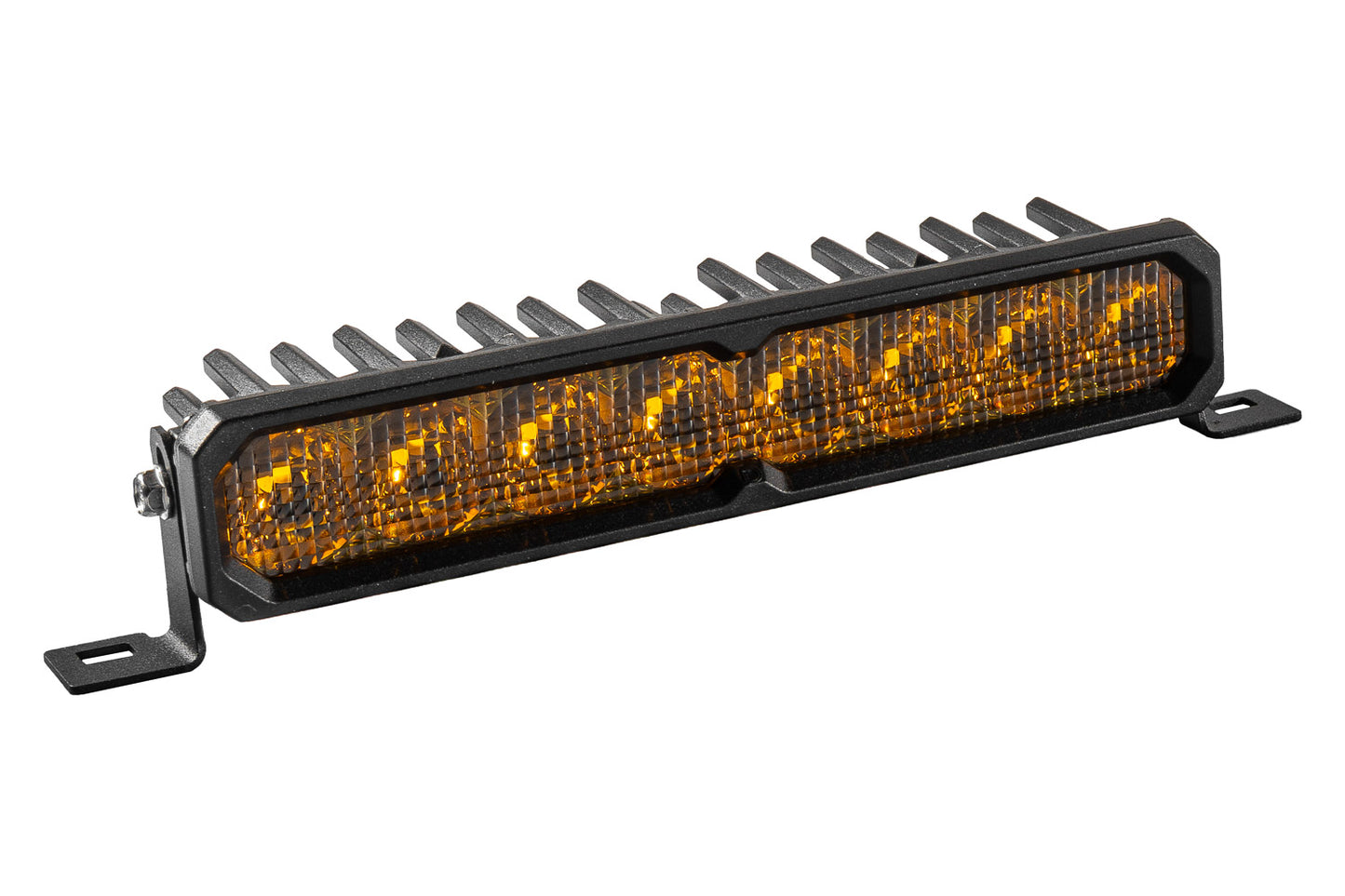

Diode Dynamics SS10 Yellow Stage Series LED Light Bar with Amber Backlight (Single)

Diode Dynamics SS10 Yellow Stage Series LED Light Bar with Amber Backlight (Single)

Maximize visibility in challenging driving conditions with the Diode Dynamics SS10 Yellow Stage Series LED Light Bar. Featuring 3000K Selective Yellow LED output, patented Total Internal Reflection (TIR) optics, and a fully illuminated amber backlight, the SS10 light bar is engineered to deliver exceptional performance in fog, rain, snow, dust, and off-road environments.

Available in Sport, Pro, and Max power levels, the Diode Dynamics SS10 can be configured with Combo/Driving, SAE Driving, Flood, or Spot beam patterns to match your driving style. Whether you’re building an overland rig, outfitting a work truck, or adding auxiliary lighting to your off-road vehicle, the SS10 provides industry-leading light output, outstanding beam control, and long-lasting reliability.

Constructed with a rugged aluminum housing, premium thermal management, and an IP69K waterproof rating, the SS10 is built to perform in the harshest environments. Proudly engineered and assembled in the USA with global materials and backed by a Limited Lifetime Warranty, the SS10 delivers premium lighting performance you can rely on.

Key Features

• Sold individually (1 LED Light Bar)
• 3000K Selective Yellow LED output
• Available in Sport, Pro, and Max power levels
• Choice of Combo/Driving, SAE Driving, Flood, or Spot beam patterns
• Patented Total Internal Reflection (TIR) optics
• Fully illuminated amber LED backlight
• Swappable Stage Series lenses for future customization
• Compatible with Stage Series CrossLink mounting systems
• Durable aluminum housing with ASTM-standard powder-coated finish
• Copper-core circuit boards on high-power models for superior thermal management
• IP69K waterproof and dustproof construction
• Tested for vibration, corrosion, moisture, and temperatures from -40°F to 185°F
• Universal mounting brackets included
• Made in the USA with global materials
• Backed by a Limited Lifetime Warranty

Selective Yellow Performance

The 3000K Selective Yellow output is designed to improve visibility when conditions are less than ideal. By increasing contrast and reducing glare, selective yellow lighting helps you see more clearly in:

• Fog
• Rain
• Snow
• Dust
• Smoke
• Low-light trail conditions

It’s an excellent choice for off-road enthusiasts, overlanders, and drivers who regularly encounter poor weather or challenging terrain.

Patented TIR Optics for Maximum Visibility

Unlike conventional reflector-style light bars, the SS10 utilizes patented Total Internal Reflection (TIR) optics to capture nearly all available light and direct it precisely where you need it.

Benefits include:

• Higher optical efficiency
• Reduced glare
• Greater usable light output
• Smooth, evenly distributed beam patterns
• Improved long-distance visibility

Combined with premium automotive-grade LEDs and advanced thermal management, the SS10 delivers outstanding performance in demanding driving conditions.

Choose the Right Beam Pattern

The SS10 is available with multiple beam patterns to fit virtually any application.

Combo/Driving

A balanced beam that combines excellent distance with wide foreground illumination.

Ideal for:

• Overlanding
• Trail driving
• Rural highways
• General-purpose auxiliary lighting

SAE Driving

Designed to supplement your high beams with increased distance and excellent beam control. When installed as a pair and properly aimed, this pattern meets SAE J581 standards for auxiliary driving lights.

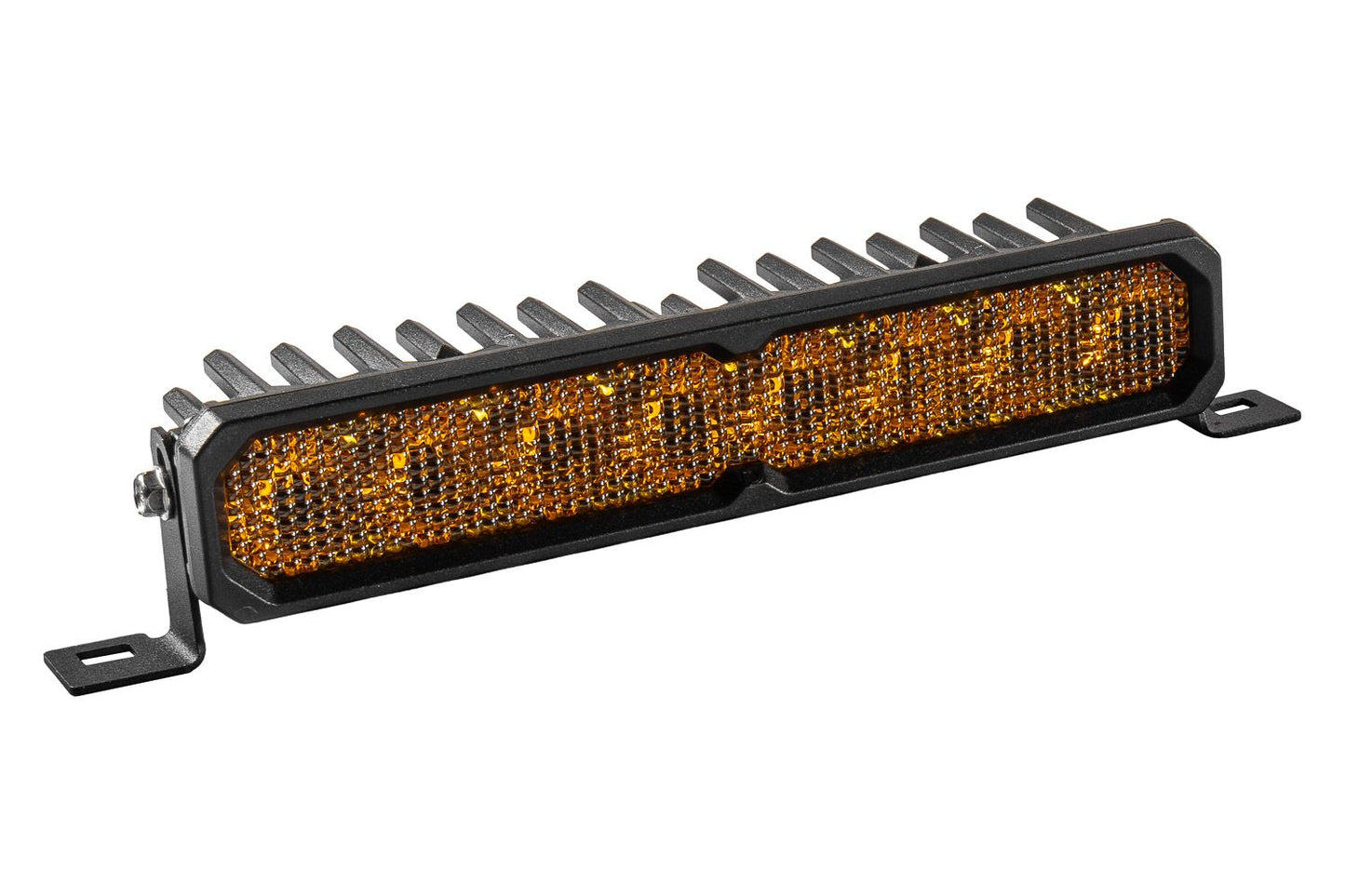

Flood

A broad 100° x 80° beam perfect for:

• Work trucks
• Reverse lighting
• Campsites
• Utility vehicles
• Low-speed maneuvering

Spot

A focused 8° x 8° beam engineered for:

• Desert racing
• Rally stages
• High-speed off-road driving
• Maximum forward visibility

Sport, Pro, or Max

Choose the output level that matches your needs:

• Sport: Outstanding value with excellent everyday performance.
• Pro: Increased brightness and intensity for demanding off-road applications.
• Max: Premium Osram HX Boost LEDs deliver maximum output and exceptional long-range performance.

Fully Illuminated Amber Backlight

Every Yellow SS10 Stage Series LED Light Bar features a fully illuminated amber backlight that lights the entire TIR optic for a bold, premium appearance.

Perfect for:

• Parking lights
• Daytime running lights
• Accent lighting
• Trail staging
• Off-road styling

The amber backlight improves visibility while giving your vehicle a distinctive OEM+ look.

Modular Stage Series Design

Like the rest of the Stage Series lineup, the SS10 is designed for flexibility.

Compatible with:

• Replacement lenses
• Snap-On Lens Covers
• CrossLink mounting systems
• Multiple beam patterns
• White or selective yellow lens options

Quickly adapt your lighting setup without replacing the entire light bar.

Built for Extreme Conditions

Every SS10 Stage Series LED Light Bar is engineered for dependable performance in the harshest environments.

Features include:

• Heavy-duty aluminum housing
• ASTM-standard powder-coated finish
• Copper-core circuit boards (high-power models)
• Optimized heat dissipation
• IP69K waterproof protection
• Corrosion-resistant construction
• SAE-tested durability

Built to withstand rain, snow, mud, dust, vibration, and extreme temperatures year after year.

What’s Included

• (1) Diode Dynamics SS10 Yellow Stage Series LED Light Bar
• (1) Wire Pigtail
• Universal Mounting Bracket Set
• Mounting Hardware

Quantity: One (1)

Warranty: Limited Lifetime Warranty
