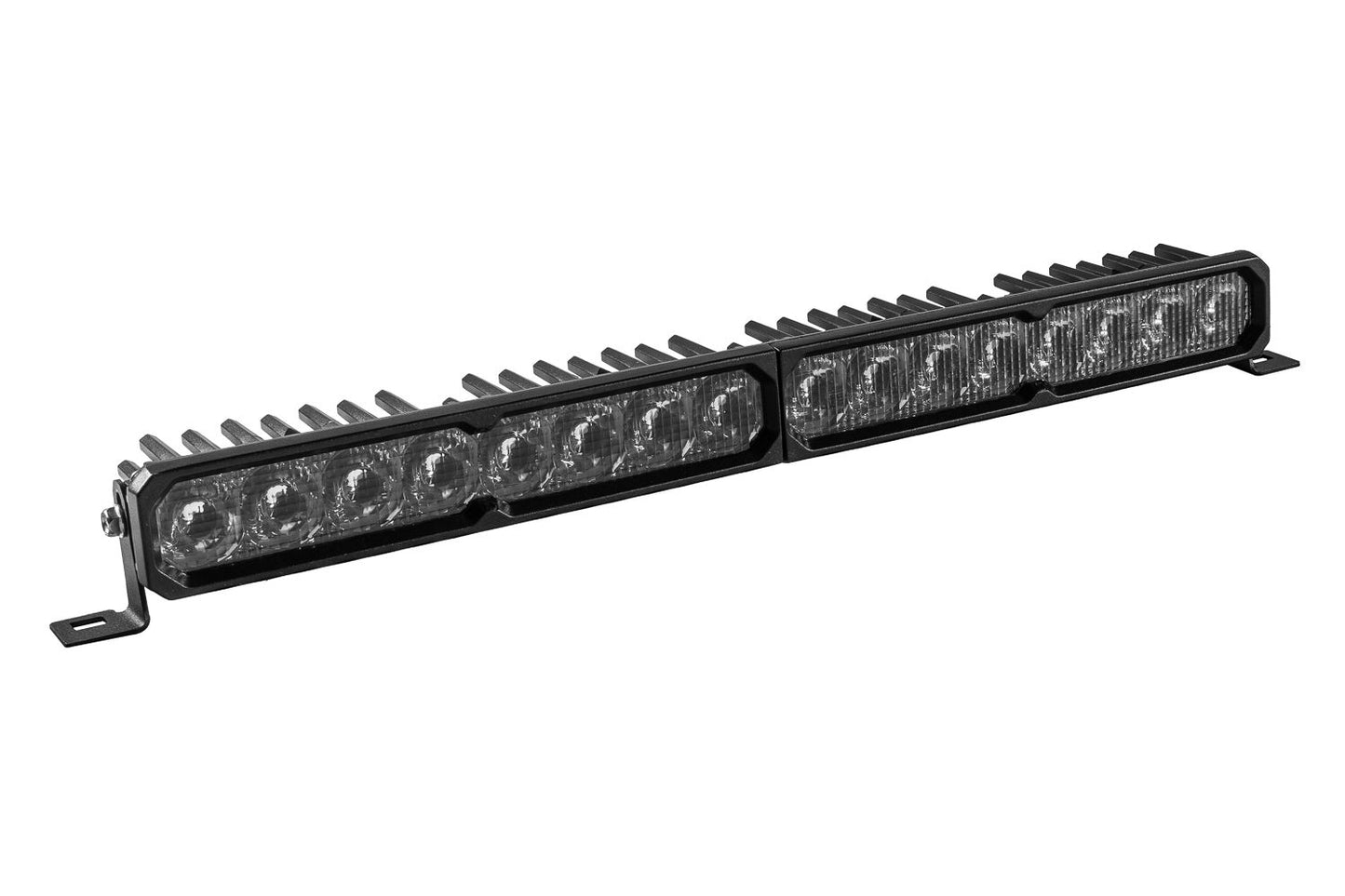

Diode Dynamics SS20 White Stage Series LED Light Bar with SmartSelect Backlight (Single)

Diode Dynamics SS20 White Stage Series LED Light Bar with SmartSelect Backlight (Single)

Take your lighting setup to the next level with the Diode Dynamics SS20 White Stage Series LED Light Bar, a premium 20-inch LED light bar engineered for maximum brightness, precision beam control, and advanced customization. Featuring 6000K Cool White LED output, patented Total Internal Reflection (TIR) optics, and available with either a SmartSelect multicolor backlight or amber backlight, the SS20 delivers exceptional performance for off-road adventures, overlanding, work trucks, and daily driving.

Available in Sport and Pro power levels, the SS20 can be configured with Combo/Driving, SAE Driving, Flood, or Spot beam patterns to suit virtually any application. SmartSelect models offer eight selectable backlight colors and a dynamic startup sequence, allowing you to customize your vehicle’s appearance without extra controllers or complicated wiring.

Built with a rugged aluminum housing, advanced thermal management, and an IP69K waterproof rating, the SS20 is designed to withstand the harshest environments. Proudly engineered and assembled in the USA with global materials and backed by a Limited Lifetime Warranty, the SS20 is one of the most capable and versatile LED light bars on the market.

Key Features

• Sold individually (1 LED Light Bar)
• 6000K Cool White LED output
• Available in Sport and Pro power levels
• Choice of Combo/Driving, SAE Driving, Flood, or Spot beam patterns
• Patented Total Internal Reflection (TIR) optics
• Available with SmartSelect multicolor backlight or amber backlight
• SmartSelect features eight selectable backlight colors and animated welcome sequence
• Swappable Stage Series lenses and optics
• Compatible with Stage Series CrossLink mounting systems
• Durable aluminum housing with ASTM-standard powder-coated finish
• Copper-core circuit boards on Pro models for superior thermal management
• IP69K waterproof and dustproof construction
• Tested for vibration, corrosion, moisture, and temperatures from -40°F to 185°F
• Universal mounting brackets included
• Made in the USA with global materials
• Backed by a Limited Lifetime Warranty

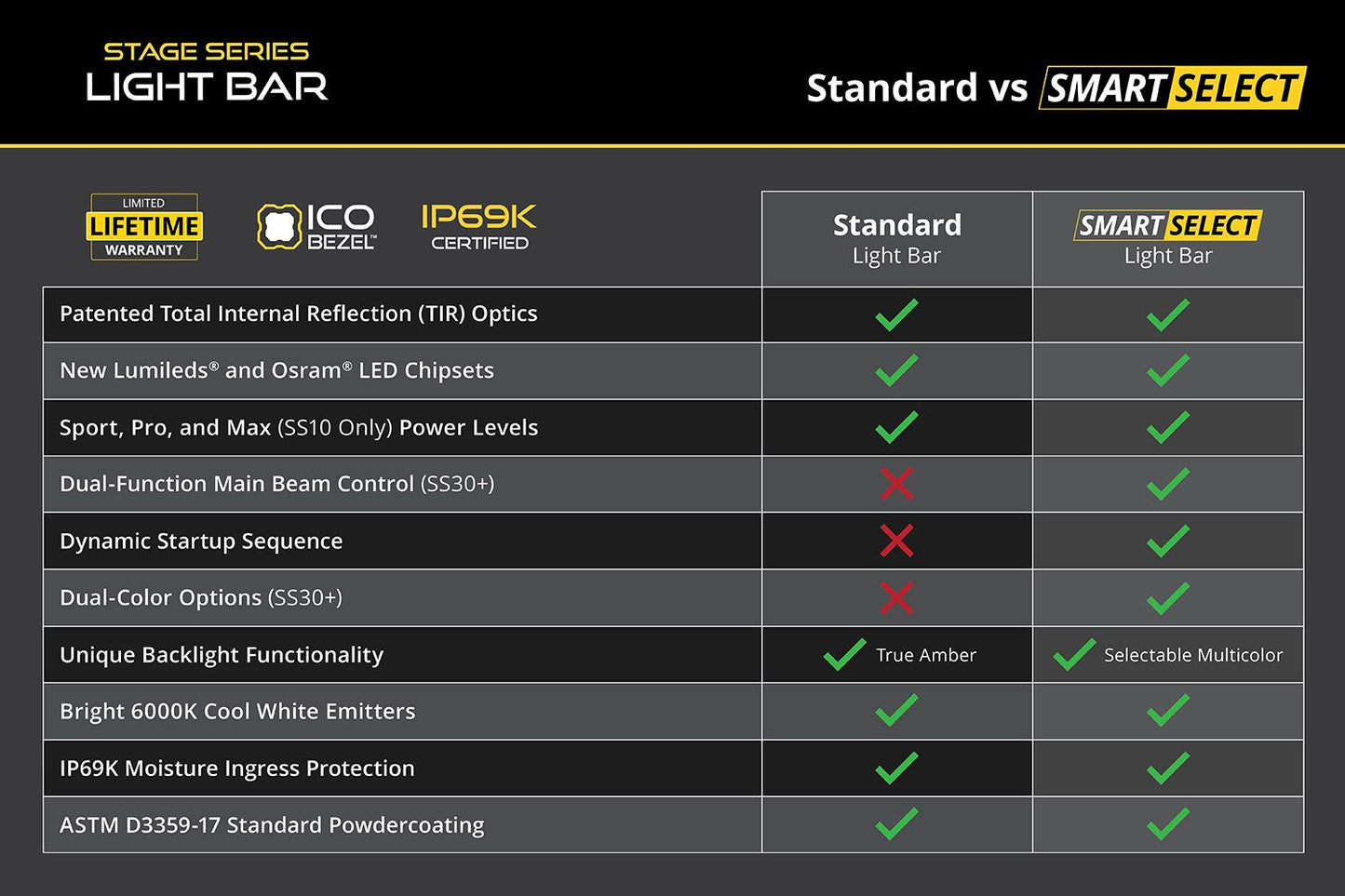

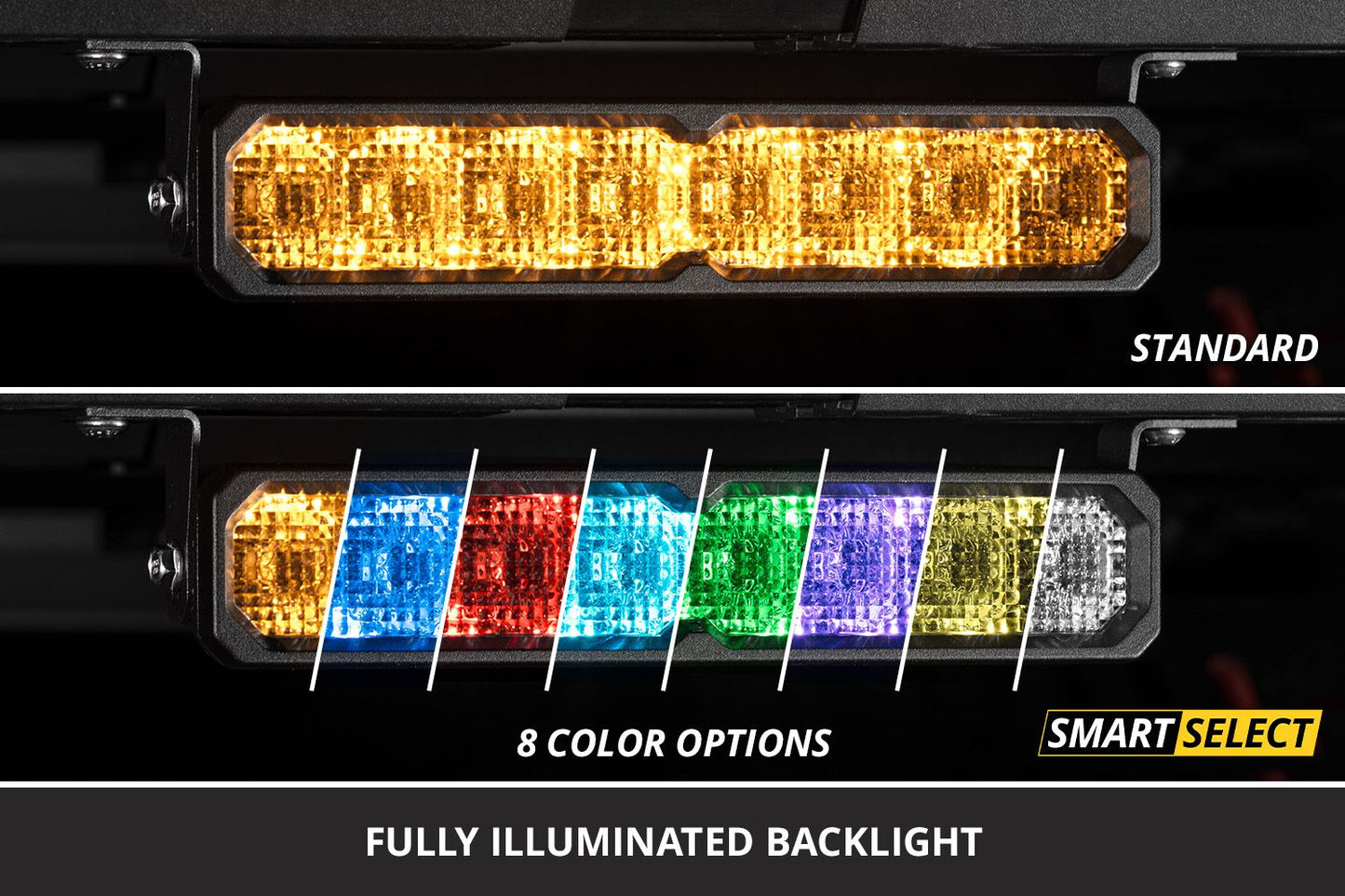

SmartSelect Backlighting

The SS20 offers Diode Dynamics’ innovative SmartSelect technology, allowing you to customize your light bar’s appearance without additional controllers.

Simply cycle the light’s power to choose from eight selectable backlight colors, including a dedicated true amber LED for an OEM-quality appearance.

SmartSelect features include:

• Eight selectable backlight colors
• Dynamic startup (welcome) sequence
• Fully illuminated TIR optics
• No external controller required
• Dedicated amber LED chip for perfect color matching

Standard models include a bright amber backlight that’s ideal for forward-facing accent lighting and increased visibility while parked or on the trail.

Patented TIR Optics

Unlike conventional reflector-style LED light bars, the SS20 utilizes patented Total Internal Reflection (TIR) opticsto capture nearly all available light and project it exactly where it’s needed.

Benefits include:

• Higher optical efficiency
• Reduced glare
• Greater usable light output
• Smooth, evenly distributed beam patterns
• Excellent long-range visibility

Combined with premium automotive-grade LEDs and advanced thermal management, the SS20 provides exceptional lighting performance in every environment.

Choose the Right Beam Pattern

The SS20 is available in multiple beam patterns to suit your driving needs.

Combo/Driving

A balanced beam pattern that combines long-range visibility with broad foreground illumination.

Ideal for:

• Overlanding
• Trail riding
• Rural highways
• General-purpose auxiliary lighting

SAE Driving

Designed to supplement your factory high beams while maintaining excellent beam control. When installed as a pair and properly aimed, this pattern meets SAE J581 standards for auxiliary driving lights.

Flood

A broad 100° x 80° beam pattern designed for:

• Work trucks
• Backup lighting
• Utility vehicles
• Camp lighting
• Slow-speed off-road driving

Spot

A tightly focused 8° x 8° beam for:

• Desert racing
• Rally competition
• High-speed off-road driving
• Maximum forward visibility

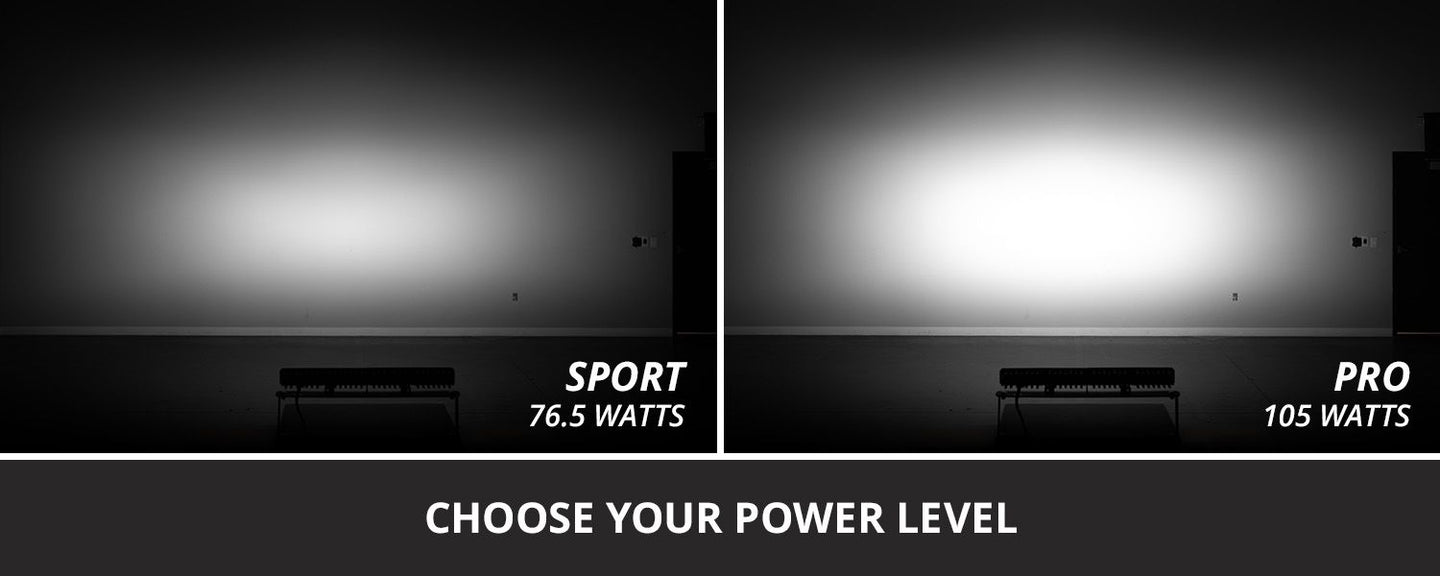

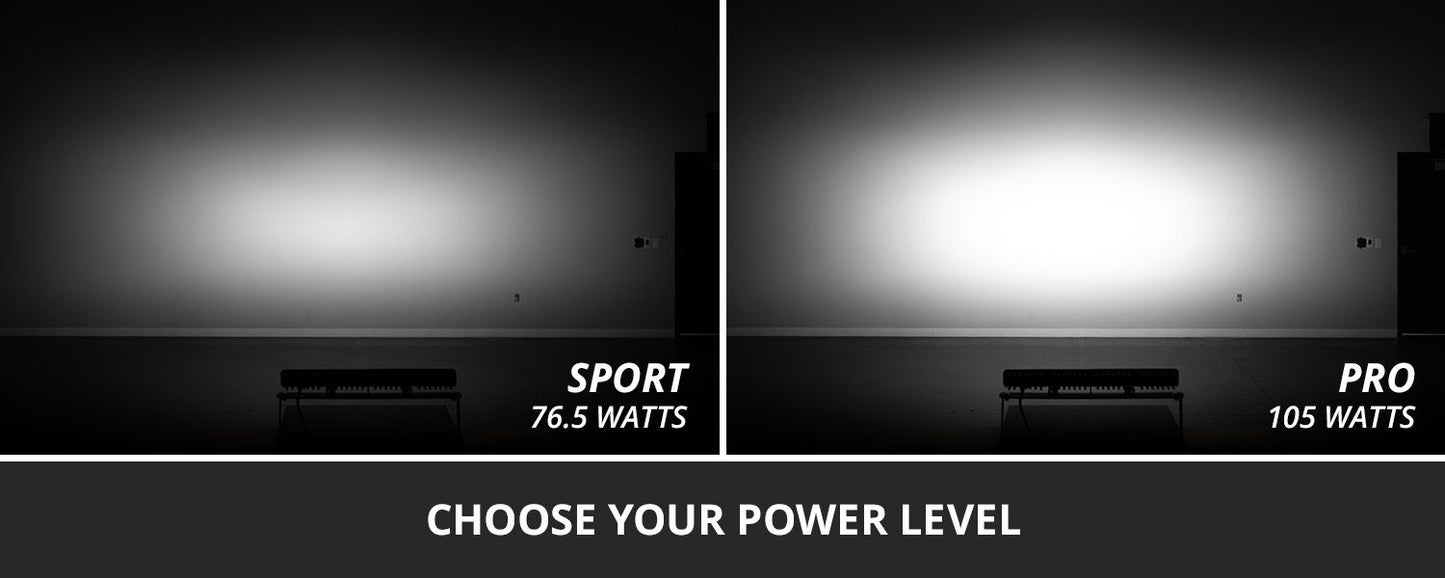

Choose Your Power Level

The SS20 is available in two output levels:

• Sport: Excellent performance and value for daily driving and recreational off-road use.
• Pro: Increased brightness and intensity for more demanding off-road and professional applications.

Modular Stage Series Design

Like the rest of the Stage Series lineup, the SS20 is designed for future customization.

Compatible with:

• Replacement lenses
• Snap-On Lens Covers
• CrossLink mounting systems
• Multiple beam patterns
• White or selective yellow lenses

Quickly adapt your lighting setup without replacing the entire light bar.

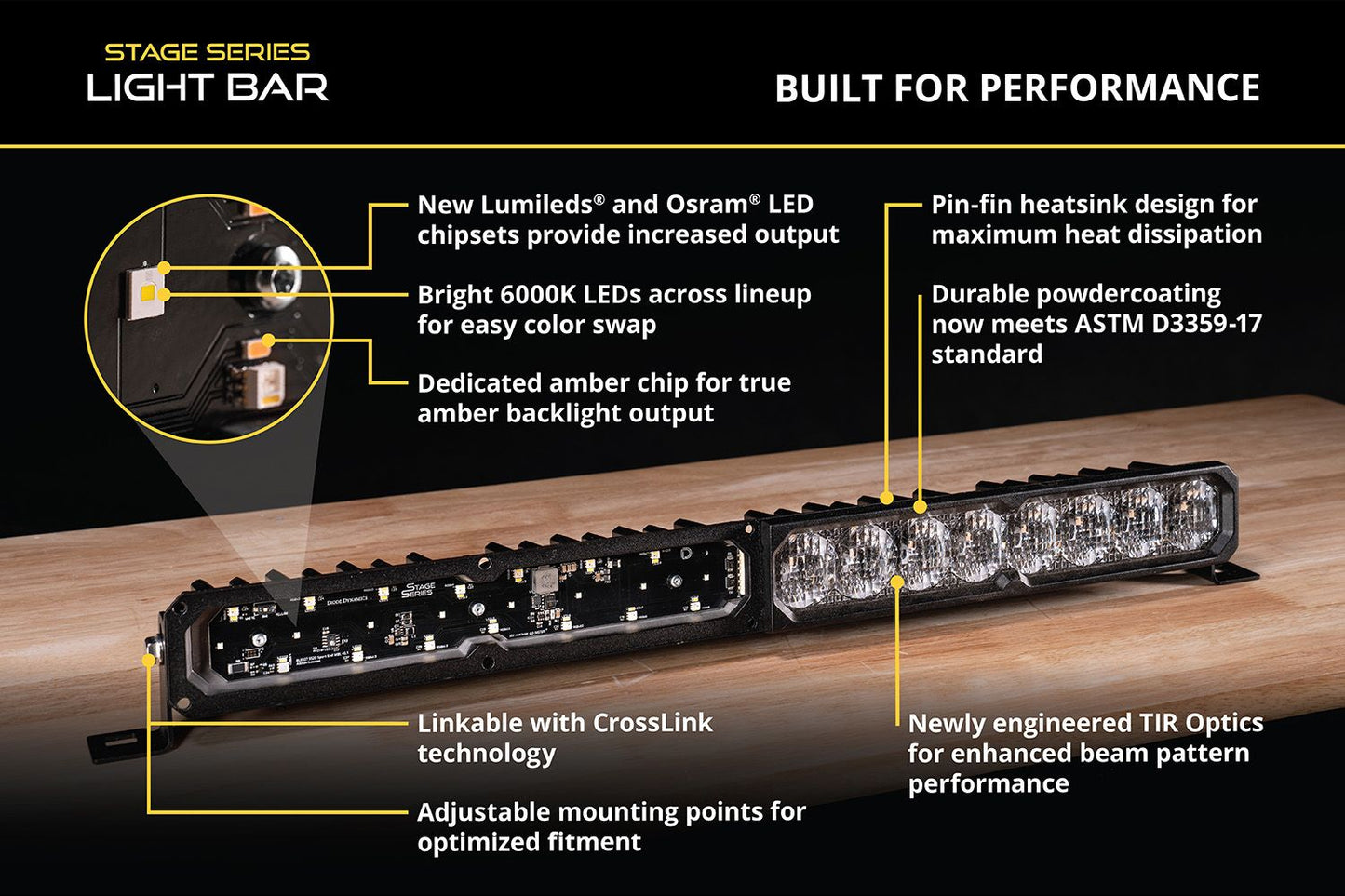

Built for Extreme Conditions

Every SS20 Stage Series LED Light Bar is engineered for dependable performance in harsh environments.

Features include:

• Heavy-duty aluminum housing
• ASTM-standard powder-coated finish
• Copper-core circuit boards (Pro models)
• Optimized heat dissipation
• IP69K waterproof protection
• Corrosion-resistant construction
• SAE-tested durability

Designed to withstand rain, snow, mud, dust, vibration, and extreme temperatures for years of reliable performance.

What’s Included

• (1) Diode Dynamics SS20 Stage Series LED Light Bar
• (1) Wire Pigtail
• Universal Mounting Bracket Set
• Mounting Hardware

Quantity: One (1)

Warranty: Limited Lifetime Warranty
