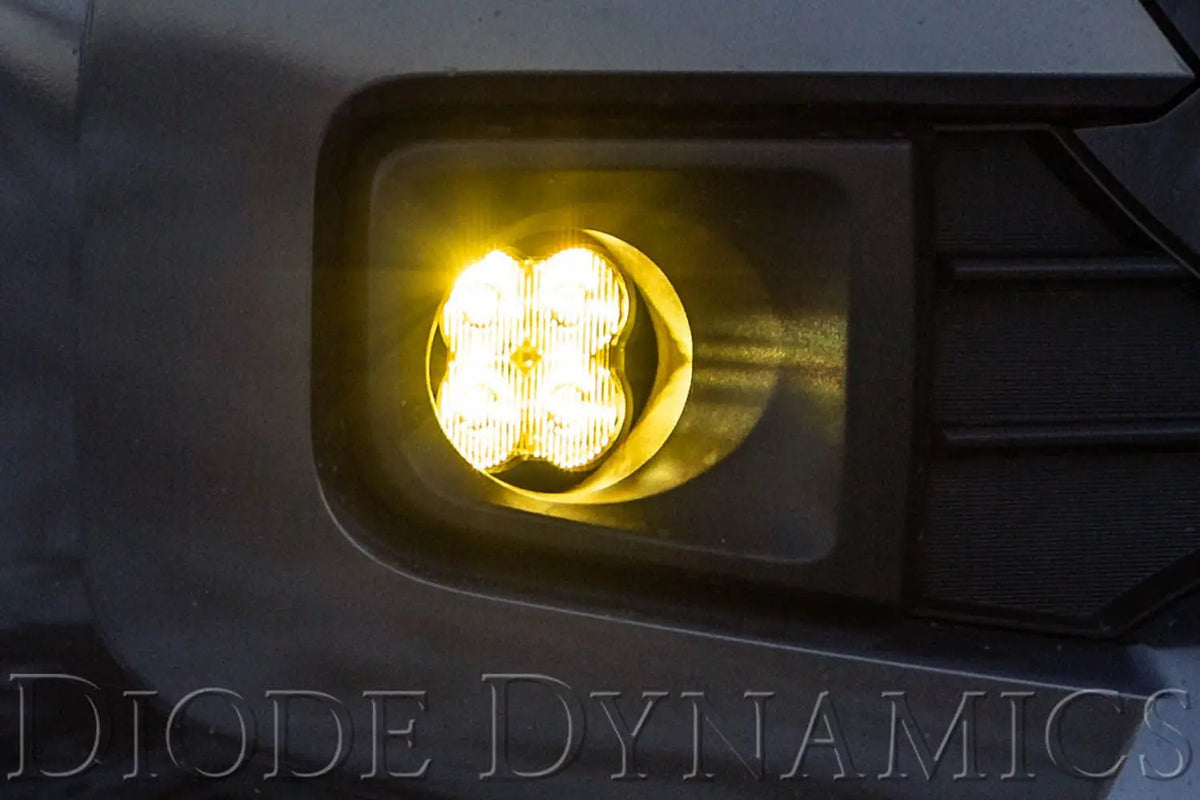

Diode Dynamics SS3 SAE Type B LED Fog Light Kit

Upgrade your factory fog lights with the Diode Dynamics Stage Series SS3 SAE Type B Fog Light Kit. Designed as a direct replacement for compatible Toyota, Lexus, and Subaru fog lamps, this complete kit combines powerful Diode Dynamics Stage Series LED technology with SAE-compliant optics and vehicle-compatible Type B mounting brackets.

The included angled bezels provide a clean, factory-inspired appearance, while plug-and-play adapters connect directly to compatible factory fog light wiring. No cutting, drilling, or custom main-beam wiring is required.

Key Features

• Direct replacement for compatible OEM fog lights
• Pair of Stage Series SS3 3-inch LED pods
• Type B vehicle mounting brackets
• SAE J583-compliant fog beam
• Ultra-wide 80-degree SAE Fog pattern
• Custom-engineered TIR optics
• Plug-and-play factory wiring connections
• H11 4-pin DT backlight tap wires included
• Integrated amber backlighting
• Angled bezels for an OEM-style appearance
• Available in 6000K cool white or 3000K selective yellow
• Sport, Pro, and Max performance levels
• Durable powder-coated aluminum construction
• Engineered and assembled in the USA
• Lifetime warranty

Direct-Fit Type B Installation

The SS3 Type B kit is engineered to replace compatible factory fog light assemblies without requiring extensive vehicle modification.

Simply remove the original fog lamps, install the included Type B brackets and SS3 LED pods, and connect the supplied wiring adapters to the factory fog light connections.

The angled SS3 bezel integrates neatly into compatible factory bumper openings for a finished appearance that looks at home on everything from a Toyota 4Runner or Tacoma to a Lexus RX.

SAE-Compliant Fog Beam

The SS3 SAE Fog optic is designed specifically for functional on-road fog lighting.

Diode Dynamics’ FineLine optic creates an extremely wide field of illumination across an approximately 80-degree spread, putting useful light across the roadway while maintaining a controlled beam.

When installed as a pair and properly aimed, the Fog pattern meets the SAE J583 standard for fog lamps. Always follow applicable local regulations regarding installation, aiming, and road use.

Advanced TIR Optics

The SS3 uses custom-engineered Total Internal Reflection (TIR) optics instead of relying on a conventional reflector and separate outer lens.

The optic captures LED output and directs it into the intended beam pattern, improving efficiency while reducing wasted light and glare. This design helps deliver highly usable illumination from the compact 3-inch SS3 housing.

White or Selective Yellow

Choose between two popular fog light colors.

6000K Cool White produces a crisp white output that complements modern factory LED headlights and provides a clean OEM-inspired appearance.

3000K Selective Yellow offers a distinctive yellow output that’s popular for fog, rain, snow, dust, and off-road applications where drivers want greater visual contrast.

Sport, Pro or Max

Choose from three SS3 performance levels depending on your lighting requirements and budget.

Sport offers excellent performance and value for daily drivers and mild off-road builds.

Pro significantly increases total power for drivers wanting greater output and intensity.

Max utilizes advanced automotive LED emitters for the highest performance available in the Stage Series SS3 lineup.

All three versions utilize precision TIR optics for controlled, functional output.

Integrated Amber Backlight

The Stage Series SS3 includes a distinctive amber backlight in addition to the primary fog beam.

Rather than illuminating only a small indicator LED, the backlight illuminates the SS3 optic itself for a modern accent-light appearance.

The included H11 4-pin DT backlight tap wires provide the connections needed to integrate the feature with the desired vehicle lighting function.

Proven Stage Series Durability

The SS3 is housed in durable powder-coated aluminum and designed for demanding automotive environments.

Stage Series lighting undergoes testing for vibration, moisture intrusion, corrosion, and extended operation at temperatures ranging from -40°F to 185°F.

What’s Included

• Two (2) SS3 3-inch angled LED pods
• Two (2) Type B mounting brackets
• Two (2) H11 4-pin DT backlight tap wires
• Mounting hardware
• Mounting guide

Quantity: Pair – Left and Right
Warranty: Lifetime Warranty

Vehicle Fitment

Known direct-fit applications include:

*Certain Lexus applications vary by trim. Verify the factory fog lamp configuration before ordering.
