Diode Dynamics SS3 Type CGX LED Fog Light Kit

Upgrade your factory fog lights with the Diode Dynamics Stage Series SS3 Type CGX LED Fog Light Kit. Designed as a direct replacement for compatible Lexus and Toyota factory fog lamps, this kit combines powerful LED performance with precision TIR optics, SAE-compliant beam control, and a clean factory-style installation.

Vehicle-specific mounting brackets and included H11-to-DT adapters make installation straightforward and plug-and-play. Simply remove the original fog lamp assemblies and bolt the Diode Dynamics SS3 pods into place—no cutting, drilling, or custom wiring required on compatible applications.

Key Features

• Direct replacement for compatible factory fog lamps
• Two Stage Series SS3 3-inch LED pods
• SAE J583-compliant fog beam
• Advanced TIR optics for efficient, controlled output
• Ultra-wide 80-degree SAE Fog pattern
• Plug-and-play installation
• H11-to-DT adapters included
• Angled bezels for a factory-style appearance
• Integrated amber backlighting
• Available in 6000K white or 3000K selective yellow
• Sport, Pro, and Max power levels available
• Durable powder-coated aluminum housings
• Tested for vibration, moisture, corrosion, and temperature extremes
• Engineered and assembled in the USA
• Lifetime warranty

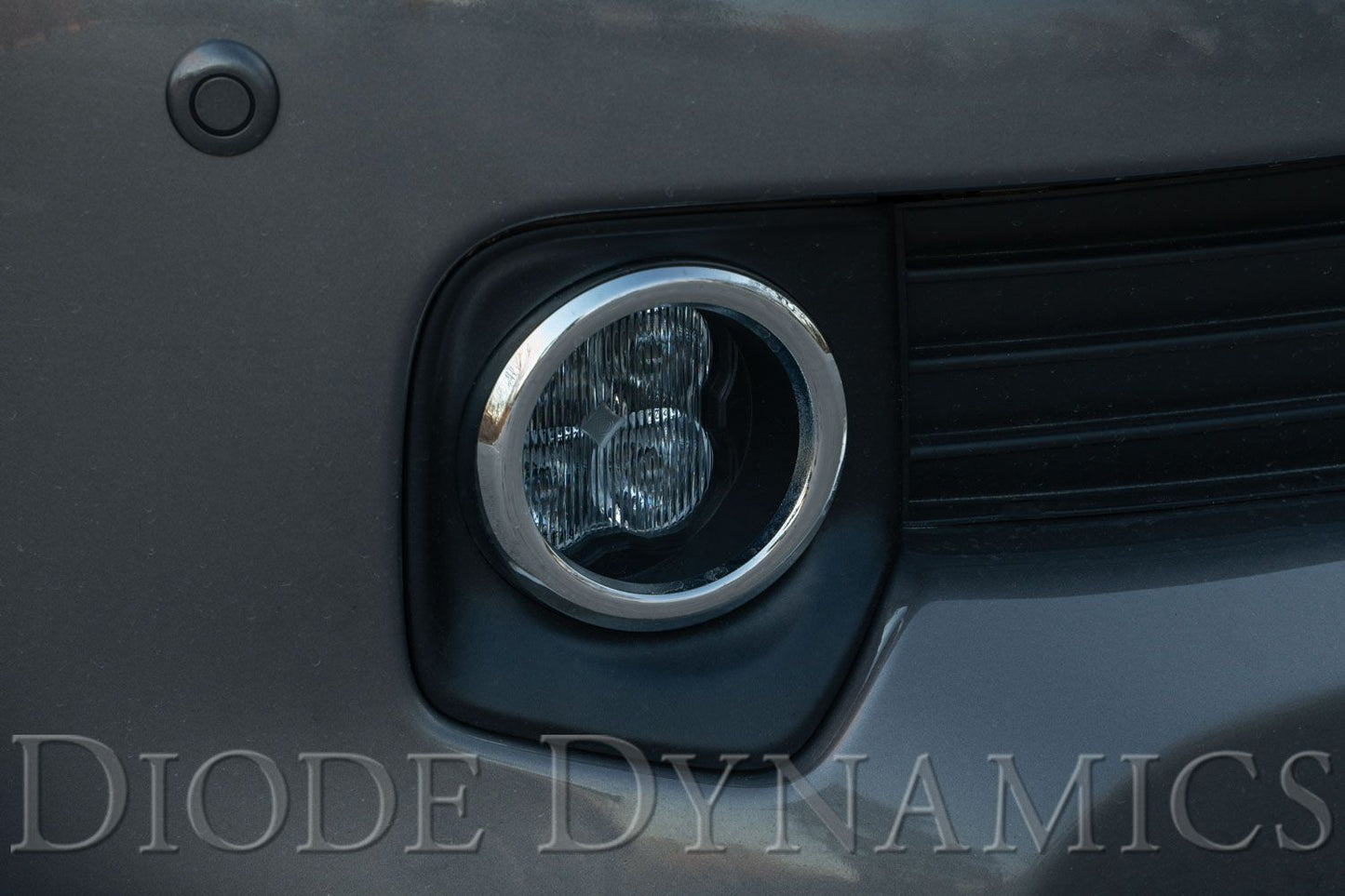

Direct-Fit Type CGX Fog Light Upgrade

The SS3 Type CGX kit is designed to replace the factory fog light assemblies found on a range of Toyota and Lexus vehicles.

Custom-molded brackets position the SS3 pods correctly in the factory fog light locations, while angled bezels provide a clean, integrated appearance.

Two H11-size DT adapter wires are included, allowing the SS3 pods to connect directly to compatible factory bulb sockets without additional main-beam wiring.

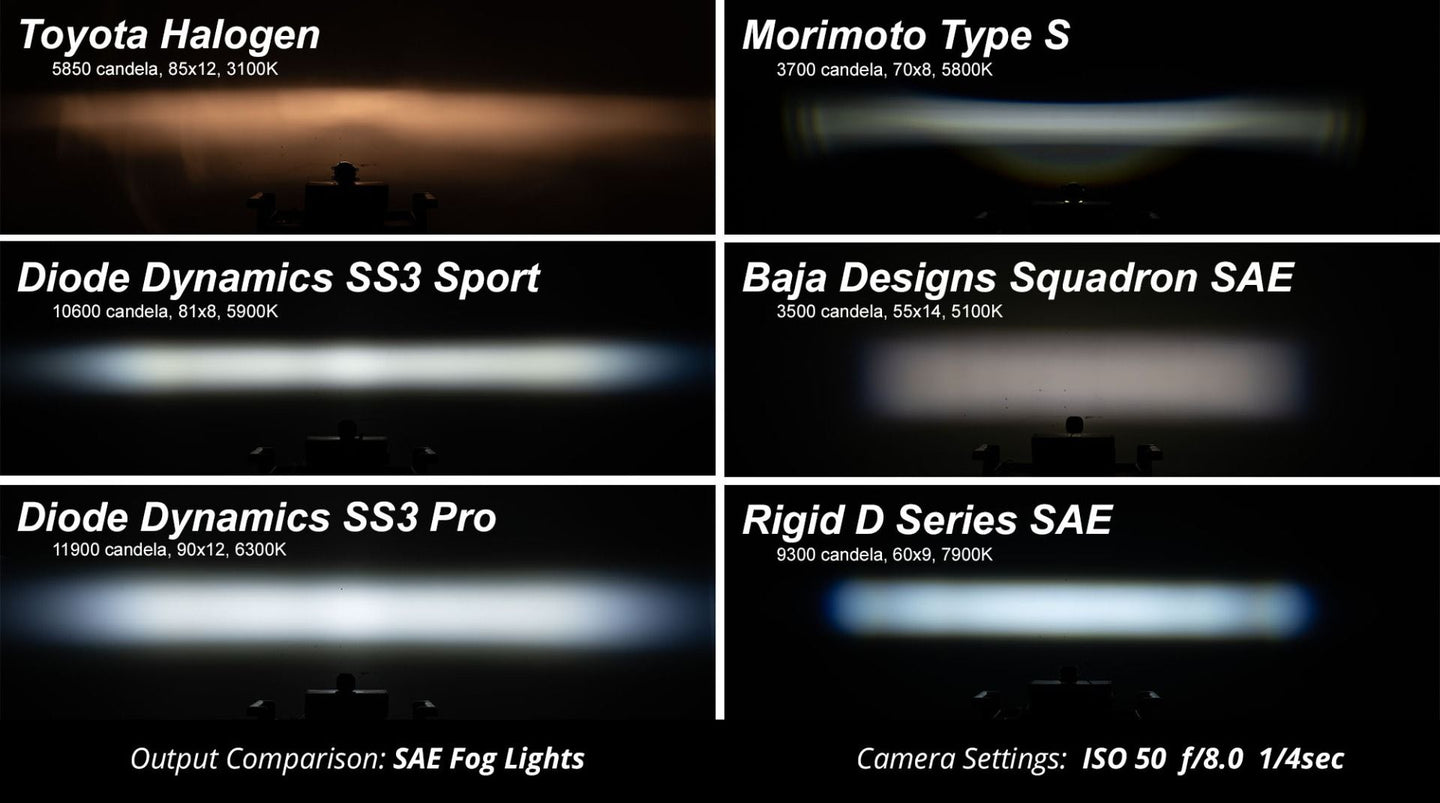

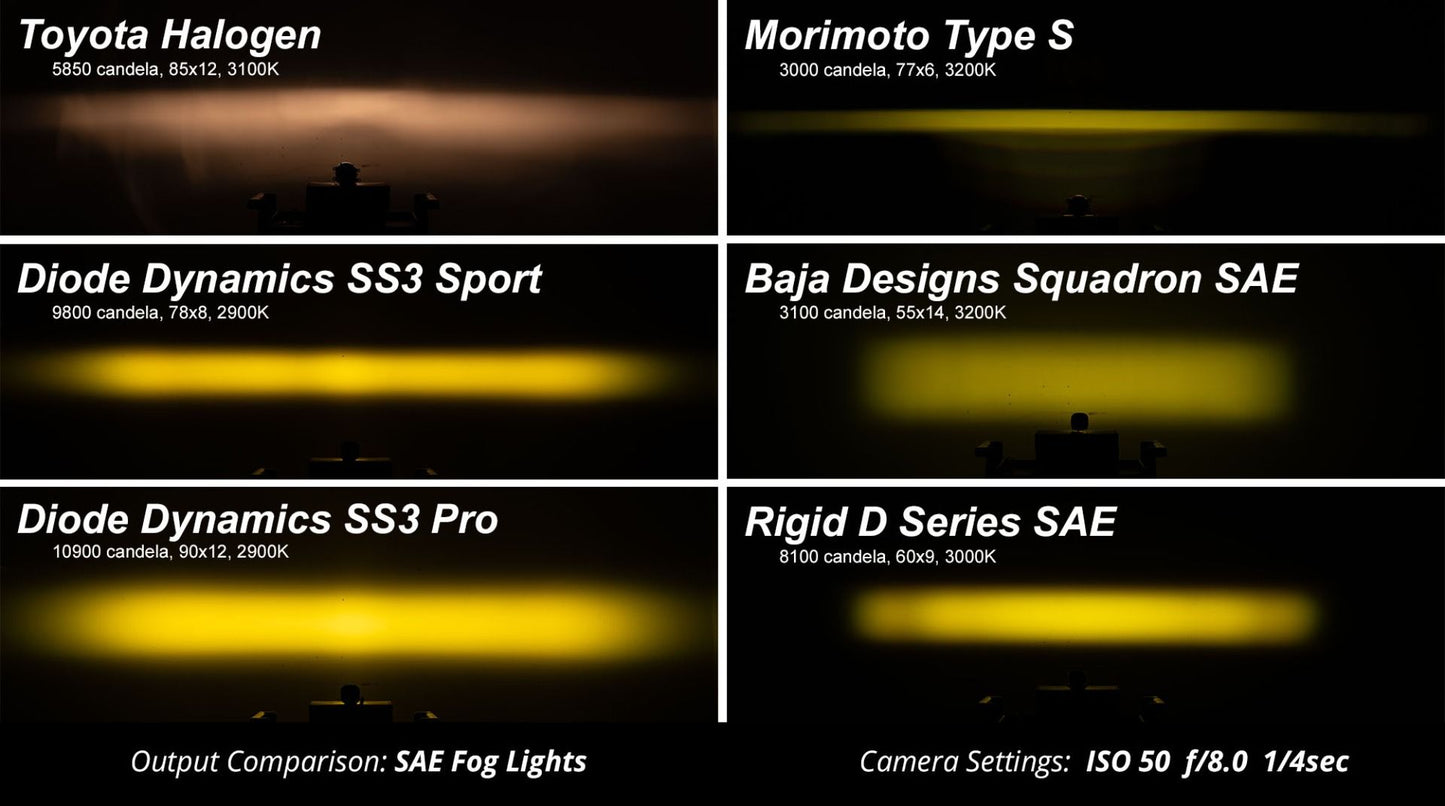

SAE-Compliant Fog Beam

The SS3’s SAE Fog pattern uses Diode Dynamics’ FineLine optic design to produce an extremely wide field of usable illumination.

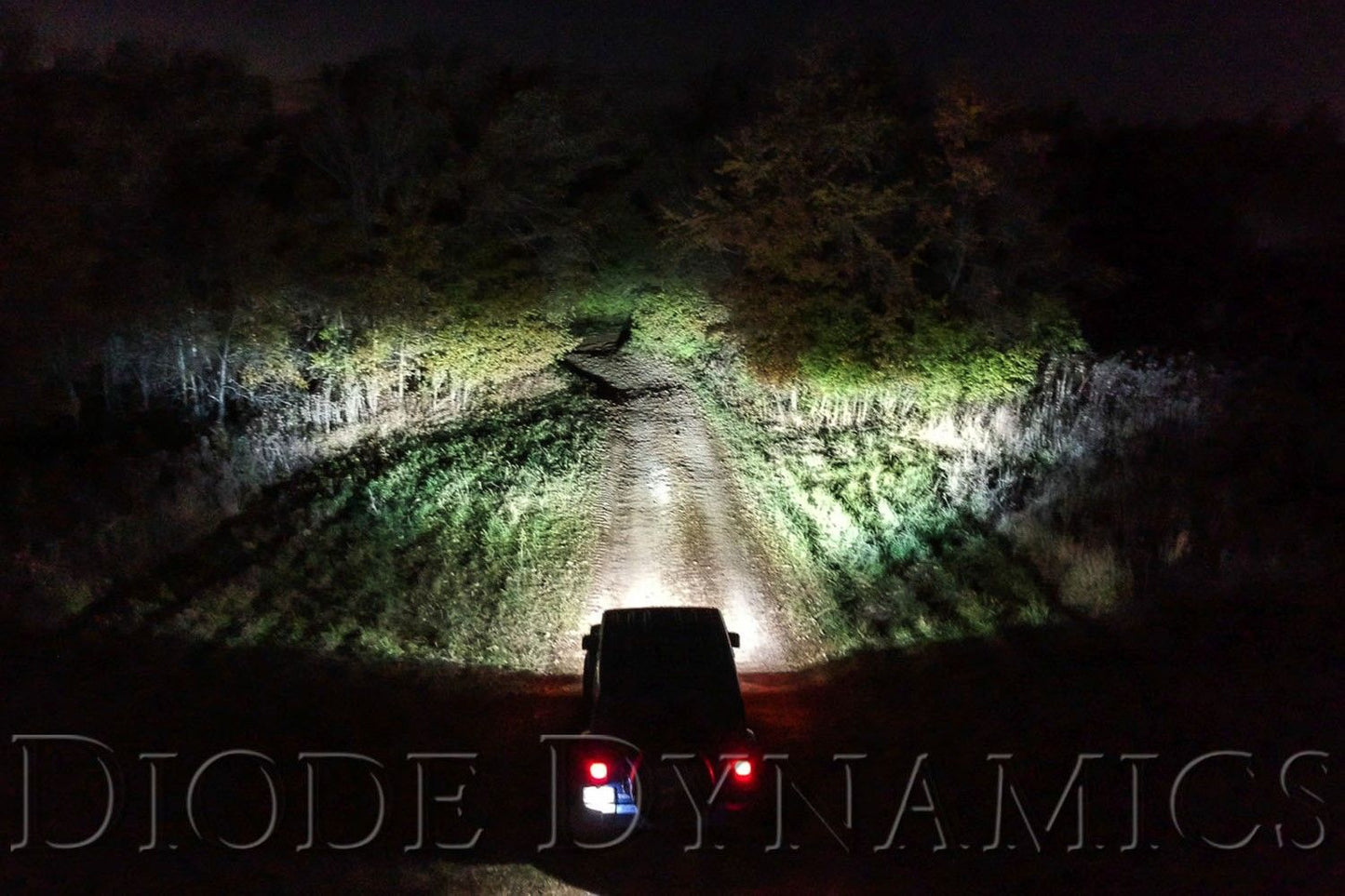

With an approximately 80-degree horizontal spread, the beam is engineered to illuminate the road ahead while maintaining controlled output and minimizing unnecessary glare.

When installed as a pair and properly aimed, the Fog pattern meets the SAE J583 standard for fog lamps. Local regulations regarding installation, aiming, and road use should always be followed.

Advanced TIR Optics

Instead of relying on conventional reflector-style optics, the SS3 uses custom-engineered Total Internal Reflection (TIR) optics.

The TIR system collects and directs LED output into the intended beam pattern, improving efficiency and reducing wasted light. The optic also functions as the primary lens, further improving light transmission compared with designs that require a separate outer lens.

The result is concentrated, usable illumination in a compact 3-inch package.

White or Selective Yellow

Choose the output color that best complements your vehicle and driving conditions.

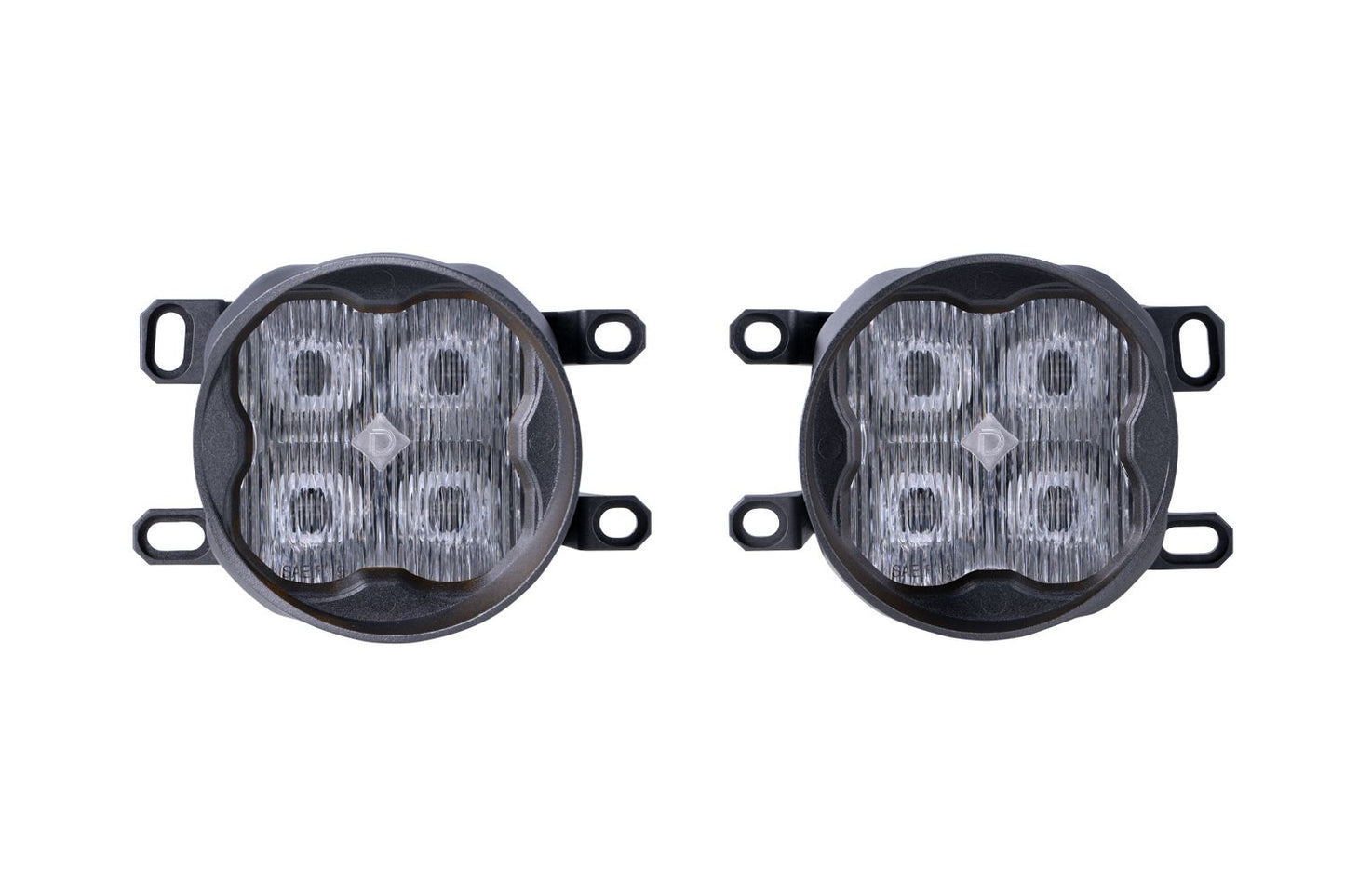

6000K Cool White delivers a crisp white output that pairs well with modern factory LED headlights.

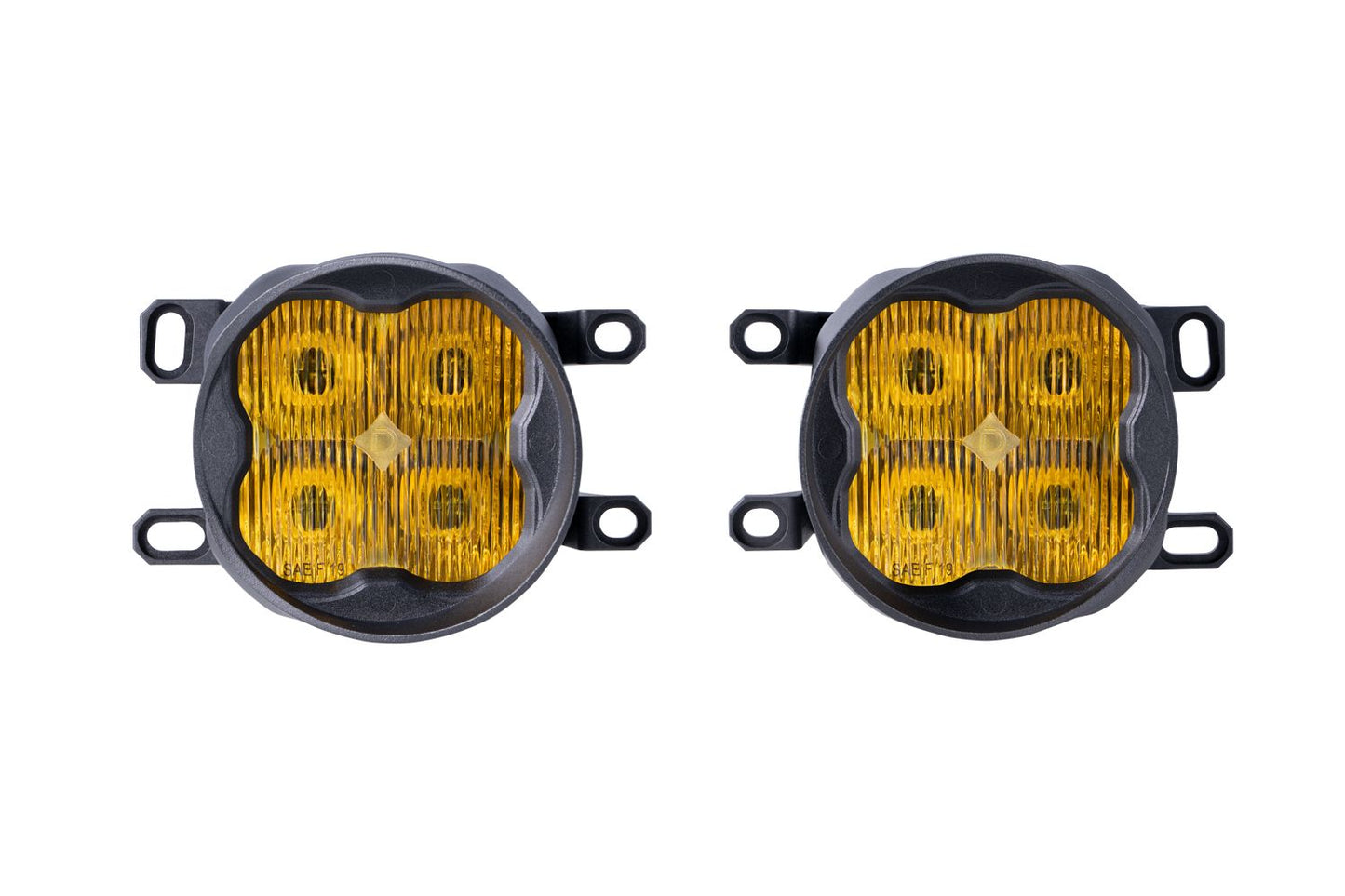

3000K Selective Yellow provides a distinctive yellow appearance and is a popular option for fog, rain, snow, and other low-visibility driving conditions.

Sport, Pro or Max

The Stage Series SS3 is offered in three performance levels.

Sport provides strong output and excellent value for everyday driving.

Pro increases total power substantially for drivers seeking greater lighting performance.

Max utilizes advanced automotive LED emitters to provide the highest performance level in the SS3 lineup.

Each version combines high-intensity LED emitters with the same precision-focused Stage Series optical design.

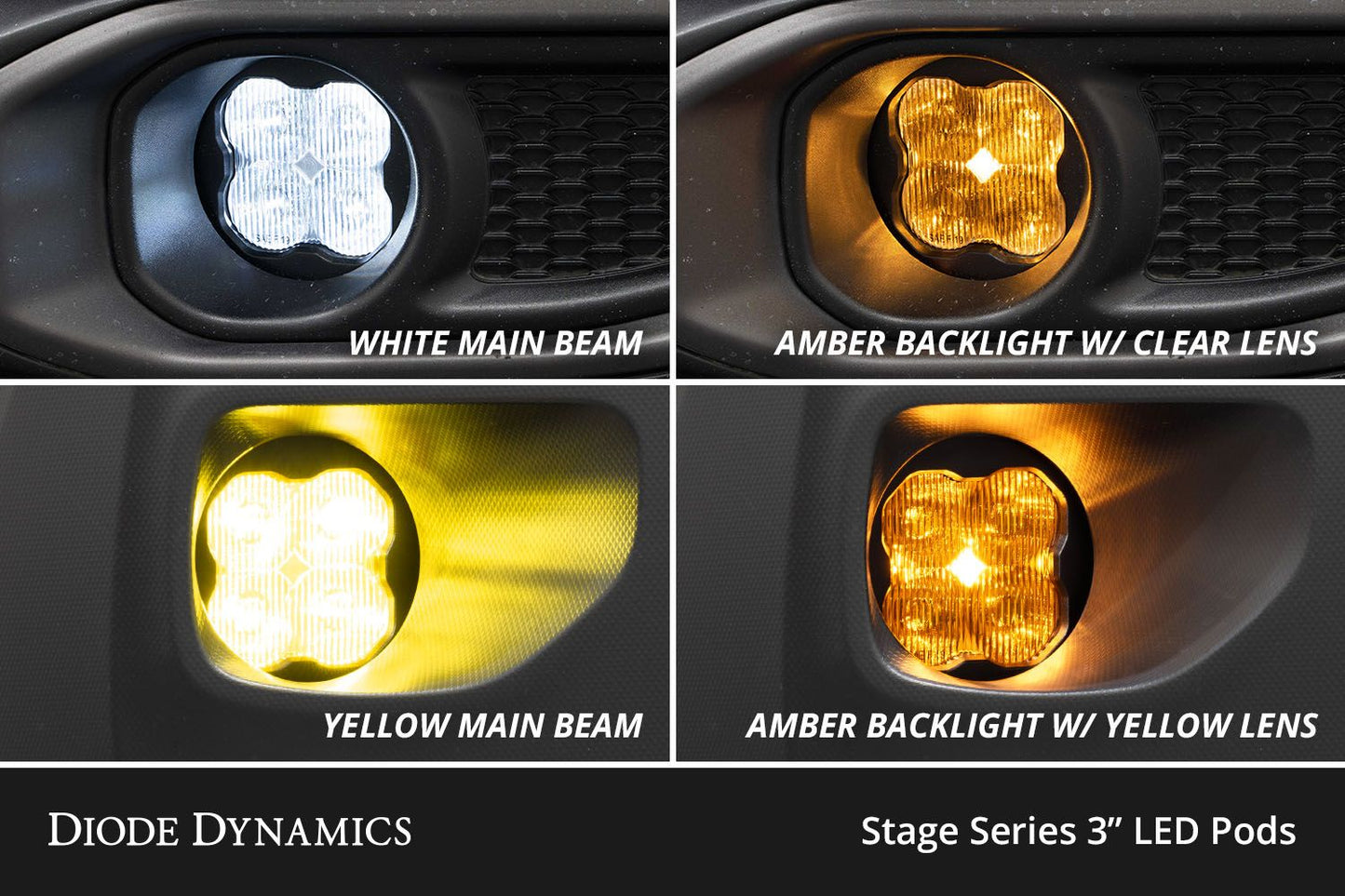

Integrated Amber Backlight

In addition to the primary fog beam, the SS3 features an amber backlight that fully illuminates the TIR optic.

The backlight can be wired to your preferred vehicle lighting function using the appropriate connection, adding a distinctive amber accent when the main fog beam isn’t in use.

Built for Demanding Conditions

Stage Series LED lighting is extensively tested for vibration, moisture intrusion, corrosion, and long-term operation in temperatures ranging from -40°F to 185°F.

Durable powder-coated aluminum housings provide additional protection for daily driving, severe weather, and demanding environments.

What’s Included

• Two (2) SS3 3-inch angled LED pods
• Two (2) H11 DT adapters
• Mounting brackets
• Installation hardware

Quantity: Pair – Left and Right Side
Application: Fog Light
Warranty: Lifetime Warranty

Vehicle Fitment

This SS3 Type CGX mounting kit is a known direct-fit replacement for the following applications:
