Diode Dynamics SS3 SAE Type OB LED Fog Light Kit for Subaru Outback

Diode Dynamics SS3 SAE Type OB LED Fog Light Kit for Subaru Outback

Upgrade your factory fog lights with the Diode Dynamics SS3 SAE Type OB Fog Light Kit, a direct-fit LED lighting upgrade for select Subaru Outback models. Featuring Diode Dynamics Stage Series SS3 3-inch LED pods, custom Type OB brackets, and plug-and-play wiring adapters, this complete kit delivers powerful, precisely controlled illumination while maintaining a clean, factory-style appearance.

Available with 6000K Cool White or 3000K Selective Yellow output and Sport, Pro, or Max performance levels, the SS3 Type OB kit lets you choose the lighting setup that best matches your driving needs.

Key Features

• Direct-fit LED fog light upgrade for select Subaru Outback models
• SAE J583-compliant fog beam when properly installed and aimed
• Custom Type OB brackets for factory-style fitment
• Plug-and-play installation with no vehicle modification required
• Includes both 9006 and H11 DT adapters
• Custom-engineered TIR optics
• Wide 80-degree SAE Fog beam
• Integrated amber backlight
• Available in 6000K Cool White or 3000K Selective Yellow
• Sport, Pro, and Max performance options
• Durable powder-coated aluminum housings
• Engineered and assembled in the USA
• Lifetime warranty

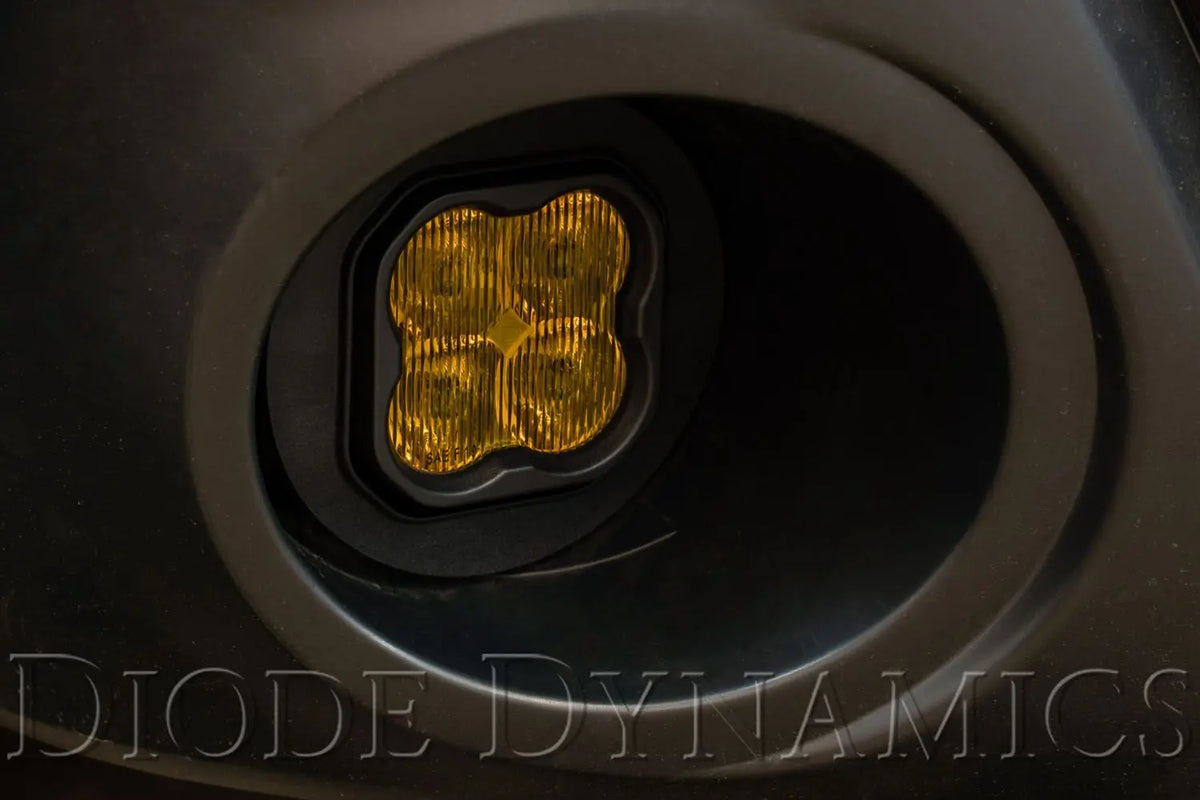

Direct-Fit Subaru Outback Fog Light Upgrade

The Type OB kit is engineered as a direct replacement for compatible factory Subaru Outback fog lamps.

Custom brackets and bezels position the SS3 pods neatly in the factory locations for an integrated appearance. Simply remove the original fog light assemblies, install the Type OB brackets and SS3 pods, and connect them to the factory fog light wiring.

Both 9006-size and H11-size DT adapters are included. Select the adapter that matches your vehicle’s factory connector for a straightforward plug-and-play installation.

SAE-Compliant Fog Beam

The Stage Series SS3 uses Diode Dynamics’ distinctive FineLine SAE Fog optic, producing a broad field of illumination across an approximately 80-degree spread.

This beam pattern is engineered to put usable light across the roadway in front of the vehicle while maintaining controlled output.

When installed as a pair and properly aimed according to applicable regulations, the Fog pattern meets the SAE J583 fog lamp standard for on-road use. Always verify local requirements for installation, aiming, and use.

Advanced TIR Optics

Instead of relying on conventional reflector-style optics, the SS3 uses custom-engineered Total Internal Reflection (TIR) optics.

The TIR optic collects LED output and directs it into the intended beam pattern, helping reduce wasted light and glare while improving overall optical efficiency.

The molded TIR component also serves as the SS3’s primary lens, creating an efficient, compact lighting system with excellent beam control.

White or Selective Yellow

Choose the SS3 output color that best complements your Subaru and driving conditions.

6000K Cool White provides a crisp white output designed to coordinate well with modern LED exterior lighting.

3000K Selective Yellow provides high contrast and a distinctive appearance that’s especially popular for fog, rain, snow, and other poor-weather driving conditions.

Integrated Amber Backlight

Stage Series SS3 pods also feature an amber backlight that illuminates the TIR optic independently of the main fog beam.

This creates a distinctive accent-light appearance without relying on a few small indicator LEDs. The included backlight tap wiring can be connected to the desired vehicle lighting function during installation.

Choose Sport, Pro, or Max

The SS3 Type OB Fog Light Kit is available in three performance levels.

Sport provides an excellent balance of output and value for drivers looking to upgrade their factory fog lights.

Pro increases total power for drivers wanting substantially greater lighting performance.

Max uses advanced automotive-grade emitters to deliver the highest performance available in the SS3 lineup.

All three configurations benefit from the SS3’s TIR optical technology and purpose-built SAE Fog beam.

Built for Demanding Conditions

Stage Series LED lighting is extensively tested for automotive use, including operation in temperatures ranging from -40°F to 185°F.

Testing also covers vibration, moisture intrusion, and corrosion to help ensure dependable performance in demanding weather and driving environments.

The SS3’s durable powder-coated aluminum housing further protects the lighting system during long-term use.

What’s Included

• Two (2) SS3 3-Inch Standard LED Pods
• Two (2) Type OB Brackets
• Two (2) 9006 DT Adapters
• Two (2) H11 DT Adapters
• Two (2) Backlight Tap Wire Kits
• Mounting Hardware
• Mounting Guide

Quantity: Pair – Left and Right Side
Application: Fog Light
Warranty: Lifetime Warranty

Subaru Outback Fitment

Compatible with:

• 2005–2009 Subaru Outback
• 2013–2019 Subaru Outback

This Type OB kit is designed as a direct replacement for compatible factory fog lamps.

Upgrade Your Subaru Outback Fog Lights

For Subaru owners looking for more capable lighting without sacrificing a clean factory appearance, the Diode Dynamics SS3 Type OB Fog Light Kit provides a complete solution.

With vehicle-specific brackets, plug-and-play adapters, SAE-compliant fog optics, multiple output colors, and three available performance levels, the SS3 is a versatile upgrade for daily driving, poor weather, and adventure-oriented Outback builds.
