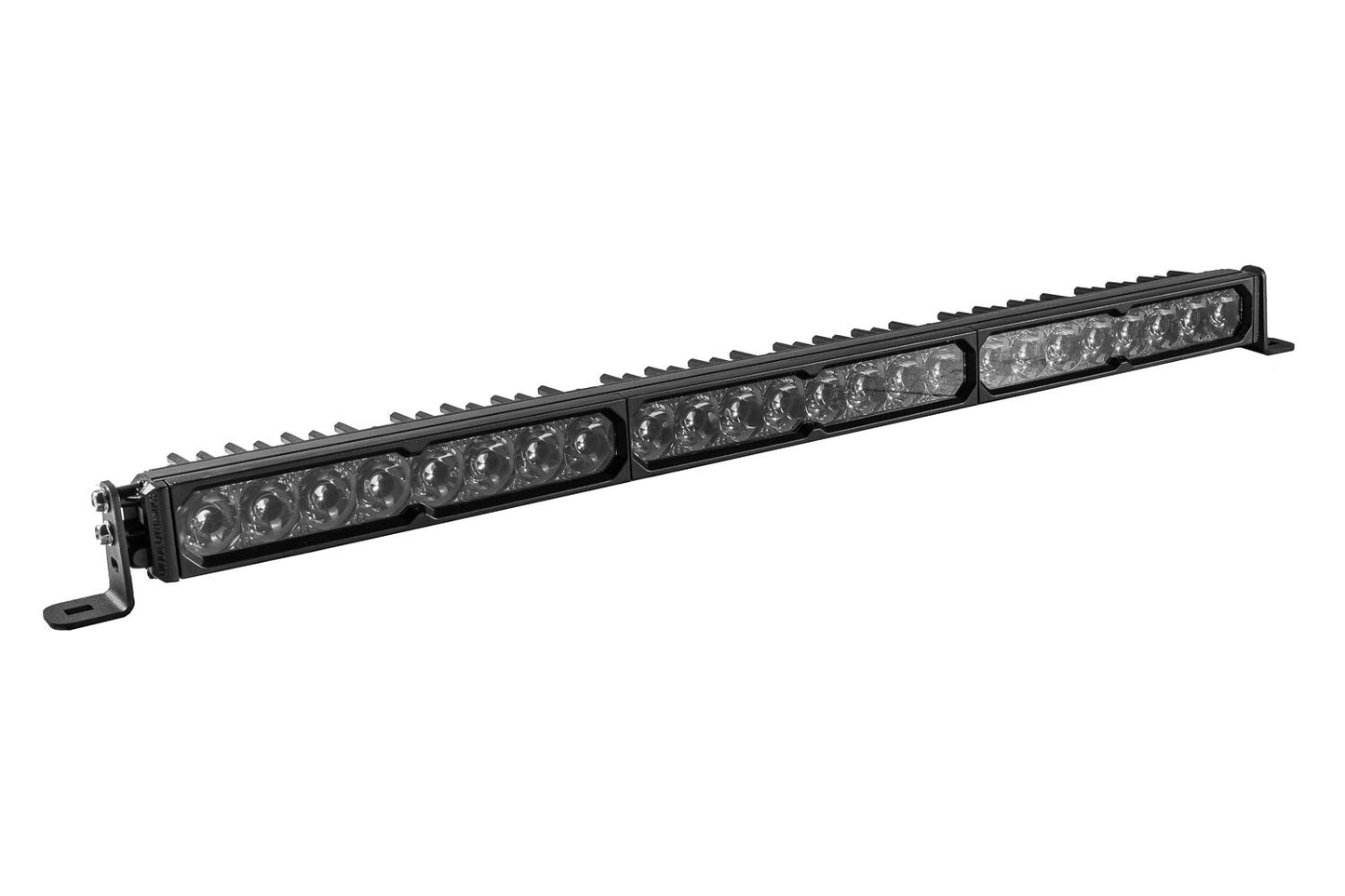

Diode Dynamics SS30 White Stage Series LED Light Bar with SmartSelect Backlight (Single)

Diode Dynamics SS30 White Stage Series LED Light Bar with SmartSelect Backlight (Single)

The Diode Dynamics SS30 White Stage Series LED Light Bar is built for drivers who demand maximum performance, advanced control, and premium styling. Featuring 6000K Cool White LED output, patented Total Internal Reflection (TIR) optics, and available with either SmartSelect multicolor backlighting or a standard amber backlight, the Diode Dynamics SS30 light bar delivers industry-leading illumination for off-road adventures, overlanding, work vehicles, and high-performance driving.

Available in Sport and Pro power levels, the SS30 offers Combo/Driving, SAE Driving, Flood, or Spot beam patterns to match virtually any application. SmartSelect models take customization even further with dual-function main beam control, eight selectable backlight colors, and a dynamic startup sequence—all controlled by simply cycling the light’s power, with no external controllers required.

Constructed with a rugged aluminum housing, premium thermal management, and an IP69K waterproof rating, the SS30 is engineered to perform in the harshest environments. Proudly engineered and assembled in the USA with global materials and backed by a Limited Lifetime Warranty, it’s one of the most advanced 30-inch LED light bars available.

Key Features

• Sold individually (1 LED Light Bar)
• 6000K Cool White LED output
• Available in Sport and Pro power levels
• Choice of Combo/Driving, SAE Driving, Flood, or Spot beam patterns
• Patented Total Internal Reflection (TIR) optics
• Available with SmartSelect multicolor backlight or standard amber backlight
• SmartSelect features dual-function main beam control
• Eight selectable backlight colors with animated startup sequence
• Swappable Stage Series lenses and optics
• Durable aluminum housing with ASTM-standard powder-coated finish
• Copper-core circuit boards on Pro models for superior heat management
• IP69K waterproof and dustproof construction
• Tested for vibration, corrosion, moisture, and temperatures from -40°F to 185°F
• Universal mounting brackets included
• Made in the USA with global materials
• Backed by a Limited Lifetime Warranty

SmartSelect Technology

The SS30 SmartSelect model delivers a level of versatility unmatched by traditional LED light bars.

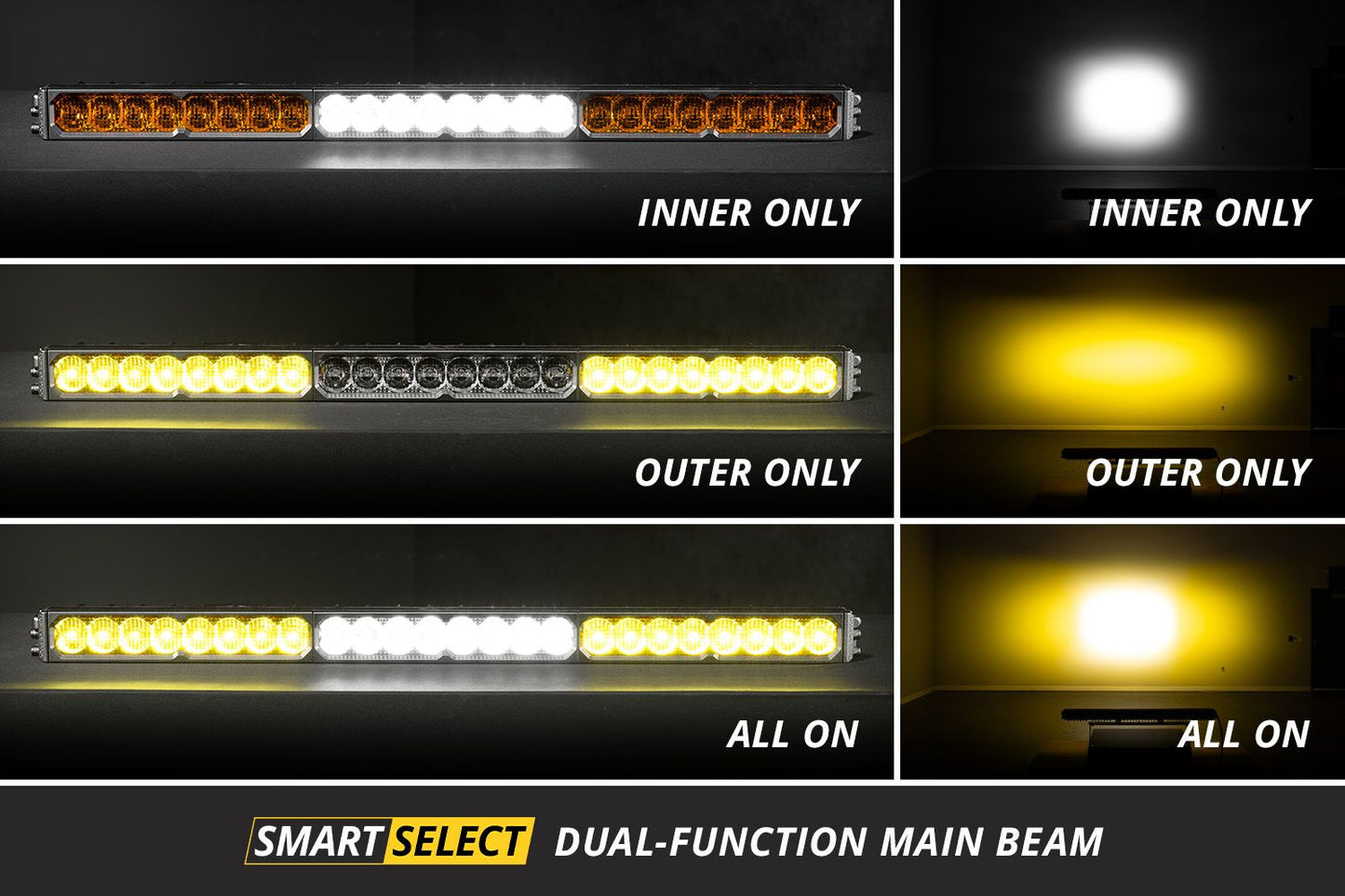

Dual-Function Main Beam

With patented SmartSelect technology, you can quickly switch between:

• Outer sections only for wide-area illumination
• Center section only for maximum downrange visibility
• Full light bar for maximum coverage

Simply cycle the main beam power to change modes—no additional switches, wiring, or controllers required.

This flexibility allows you to tailor your lighting to changing terrain, trail conditions, or driving speeds.

Selectable Multicolor Backlight

SmartSelect models also feature a fully illuminated RGBWA backlight with eight selectable colors, including a dedicated amber LED for a true factory-quality amber appearance.

Features include:

• Eight selectable backlight colors
• Dynamic startup sequence
• Dedicated amber LED chip
• Fully illuminated TIR optics
• No external controller required

Standard models include a bright amber backlight for a clean, functional appearance.

Patented TIR Optics

Unlike conventional reflector-style light bars, the SS30 utilizes patented Total Internal Reflection (TIR) optics to direct nearly all available light exactly where it’s needed.

Benefits include:

• Increased optical efficiency
• Reduced glare
• Greater usable light output
• Smooth beam distribution
• Exceptional long-distance visibility

Combined with premium automotive-grade LEDs and advanced thermal management, the SS30 delivers outstanding lighting performance in every environment.

Choose the Right Beam Pattern

The SS30 is available in multiple beam patterns to match your driving style.

Combo/Driving

A balanced beam that combines excellent forward projection with wide foreground illumination.

Ideal for:

• Overlanding
• Off-road trails
• Rural highways
• General auxiliary lighting

SAE Driving

Designed to supplement factory high beams with increased distance while maintaining excellent beam control. When installed as a pair and properly aimed, this pattern meets SAE J581 standards for auxiliary driving lights.

Flood

A wide 100° x 80° beam pattern ideal for:

• Work trucks
• Campsites
• Utility vehicles
• Backup lighting
• Low-speed maneuvering

Spot

A focused 8° x 8° beam engineered for:

• Desert racing
• Rally competition
• High-speed off-road driving
• Maximum forward visibility

Sport or Pro Performance

Choose the power level that best fits your application:

• Sport: Excellent performance and value for daily driving and recreational off-road use.
• Pro: Increased brightness and intensity for demanding off-road, overland, and professional applications.

Modular Stage Series Design

Like every Stage Series light, the SS30 is designed for maximum flexibility.

Compatible with:

• Replacement lenses
• Snap-On Lens Covers
• Multiple beam patterns
• White or selective yellow lenses

Quickly customize your lighting setup without replacing the entire light bar.

Built for Extreme Conditions

Every SS30 Stage Series LED Light Bar is engineered to perform in the harshest environments.

Features include:

• Heavy-duty aluminum housing
• ASTM-standard powder-coated finish
• Copper-core circuit boards (Pro models)
• Optimized heat dissipation
• IP69K waterproof protection
• Corrosion-resistant construction
• SAE-tested durability

Built to withstand rain, snow, mud, dust, vibration, and extreme temperatures year after year.

What’s Included

• (1) Diode Dynamics SS30 Stage Series LED Light Bar
• (1) Wire Pigtail
• Universal Mounting Bracket Set
• Mounting Hardware

Quantity: One (1)

Warranty: Limited Lifetime Warranty
