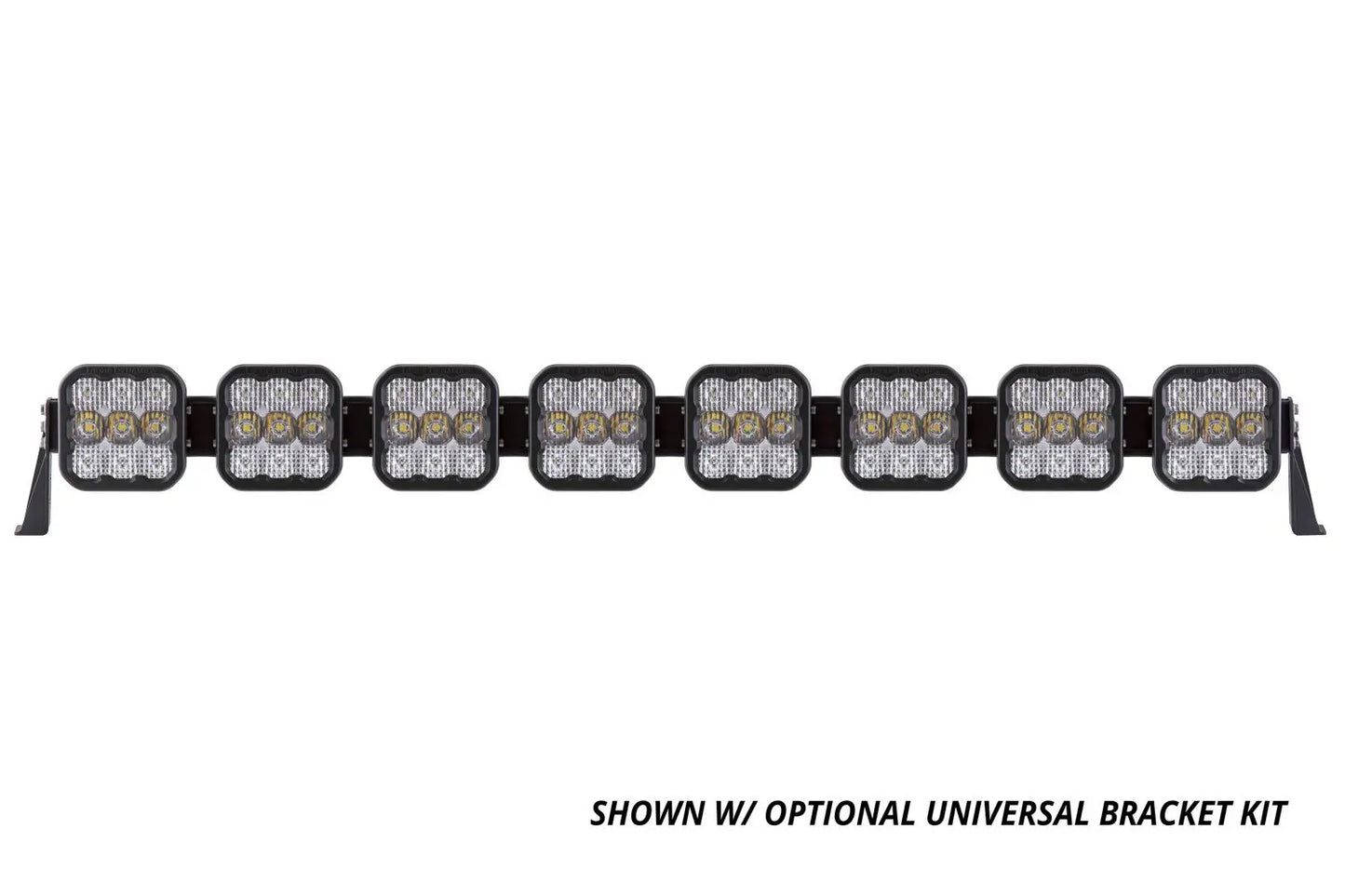

Diode Dynamics SS5 CrossLink 8-Pod 50-Inch Stage Series LED Light Bar (Single)

Diode Dynamics SS5 CrossLink 8-Pod 50-Inch Stage Series LED Light Bar (Single)

Maximize your off-road visibility with the Diode Dynamics SS5 CrossLink 8-Pod 50-inch LED Light Bar. Built using eight Stage Series SS5 LED Pods connected by Diode Dynamics’ innovative CrossLink™ modular mounting system, this premium light bar delivers exceptional long-range illumination, rugged durability, and customizable styling for trucks, Jeeps, SUVs, overland rigs, and race vehicles.

Engineered with patented Total Internal Reflection (TIR) optics, the SS5 CrossLink captures and projects more usable light than traditional reflector-style light bars while dramatically reducing glare. Available in 6000K Cool White or 3000K Selective Yellow, this 50-inch light bar is offered in the Sport power level (40 watts per pod), providing an excellent balance of output, efficiency, and value.

The patent-pending CrossLink™ system allows you to link up to eight SS5 LED Pods into a rigid, modular light bar using CNC-machined aluminum connectors, creating one of the most versatile and expandable lighting systems available.

Proudly assembled in the USA and backed by a Limited Lifetime Warranty, the SS5 CrossLink 8-Pod LED Light Bar is built to perform in the harshest environments.

Key Features

• Sold individually (1 Eight-Pod Light Bar Assembly)
• Eight SS5 LED Pods create a 50-inch LED light bar
• Patent-pending CrossLink™ modular mounting system
• Available in 6000K Cool White or 3000K Selective Yellow
• Choice of Driving or Combo beam patterns
• Sport power level (40 watts per pod)
• Patented Total Internal Reflection (TIR) optics
• Selectable 8-color Smart Backlight (white models)
• Dedicated amber backlight on yellow lens models
• Expandable CrossLink system supports up to 8 linked SS5 pods
• Heavy-duty CNC-machined aluminum CrossLinks
• Dual support brackets for added rigidity
• Deutsch-style connectors for simple installation
• Compatible with Snap-On lens covers
• Assembled in the USA
• Backed by a Limited Lifetime Warranty

Patented TIR Optics

Unlike traditional reflector-style light bars, the SS5 CrossLink uses patented Total Internal Reflection (TIR) opticsto direct nearly all available light exactly where it’s needed.

Benefits include:

• Higher optical efficiency
• Reduced glare
• Longer usable beam distance
• Better beam control
• Improved nighttime visibility

The result is more usable light on the trail with less wasted illumination.

Choose Your Beam Pattern

Select the beam pattern that best fits your driving needs.

Driving Beam

Designed for maximum forward visibility with a focused 30° x 20° beam pattern, ideal for high-speed driving and long-distance illumination.

Perfect for:

• Highway driving
• Desert racing
• High-speed off-road travel
• Auxiliary driving lights

Combo Beam

Combines Driving and Flood optics into a versatile 70° x 30° beam pattern, delivering excellent distance while illuminating the surrounding terrain.

Ideal for:

• Overlanding
• Trail riding
• Rock crawling
• General off-road adventures

White or Selective Yellow

Choose the lighting color that best suits your environment.

6000K Cool White

Produces a crisp white beam that closely matches factory LED headlights and delivers maximum visibility in clear conditions.

3000K Selective Yellow

Designed to improve contrast while reducing glare in:

• Fog
• Rain
• Snow
• Dust
• Smoke

Yellow models include a dedicated amber backlight for a clean, factory-inspired appearance.

Smart Backlight

White SS5 CrossLink light bars feature Diode Dynamics’ Smart Backlight technology.

Features include:

• Eight selectable backlight colors
• Full TIR optic illumination
• Easy color selection by cycling power
• No external controller required

Yellow models feature a dedicated amber backlight that perfectly complements the selective yellow lenses.

CrossLink™ Modular Design

The patent-pending CrossLink™ system makes it easy to build and expand your lighting setup.

Features include:

• CNC-machined aluminum CrossLinks
• Straight or curved mounting configurations
• Supports linking up to 8 SS5 LED Pods
• Dual support brackets for maximum strength
• Adjustable mounting positions
• Compatible with standard SS5 LED Pods

Whether you’re starting fresh or expanding an existing setup, CrossLink gives you unmatched flexibility.

Built for Extreme Conditions

Designed to withstand demanding off-road environments, the SS5 CrossLink features:

• Heavy-duty aluminum construction
• Durable powder-coated finish
• Weather-resistant Deutsch connectors
• Premium thermal management
• Tested from -40°F to 185°F
• SAE-tested vibration, moisture, and corrosion resistance

From desert trails to mountain passes, the SS5 CrossLink is built to perform wherever your adventures take you.

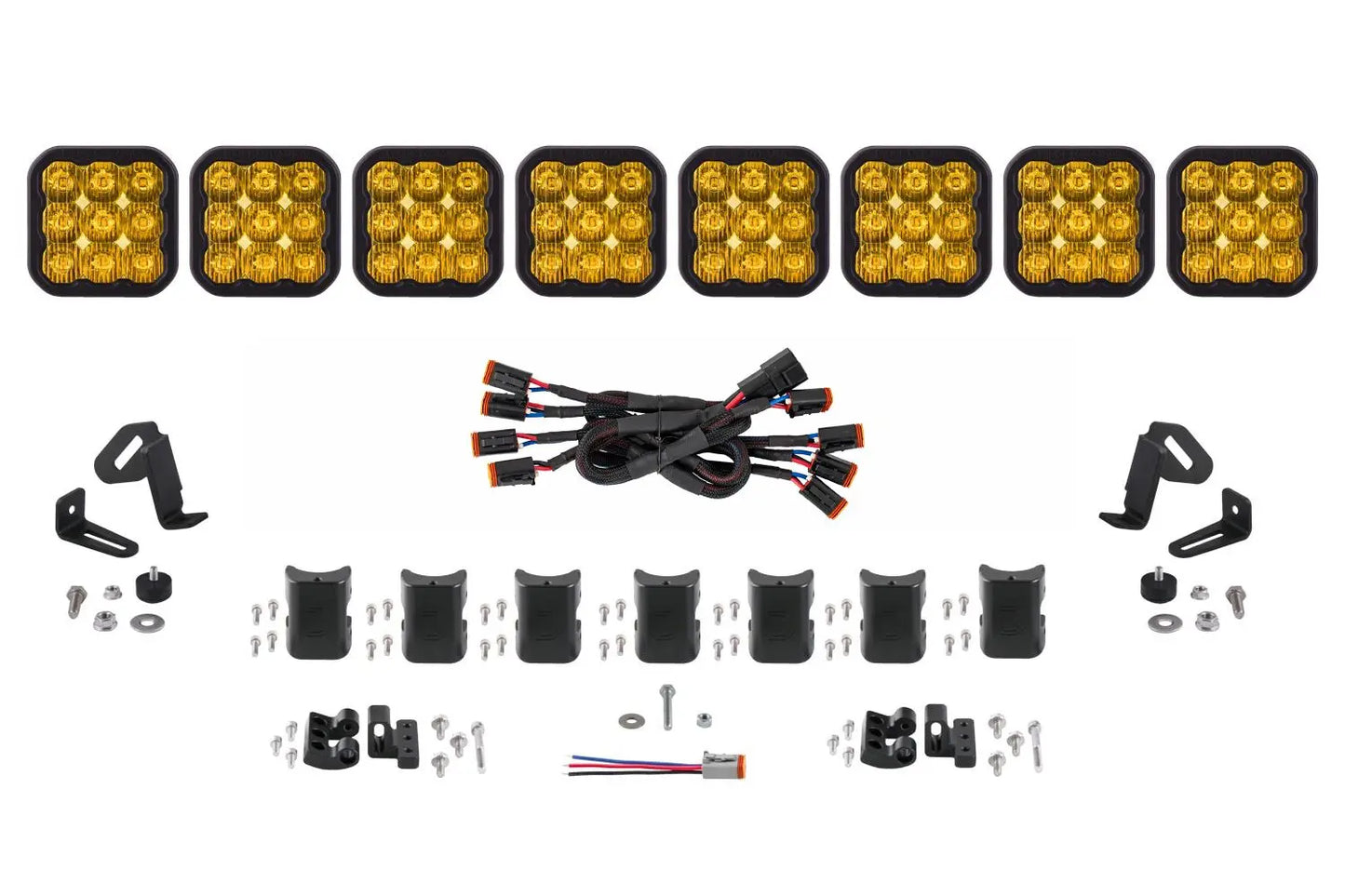

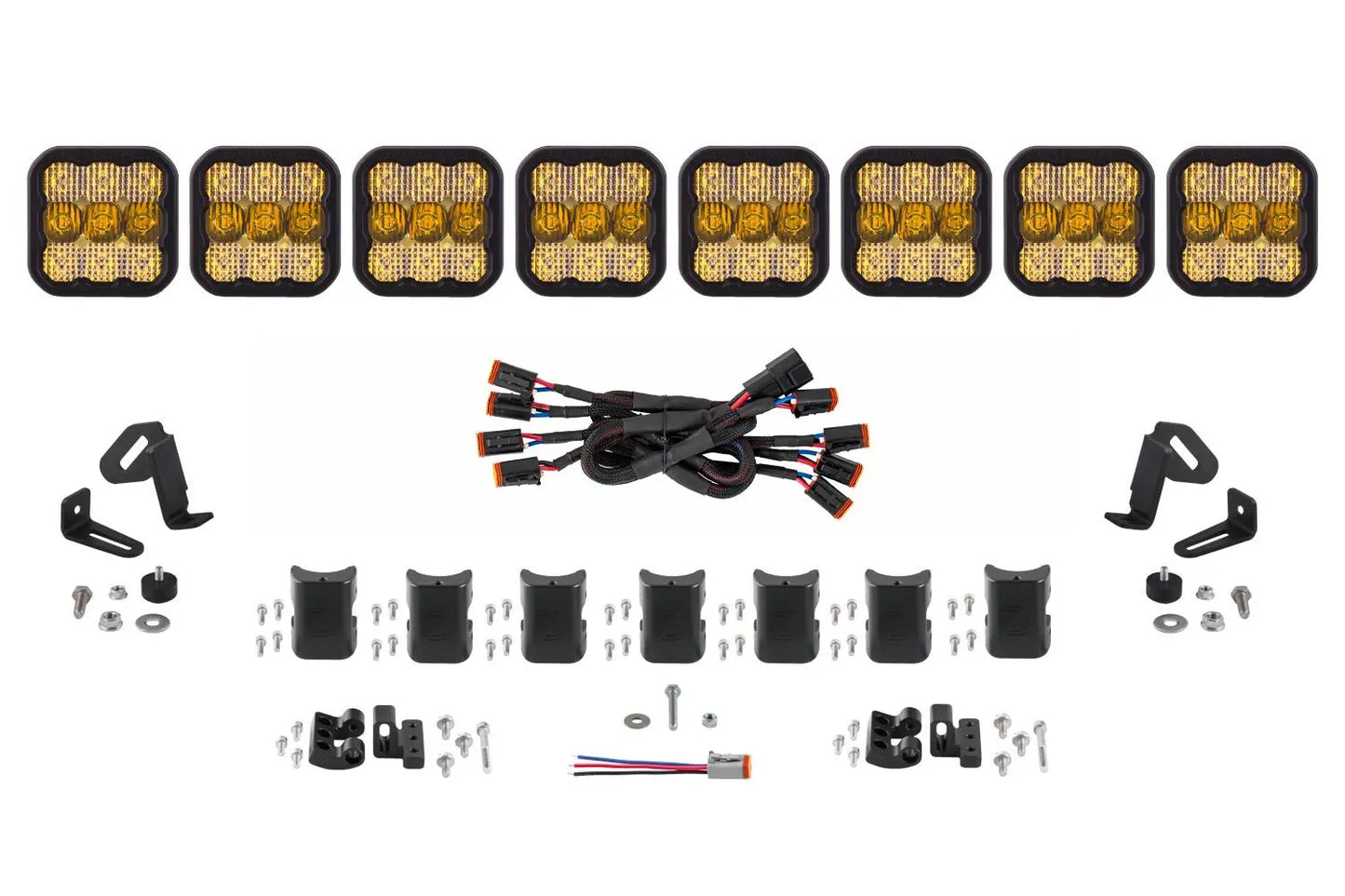

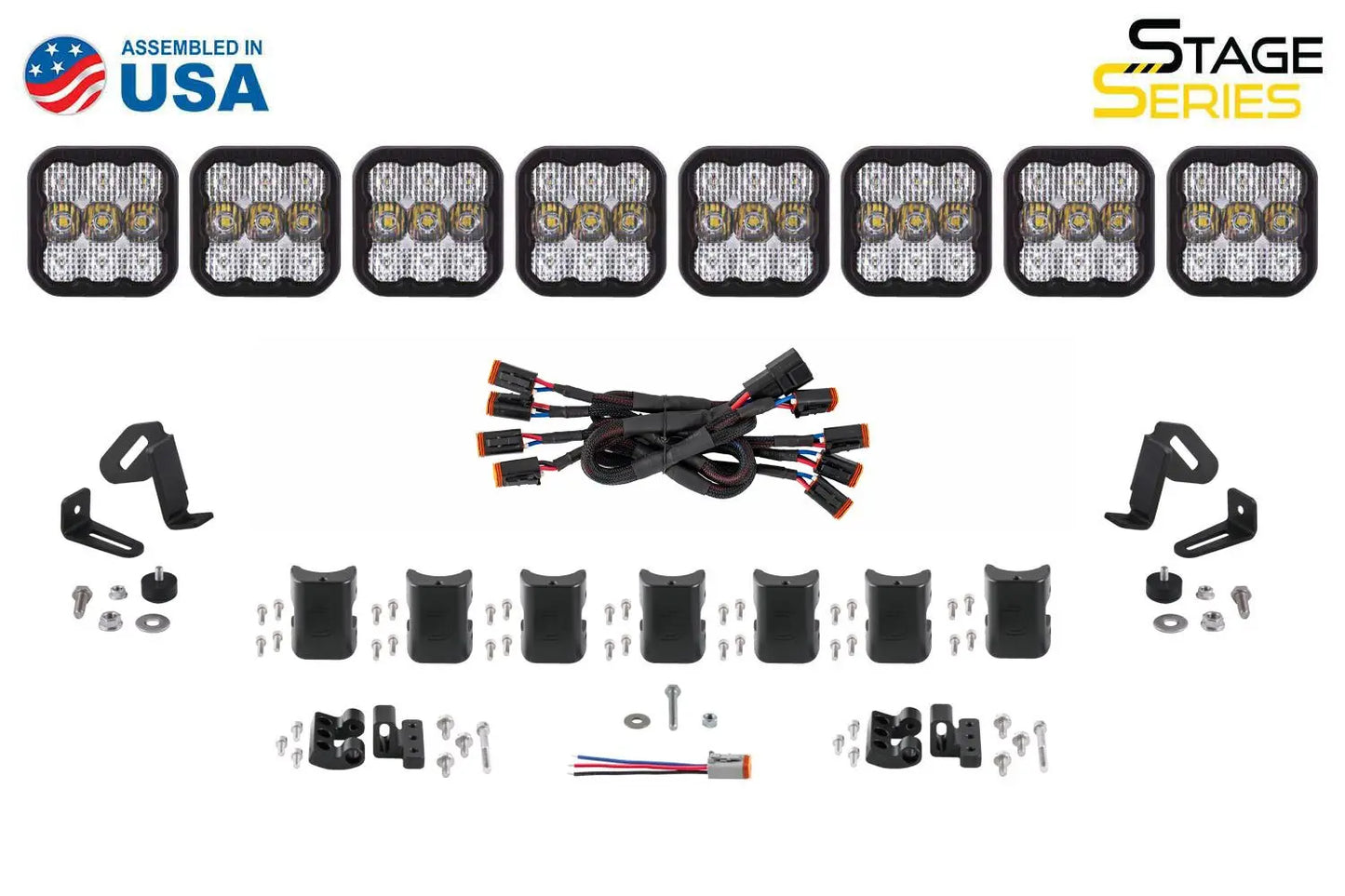

What’s Included

• (8) Diode Dynamics SS5 Stage Series 5-Inch LED Pods
• (7) CrossLink™ Connectors with Hardware
• (2) CrossLink™ Support Brackets
• (1) CrossLink™ End Mount Kit
• (1) DT 8-Pod Connecting Harness
• (1) Deutsch-Style Wire Pigtail

Quantity: One (1)

Warranty: Limited Lifetime Warranty
