Illuminate the road, trail, or job site like never before with the Diode Dynamics SS50 Stage Series LED Light Bar. Engineered with patented TIR (Total Internal Reflection) optics, upgraded beam patterns, and available SmartSelect™ technology, the SS50 delivers industry-leading light output, advanced customization, and uncompromising durability. Available in Sport and Pro power levels, the SS50 is designed for off-road enthusiasts, overlanders, racers, work trucks, and anyone demanding premium auxiliary LED lighting.

Patented TIR Optics for Maximum Light Output

Unlike conventional reflector-style light bars, the SS50 utilizes patented Total Internal Reflection (TIR) optics that capture and direct nearly all available light exactly where you need it. This advanced optical design minimizes glare and wasted light while producing superior brightness, longer beam distance, and exceptional efficiency.

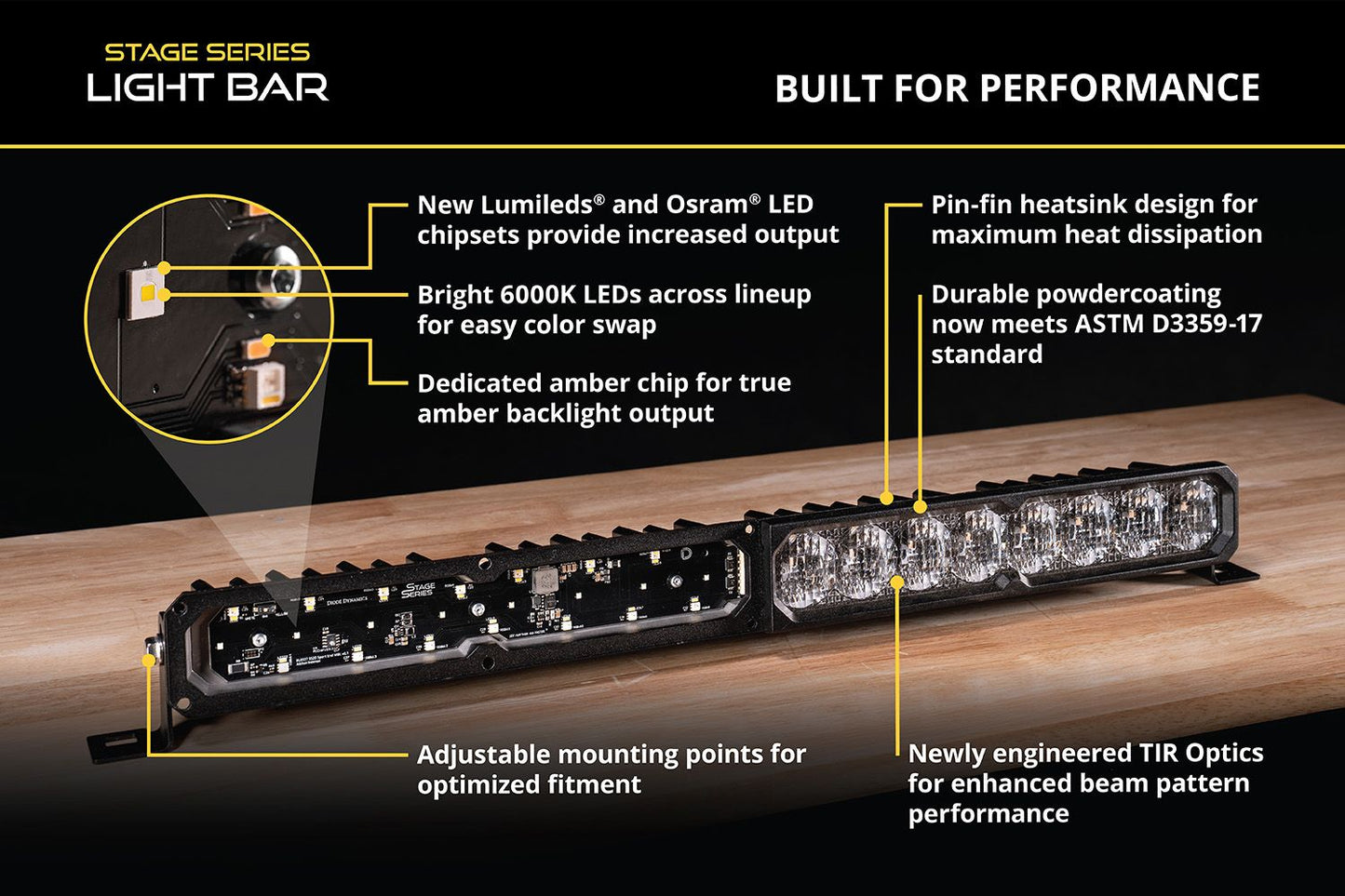

To maintain maximum performance, Pro models feature copper-core circuit boards, premium thermal transfer materials, and optimized aluminum heatsinks that efficiently dissipate heat, allowing the LEDs to operate at peak output for extended periods.

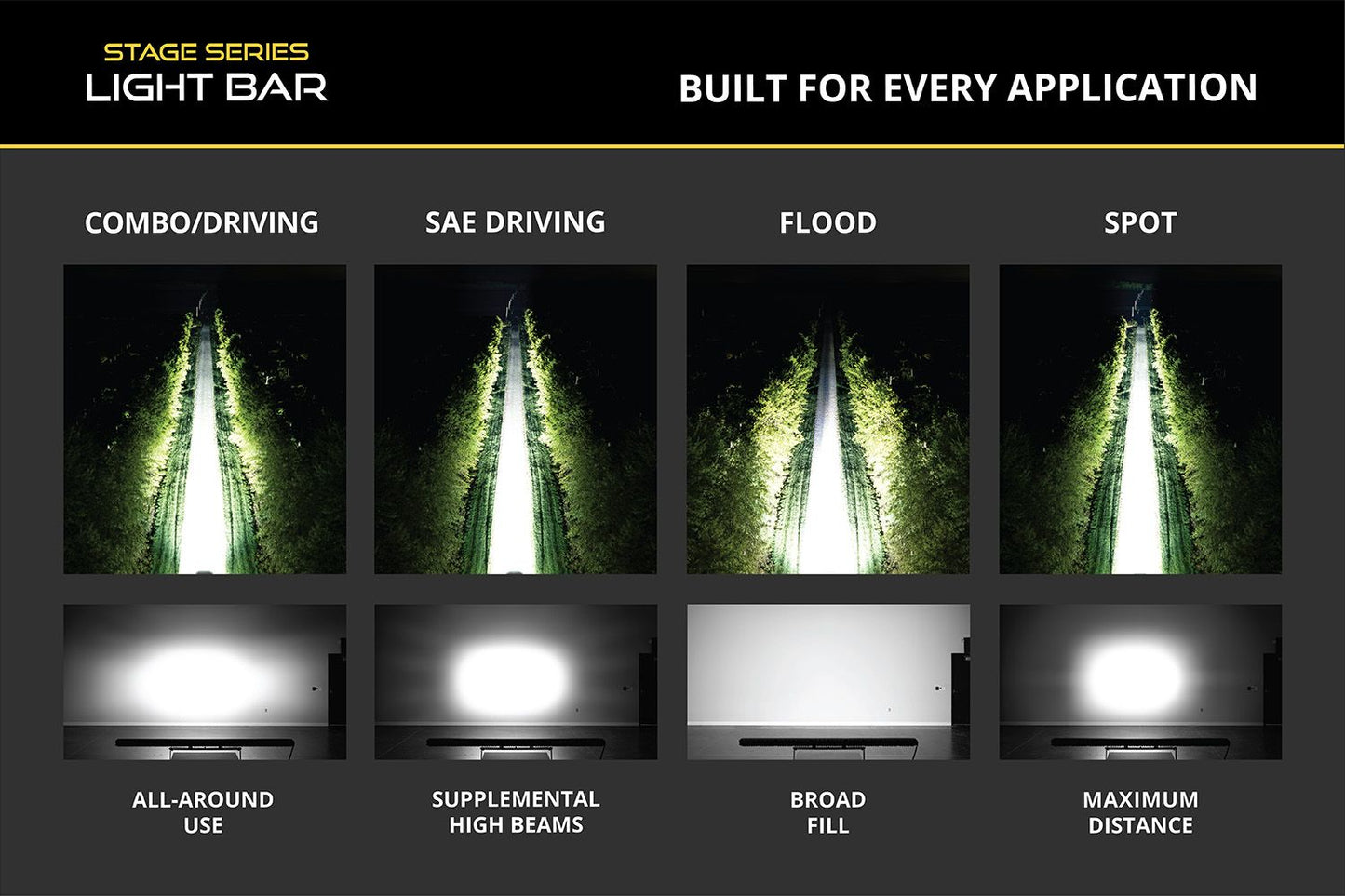

Purpose-Built Beam Patterns for Every Adventure

The SS50 is available with multiple precision-engineered beam patterns, allowing you to choose the perfect lighting solution for your driving style and environment.

Combo/Driving Beam
The upgraded Combo/Driving optic combines impressive distance with wide peripheral coverage using advanced pillow optics. Producing a balanced 60° x 30° beam, it’s the perfect all-around choice for trail riding, overlanding, and everyday off-road driving.

SAE Driving Beam
Designed to supplement factory high beams, the SAE Driving pattern projects a controlled 20° x 12° beam that delivers outstanding forward visibility without creating an overly narrow hotspot.

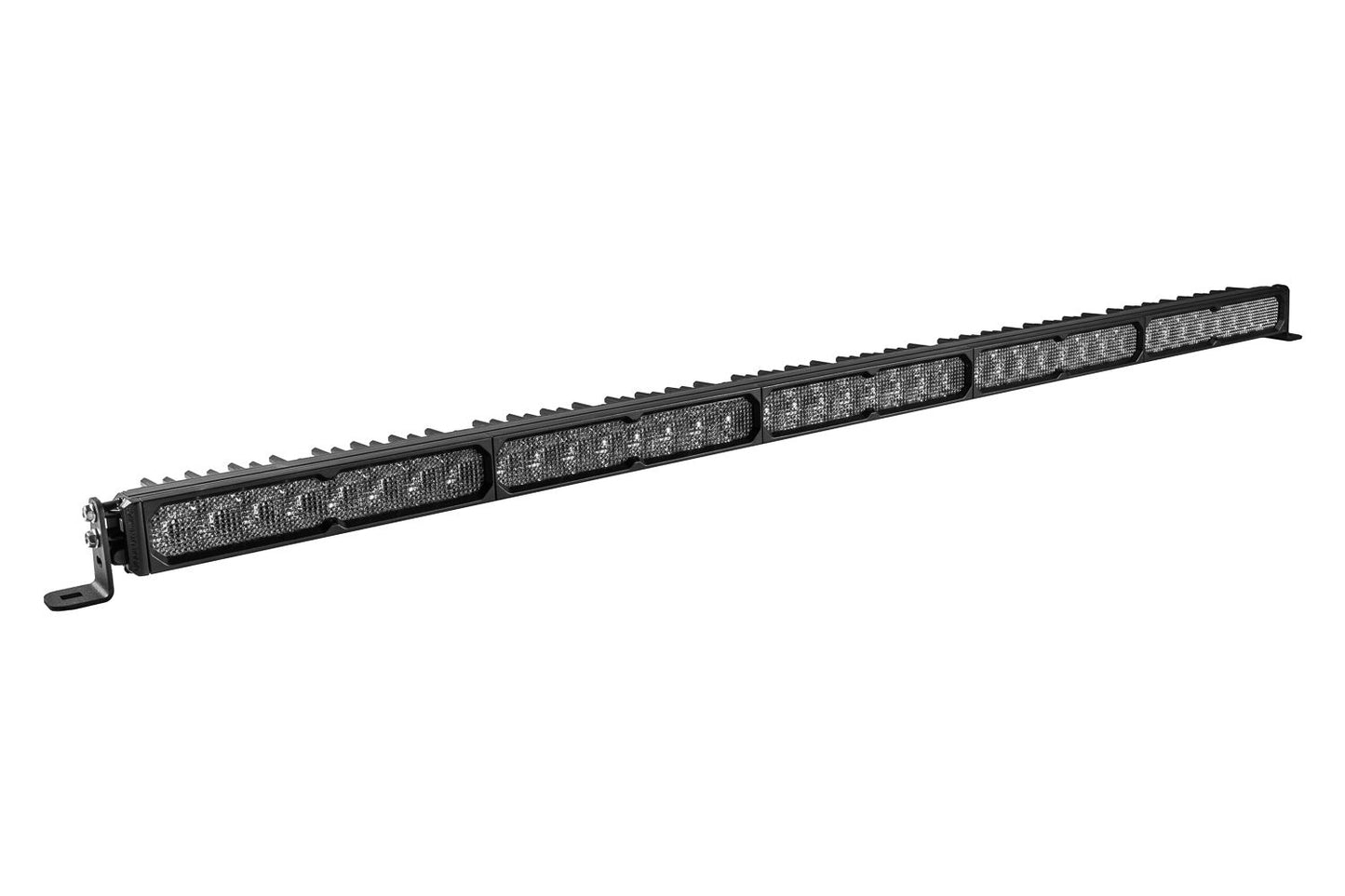

Flood Beam
With an expansive 100° x 80° beam spread, the Flood pattern provides smooth, even illumination for campsites, work zones, trailers, backup lighting, and slow-speed maneuvering.

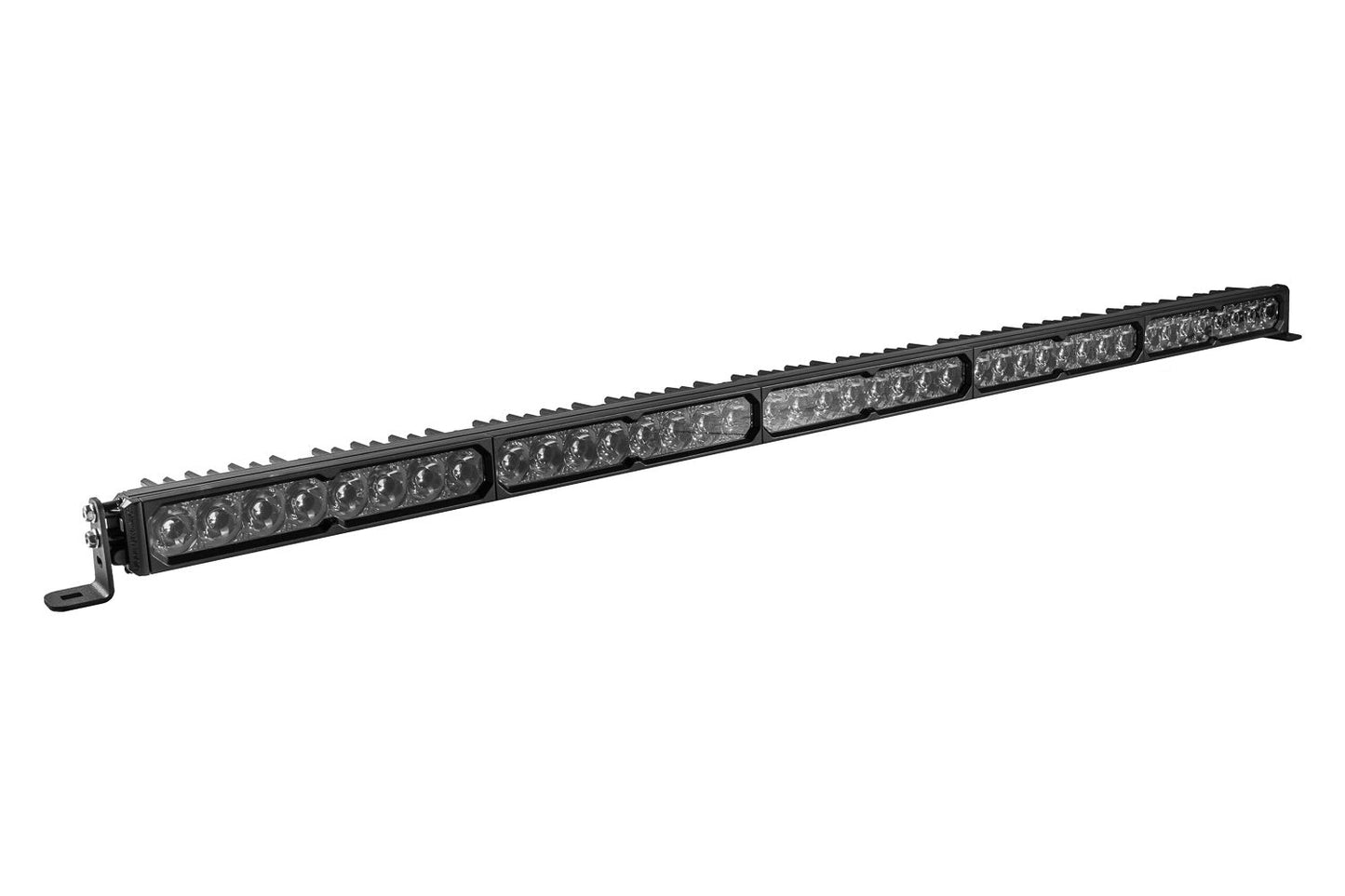

Spot Beam
When maximum distance matters, the Spot optic produces a focused 8° x 8° beam ideal for desert racing, rally competition, and high-speed driving where long-range visibility is essential.

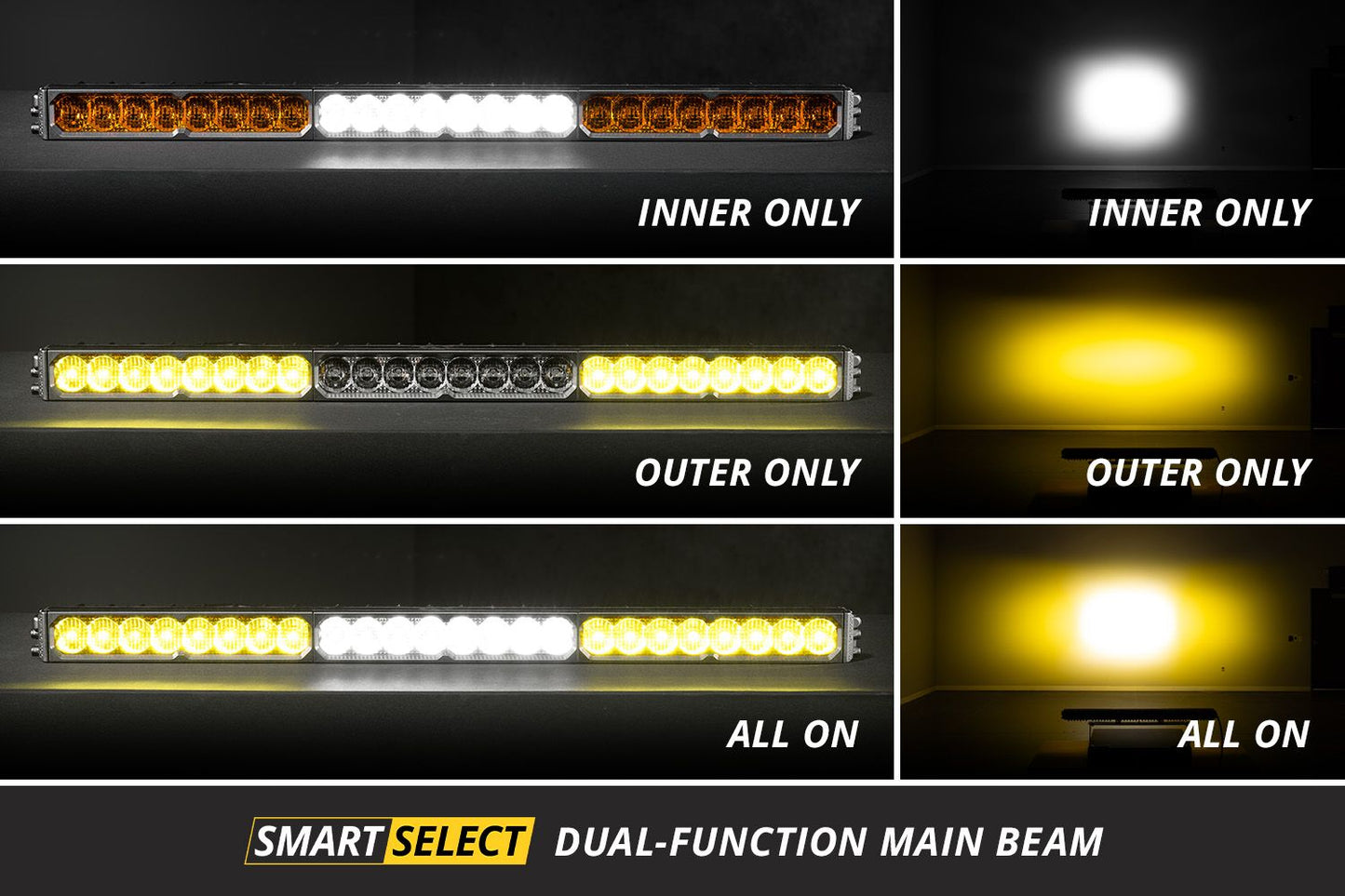

SmartSelect™ Technology for Ultimate Versatility

Available SmartSelect™ models provide advanced lighting control without additional switches or complicated wiring.

Using patented programming built directly into the light bar, simply cycle power to instantly switch between:

• Inner beam sections only
• Outer beam sections only
• Full light bar illumination

Whether navigating technical rock trails, open desert, or winding forest roads, SmartSelect allows you to optimize your lighting for every situation with a single switch.

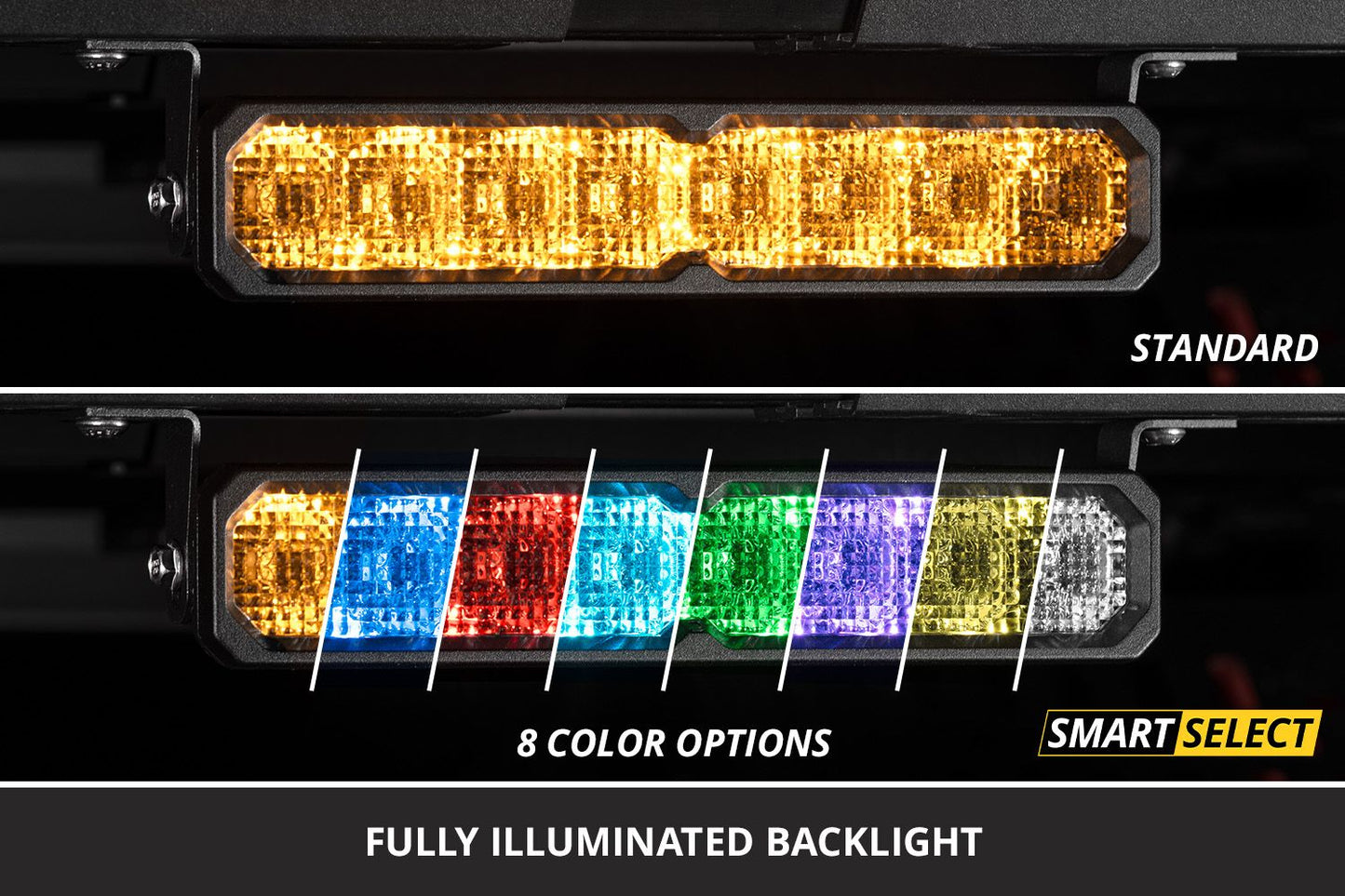

Custom RGB Backlight & Animated Welcome Sequence

SmartSelect models also feature an integrated RGBWA multicolor backlight with eight selectable colors, giving your vehicle a distinctive custom appearance.

Unlike ordinary RGB lighting, Diode Dynamics utilizes dedicated amber LEDs alongside RGBWA technology to produce true amber and bright white illumination that perfectly matches other Stage Series lighting products.

Every time the backlight is activated, the selected color (excluding amber mode) performs a premium animated startup sequence that sweeps across the entire light bar before fully illuminating.

For those who prefer simplicity, Standard models include a clean amber-only backlight without startup animation.

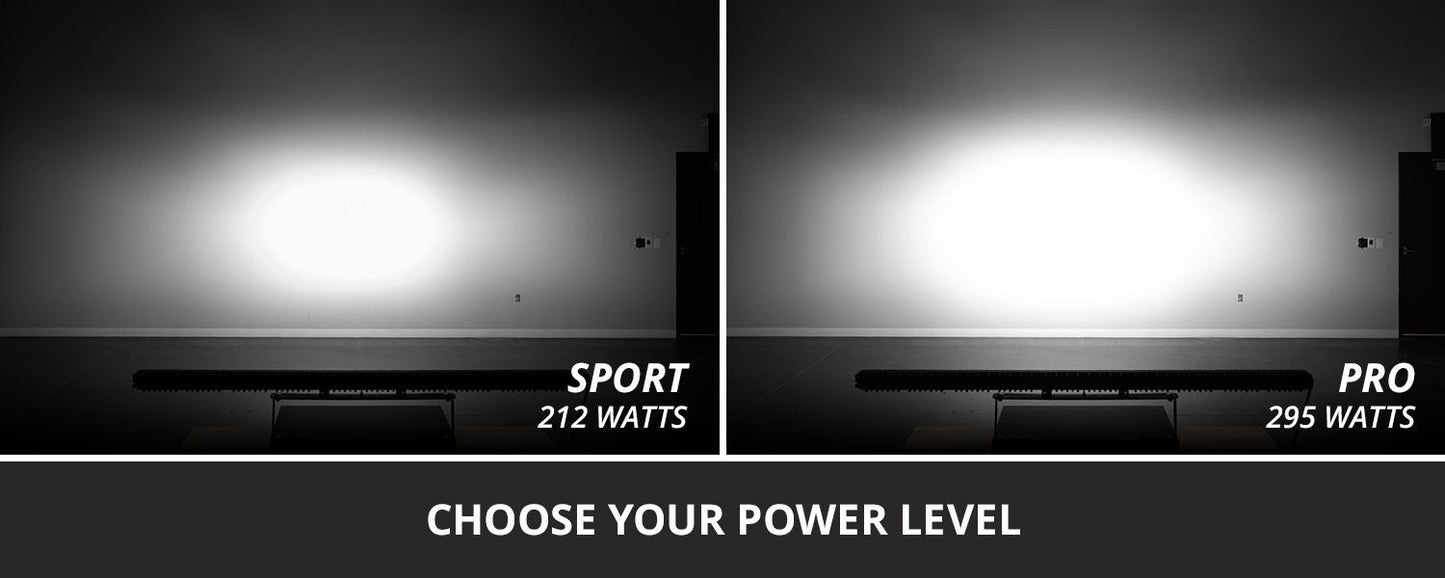

Available in Sport & Pro Performance Levels

Choose the output that best matches your application:

• Sport: Exceptional performance and value for daily off-road use.
• Pro: Maximum brightness with upgraded components for serious off-road enthusiasts and professional applications.

Both models utilize automotive-grade LEDs and advanced TIR optics to deliver industry-leading beam quality and reliability.

Swappable Optics for Complete Customization

Every Stage Series SS50 Light Bar features interchangeable lenses, making it easy to change beam patterns or lens colors as your needs evolve.

Because every SS50 uses 6000K Cool White LED emitters, changing between white and yellow optics requires only a simple lens swap—without introducing inconsistent color temperatures.

Integrated circuit board switches also allow SmartSelect models to automatically match the selected backlight color to white or yellow lenses for a seamless factory-quality appearance.

Optional Snap-On Lens Covers

Protect your investment or customize your look with optional Snap-On Lens Covers, available in:

• Clear
• Smoked
• Amber
• Yellow
• Black

These durable covers install in seconds without tools, making it easy to adapt your lighting to changing conditions.

Built for the Harshest Conditions

Designed for extreme environments, the SS50 features:

• Heavy-duty aluminum housing
• Durable ASTM-standard powder-coated finish
• IP69K waterproof and dustproof construction
• Automotive-grade LED electronics
• SAE-tested vibration, corrosion, moisture, and temperature resistance
• Operating temperature range from -40°F to 185°F

Whether you’re tackling muddy trails, desert terrain, mountain passes, or demanding work environments, the SS50 is engineered to deliver dependable performance year after year.

Engineered in the USA

With over a decade of LED lighting innovation, Diode Dynamics designs and manufactures its products in the USA using globally sourced materials. Every Stage Series light bar is engineered for superior optical performance, long-term reliability, and precision manufacturing that enthusiasts and professionals trust.

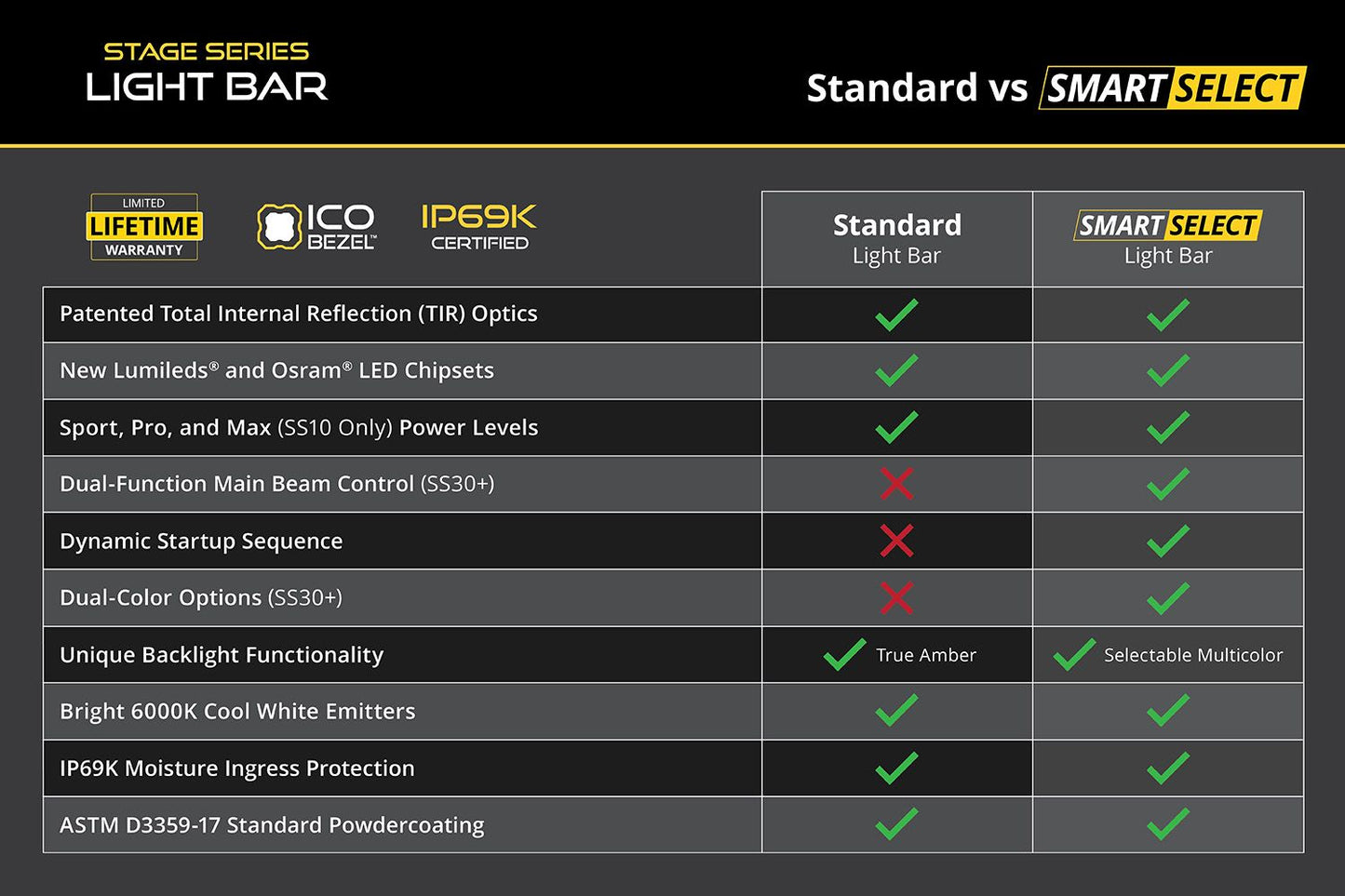

Key Features

• Patented TIR optics for maximum efficiency and output
• Upgraded Combo, SAE Driving, Flood, and Spot beam patterns
• SmartSelect™ dual-function beam control (SmartSelect models)
• Selectable RGBWA multicolor backlight with eight colors
• Animated startup “welcome” sequence
• Available in Sport and Pro power levels
• Heavy-duty aluminum housing with ASTM-standard powder coating
• IP69K waterproof and dustproof rating
• Swappable optics and interchangeable lens colors
• Compatible with Snap-On Lens Covers
• Made in the USA with Global Materials
• Limited Lifetime Warranty

What’s Included

• (1) Diode Dynamics SS50 Stage Series LED Light Bar
• (1) Wire Pigtail
• Universal Mounting Bracket Kit
• Limited Lifetime Warranty

Whether you’re upgrading your truck, Jeep, SUV, overland vehicle, UTV, race truck, or work rig, the Diode Dynamics SS50 LED Light Bar delivers unmatched brightness, precision-engineered optics, customizable SmartSelect technology, and premium durability—making it one of the most advanced LED light bars available today.
