Diode Dynamics SS6 LED Driving Light Kit for 2014-2024 Toyota 4Runner

Diode Dynamics SS6 LED Driving Light Kit for 2014-2024 Toyota 4Runner

Add powerful, precisely controlled auxiliary lighting to your 2014-2024 Toyota 4Runner with the Diode Dynamics Stage Series SS6 LED Driving Light Kit. This vehicle-specific kit mounts two 6-inch SS6 LED light bars behind the upper grille for a clean, stealthy appearance with significantly improved forward illumination.

Application-specific brackets use existing factory mounting points, so installation requires no cutting or drilling. With patented TIR optics, an integrated amber backlight, multiple output colors, and Sport, Pro, and Max power options, the Diode Dynamics SS6 kit is built for everything from dark backroads to overland and off-road adventures.

Key Features

• Direct-fit lighting kit for select 2014-2024 Toyota 4Runner models
• Two 6-inch Diode Dynamics Stage Series SS6 LED light bars
• Stealthy behind-the-grille installation
• Vehicle-specific CAD-designed brackets
• Uses factory mounting points
• No cutting or drilling required
• Patented Total Internal Reflection (TIR) optics
• Integrated true amber backlight
• 6000K Cool White and 3000K Selective Yellow options
• SAE Driving and SAE Fog beam options
• Sport, Pro, and Max power levels
• Wiring harness and auxiliary switch adapter included
• Made in the USA with global materials
• Limited Lifetime Warranty

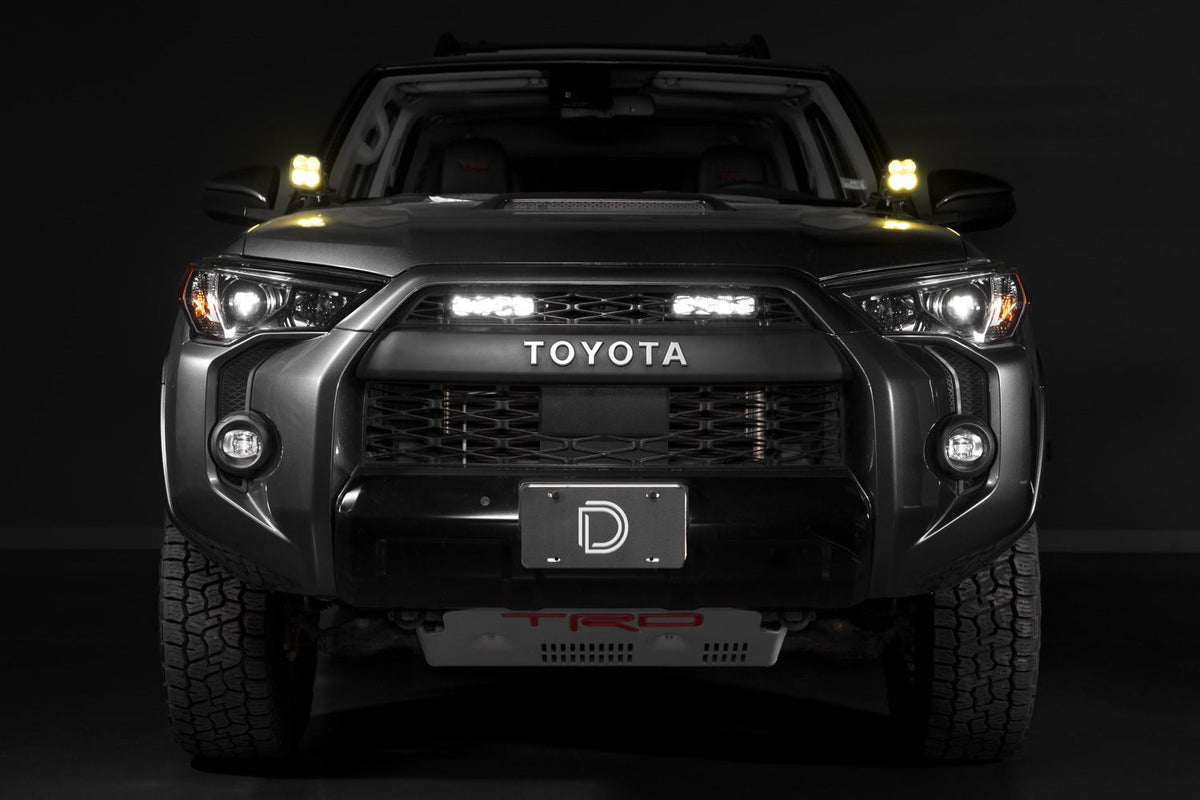

Stealth Grille Mount for the Toyota 4Runner

This SS6 kit was engineered specifically around the Toyota 4Runner’s grille area. The included brackets position two compact SS6 light bars neatly behind the upper grille opening, maintaining a clean, factory-inspired appearance.

The brackets install using existing factory mounting locations, eliminating the need to cut, drill, or permanently modify your 4Runner.

Once installed, you get the performance of dedicated auxiliary LED lighting without a large exposed light bar dominating the front of the vehicle.

Patented Stage Series TIR Optics

Diode Dynamics Stage Series lights use Total Internal Reflection (TIR) optics to efficiently collect and direct LED output.

Instead of relying on conventional reflector-style optics, the SS6 directs light into a carefully engineered beam pattern. This provides more usable illumination where you need it while reducing wasted light and glare.

The result is excellent optical efficiency and controlled output for nighttime driving.

SAE Driving Beam

For increased forward visibility, choose the SAE Driving beam pattern.

With a focused 20° x 12° spread, this optic is designed to supplement your factory high beams while maintaining useful width. It’s an excellent choice for rural roads, nighttime trail driving, and situations where increased downrange illumination is important.

Always follow applicable regulations regarding auxiliary driving light installation, aiming, and use.

SAE Fog Beam

For wide foreground illumination, the SAE Fog beam uses Diode Dynamics’ FineLine optic to produce an extremely wide 90° x 10° pattern.

This beam distributes light across the roadway in front of the vehicle while maintaining a controlled vertical cutoff. When properly installed and aimed, the SAE Fog configuration is designed for compliant on-road fog-light use.

Integrated Amber Backlight

Each Stage Series SS6 light bar incorporates a true amber backlight that illuminates the TIR optics.

The backlight adds a distinctive accent behind the 4Runner grille without relying on a handful of small indicator LEDs. It provides a clean, modern appearance when the main auxiliary lighting isn’t in use.

Cool White or Selective Yellow

Choose the output color that best suits your 4Runner and driving conditions.

6000K Cool White provides crisp illumination that pairs well with modern LED headlights and delivers a clean OEM-style appearance.

3000K Selective Yellow offers a distinctive yellow output and enhanced visual contrast in conditions such as dust, rain, snow, and fog.

Sport, Pro or Max

The SS6 platform is available in three performance levels.

Sport provides strong auxiliary output and excellent value for daily driving, weekend trips, and recreational off-road use.

Pro increases output and intensity for drivers who spend more time traveling dark roads and trails.

Max takes SS6 performance even further with advanced Osram HX Boost LED technology, delivering extremely high intensity for demanding nighttime driving applications.

Engineered for Thermal Performance

High-output LEDs generate significant heat, making thermal management critical to maintaining performance.

Stage Series SS6 light bars incorporate advanced thermal materials, copper circuit boards, and optimized aluminum heatsinks to efficiently transfer heat away from the LED emitters during extended operation.

Built for Off-Road Conditions

Whether your 4Runner is a daily driver or dedicated overland build, Stage Series lighting is designed for demanding environments.

The SS6 platform undergoes extensive testing for:

• Operating temperatures from -40°F to 185°F
• Vibration resistance
• Moisture intrusion
• Corrosion resistance
• Long-term durability

Stage Series lights are tested to SAE standards and built for dependable performance on the road and trail.

What’s Included

• Two (2) application-specific SS6 mounting brackets
• Two (2) Stage Series SS6 6-inch LED Light Bars
• One (1) wiring harness
• One (1) auxiliary switch adapter wire
• Mounting hardware
• Installation guide

Warranty: Limited Lifetime Warranty

Toyota 4Runner Fitment

Make: Toyota
Model: 4Runner
Years: 2014-2024

2014-2019 Toyota 4Runner

Compatible with all trim levels according to the supplied fitment information.

2020-2024 Toyota 4Runner

Compatible with TRD Pro models only.

Electrical Compatibility: Tested with no known electrical issues.

Important: Fitment varies by model year and trim. For 2020-2024 Toyota 4Runners, this kit is listed for TRD Pro models only. Verify your vehicle’s year and trim before ordering.
