Diode Dynamics SSC1 White SAE Fog LED Pods – Pair | DD6847P

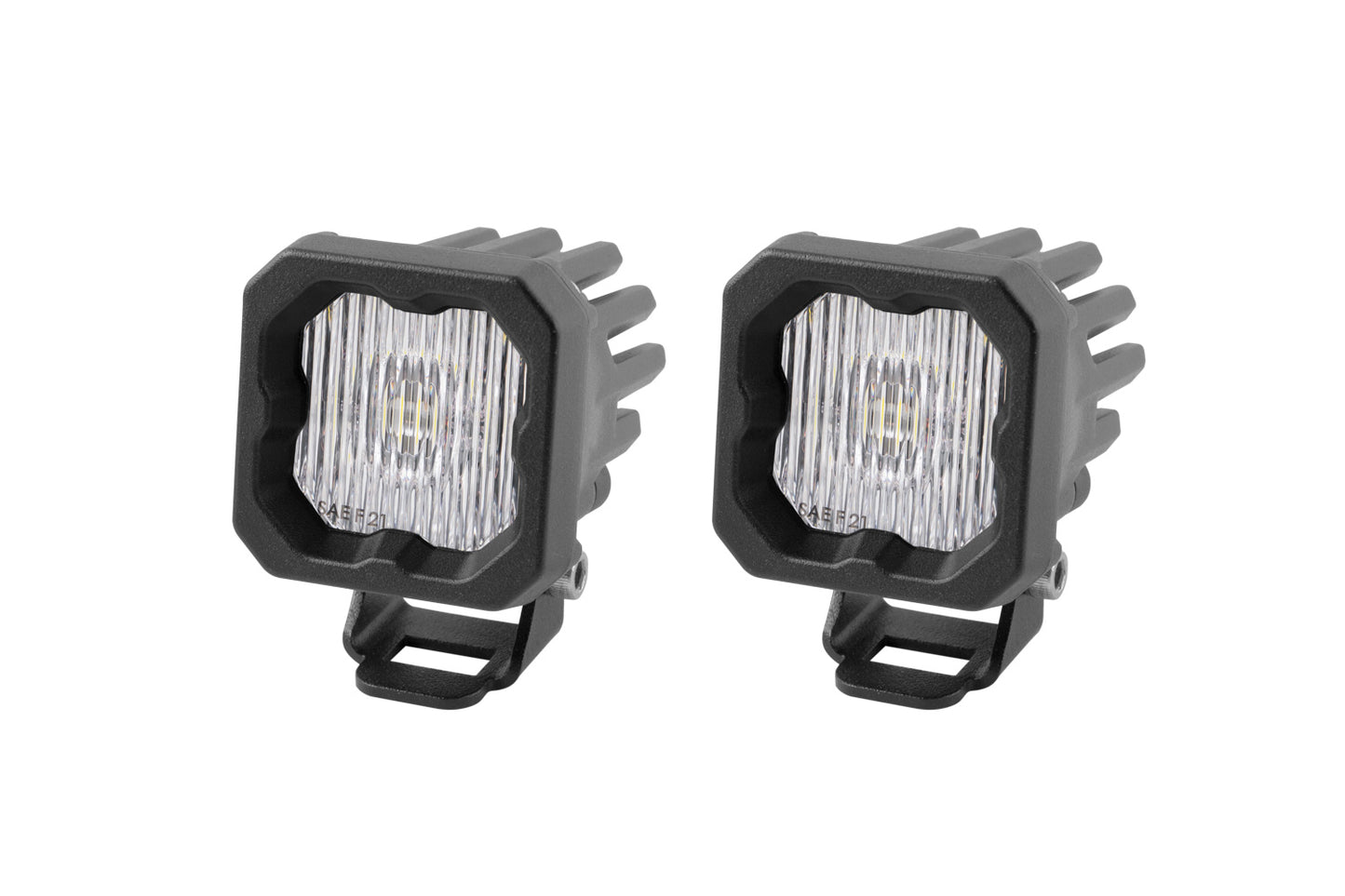

Diode Dynamics SSC1 White SAE Fog LED Pods – Pair

Get road-ready fog-light performance in an ultra-compact package with the Diode Dynamics SSC1 White SAE Fog LED Pods (DD6847P). Part of the Stage Series C1 lineup, these compact LED pods combine custom-engineered TIR optics with automotive-grade Osram HX Boost 20-watt LEDs to produce a wide, controlled SAE fog-light pattern.

The SSC1 SAE Fog delivers an extremely wide 98-degree beam and meets the SAE J583 standard for fog lamps, providing functional illumination from one of Diode Dynamics’ smallest auxiliary lighting platforms.

Part Number: DD6847P
Quantity: Two (2) LED Pods

Key Features

• Pair of Stage Series C1 / SSC1 SAE Fog LED Pods
• 6000K cool white main output
• Ultra-compact single-LED design
• SAE J583-compliant fog beam
• Wide 98-degree beam pattern
• Automotive-grade Osram HX Boost 20W LED in each pod
• Custom-engineered TIR optics
• White or amber backlight options
• Integrated DT-type Deutsch-style connectors
• Interchangeable lenses
• Compact design for cars, trucks, motorcycles, and UTVs
• Compatible with optional alternative mounting solutions
• Tested for vibration, moisture intrusion, corrosion, and extreme temperatures
• Designed, torture-tested, and assembled in the USA
• Lifetime warranty

Compact SAE Fog Light Performance

The Stage Series C1 SAE Fog combines a compact single-LED form factor with a purpose-built fog-light optic.

Designed using optical simulation modeling, the SSC1 produces a controlled pattern engineered specifically for fog-light applications. Its small footprint also makes it easier to integrate into vehicles where traditional fog lights or larger LED pods won’t fit.

SAE J583 Fog Beam

The SSC1 SAE Fog provides high-intensity output across an extremely wide 98-degree spread, illuminating the area directly ahead of your vehicle.

This fog pattern meets the SAE J583 standard as a fog lamp for applicable on-road use.

Proper installation and aiming are essential. Always check state and local regulations regarding vehicle lighting, mounting, aiming, and backlight use.

Automotive-Grade Osram HX Boost LED

Each SSC1 SAE Fog Pod uses a single automotive-grade Osram HX Boost 20-watt LED.

Combined with the Stage Series TIR optic, the high-output LED allows the SSC1 to deliver functional fog-light performance while maintaining its ultra-compact housing.

Custom-Engineered TIR Optics

The SSC1 uses a custom-engineered Total Internal Reflection (TIR) optic rather than a traditional reflector or simple lens.

The TIR optic collects light from the LED and directs it into the intended fog pattern, helping reduce wasted light and glare while increasing optical efficiency.

Because the custom-molded TIR optic also serves as the primary lens, additional light loss through a separate outer lens is reduced.

6000K Cool White Output

The DD6847P configuration features a 6000K cool white main output.

This crisp white color complements many factory LED headlights and provides a modern appearance for auxiliary fog-light installations.

A selective-yellow Stage Series C1 SAE Fog configuration is also available separately.

White or Amber Backlight

The SSC1 features an integrated backlight available in white or amber, depending on configuration.

Instead of using a small indicator LED, the backlight illuminates the TIR optic itself, creating a distinctive secondary accent-light function.

Check applicable local regulations before using auxiliary backlighting on public roads.

Ultra-Compact & Versatile

The SSC1’s compact single-LED design makes it suitable for a wide variety of vehicles and custom applications, including cars, trucks, motorcycles, UTVs, and other builds where mounting space is limited.

The Stage Series C1 platform is also available with flush-mount configurations, and compatible adapters can provide additional mounting options.

Interchangeable Lenses

Compatible replacement lenses allow you to change the color or optic of Stage Series C1 LED Pods without replacing the complete light.

This provides additional flexibility if your lighting requirements change in the future.

Deutsch-Style Connections

Each SSC1 LED Pod features an integrated DT-type Deutsch-style connector and includes a 6-inch pigtail with bare leads.

This allows the pods to be integrated into an appropriate universal or vehicle-specific wiring setup.

Proven Stage Series Reliability

Diode Dynamics Stage Series lighting is extensively tested for long-term operation from -40°F to 185°F, along with vibration, moisture intrusion, and corrosion testing.

The SSC1 is designed, torture-tested, and assembled in the USA for dependable automotive and powersports lighting performance.

What’s Included

• Two (2) Diode Dynamics Stage Series C1 SAE Fog LED Pods
• Two (2) Deutsch-style wire pigtails
• Two (2) mounting brackets
• Mounting hardware

Part Number: DD6847P
Quantity: Two (2)
Series: Stage Series C1 / SSC1
Output Color: 6000K Cool White
Beam Pattern: SAE Fog
Beam Spread: 98 degrees
LED: Osram HX Boost 20W
Backlight: White or Amber, depending on configuration
Connector: DT-type Deutsch-style
Warranty: Lifetime warranty
Designed, tested and assembled in: USA
