Diode Dynamics SSC1 Yellow SAE Fog LED Pods – Pair | DD6848P
Diode Dynamics SSC1 Yellow SAE Fog LED Pods – Pair | DD6848P
SKU:DD6848P
Diode Dynamics SSC1 Yellow SAE Fog LED Pods – Pair | DD6848P
Description

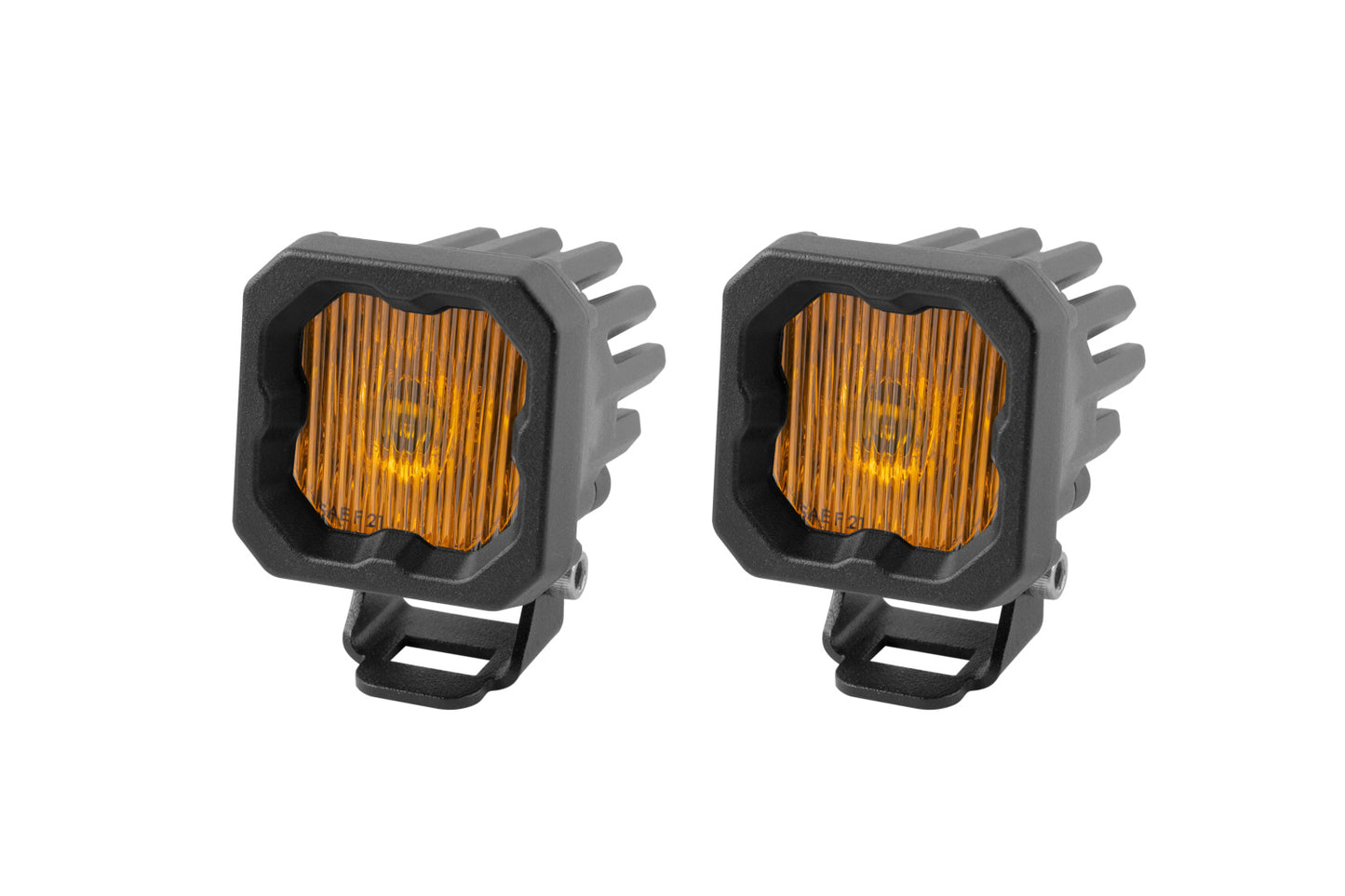

Diode Dynamics SSC1 Yellow SAE Fog LED Pods – Pair
Add compact, road-ready fog lighting with the Diode Dynamics SSC1 Yellow SAE Fog LED Pods (DD6848P). Part of the Stage Series C1 lineup, these ultra-compact pods combine custom-engineered TIR optics with automotive-grade Osram HX Boost 20-watt LEDs to produce a wide, controlled fog-light beam.
This configuration features 3000K selective yellow output, a brilliant amber backlight, and an extremely wide 98-degree SAE Fog pattern. The fog beam meets the Diode Dynamics SAE J583 standard as a fog lamp for applicable on-road use.
Part Number: DD6848P
Quantity: Two (2) LED Pods
Key Features
- Pair of Diode Dynamics SSC1 SAE Fog LED Pods
- 3000K selective yellow main output
- Brilliant amber backlight
- Ultra-compact single-LED design
- SAE J583 fog-light beam pattern
- Wide 98-degree beam spread
- Automotive-grade Osram HX Boost 20W LED
- Custom-engineered TIR optics
- Integrated DT-type Deutsch-style connectors
- Interchangeable lenses
- Compact design for cars, trucks, motorcycles, and UTVs
- Standard mounting brackets included
- Tested for vibration, moisture intrusion, corrosion, and extreme temperatures
- Designed, torture-tested, and assembled in the USA
- Lifetime warranty
3000K Selective Yellow Fog Lights
The DD6848P configuration produces a distinctive 3000K selective yellow main output.
Selective yellow provides high visual contrast and a distinctive appearance, making these SSC1 pods a strong choice for drivers looking for compact yellow auxiliary fog lighting.
The integrated amber backlight complements the yellow main output for a cohesive appearance.
SAE J583 Fog Beam
The SSC1 SAE Fog was developed using optical simulation modeling to produce a functional, controlled fog-light pattern.
The optic provides an extremely wide 98-degree field of view, illuminating the area directly ahead of the vehicle. The beam pattern meets the SAE J583 standard as a fog lamp for applicable on-road use.
Always follow applicable state and local requirements for installation, aiming, mounting height, and auxiliary lighting use.
Osram HX Boost 20-Watt LED
Each SSC1 SAE Fog Pod uses a single automotive-grade Osram HX Boost 20-watt LED.
Pairing a high-output LED with precision Stage Series optics allows the SSC1 to deliver functional fog-light output while maintaining an ultra-compact single-LED housing.
Custom-Engineered TIR Optics
The SSC1 uses custom-engineered Total Internal Reflection (TIR) optics to precisely control the light produced by the LED.
Instead of relying on a traditional reflector or simple lens, the TIR optic collects and directs the LED output into the intended fog-light pattern. This design helps minimize wasted light and glare while improving overall optical efficiency.
The molded TIR optic also serves as the main lens, reducing light loss through a separate outer lens.
Integrated Amber Backlight
In addition to its yellow main beam, this SSC1 configuration features a brilliant amber backlight.
The backlight illuminates the TIR optic itself rather than relying on a small indicator LED, creating a distinctive accent-light appearance when the main beam isn’t being used.
Check applicable vehicle-lighting regulations before using auxiliary backlighting on public roads.
Ultra-Compact Mounting
The SSC1’s single-LED form factor makes it an excellent option when mounting space is limited.
These compact Stage Series pods can be incorporated into a variety of cars, trucks, motorcycles, UTVs, and custom vehicle builds, including locations where larger LED pods may not fit.
The C1 platform is also available in flush-mount configurations, and compatible adapters can provide additional mounting options.
Interchangeable Lenses
Compatible Stage Series C1 replacement lenses allow you to change the color or optic without replacing the complete LED pod.
This gives you additional flexibility if your lighting setup or application changes later.
Deutsch-Style Connections
Each SSC1 LED Pod features an integrated DT-type Deutsch-style connector and includes a 6-inch pigtail with bare leads.
The pods can be integrated into an appropriate universal or vehicle-specific wiring setup depending on your installation.
Proven Stage Series Reliability
Diode Dynamics Stage Series LED lighting has been extensively tested for long-term operation from -40°F to 185°F, along with vibration, moisture intrusion, and corrosion testing.
The SSC1 is designed, torture-tested, and assembled in the USA for demanding automotive and powersports applications.
What’s Included
- Two (2) Diode Dynamics Stage Series C1 SAE Fog LED Pods
- Two (2) Deutsch-style wire pigtails
- Two (2) mounting brackets
- Mounting hardware
Part Number: DD6848P
Quantity: Two (2)
Series: Stage Series C1 / SSC1
Output Color: 3000K Selective Yellow
Beam Pattern: SAE Fog
Beam Spread: 98 degrees
LED: Osram HX Boost 20W
Backlight: Amber
Connector: DT-type Deutsch-style
Mounting Style: Standard
Warranty: Lifetime warranty
Designed, tested and assembled in: USA
Specifications
- Datasheet(s) (click to download): SSC1 SAE Fog Yellow Standard
- Raw Lumens: 1,980
- Intensity (cd): 4,200 cd
- Color Temp (CCT): 3000K
- Beam Angle: Fog, 98°x9°
- Power (watts): Main Beam: 19.2, Backlight: .3
- Operating Voltage: 9-16V
- Current (amps @ 12.8V): Main Beam: 1.5A, Backlight: 0.025A
- Polarity: Polarity Specific
- Operating Temperature: -40C to 85C (-40F to 185F)
- LED Emitter: Osram Boost HX
- Connector(s): Deutsch DT Input
- Driver Features: Constant Current
- Materials: Polycarbonate Lens, Aluminum Casting, Rubber Gasket
- Cooling: Passive, Pin-Fin heatsink
- Compliance Ratings: SAE J575 Durability Test, SAE J583 Foglamp Beam Pattern
- Intrusion Ratings: IP69K Waterproof, High Pressure
- Product Dimensions (in): 2 x 2 x 2.4
- Unit Weight (lb): 0.34
- Product Weight (lb): 0.68
