Diode Dynamics SSC1 SAE Fog LED Pod – Single
Diode Dynamics SSC1 SAE Fog LED Pod – Single
SKU:DD6847S
Diode Dynamics SSC1 SAE Fog LED Pod – Single
Description
Diode Dynamics SSC1 SAE Fog LED Pod – Single
Upgrade your auxiliary lighting with the ultra-compact Diode Dynamics SSC1 SAE Fog LED Pod. Part of the Stage Series C1 lineup, this compact fog light combines a single automotive-grade Osram HX Boost 20-watt LED with custom-engineered TIR optics to produce a wide, controlled fog-light beam.
The SSC1 SAE Fog delivers an extremely wide 98-degree beam pattern that meets the SAE J583 standard as a fog lamp. Its compact single-LED housing makes it a versatile option for cars, trucks, motorcycles, UTVs, and custom installations where larger LED pods won’t fit.
Quantity: One (1) LED Pod
Key Features
- Ultra-compact single-LED fog light
- Automotive-grade Osram HX Boost 20W LED
- SAE J583 fog-light beam pattern
- Wide 98-degree field of view
- Custom-engineered TIR optics
- Cool white or selective yellow output options
- White or amber backlight options
- Integrated DT-type Deutsch-style connector
- Interchangeable lens design
- Standard mounting bracket included
- Compatible with a variety of vehicle applications
- Designed, torture-tested, and assembled in the USA
- Lifetime warranty

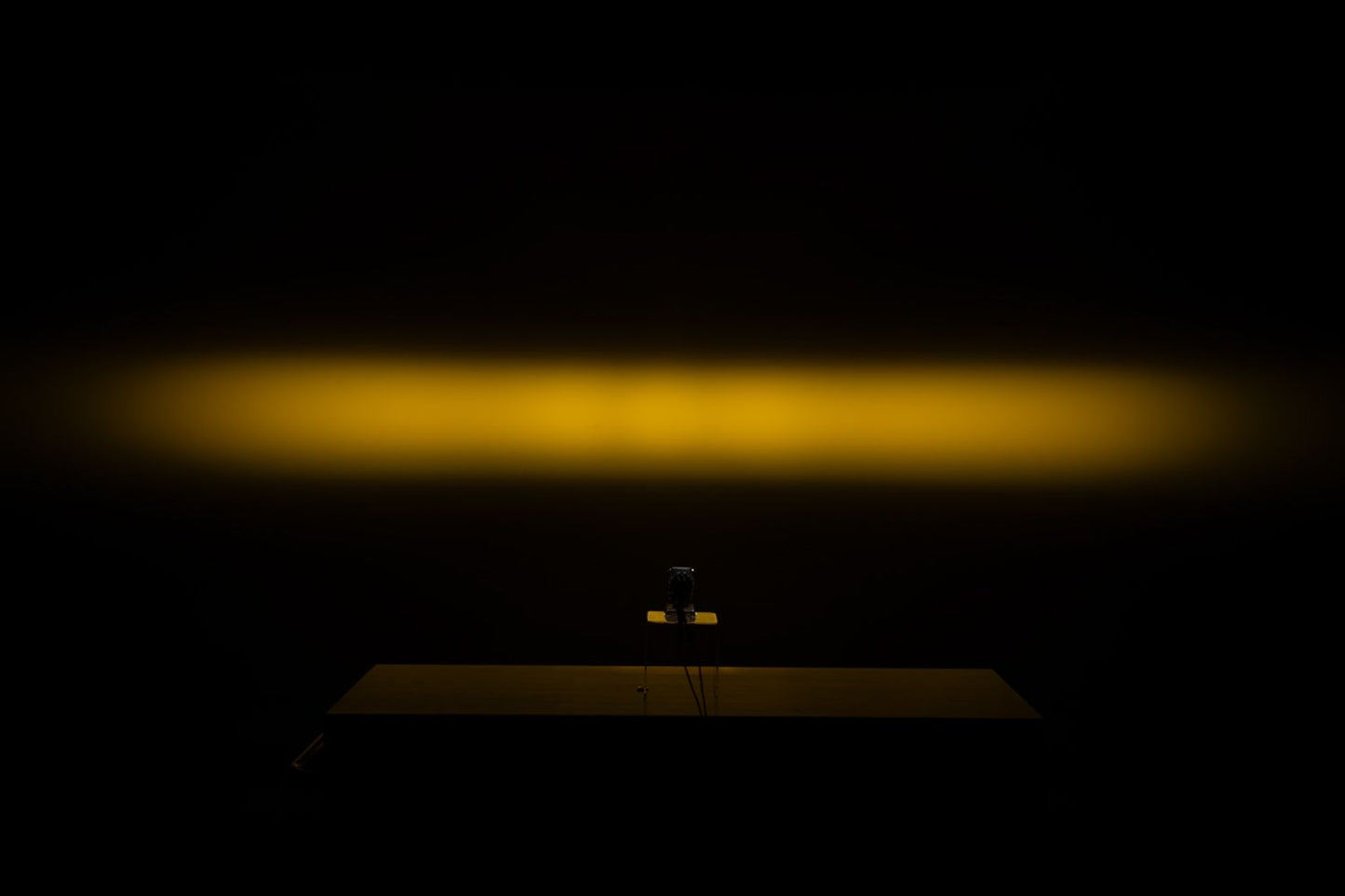

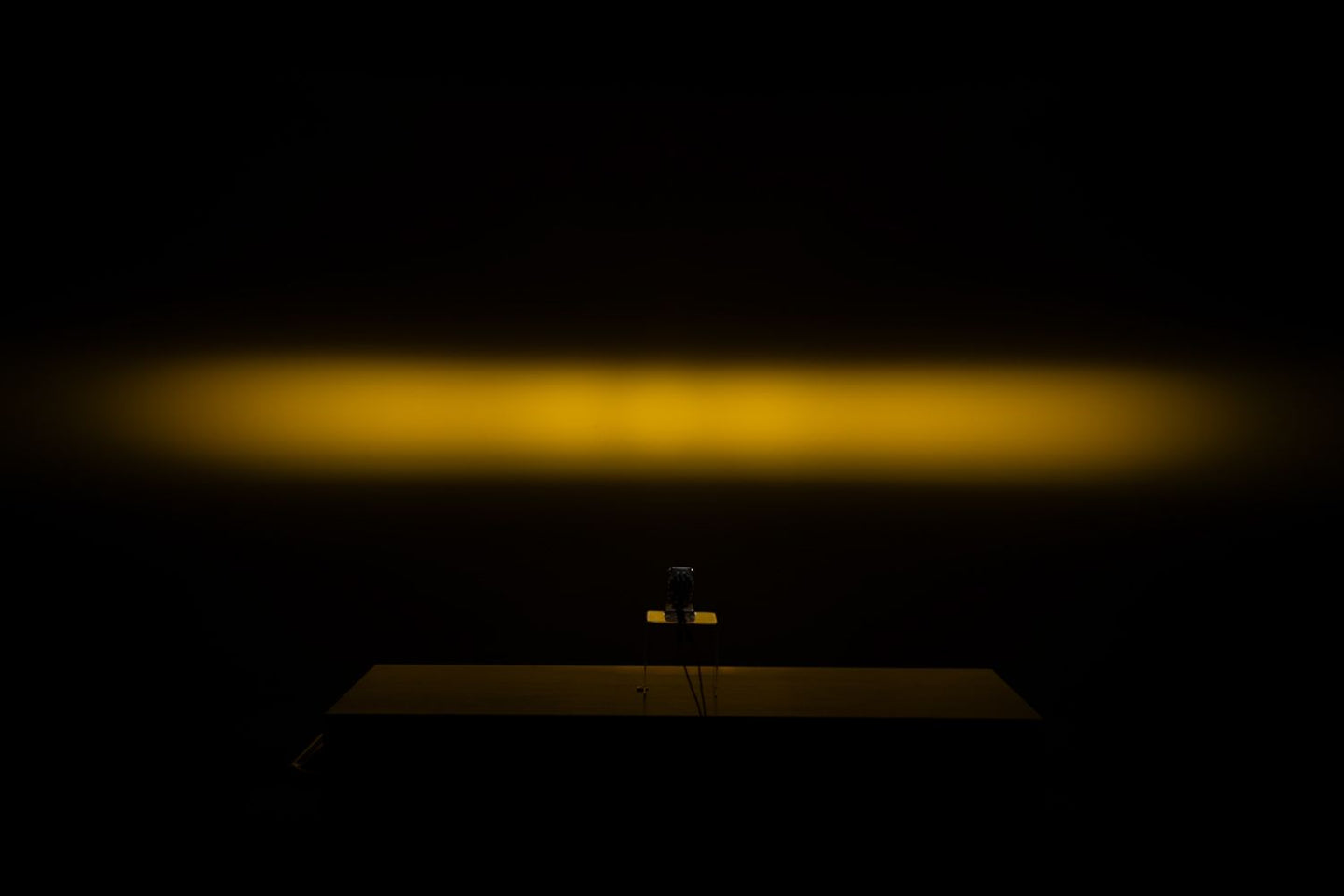

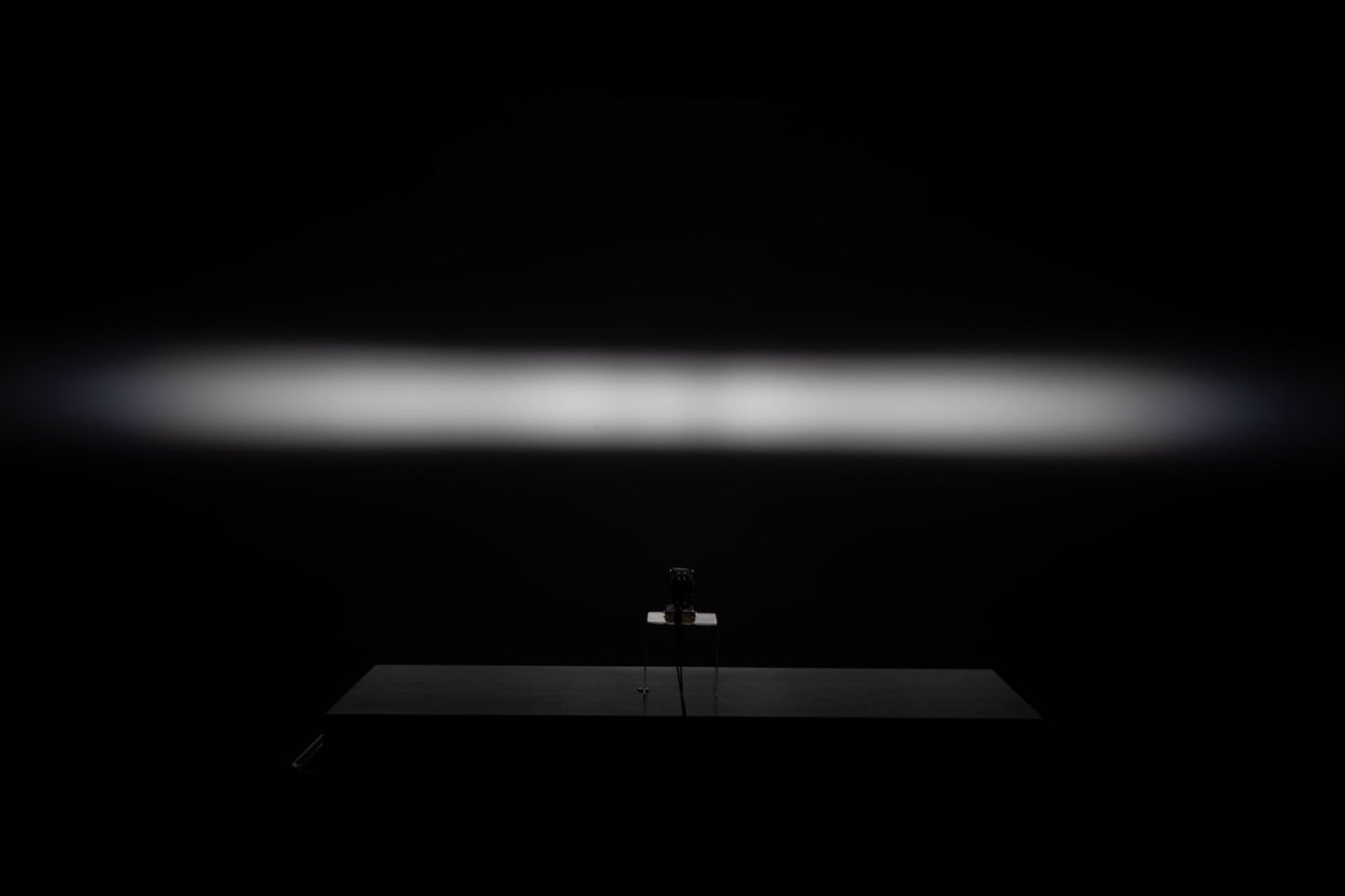

SAE J583 Fog Beam
The SSC1 SAE Fog was designed using optical simulation modeling to create a highly functional fog-light pattern from an extremely compact housing.
Its optic produces a broad 98-degree spread, providing extensive illumination across the area in front of your vehicle.
The SSC1 SAE Fog pattern meets the SAE J583 standard as a fog lamp for applicable on-road use. Installation, aiming, and use should comply with applicable state and local regulations.
Automotive-Grade Osram LED
At the heart of the SSC1 SAE Fog is a single automotive-grade Osram HX Boost 20-watt LED.
Pairing this high-output emitter with precision Stage Series optics allows the SSC1 to deliver useful fog-light performance while retaining its ultra-compact single-LED form factor.
Custom-Engineered TIR Optics
The SSC1 uses a custom-engineered Total Internal Reflection (TIR) optic to collect and precisely control the LED’s output.
Rather than relying on a traditional reflector or simple lens, the TIR optic directs the light into the intended fog pattern while minimizing wasted light and glare. The molded TIR optic also serves as the main lens for improved optical efficiency.
White or Yellow Output
Stage Series C1 SAE Fog LED Pods are available with your choice of output color.

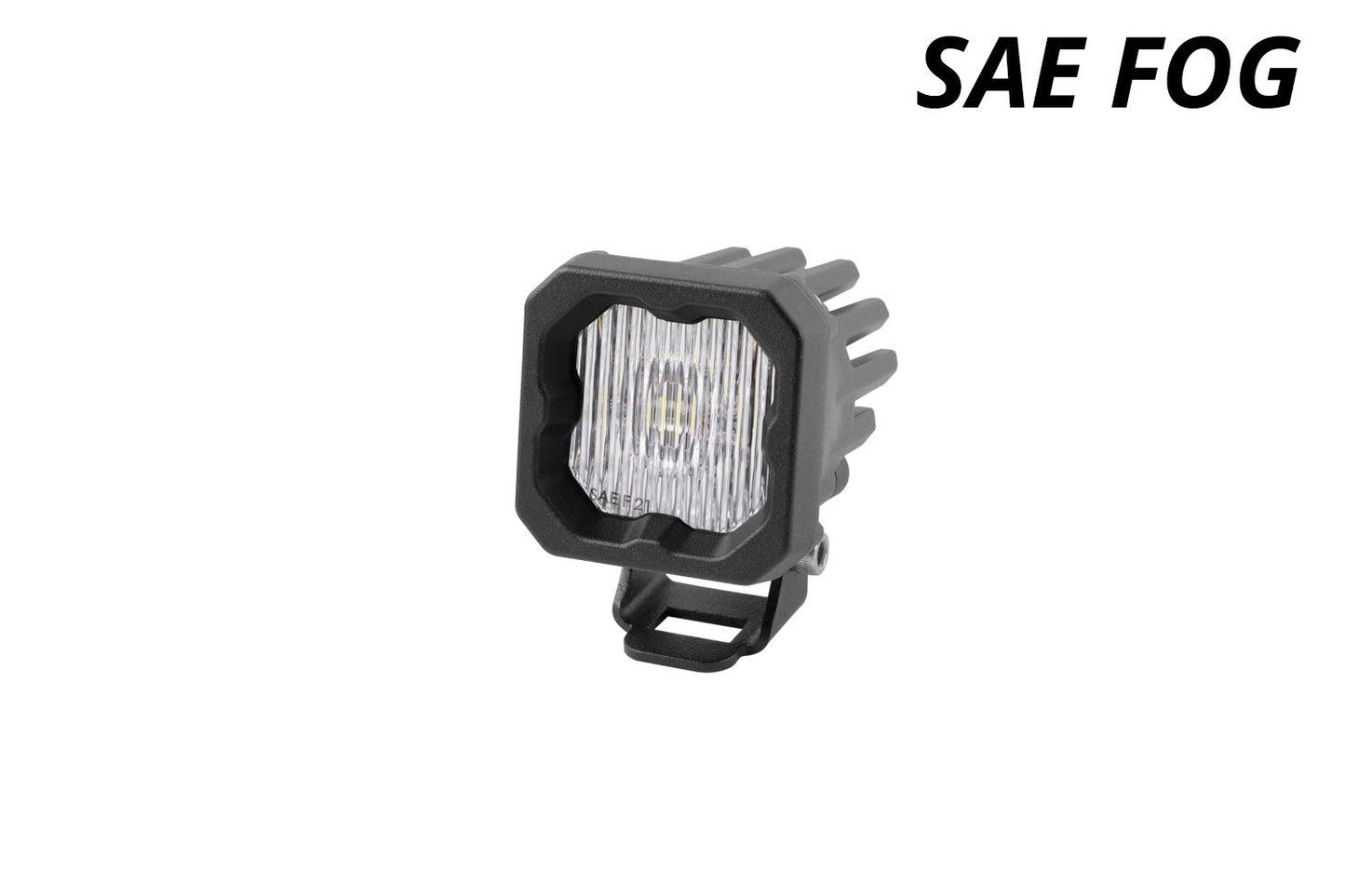

Cool White – 6000K: Produces a clean white output that complements many factory LED lighting systems.

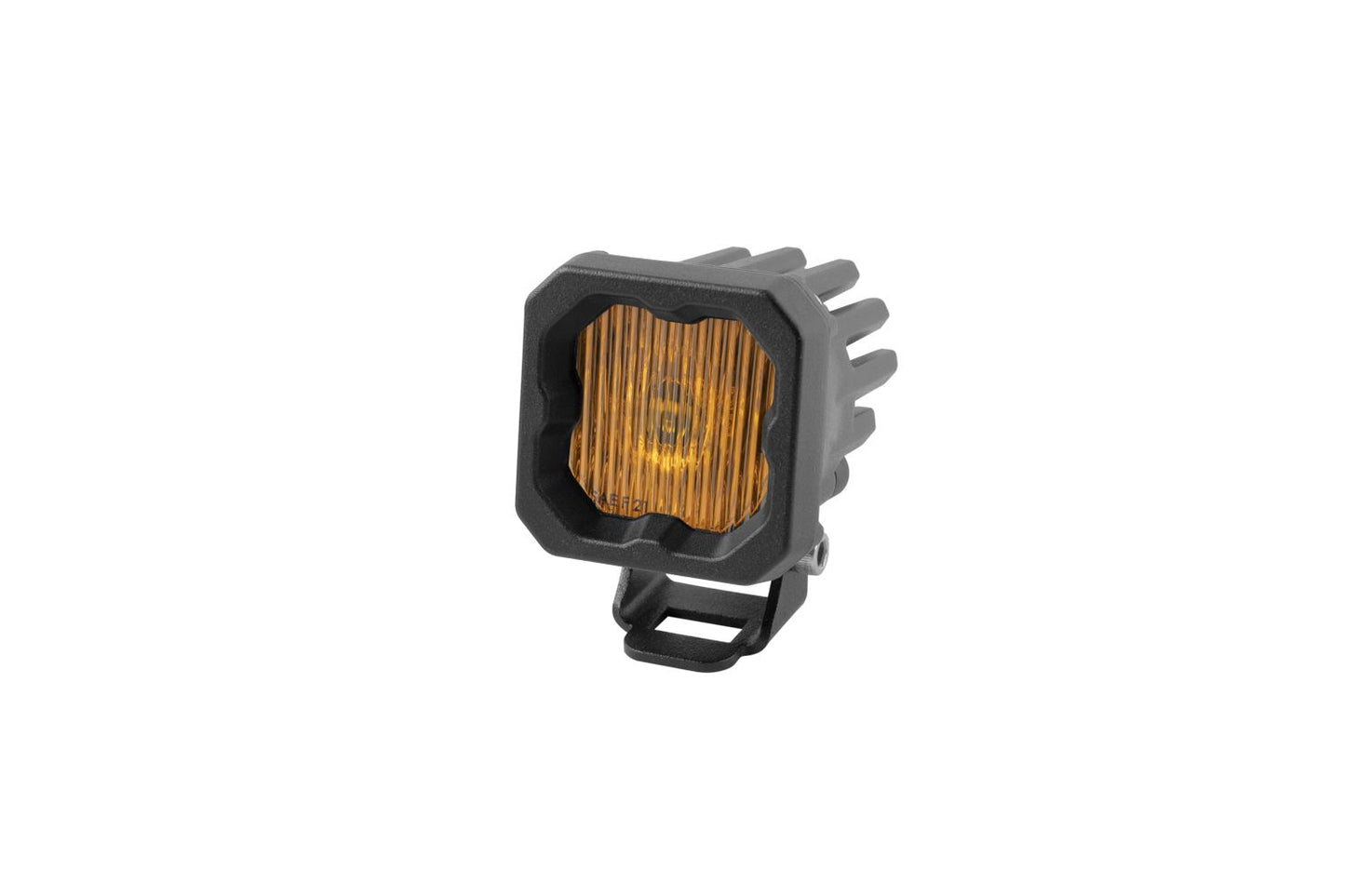

Selective Yellow – 3000K: Provides a distinctive yellow appearance with high visual contrast.
Choose the configuration that best suits your vehicle and lighting setup.
White or Amber Backlight
The SSC1 SAE Fog includes an integrated backlight that illuminates the TIR optic itself, creating a distinctive accent-light appearance when the primary fog beam isn’t being used.
Depending on the selected configuration, white or amber backlighting is available.
Check applicable local regulations before using auxiliary or accent lighting on public roads.
Ultra-Compact Mounting
The SSC1’s compact single-LED housing allows it to fit in locations where conventional auxiliary lights may be too large.
Potential applications include cars, trucks, SUVs, motorcycles, UTVs, and other custom vehicle builds.
The C1 platform supports standard and compatible flush-mount configurations, and optional adapters can provide additional mounting possibilities.
Interchangeable Lens Design
Compatible Stage Series C1 replacement lenses allow you to change the optic or output color without replacing the entire LED pod.
This provides additional flexibility if you modify your vehicle or lighting setup in the future.
Deutsch-Style Connection
The SSC1 features an integrated DT-type Deutsch-style connector and includes a 6-inch pigtail with bare leads for installation.
It can be integrated into an appropriate vehicle-specific or universal auxiliary lighting harness.
Tested for Long-Term Reliability
Diode Dynamics Stage Series LED lighting has undergone testing for long-term operation from -40°F to 185°F, along with vibration, moisture intrusion, and corrosion testing.
The SSC1 is designed, torture-tested, and assembled in the USA for demanding automotive and powersports applications.
What’s Included
- One (1) Diode Dynamics Stage Series C1 / SSC1 SAE Fog LED Pod
- One (1) Deutsch-style wire pigtail
- One (1) mounting bracket
- Mounting hardware
Quantity: One (1)
Series: Stage Series C1 / SSC1
Beam Pattern: SAE Fog
Beam Spread: 98 degrees
LED: Osram HX Boost 20W
Output Options: 6000K Cool White or 3000K Selective Yellow
Backlight Options: White or Amber
Connector: DT-type Deutsch-style
Warranty: Lifetime warranty
Designed, tested and assembled in: USA
Specifications
- Datasheet(s) (click to download): SSC1 SAE Fog White Standard
- Raw Lumens: 1,980
- Intensity (cd): 6,000 cd
- Color Temp (CCT): 6000K
- Beam Angle: Fog, 98°x9°
- Power (watts): Main Beam: 19.2, Backlight: .3
- Operating Voltage: 9-16V
- Current (amps @ 12.8V): Main Beam: 1.5A, Backlight: 0.025A
- Polarity: Polarity Specific
- Operating Temperature: -40C to 85C (-40F to 185F)
- LED Emitter: Osram Boost HX
- Connector(s): Deutsch DT Input
- Driver Features: Constant Current
- Materials: Polycarbonate Lens, Aluminum Casting, Rubber Gasket
- Cooling: Passive, Pin-Fin heatsink
- Compliance Ratings: SAE J575 Durability Test, SAE J583 Foglamp Beam Pattern
- Intrusion Ratings: IP69K Waterproof, High Pressure
- Product Dimensions (in): 2 x 2 x 2.4
- Unit Weight (lb): 0.34
- Product Weight (lb): 0.34
