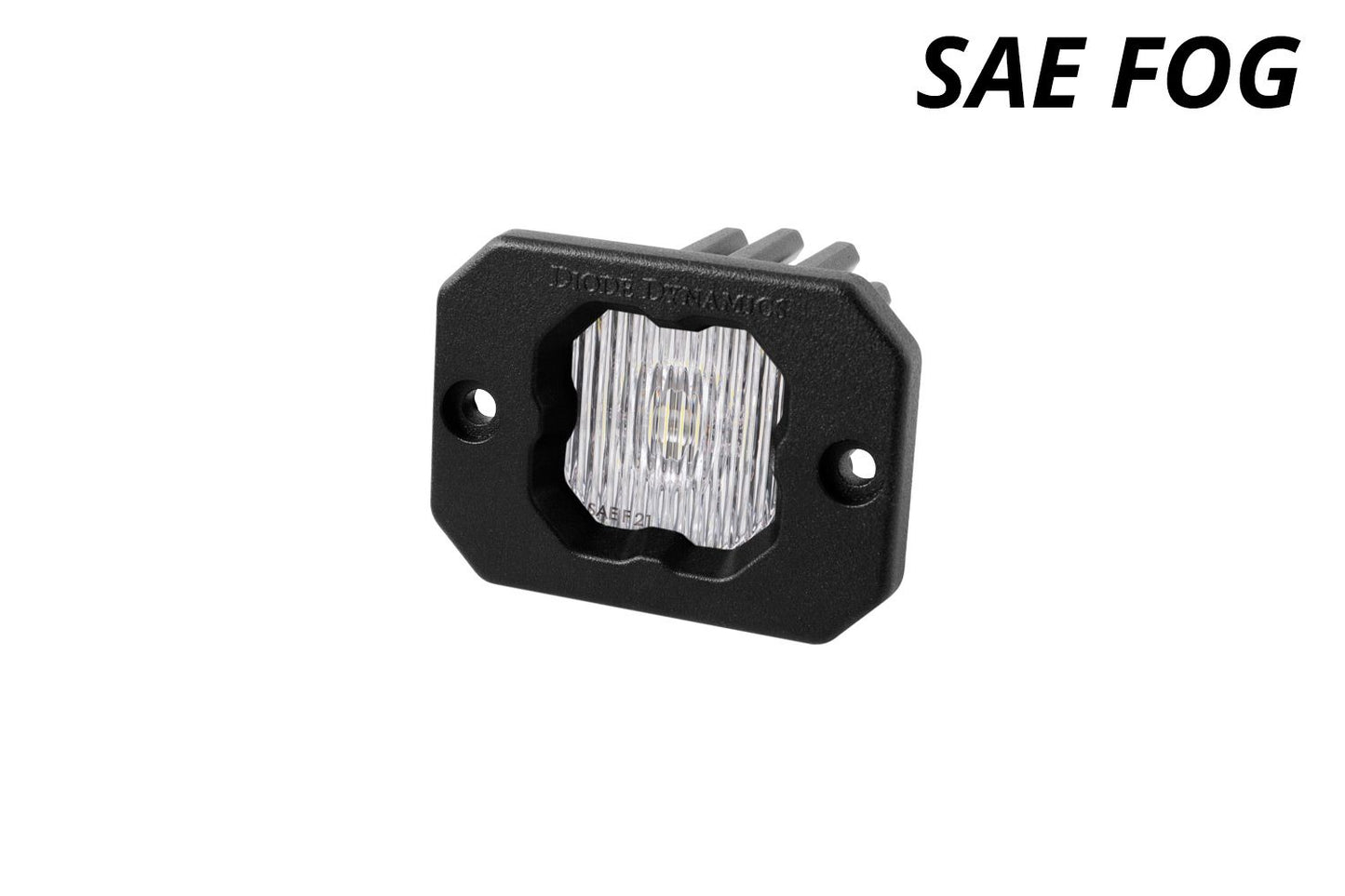

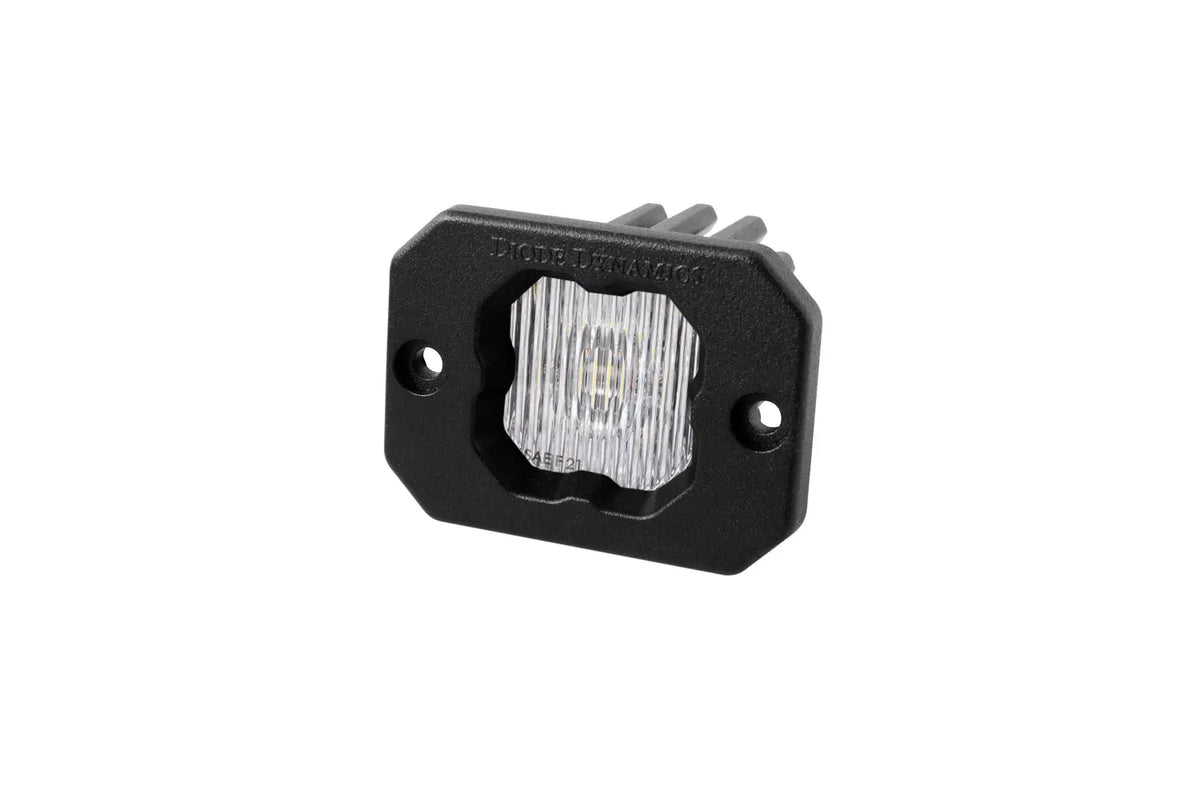

Diode Dynamics SSC1 SAE Fog Flush Mount LED Pod – Single
Diode Dynamics SSC1 SAE Fog Flush Mount LED Pod – Single
SKU:DD6850S
Diode Dynamics SSC1 SAE Fog Flush Mount LED Pod – Single
Description
Diode Dynamics SSC1 SAE Fog Flush Mount LED Pod – Single
Add compact, purpose-built fog lighting to your vehicle with the Diode Dynamics SSC1 SAE Fog Flush Mount LED Pod. Part of the Diode Dynamics Stage Series C1 lineup, this ultra-compact pod combines an automotive-grade Osram HX Boost 20-watt LED, custom-engineered TIR optics, and a wide SAE fog beam in a clean flush-mount package.
Designed for bumpers and other tight mounting locations, the SSC1 provides a factory-style appearance while delivering a wide, controlled fog light pattern.
Key Features
- Ultra-compact single-LED design
- Flush-mount configuration
- SAE-compliant fog light output
- Automotive-grade Osram HX Boost 20W LED
- Extremely wide 98-degree fog beam
- Custom-engineered TIR optics
- Available in 6000K white or 3000K yellow output
- White or amber backlight options
- Integrated DT-type Deutsch-style connector
- Interchangeable lens design
- Designed, torture-tested, and assembled in the USA
- Lifetime warranty

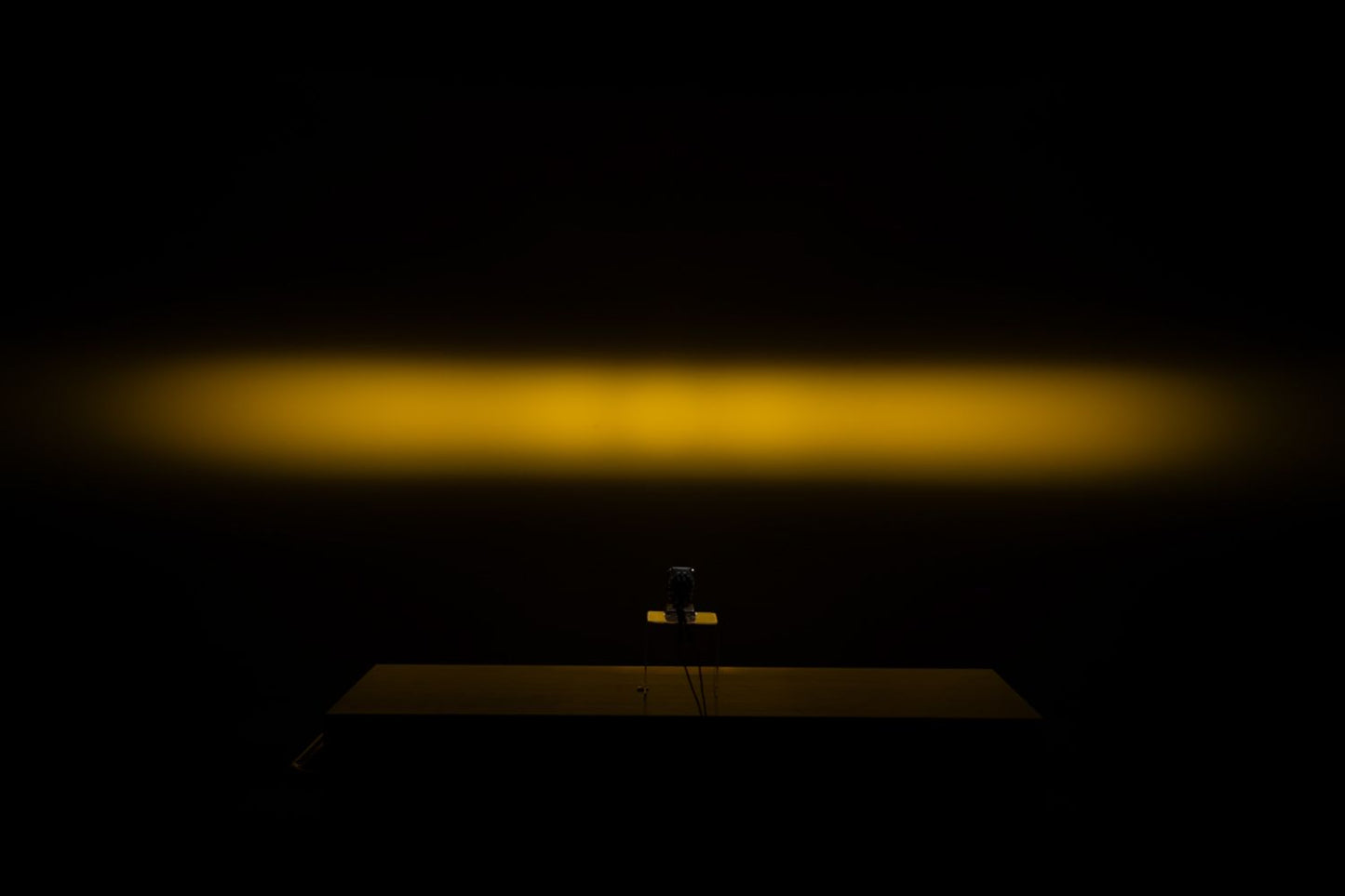

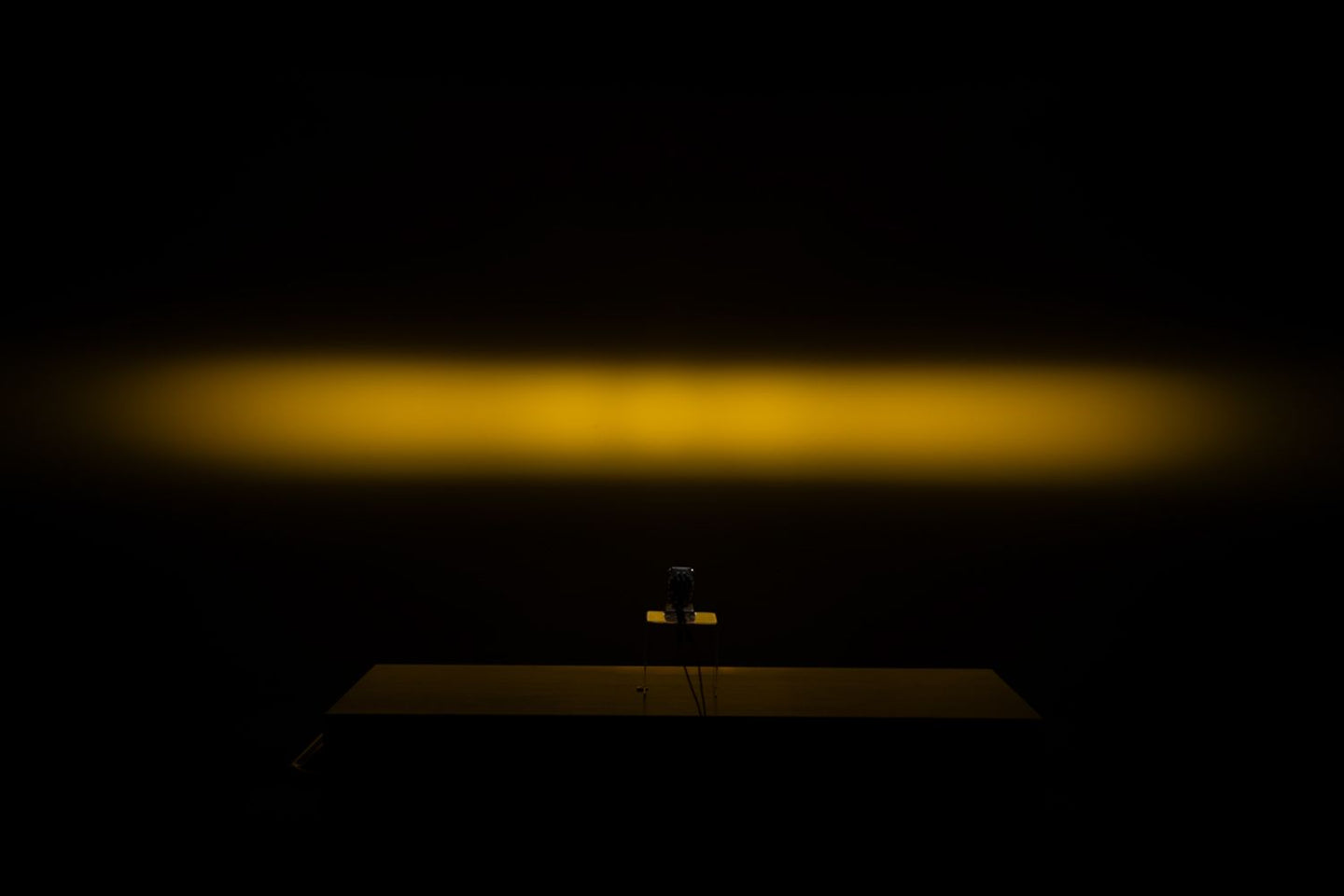

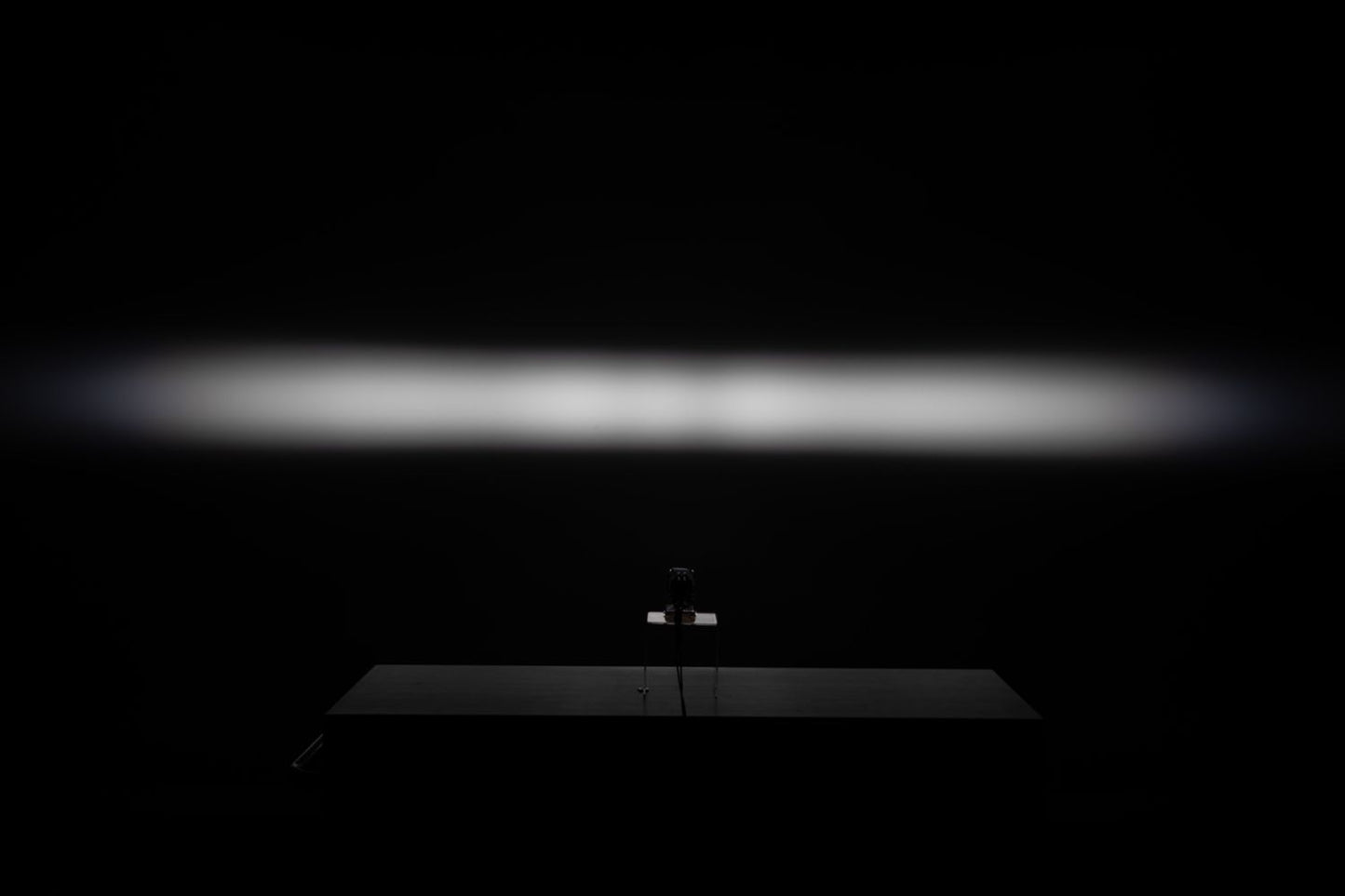

SAE Fog Beam
The SSC1 SAE Fog optic was developed using optical simulation modeling to create a wide, controlled fog light pattern.
Its 98-degree spread provides extensive illumination across the area in front of the vehicle. The SSC1 SAE Fog is designed to meet the SAE J583 fog lamp standard, providing an on-road lighting option when properly installed and aimed.
Always verify applicable state and local lighting regulations before installation and use.
Compact Flush-Mount Installation
The Stage Series C1’s ultra-compact single-LED construction allows the SSC1 to fit into locations where larger auxiliary pods may not work.
Its flush-mount configuration provides a clean, integrated appearance for compatible bumpers and other custom mounting surfaces.
Osram HX Boost 20W LED
At the heart of the SSC1 SAE Fog is a single automotive-grade Osram HX Boost 20-watt LED.
This high-power emitter allows Diode Dynamics to generate useful fog light output from an exceptionally small housing, making the SSC1 an excellent option when mounting space is limited.
Custom-Engineered TIR Optics
The SSC1 uses Total Internal Reflection (TIR) optics rather than a conventional reflector-based design.
The optic collects light from the LED and directs it into the intended beam pattern, helping reduce wasted output and glare while improving overall optical efficiency.
White or Yellow Output
Choose the output color that best suits your lighting setup:
Cool White – 6000K: Produces a crisp white appearance that complements many factory LED headlights and exterior lights.

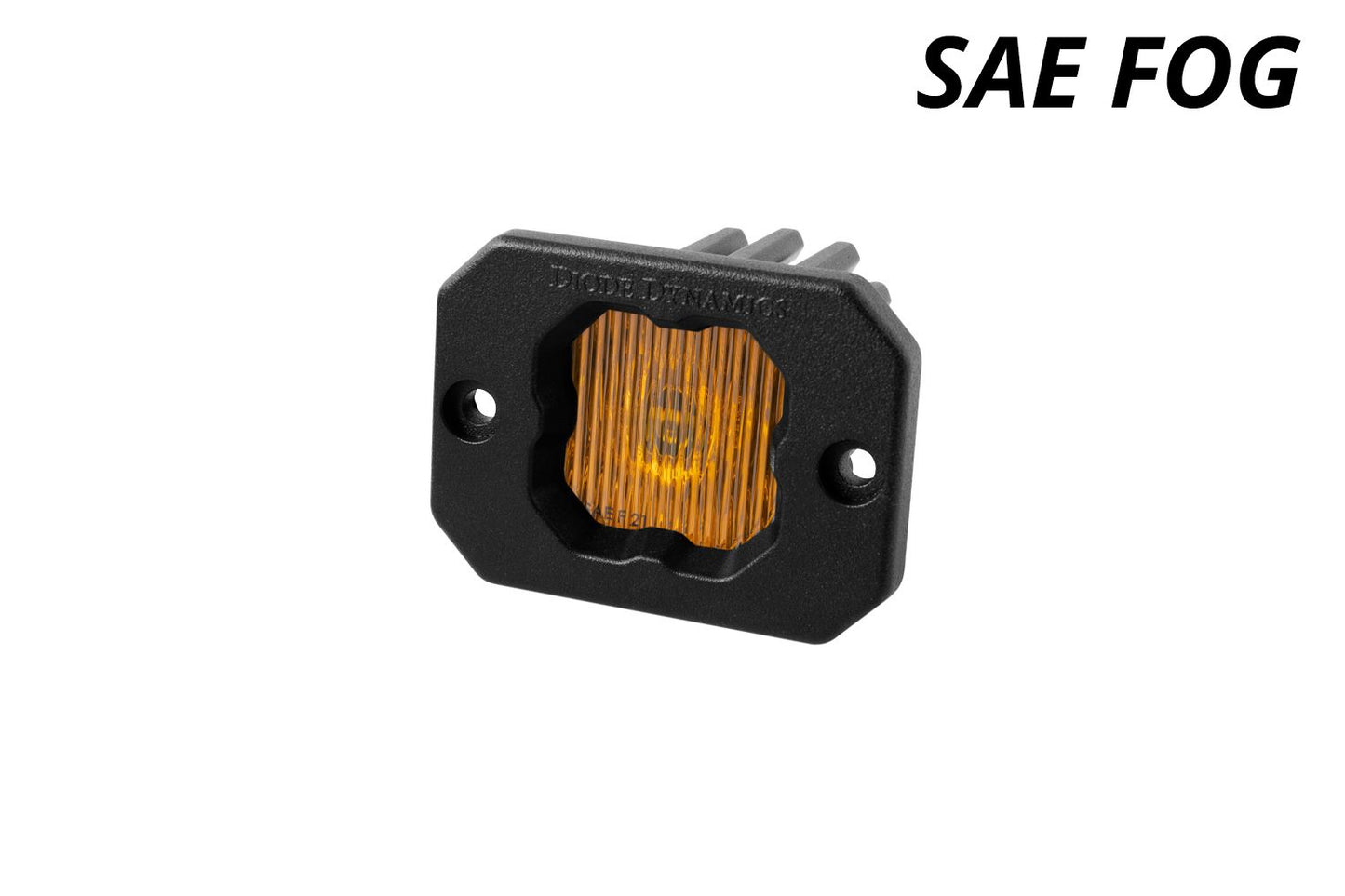

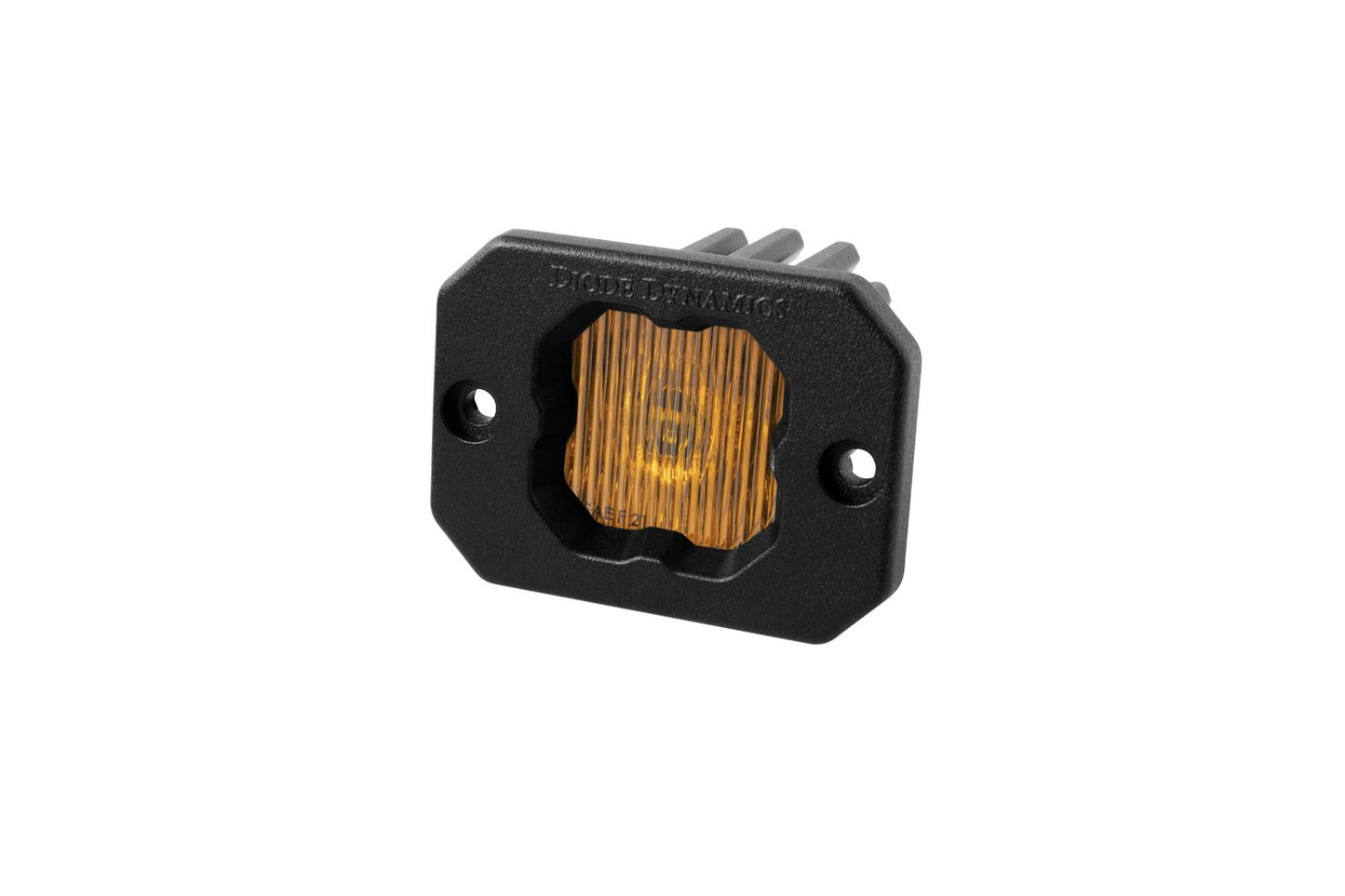

Selective Yellow – 3000K: Provides a distinctive yellow appearance commonly chosen for fog and poor-weather lighting applications.
Integrated Backlight
The SSC1 SAE Fog includes an integrated backlight available in white or amber, depending on the selected configuration.
The backlight illuminates the TIR optic itself, providing an additional accent-light function separate from the primary fog beam.
Interchangeable Lens Design
Compatible replacement lenses allow the SSC1 optic or output color to be changed without replacing the complete LED pod.
This modular design gives you greater flexibility if your lighting requirements change later.
Simple Deutsch-Style Connection
The SSC1 uses an integrated DT-type Deutsch-style connector and includes a 6-inch pigtail with bare leads.
It can be integrated into a custom wiring setup, an appropriate Deutsch DT-style harness, or a compatible Diode Dynamics wiring harness.
Proven Stage Series Reliability
Stage Series LED lighting has been extensively tested for long-term operation from -40°F to 185°F, along with vibration, moisture intrusion, and corrosion testing.
The SSC1 is designed, torture-tested, and assembled in the USA for demanding automotive and powersports applications.

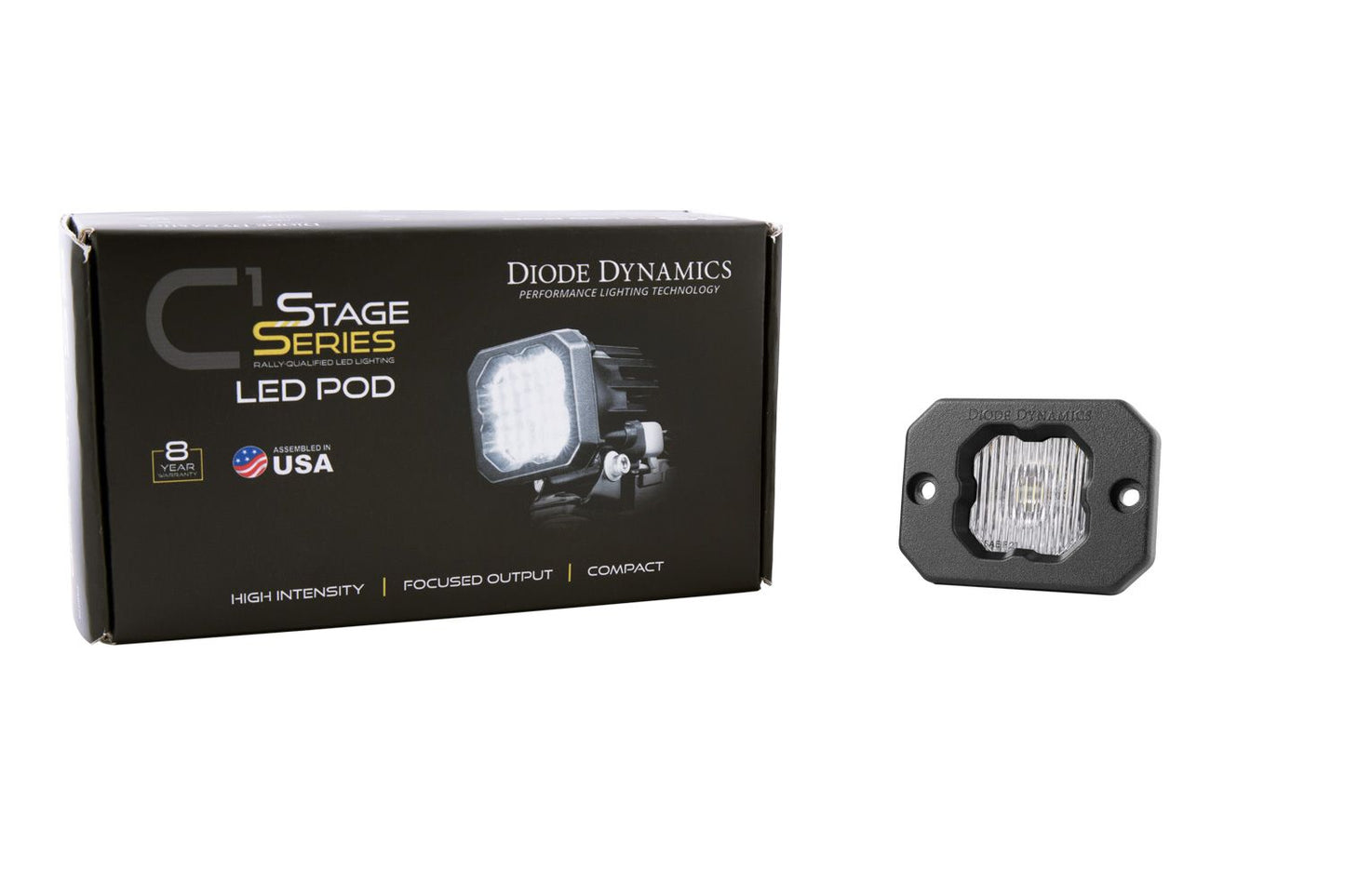

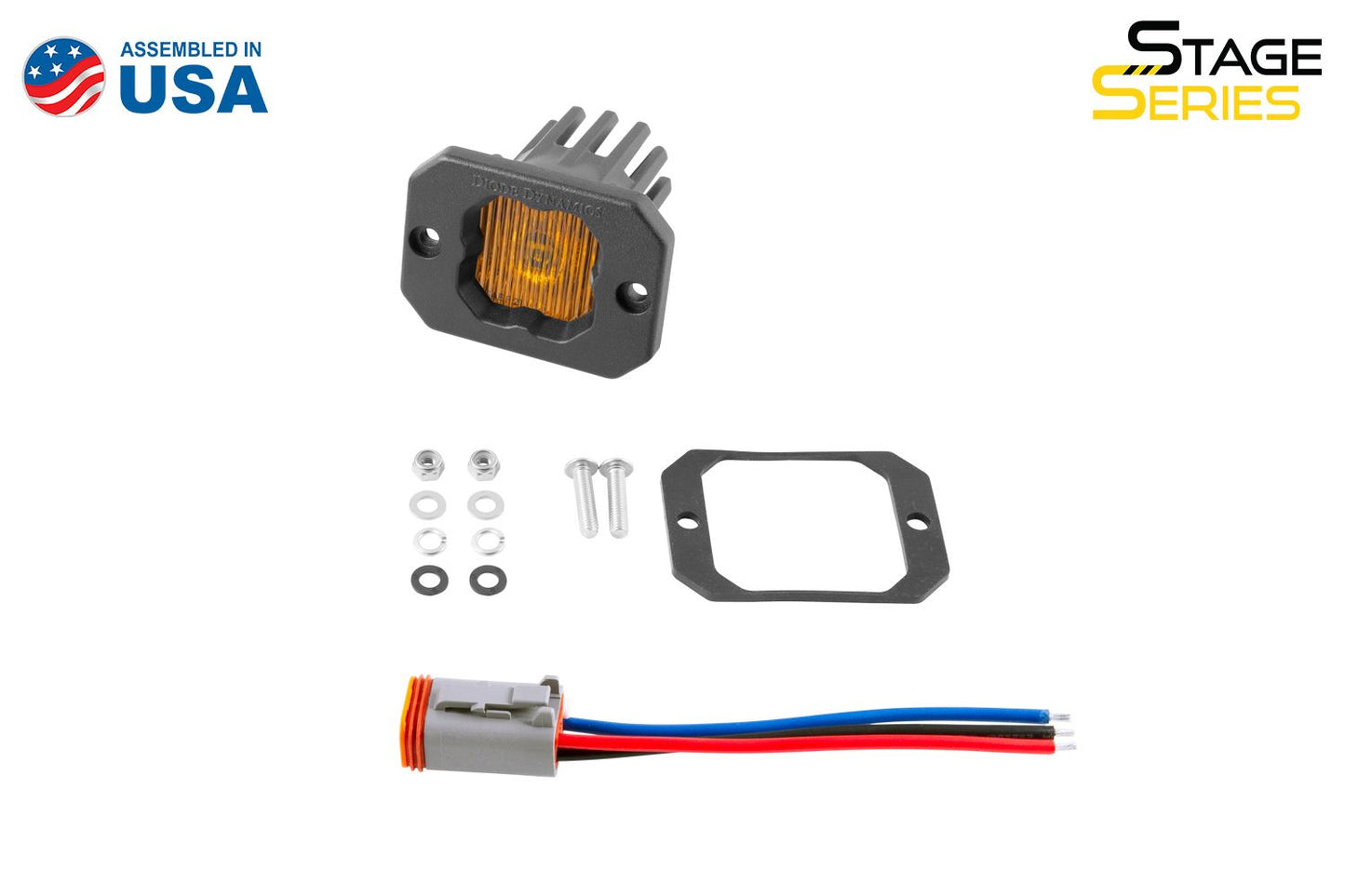

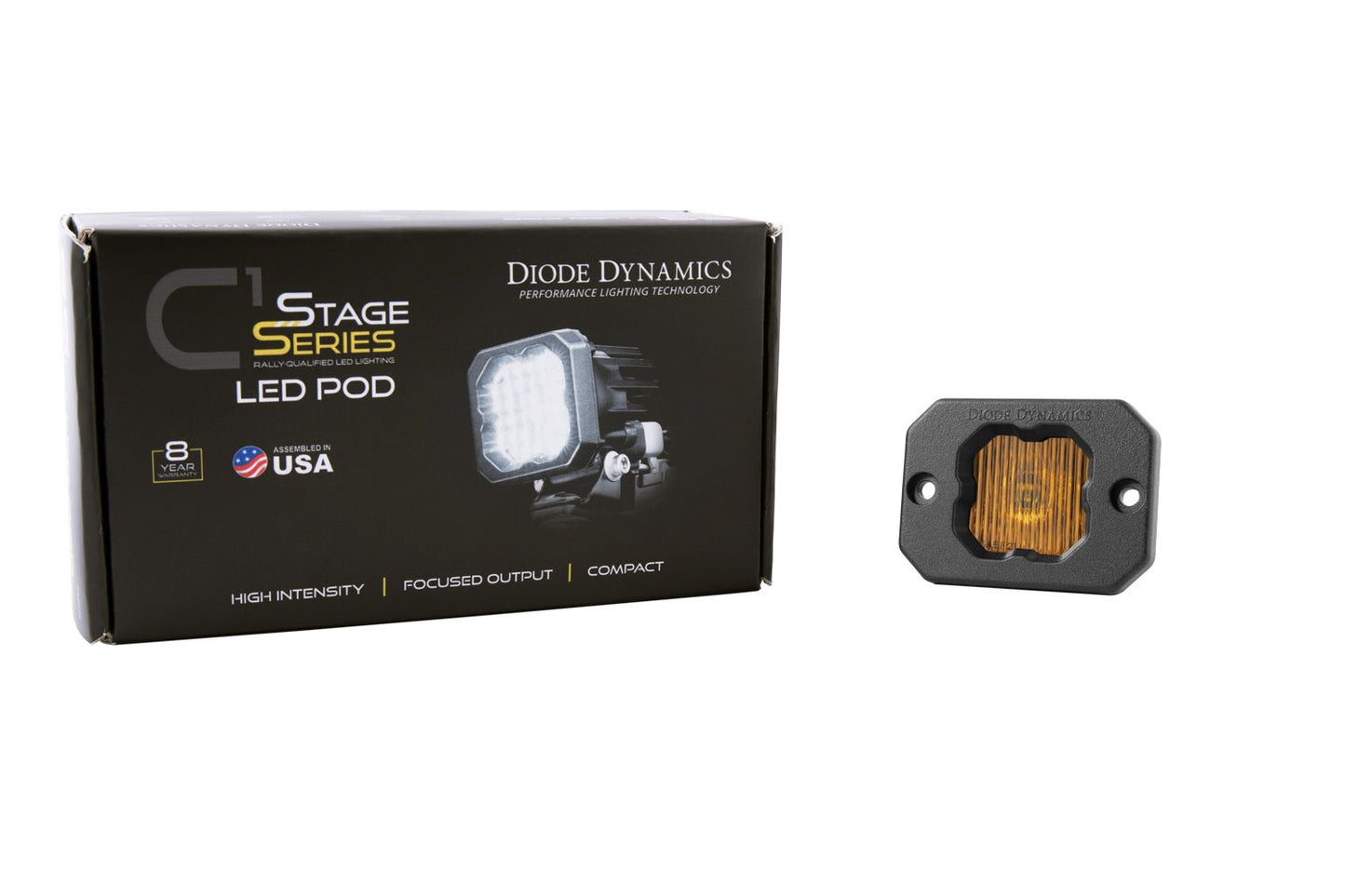

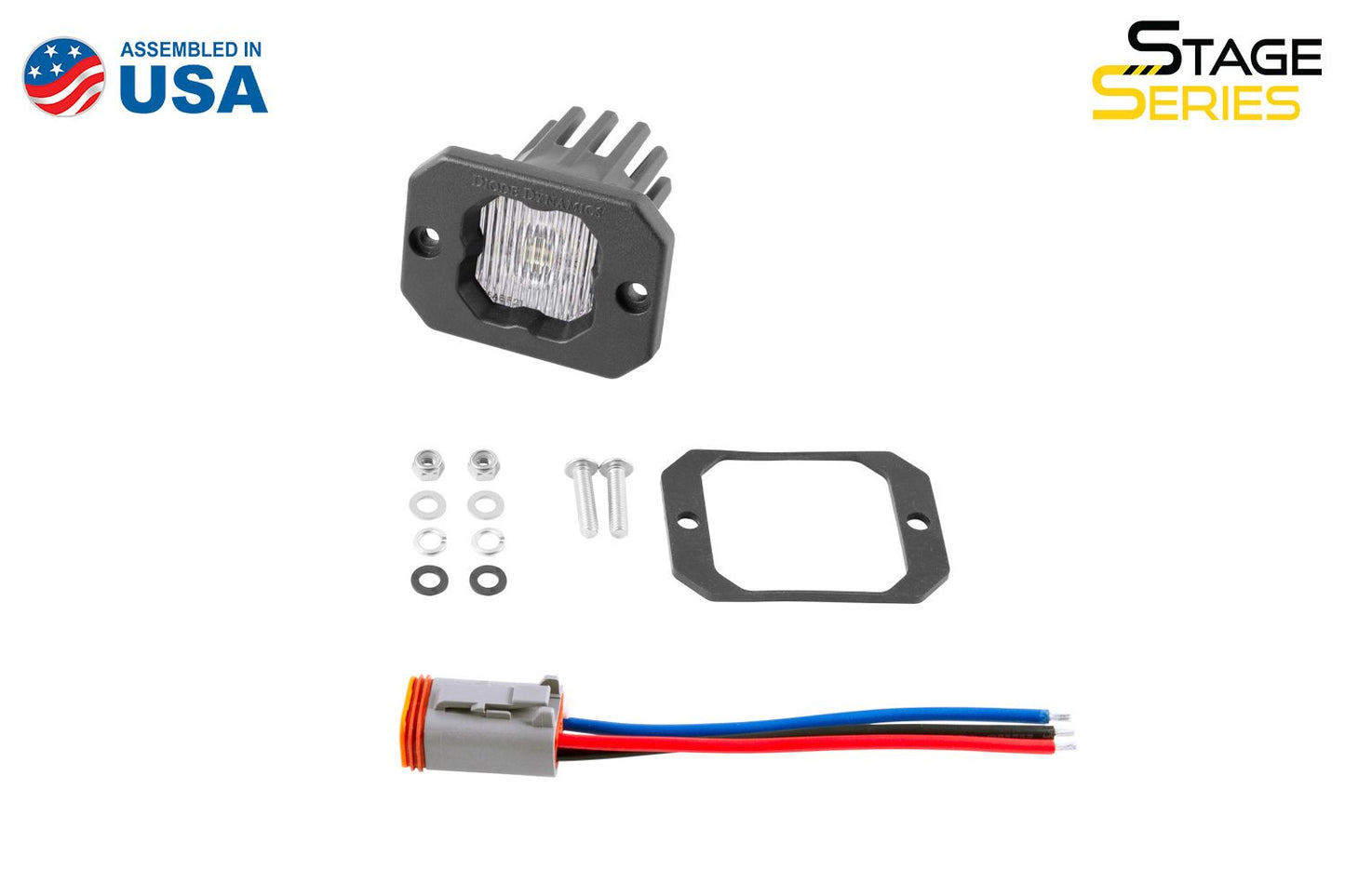

What’s Included
For the single-pod configuration:
- One (1) Stage Series SSC1/C1 SAE Fog LED Pod
- One (1) Deutsch-style wire pigtail
- One (1) flush-mount bracket/bezel
- Mounting hardware
Quantity: One (1)
Series: Stage Series C1 / SSC1
Mounting Style: Flush Mount
Beam Pattern: SAE Fog
Beam Spread: 98 degrees
LED: Osram HX Boost 20W
Output Colors: 6000K White or 3000K Yellow
Backlight Options: White or Amber
Connector: DT-type Deutsch-style
Warranty: Lifetime warranty
Specifications
- Datasheet(s) (click to download): SSC1 SAE Fog White Flush
- Color Temp (CCT): 6000K
- Beam Angle: Fog, 98°x9°
- Operating Voltage: 9-16V
- Polarity: Polarity Specific
- Operating Temperature: -40C to 85C (-40F to 185F)
- LED Emitter: Osram Boost HX
- Connector(s): Deutsch DT Input
- Driver Features: Constant Current
- Materials: Polycarbonate Lens, Aluminum Casting, Rubber Gasket
- Cooling: Passive, Pin-Fin heatsink
- Compliance Ratings: SAE J575 Durability Test, SAE J583 Foglamp Beam Pattern
- Intrusion Ratings: IP69K Waterproof, High Pressure

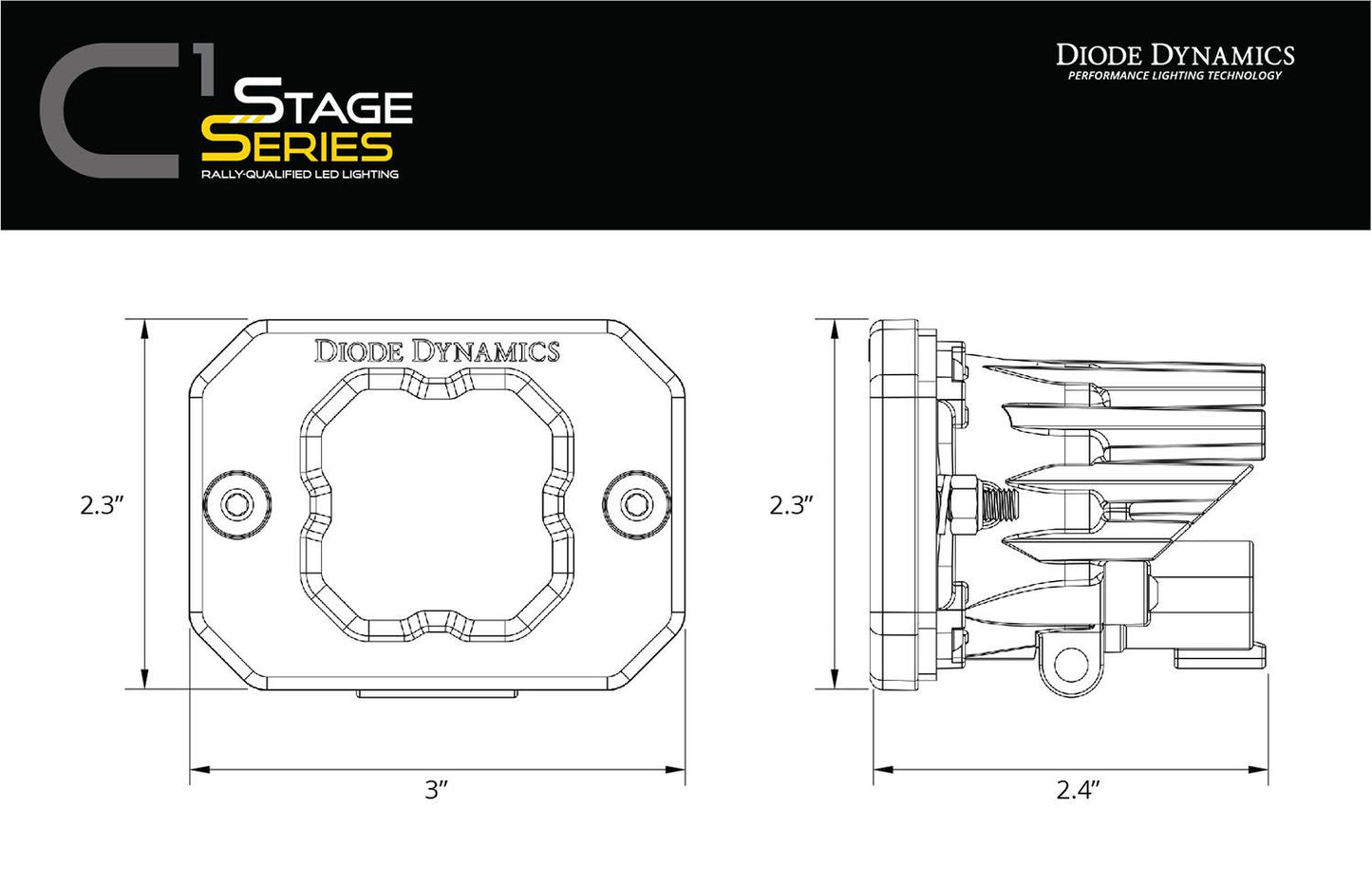

- Product Dimensions (in): 2.3 x 3 x 2.4
- Unit Weight (lb): 0.1
- Product Weight (lb): 0.5
Installation
