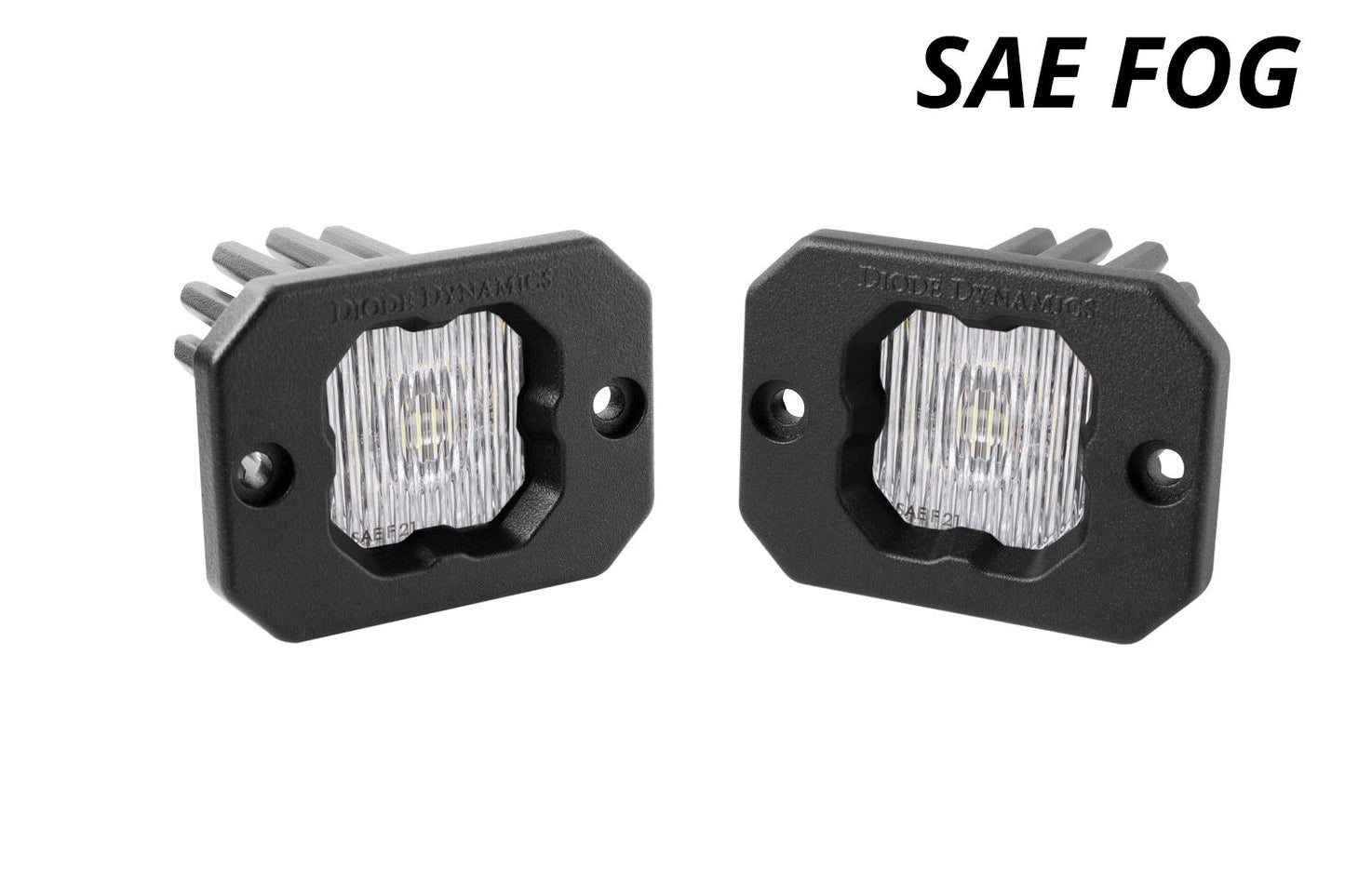

Diode Dynamics SSC1 White SAE Fog Flush Mount LED Pods – Pair | DD6850P

Diode Dynamics SSC1 White SAE Fog Flush Mount LED Pods – Pair

Upgrade your vehicle with compact, integrated fog lighting using the Diode Dynamics SSC1 White SAE Fog Flush Mount LED Pods (DD6850P). These Diode Dynamics Stage Series C1 pods combine an automotive-grade Osram HX Boost 20-watt LED, custom-engineered TIR optics, and a flush-mount design for powerful illumination with a clean, factory-style appearance.

This configuration features 6000K cool white output and an extremely wide 98-degree SAE Fog beam, making it ideal for bumper and other custom flush-mount fog-light installations.

Part Number: DD6850P
Quantity: Two (2) LED Pods

Key Features

• Pair of SSC1 Stage Series C1 LED Pods
• Flush-mount design for a clean installation
• 6000K cool white main output
• Ultra-compact single-LED form factor
• Automotive-grade Osram HX Boost 20W LED
• Wide 98-degree SAE Fog beam
• Custom-engineered TIR optics
• White or amber backlight options
• Interchangeable lens design
• Integrated DT-type Deutsch-style connectors
• Designed, torture-tested, and assembled in the USA
• Lifetime warranty

Compact Flush-Mount Fog Lights

The SSC1 Flush Mount Kit is designed to integrate compact Stage Series lighting directly into compatible bumpers and other flat mounting surfaces.

Its ultra-compact single-LED form factor fits locations where larger LED pods may not work, while the flush-mount configuration creates a clean, integrated appearance.

For custom builds where both size and light control matter, the SSC1 provides considerable installation flexibility.

98° SAE Fog Beam

The SSC1 SAE Fog optic was developed using optical simulation modeling to produce an extremely wide, controlled fog-light pattern.

Its 98-degree horizontal spread illuminates a broad area in front of the vehicle, making it a strong option for upgrading or supplementing compatible fog-light installations.

Follow all applicable local requirements for auxiliary lighting installation, aiming, and use.

6000K Cool White Output

The DD6850P configuration uses 6000K cool white output, producing a crisp white appearance designed to complement many modern factory LED headlights and exterior lighting systems.

For drivers who prefer selective yellow lighting, a 3000K SSC1 configuration is available separately.

Osram HX Boost 20W LED

Each SSC1 SAE Fog Pod uses a single automotive-grade Osram HX Boost 20-watt LED.

This high-output emitter allows Diode Dynamics to deliver useful fog-light performance while maintaining the extremely compact dimensions of the Stage Series C1 platform.

Custom-Engineered TIR Optics

Instead of relying on a conventional reflector, the SSC1 uses Total Internal Reflection (TIR) optics to collect and control the LED’s output.

The custom optic directs the light into the intended beam pattern, helping minimize wasted light and glare. It also serves as the pod’s main lens, improving optical efficiency while keeping the housing compact.

Integrated Backlight

The SSC1 SAE Fog includes an integrated backlight available in white or amber, depending on the selected configuration.

Rather than illuminating only a small indicator, the backlight lights up the TIR optic itself for a distinctive accent-light appearance.

Check applicable local laws before using auxiliary or accent lighting on public roads.

Interchangeable Lens Design

Stage Series C1 pods feature interchangeable lenses, allowing compatible optic or output-color changes without replacing the complete LED pod.

This provides additional flexibility if your lighting requirements or vehicle build change later.

Deutsch-Style Connections

Each SSC1 LED Pod features an integrated DT-type Deutsch-style connector and includes a 6-inch pigtail with bare leads.

This provides a durable connection point for integration into an appropriate vehicle-specific or universal wiring setup.

Proven Stage Series Reliability

Diode Dynamics Stage Series lighting is tested for long-term operation from -40°F to 185°F, along with vibration, moisture intrusion, and corrosion testing.

The SSC1 is designed, torture-tested, and assembled in the USA for demanding automotive and powersports applications.

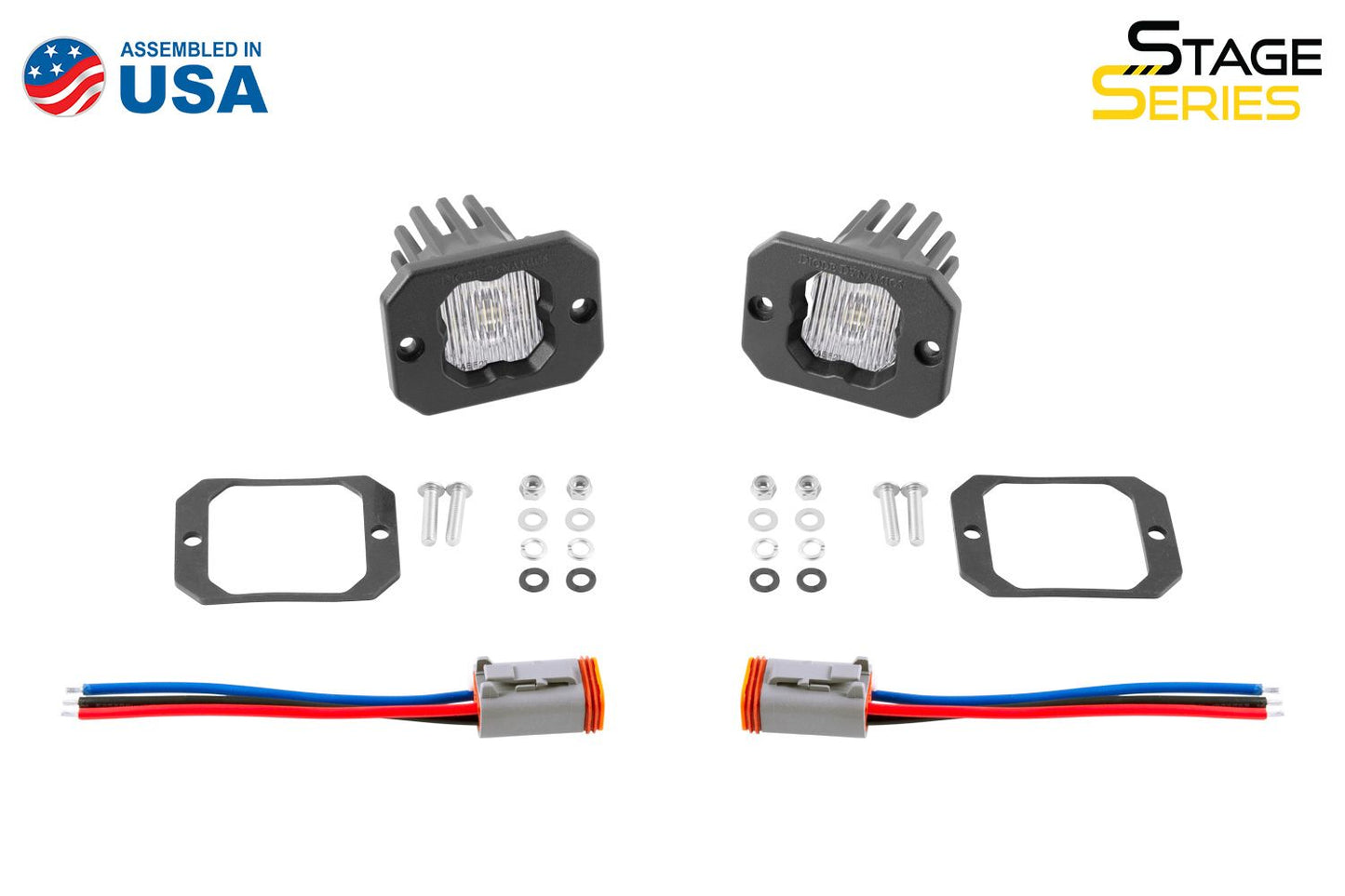

What’s Included

• Two (2) Stage Series C1 / SSC1 White SAE Fog LED Pods
• Two (2) Deutsch-style wire pigtails
• Two (2) flush-mount brackets
• Mounting hardware

Part Number: DD6850P
Quantity: Two (2)
Series: Stage Series C1 / SSC1
Mounting: Flush Mount
Output Color: 6000K Cool White
Beam Pattern: SAE Fog
Beam Spread: 98 degrees
LED: Osram HX Boost 20W
Backlight Options: White or Amber
Connector: DT-type Deutsch-style
Warranty: Lifetime warranty
Designed, tested and assembled in: USA
