Diode Dynamics SSC1 Yellow SAE Fog Flush Mount LED Pods – Pair | DD6851P

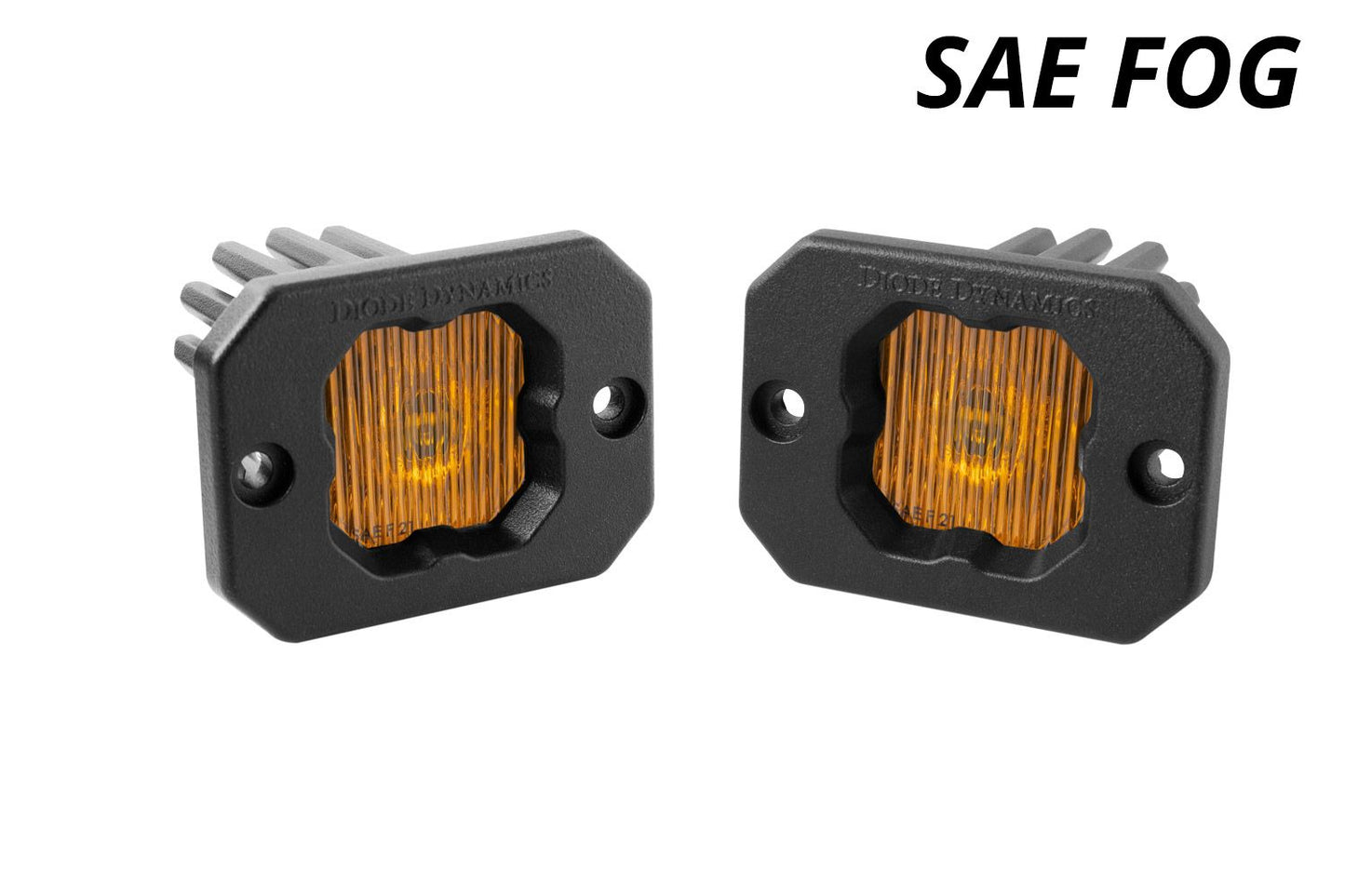

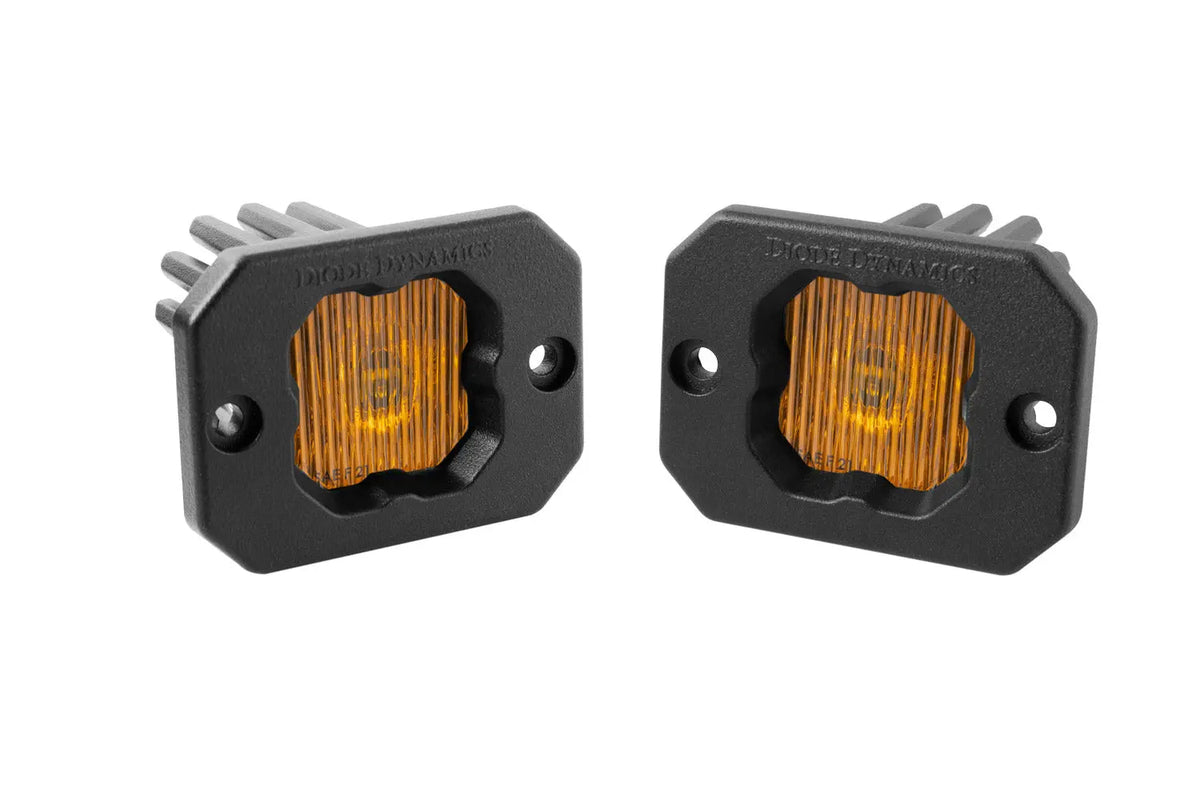

Diode Dynamics SSC1 Yellow SAE Fog Flush Mount LED Pods – Pair

Upgrade your auxiliary lighting with the Diode Dynamics Stage Series SSC1 Yellow SAE Fog Flush Mount LED Pods (DD6851P). Combining compact dimensions, selective yellow output, an amber backlight, and an SAE fog beam, this pair provides functional lighting in a clean flush-mount package.

Diode Dynamic's ultra-compact SSC1 design makes these pods ideal for bumpers and other locations where larger auxiliary lights won’t fit.

Part Number: DD6851P
Quantity: Two (2) LED Pods
Output Color: Selective Yellow (3000K)

Key Features

• Pair of Stage Series SSC1 LED Pods
• Selective yellow 3000K output
• SAE fog beam pattern
• 98-degree wide light spread
• Brilliant amber backlight
• Flush-mount configuration
• Ultra-compact single-LED design
• Automotive-grade Osram HX Boost 20-watt LED
• Custom-engineered TIR optics
• Integrated DT-type Deutsch-style connector
• Interchangeable lens design
• Designed, torture-tested, and assembled in the USA
• Lifetime warranty

SAE Fog Beam Pattern

The SSC1 SAE Fog optic was developed using optical simulation modeling to produce a wide, controlled fog light pattern.

Its 98-degree horizontal spread illuminates a broad area in front of the vehicle, making the SSC1 an effective compact replacement or auxiliary fog light solution. The fog pattern is designed to meet the SAE J583 fog lamp standard when properly installed and aimed.

Always confirm local lighting regulations and installation requirements for your vehicle.

Selective Yellow 3000K Output

These SSC1 pods feature 3000K selective yellow output, providing a distinctive appearance compared with conventional cool-white auxiliary lighting.

The yellow output pairs especially well with off-road, truck, SUV, powersports, and custom automotive lighting setups where a traditional yellow fog light appearance is desired.

Amber Backlight

In addition to the primary yellow fog beam, the SSC1 DD6851P features a brilliant amber backlight.

The backlight illuminates the TIR optic, creating a distinctive accent when the primary fog beam isn’t in use. This provides additional styling flexibility without requiring a separate accent light.

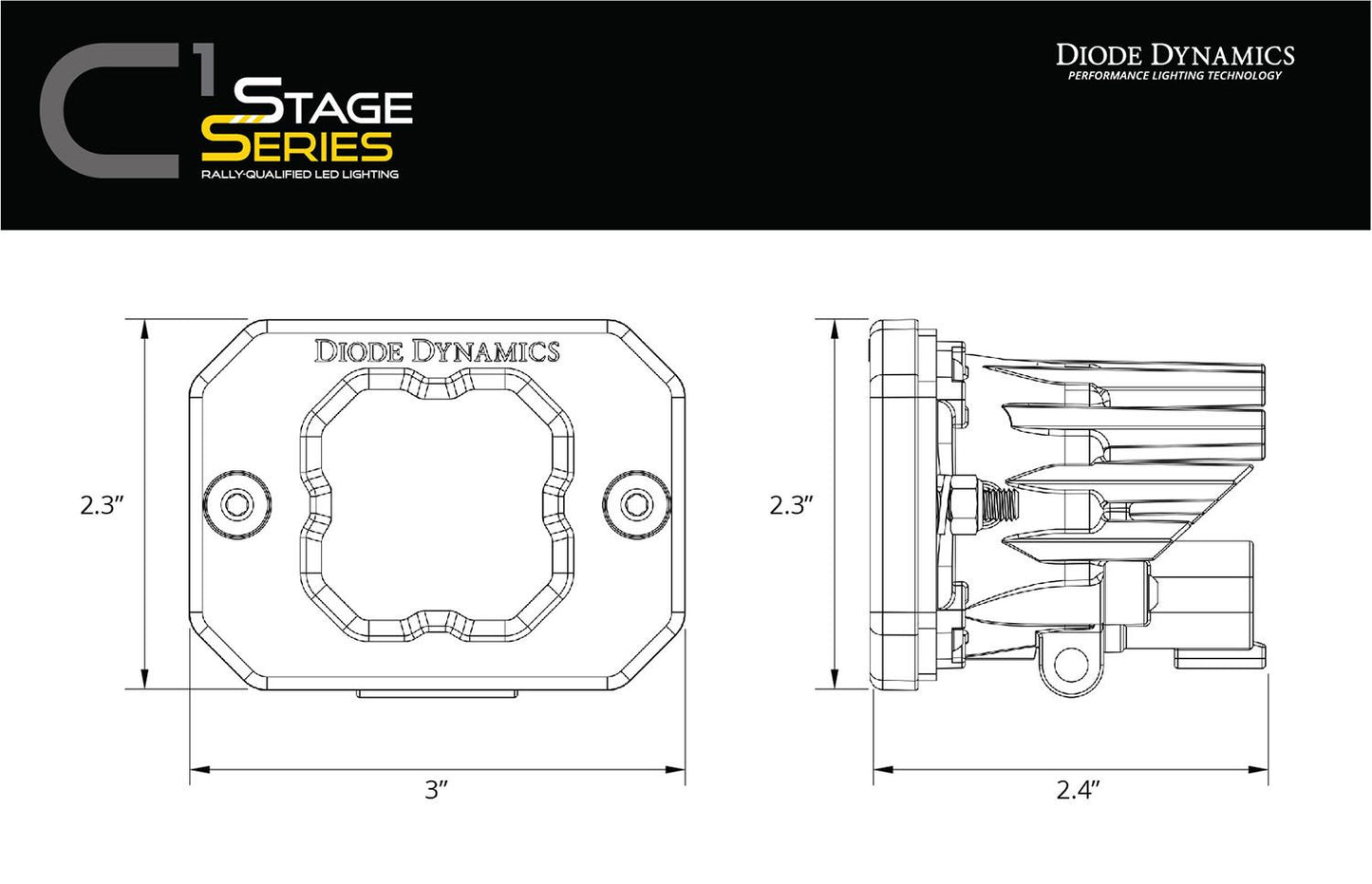

Compact Flush-Mount Design

The SSC1’s single-LED construction allows for installation in locations where conventional LED pods may be too large.

With the included flush-mount hardware, the pods sit neatly within the mounting surface for a clean, integrated appearance. This makes them particularly useful for custom bumper installations and other tight mounting locations.

High-Performance TIR Optics

Diode Dynamics uses custom-engineered Total Internal Reflection (TIR) optics to collect and direct the LED output into the intended beam pattern.

Instead of relying on a conventional reflector and separate outer lens, the TIR optic is designed to efficiently control the light and minimize unwanted glare while delivering useful illumination where it’s needed.

Osram HX Boost LED

Each SSC1 SAE Fog Pod uses a single automotive-grade Osram HX Boost 20-watt LED, allowing Diode Dynamics to produce substantial output from an extremely compact housing.

The combination of the high-power LED and engineered TIR optic gives the SSC1 its compact size without sacrificing its purpose-built fog beam.

Interchangeable Lens

The SSC1 uses an interchangeable lens design, allowing compatible replacement lenses to be installed when you want to change the optic or output configuration.

This gives you additional flexibility to modify your Stage Series lighting setup in the future.

Deutsch-Style Connection

Each SSC1 pod features an integrated DT-type Deutsch-style connector and includes a 6-inch pigtail with bare leads.

This provides a straightforward connection point for custom wiring, compatible harnesses, and vehicle-specific installations.

Tested for Automotive Environments

Stage Series LED lighting is tested for operation from -40°F to 185°F, along with vibration, moisture intrusion, and corrosion testing.

The SSC1’s compact housing is engineered for demanding automotive and powersports applications while maintaining the small footprint needed for custom installations.

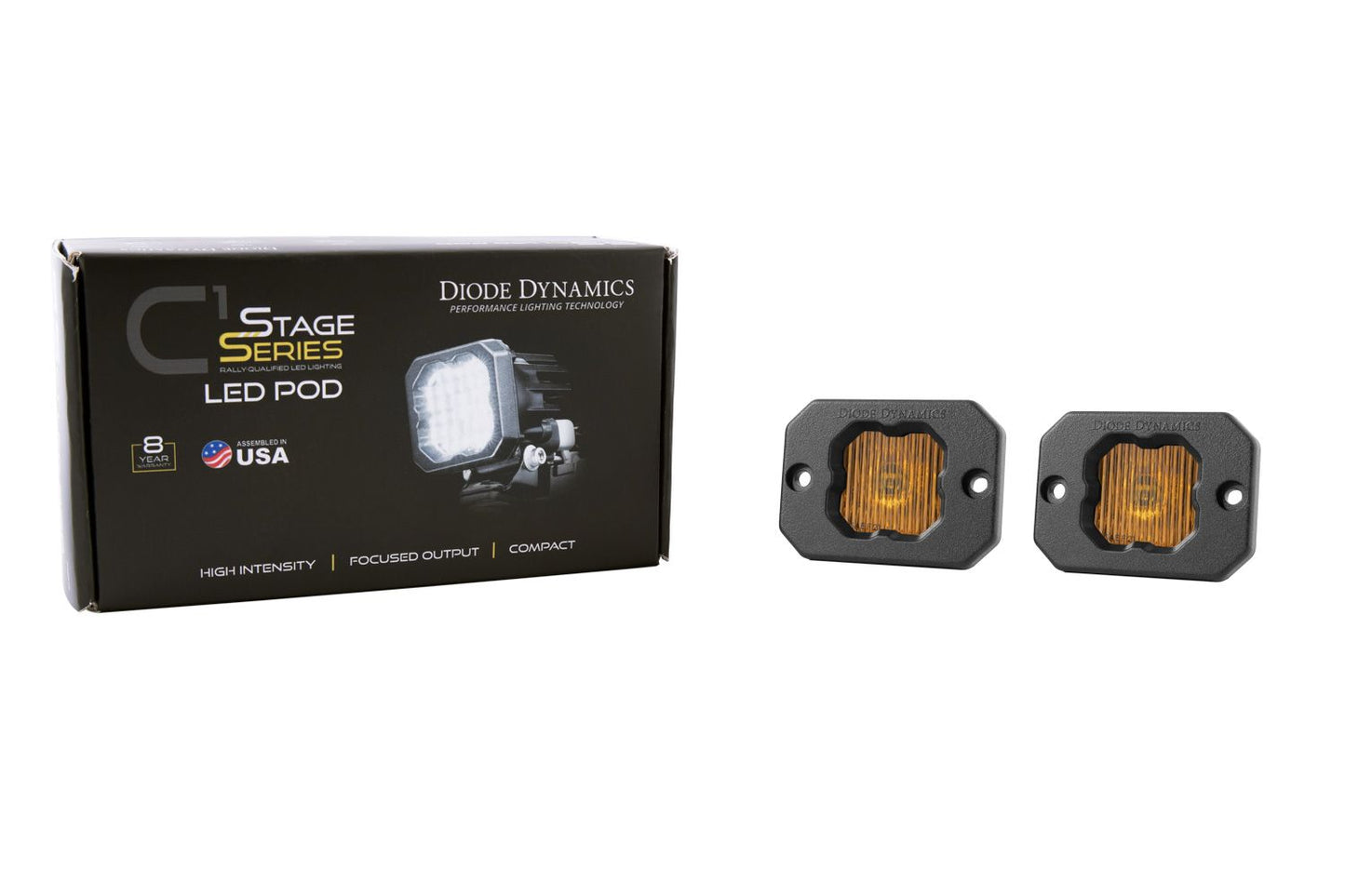

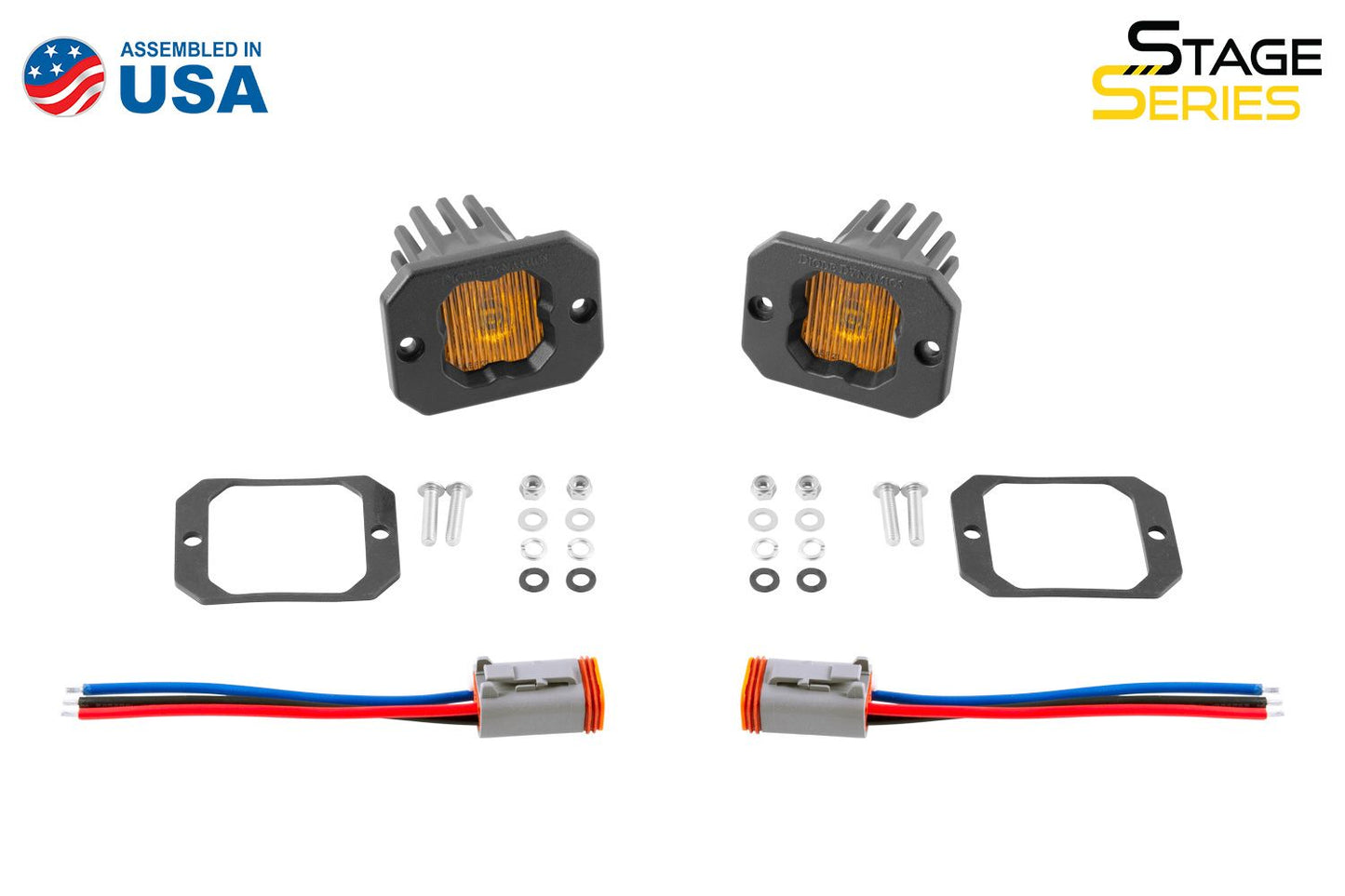

What’s Included

• Two (2) Stage Series C1/SSC1 LED Pods
• Two (2) Deutsch-style wire pigtails
• Two (2) flush-mount brackets
• Mounting hardware

Part Number: DD6851P
Quantity: Two (2)
Series: Stage Series C1 / SSC1
Mounting Style: Flush Mount
Output Color: Selective Yellow
Color Temperature: 3000K
Beam Pattern: SAE Fog
Beam Spread: 98 degrees
Backlight Color: Amber
LED: Osram HX Boost 20W
Connector: DT-type Deutsch-style
Warranty: Lifetime warranty
Designed, tested and assembled in: USA
