Diode Dynamics Stage Series LED Bed Light Kit for 2022–2026 Toyota Tundra & 2024–2026 Tacoma

Diode Dynamics Stage Series LED Bed Light Kit for Toyota Tundra & Tacoma

Get significantly more usable light in the bed of your 2022–2026 Toyota Tundra or 2024–2026 Toyota Tacoma with the Diode Dynamics Stage Series LED Bed Light Kit. This direct-fit truck bed lighting upgrade adds four Stage Series LED Rock Lights along the factory bed rails, delivering bright, even illumination for loading, unloading, working, or finding gear after dark.

The included plug-and-play wiring harness connects directly to the factory bed light wiring. Once installed, the LED bed lights integrate with the factory lighting system and illuminate when you open the tailgate.

Part Number: DD7948

Features

• Direct fitment for 2022–2026 Toyota Tundra
• Direct fitment for 2024–2026 Toyota Tacoma
• Adds four Stage Series LED Rock Lights to the truck bed
• 10-watt, 800-lumen peak output
• Significantly increases usable truck bed illumination
• Plug-and-play connection to factory bed light wiring
• Lights automatically activate when the tailgate is opened
• Low- and high-power operating modes
• Included 3-way switch for easy output control
• Optically engineered lenses for even light distribution
• Interchangeable Stage Series Rock Light lenses
• IP68 waterproof rated
• Durable cast-aluminum housings
• Designed and assembled in the USA
• Lifetime warranty

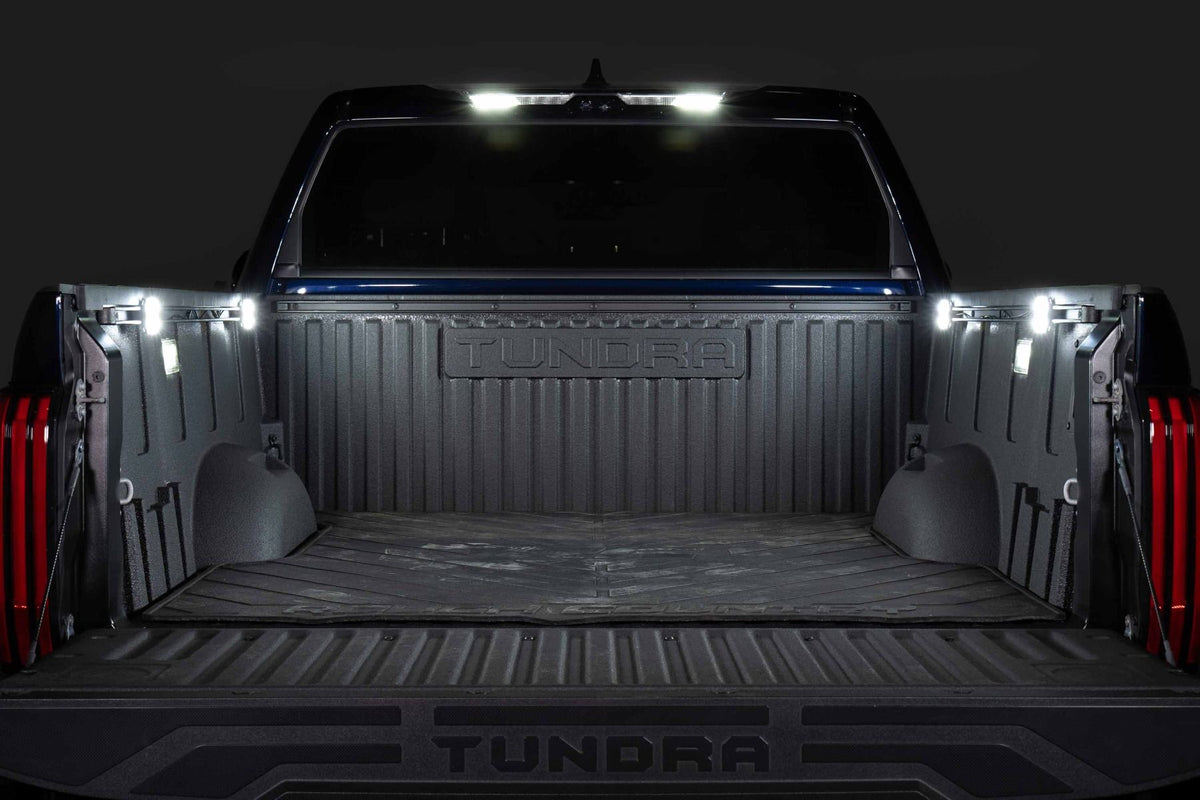

Powerful Toyota Tundra & Tacoma Bed Lighting

Factory bed lights can leave large portions of your truck bed poorly illuminated at night. The Diode Dynamics Stage Series kit combines high-powered LEDs with optically engineered lenses to provide a substantial increase in usable light throughout the bed.

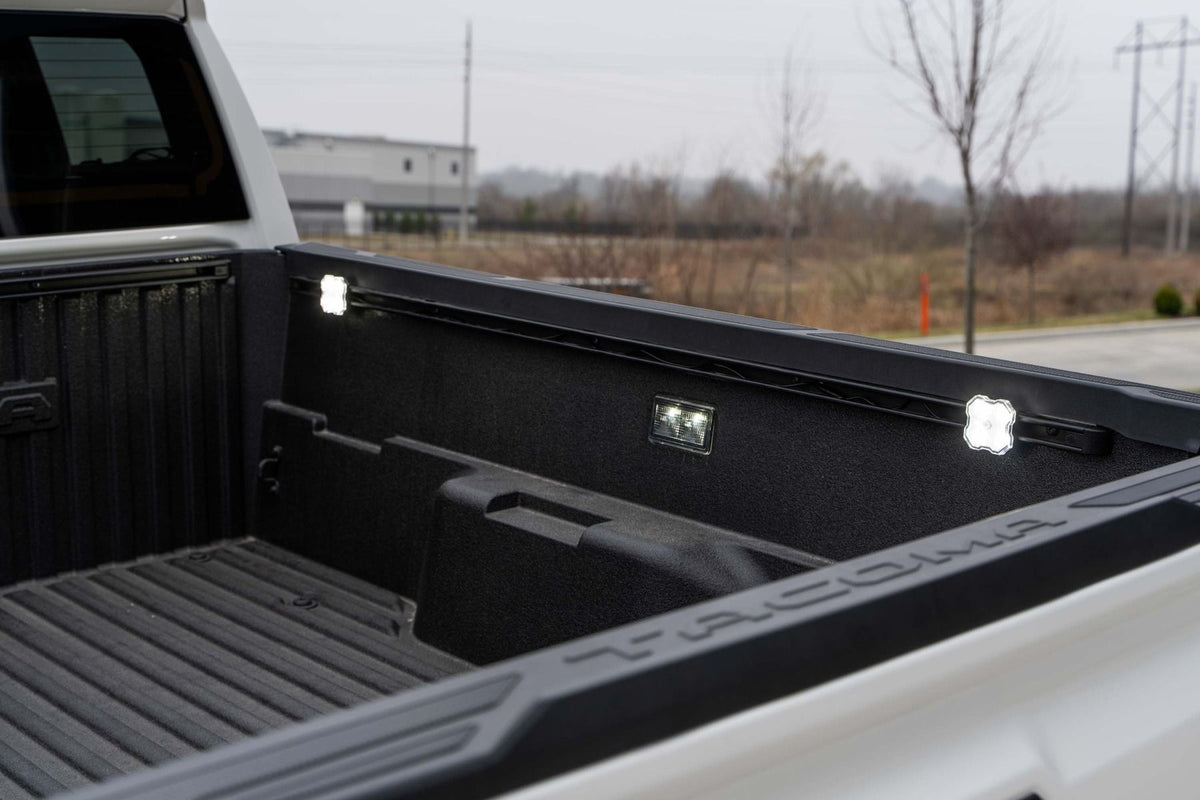

Four Stage Series LED Rock Lights mount along the factory bed rails to provide broad, consistent illumination. Whether you’re loading equipment, organizing tools, setting up camp, or accessing cargo after dark, this Toyota Tundra and Tacoma LED bed light kit provides additional light where you need it.

The lights also integrate with the factory bed lighting system and automatically illuminate when the tailgate is opened.

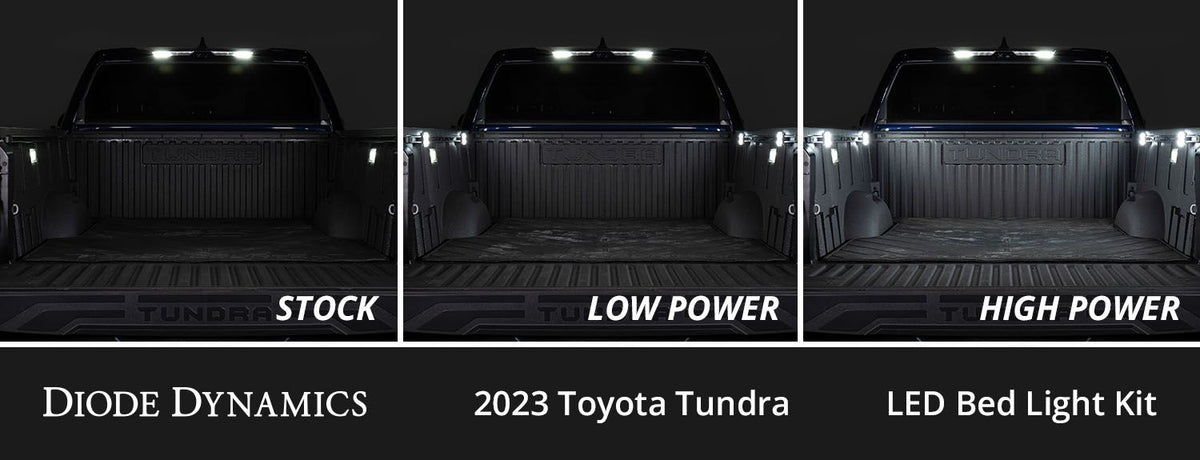

Dual Power Levels

Stage Series Rock Lights use a three-wire design that provides both low- and high-power modes.

The included 3-way switch makes it easy to switch between output levels, allowing you to select the right amount of truck bed lighting for the situation.

Optically Engineered Rock Lights

Instead of relying on a basic clear cover, Diode Dynamics designed the Stage Series Rock Lights with four individual optics molded directly into the outer lens.

These optics distribute light across a wide area for even, consistent coverage throughout the truck bed.

The thick automotive-grade polycarbonate lenses are also interchangeable, allowing compatible Stage Series Rock Light lenses to be swapped for different colors or clear and diffused configurations.

Plug-and-Play Installation

The included wiring harness plugs directly into the factory bed light wiring for a straightforward installation without the need for a complicated custom wiring setup.

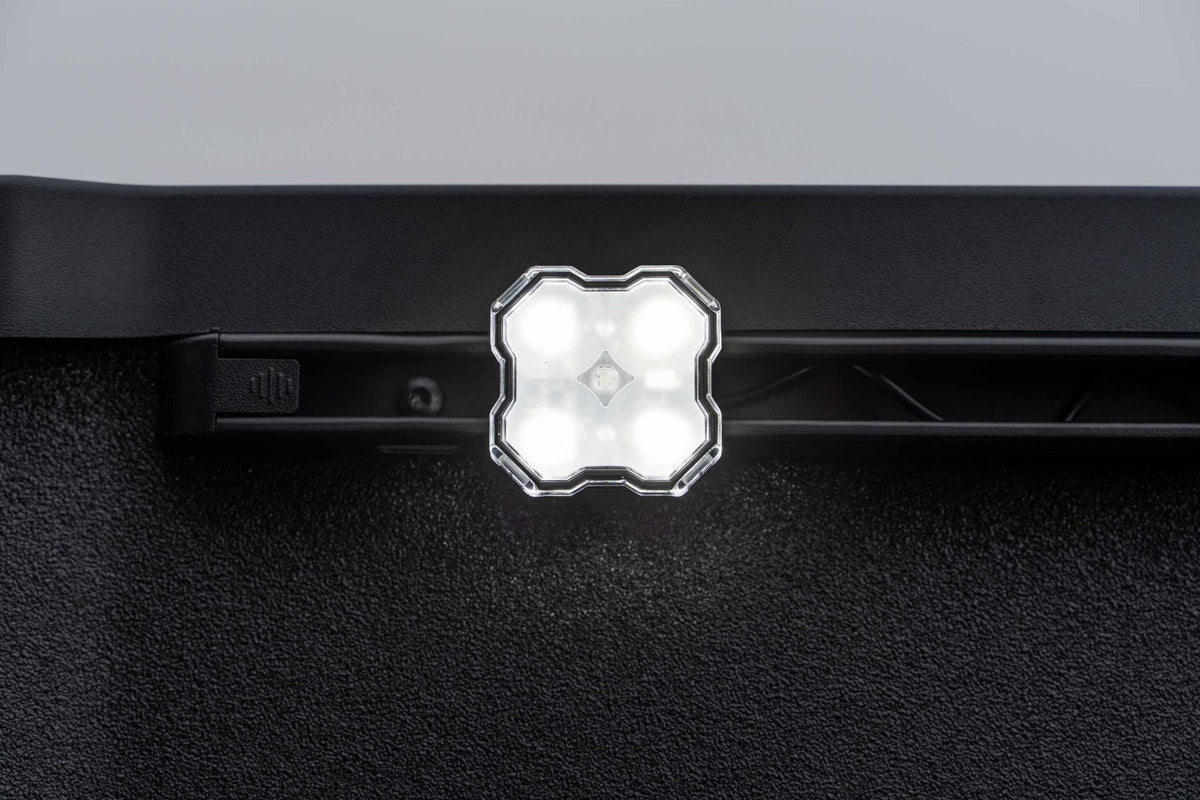

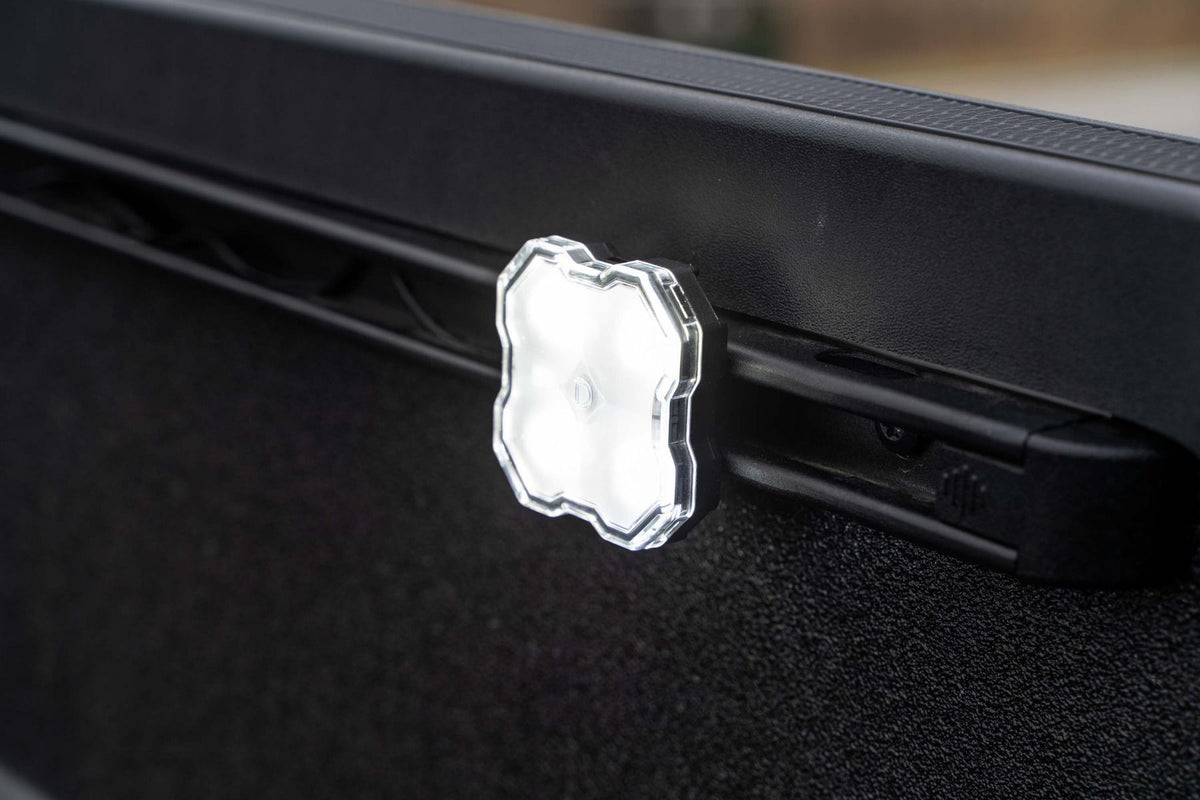

Each Stage Series Rock Light mounts along the factory bed rail using the included T-slot mounting hardware, providing a clean, integrated installation.

Built for Truck Use

Stage Series Rock Lights are engineered for demanding automotive environments. Each light features an IP68 waterproof rating, cast-aluminum housing, pin-fin heatsink, automotive-grade polycarbonate lens, and UV-resistant coating.

The lights have been tested for operation from -40°F to 185°F, along with vibration, moisture-intrusion, and corrosion testing for dependable long-term performance.

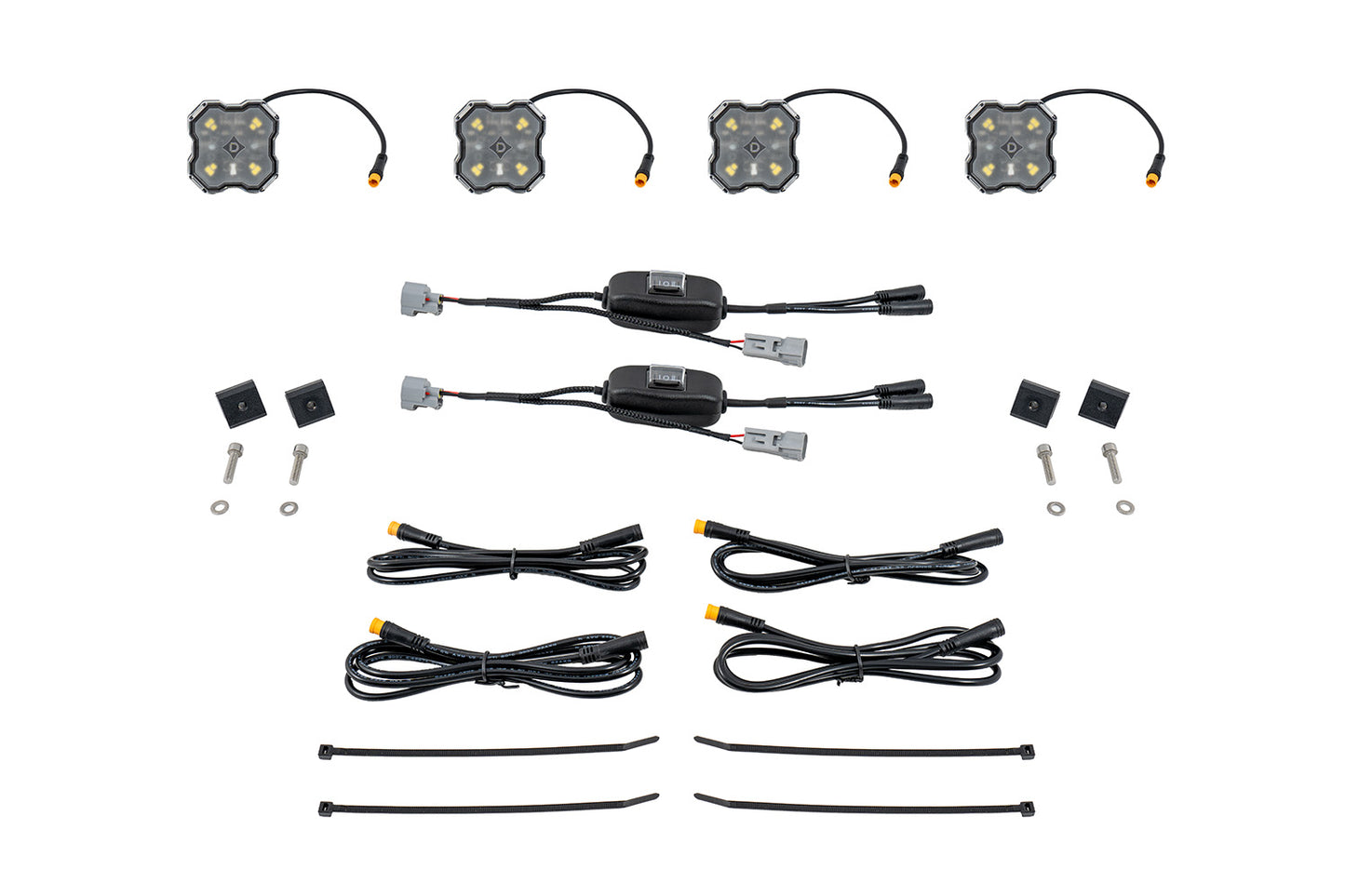

What’s Included

• Four (4) Stage Series LED Rock Lights
• One (1) Stage Series Bed Light Wiring Kit
• Four (4) T-slot nuts
• Mounting hardware
• Installation guide

Quantity: Four (4)
Part Number: DD7948
Warranty: Lifetime warranty

Vehicle Fitment

Toyota Tundra: 2022, 2023, 2024, 2025, 2026
Toyota Tacoma: 2024, 2025, 2026

Important Fitment Notes

• Only compatible with trim levels equipped with factory bed lights.
• Aftermarket bed covers may interfere with fitment.
• Verify factory bed-light equipment before ordering.
