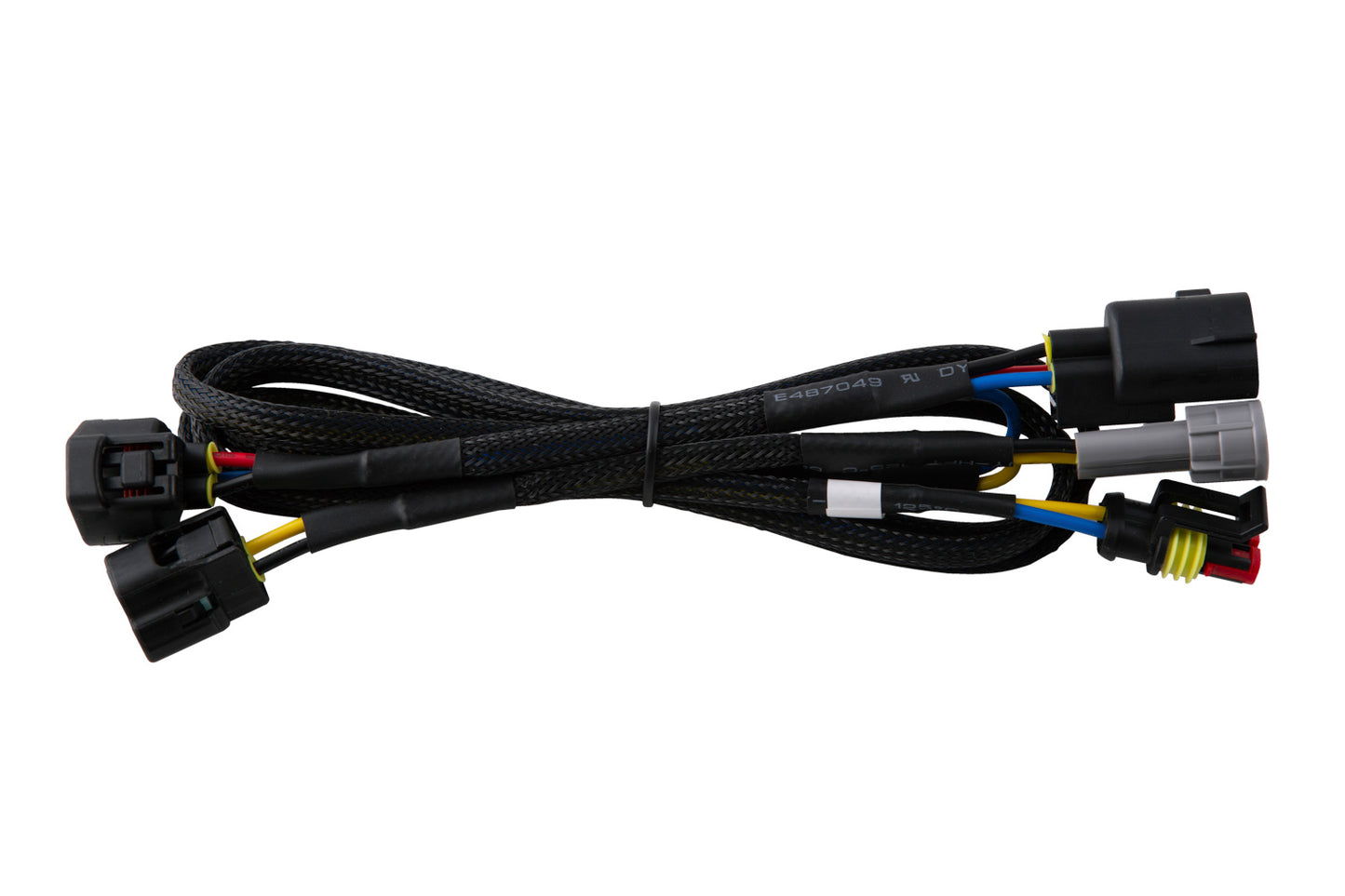

Diode Dynamics Stage Series Reverse Light Wiring Harness for 2016-2021 Toyota Tacoma

Diode Dynamics Stage Series Reverse Light Wiring Harness for 2016-2021 Toyota Tacoma

DD7158

$19.95
$19.95
Shipping calculated at checkout.

Diode Dynamics Stage Series Reverse Light Wiring Harness for 2016-2021 Toyota Tacoma

Description

Features

  • Allows for vehicle signal control of Reverse Light LED Pods.
  • Plug-and-play OEM connectors connect to factory tail light.
  • High capacity 18AWG wiring.

Overview

Plug and Play. This adapter harness is intended to be used with our universal Reverse Light Wiring Kit. It plugs right into your factory tail lights for easy installation and operation. No cutting, drilling, or additional wiring needed!

Complete Control. When paired with our Reverse Light Wiring Kit and LED Pods with a white main beam and red backlight, this harness allows your lights to operate as an additional red accent light, with your tail lights, and then automatically switches to a high-power backup light when your vehicle is in reverse. The included toggle switch allows you to override the vehicle signals and turn on the main beam anytime.

Fitment

Make: Toyota
Model: Tacoma
Years: 2016, 2017, 2018, 2019, 2020, 2021

What's Included

In the Box:
  • One (1) Vehicle-Specific Adapter Harness
  • Ten (10) zip ties
  • Two (2) T-taps
Quantity: One (1)
Warranty: 3 year warranty

Specifications

  • Operating Voltage: 9-16V
  • Wire Size: 14AWG & 18AWG
  • Operating Temperature: -40C to 85C (-40F to 185F)
  • Connector(s): Deutsch DT Input
  • Unit Weight (lb): 2.75
  • Product Weight (lb): 2.75
  • Shipped Weight (lb): 3.25

Installation

Installation Time: 30-60 minutes

Tools Needed: Basic Toolset

Installation Guide: Click to download
