Diode Dynamics Stage Series SXS Rock Light Installer Kit – 8-Pack
Diode Dynamics Stage Series SXS Rock Light Installer Kit – 8-Pack
SKU:DD7752
Diode Dynamics Stage Series SXS Rock Light Installer Kit – 8-Pack
Description
Diode Dynamics Stage Series Universal SXS Rock Light Installer Kit – 8-Pack
Add powerful, evenly distributed lighting to your side-by-side with the Diode Dynamics Stage Series Universal SXS Rock Light Installer Kit – 8-Pack. Designed specifically for UTV and SXS installations, this complete package includes eight Diode Dynamics Stage Series Rock Lights, tube-mount adapters, a wiring harness, extension wiring, and the hardware needed to build a clean wheel-well or underbody lighting setup.
Choose White Diffused for maximum functional output or RGBW for customizable multicolor lighting with dedicated white output. With optically engineered lenses, waterproof M8 connections, durable aluminum housings, and included tube mounts, this kit is built for demanding off-road environments.
High-Output Lighting for Your UTV
Stage Series Rock Lights deliver serious functional output from a compact housing. White Diffused models draw more than 10 watts and produce up to 1,000 lumens per light, giving the eight-light kit substantial illumination potential around your SXS.
The lights are also compatible with standard PWM dimmers, allowing compatible white-light installations to be adjusted to the brightness level that works best for your application.
Designed for SXS and UTV Installation

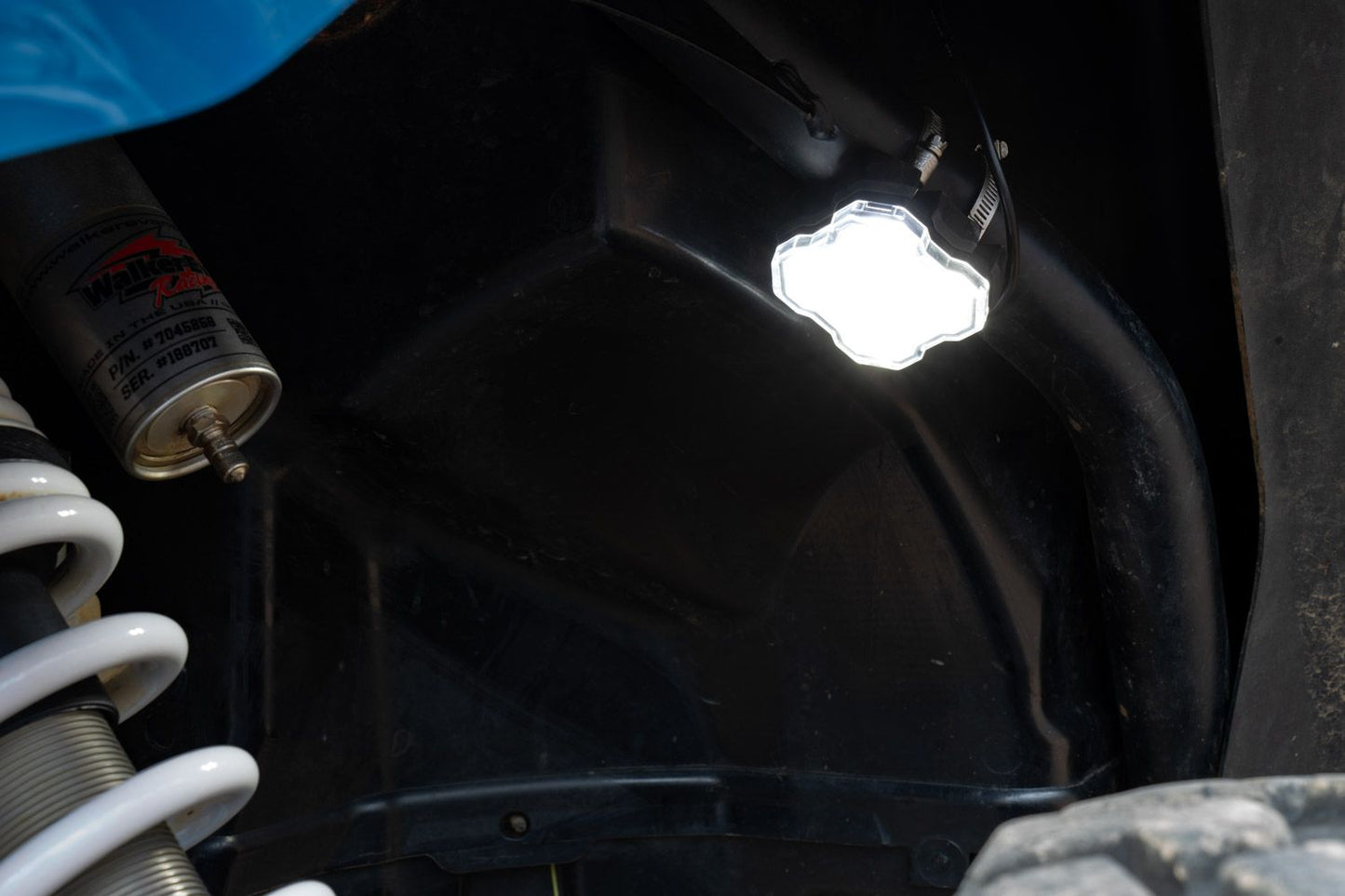

The included tube-mount adapters make it easy to position Stage Series Rock Lights around the wheel wells and frame of your side-by-side.
Mount the adapters directly to suitable frame support tubes, then position the lights to illuminate the tires, suspension, terrain, or surrounding area. This approach provides a clean installation without requiring custom-fabricated rock light brackets.
The universal design makes the kit suitable for a wide range of UTVs and side-by-sides with compatible tubular mounting locations.
White Diffused or RGBW
Choose the configuration that matches your build.
White Diffused provides maximum usable illumination and is ideal for trail visibility, wheel-well lighting, repairs, loading, and other functional applications.
RGBW combines customizable RGB color control with dedicated white output. Depending on the selected configuration, the system can provide color effects, fading, strobing, and custom lighting patterns in addition to functional white illumination.
RGBW configurations can be paired with the compatible Bluetooth M8 controller for convenient lighting control.

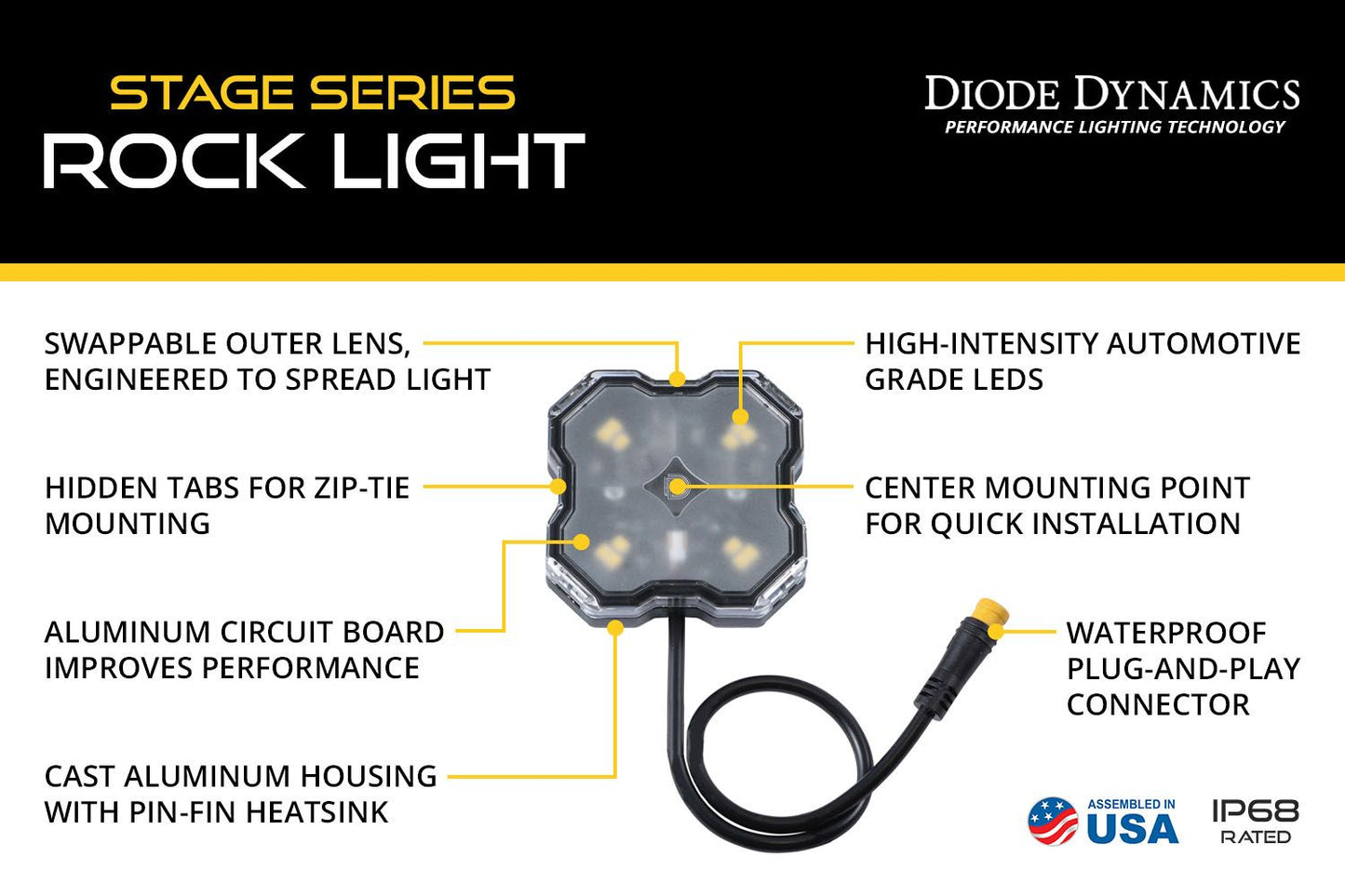

Optically Engineered Rock Light Lenses
Unlike basic rock lights that place LEDs behind a simple clear cover, Stage Series Rock Lights use optical elements molded directly into the outer lens.
Four individual optics help distribute the light evenly across a broad area, producing smooth illumination around the wheel wells and underneath the vehicle.
The lens is constructed from thick automotive-grade polycarbonate and is designed to handle impacts and demanding trail conditions.
Compatible interchangeable lenses are also available for customers who want to change the optic or output style later.
Waterproof M8 Connections
Each Stage Series Rock Light uses a compact waterproof M8 barrel-style connector with a 10-inch lead.
At only 8mm in diameter, the connector simplifies routing through tight locations while providing a secure plug-and-play connection to the included wiring system.
Built for Harsh Off-Road Conditions
Stage Series Rock Lights are designed for demanding powersports and automotive environments. Each light features an IP68 waterproof rating, cast aluminum housing, pin-fin heatsink, thick polycarbonate lens, and UV-resistant coating.
The lighting has been tested for operation from -40°F to 185°F, along with vibration, moisture intrusion, and corrosion testing.

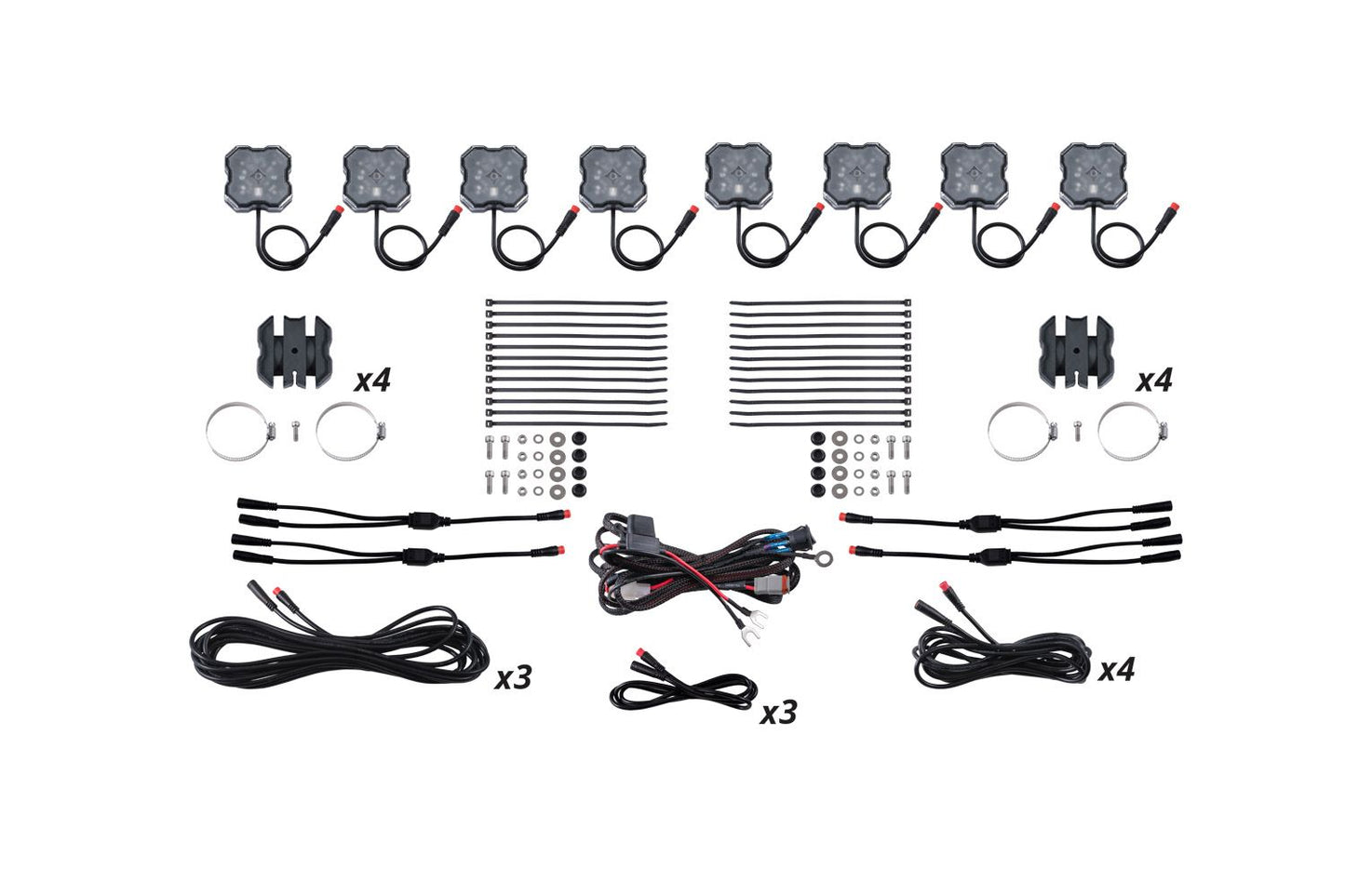

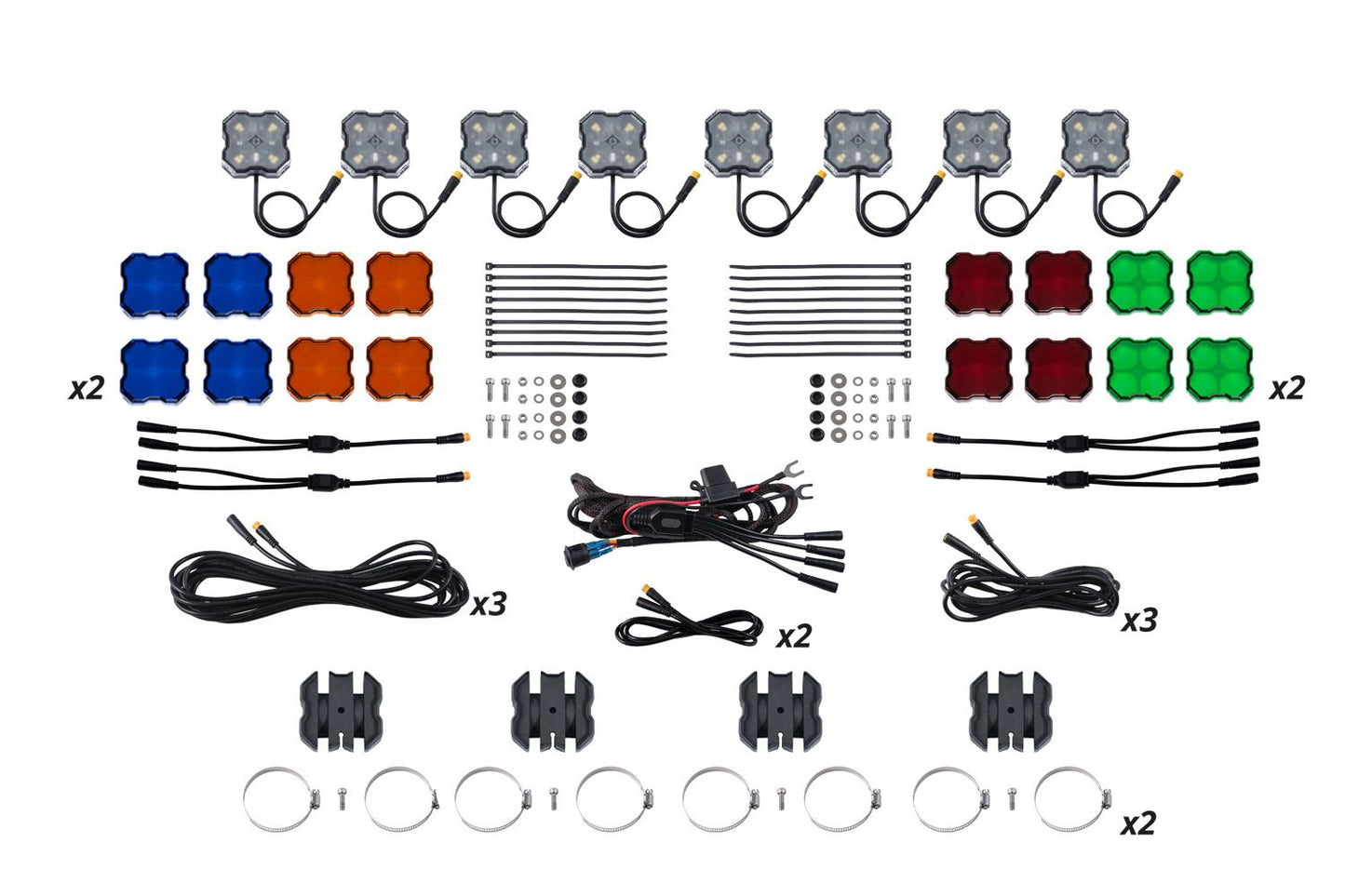

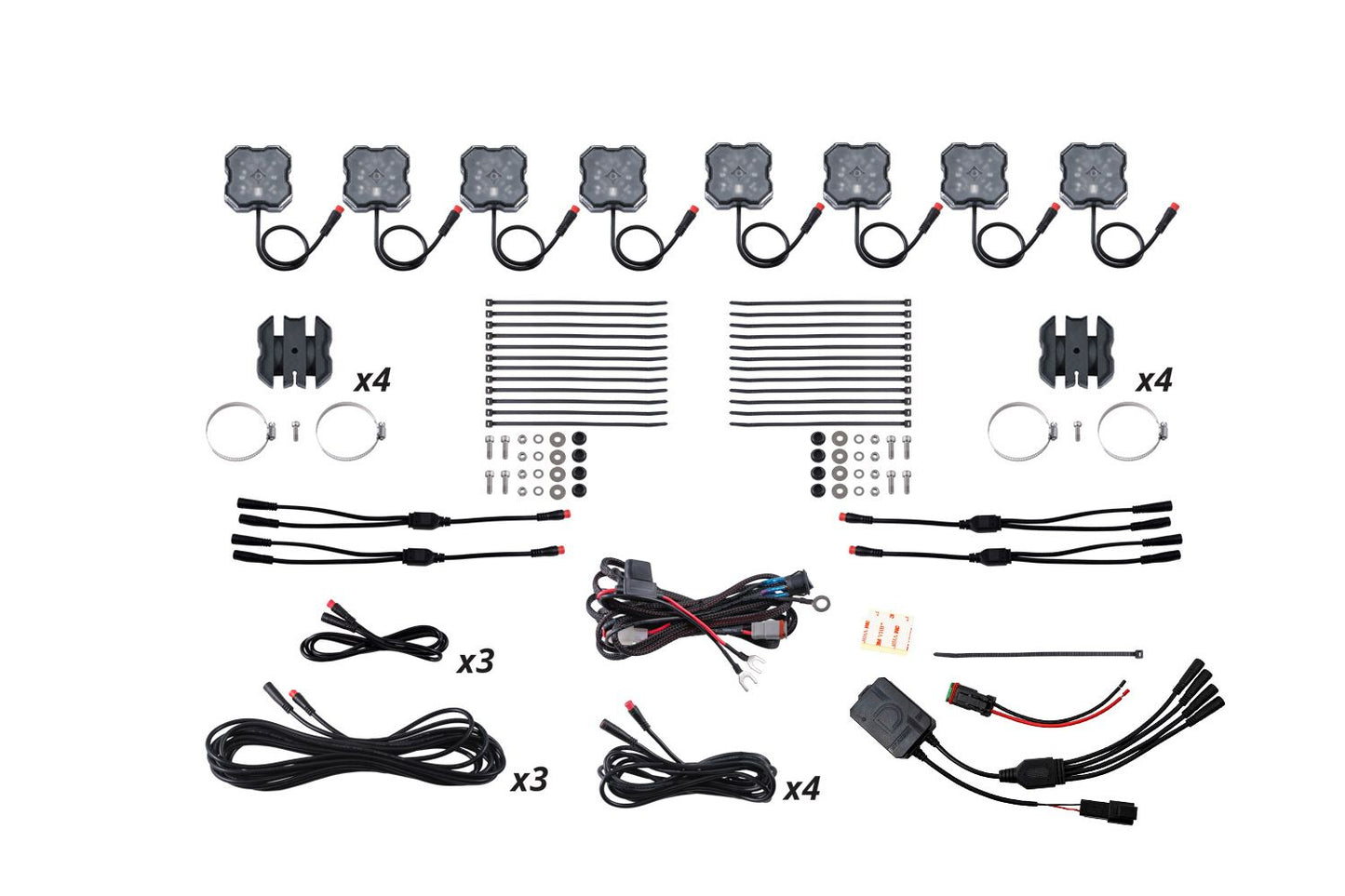

What’s Included
Eight (8) Stage Series White Diffused or RGBW Rock Lights; one (1) Rock Light Wiring Harness; eight (8) Rock Light Tube Mount Adapters; one (1) optional Bluetooth RGBW M8 Controller; one (1) 1-meter extension; four (4) 3-meter extensions; three (3) 5-meter extensions; twenty-four (24) zip ties; installation guide.

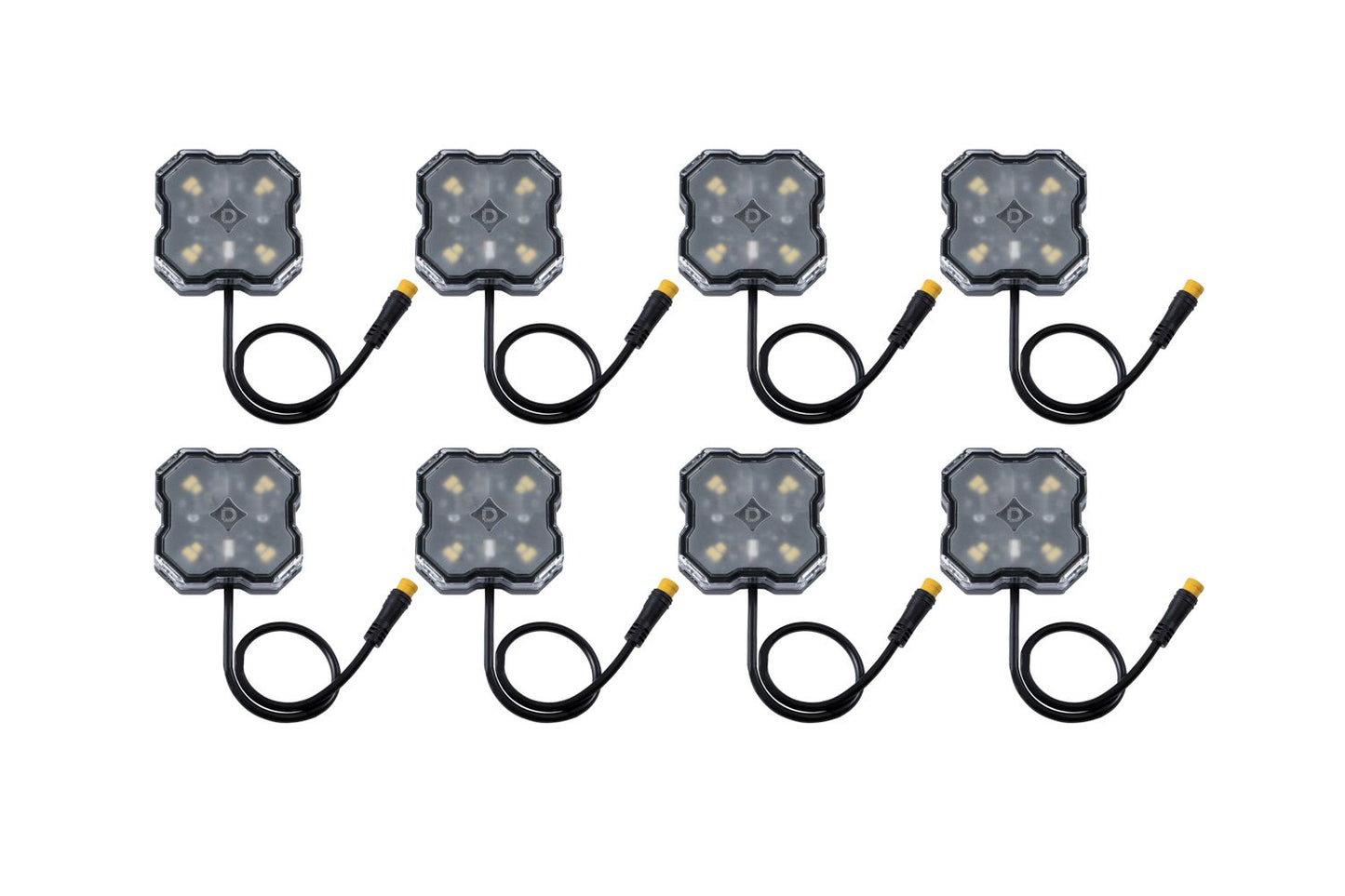

Quantity: Eight (8) Rock Lights
Application: Universal UTV / Side-by-Side
Warranty: Lifetime Warranty
Manufacturing: Engineered and assembled in the USA
Specifications
- Color Temp (CCT): 5700K
- Beam Angle: Round, 60°
- Power (watts): High Power: 10, Low Power: 2.5, RGBW: 4.596
- Operating Voltage: 9-16V
- Current (amps @ 13.2V): High Power: 0.8 , Low Power: 0.2, RGBW: 0.36
- Wire Size: 28AWG
- Polarity: Polarity Specific
- Operating Temperature: -40C to 85C (-40F to 185F)
- LED Emitter: Lumileds Z ES
- Driver Features: Linear Regulated
- Materials: UV Coated Polycarbonate Lens, Powdercoated Aluminum
- Cooling: Passive, Pin-Fin heatsink
- Compliance Ratings: SAE J575 Durability Test
- Intrusion Ratings: IP68 Waterproof

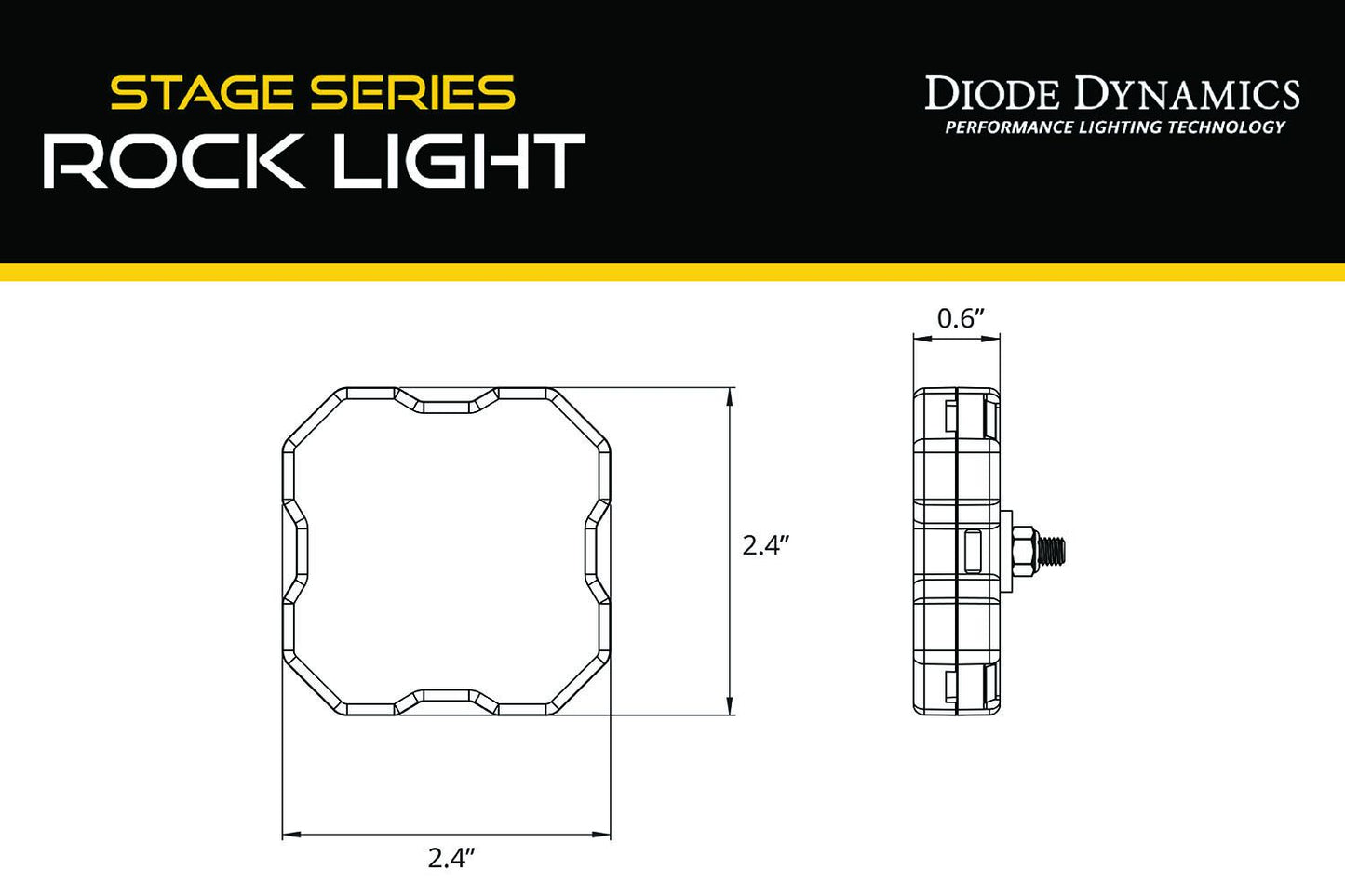

- Product Dimensions (in): 2.4x2.4x0.6
- Shipped Weight (lb): 4.7
Installation
Installation Time: 30-60 minutes
Tools Needed: Basic Toolset
Modification: Basic Wiring Only
Installation Guide: Click to download
