Diode Dynamics Stealth SS30 Light Bar Kit for 2014-2019 Toyota 4Runner

Add powerful auxiliary lighting to your 2014-2019 Toyota 4Runner without sacrificing its factory appearance with the Diode Dynamics Stealth Light Bar Kit.

Designed specifically for the fifth-generation 4Runner, this vehicle-specific kit mounts either one or two Diode Dynamics 30-inch Stage Series SS30 LED Light Bars inside the lower grille opening. CAD-designed brackets use existing factory mounting points, providing a clean bolt-on installation with no cutting or drilling required.

Choose between Driving and Combo beam patterns to build a stealth lighting setup suited for nighttime trail driving, overlanding, and other off-road adventures.

Key Features

• Direct fit for 2014-2019 Toyota 4Runner
• Mounts one or two 30-inch SS30 LED light bars
• Hidden lower-grille installation
• CAD-designed vehicle-specific brackets
• Uses existing factory mounting points
• No cutting or drilling required
• Retains the factory grille
• Clean, OEM-inspired appearance
• Custom-engineered TIR optics
• Driving and Combo beam pattern options
• Heavy-duty wiring harness included
• Aux switch adapter wire included
• Mounting hardware included
• No confirmed electrical compatibility issues
• 8-year warranty

Stealth Lower-Grille Installation

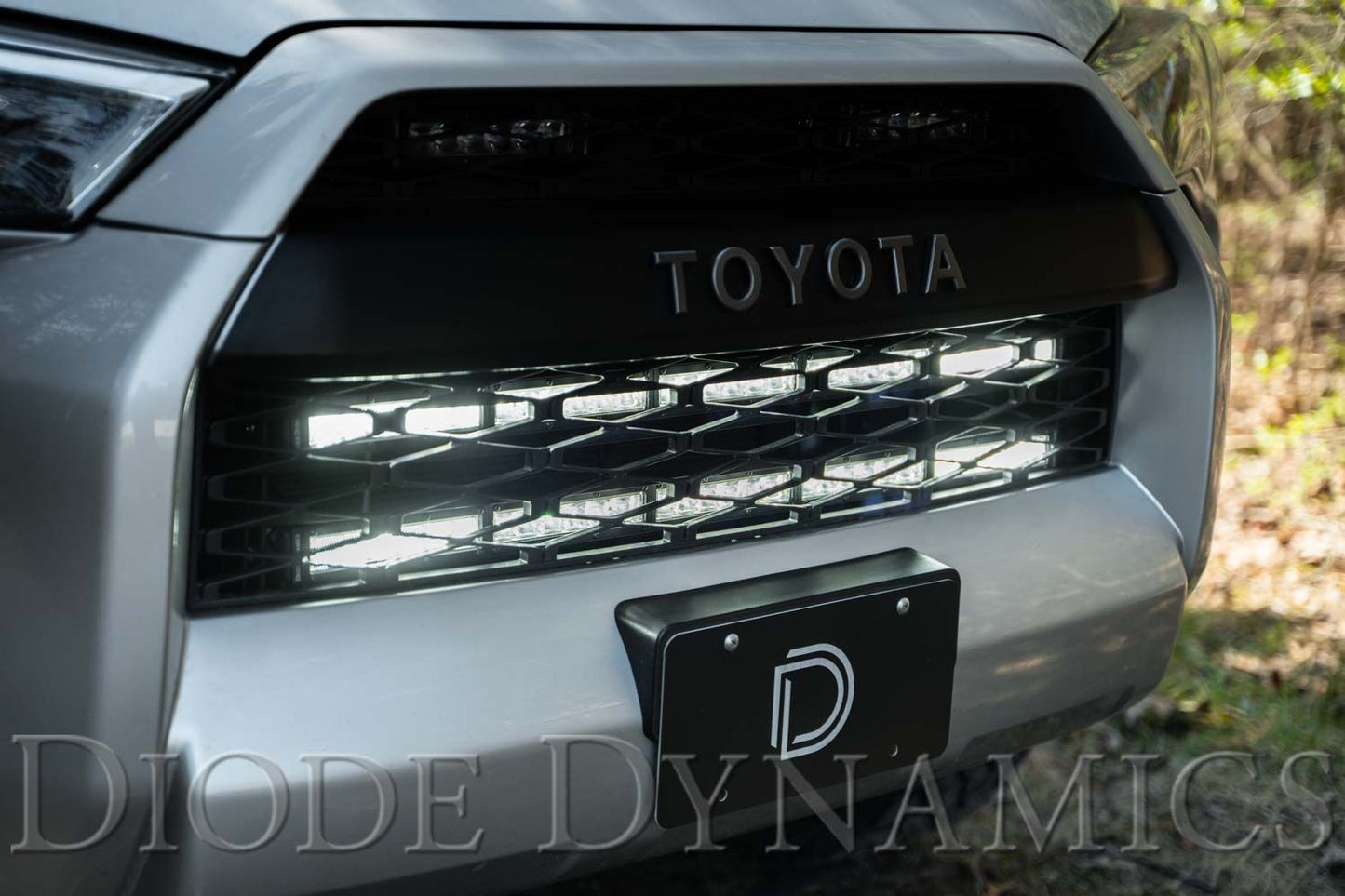

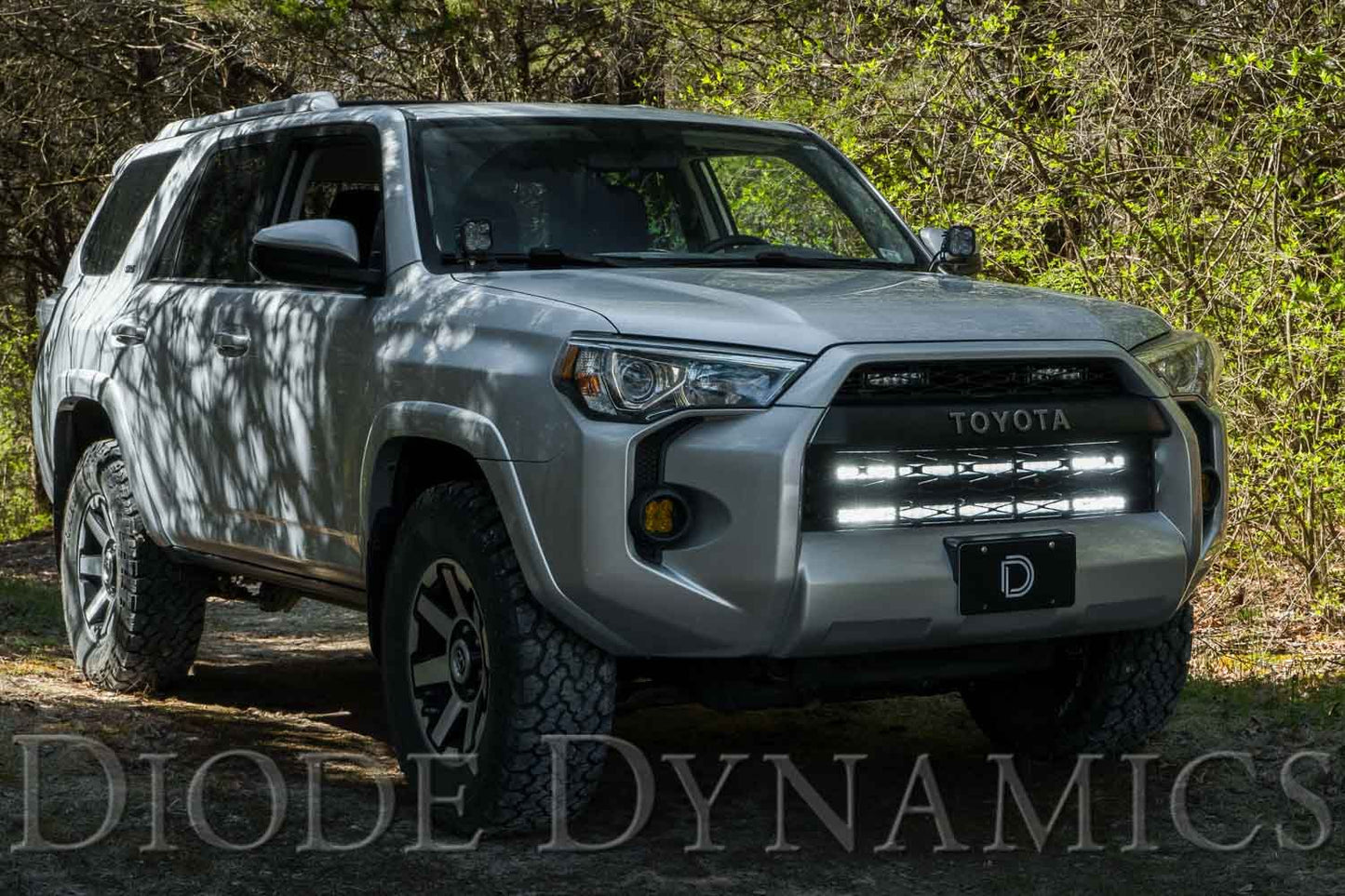

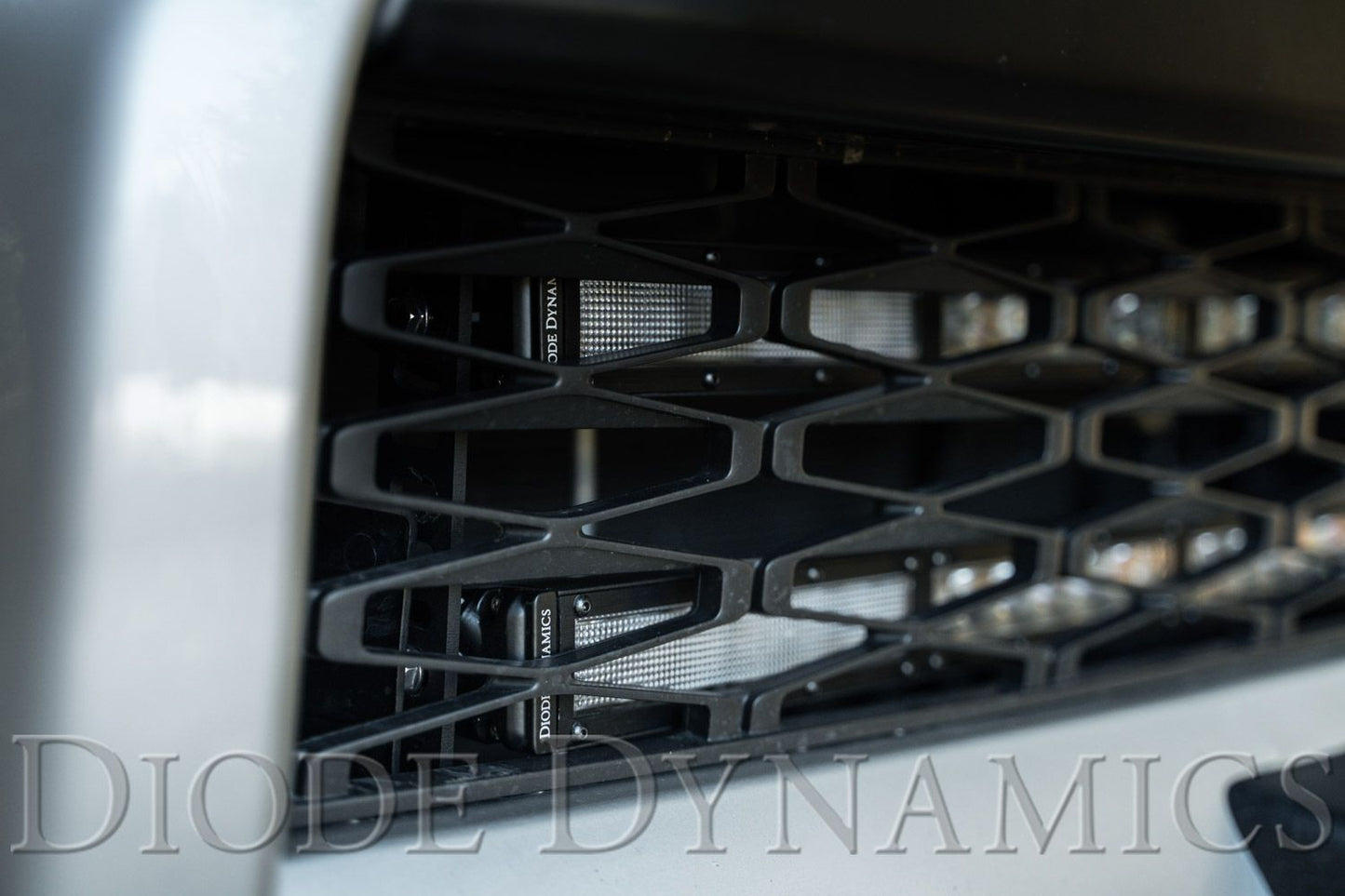

Instead of placing a large LED bar above the bumper or roofline, the Diode Dynamics Stealth Kit positions the SS30 neatly inside your 4Runner’s lower grille opening.

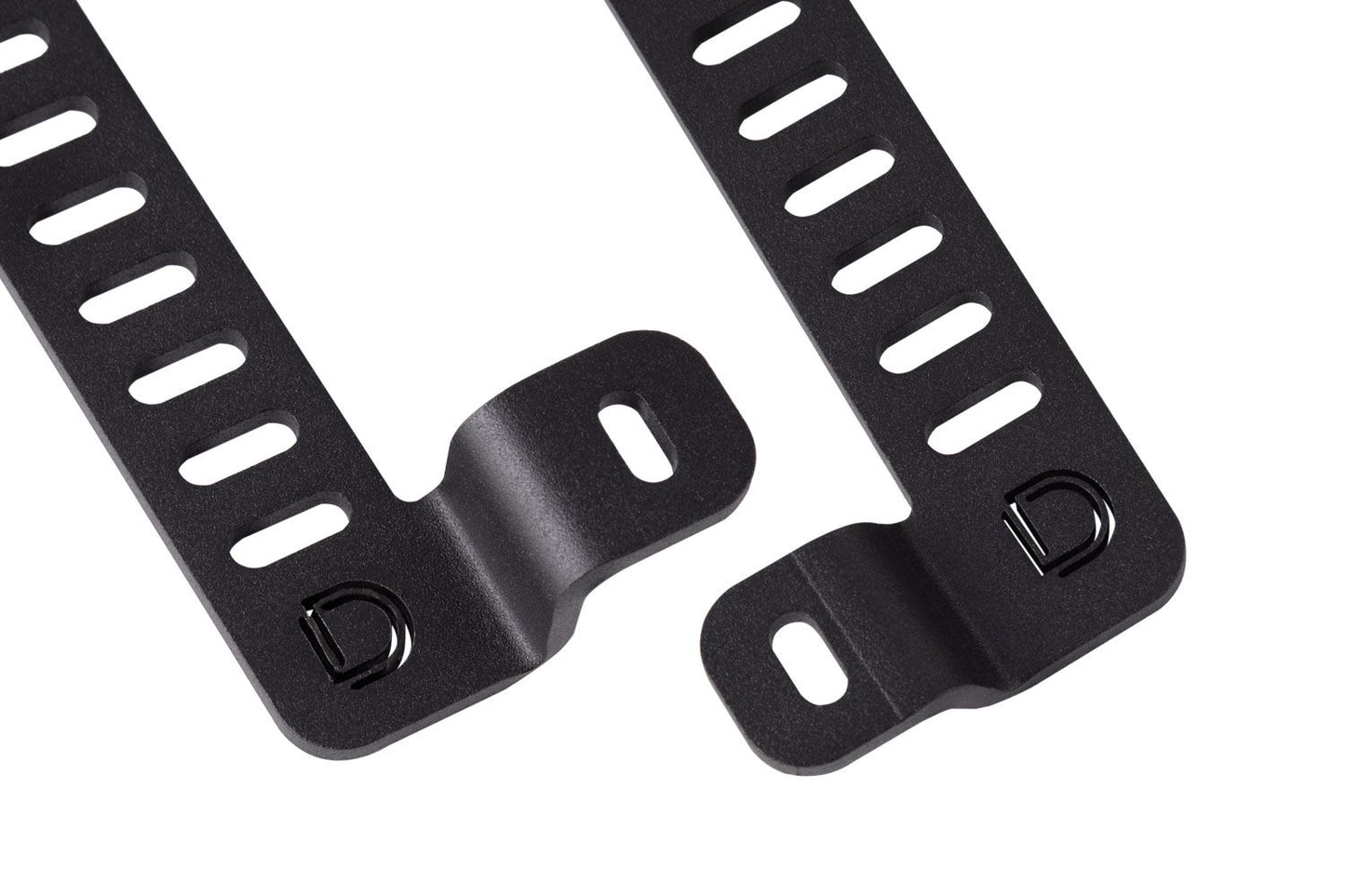

The application-specific brackets were CAD-designed around the 2014-2019 Toyota 4Runner and attach using existing factory mounting locations. There’s no need to cut or drill the vehicle during installation.

Once installed, the factory grille remains intact, helping the light bar blend naturally into the front end.

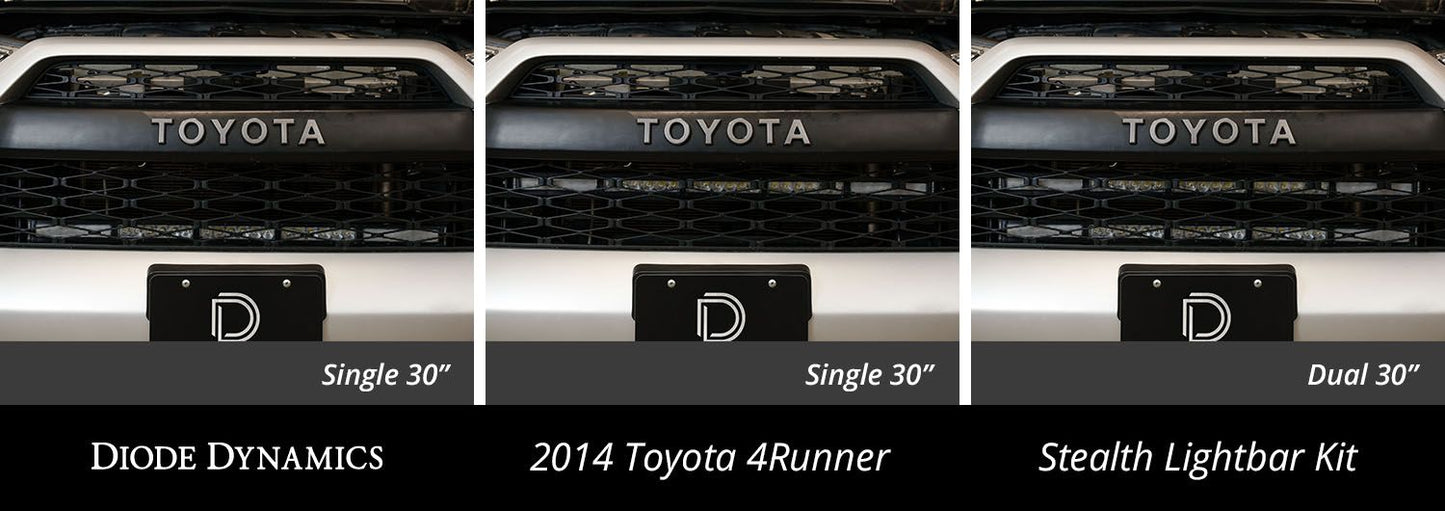

Single or Dual 30-Inch Light Bars

The mounting brackets feature multiple mounting positions, allowing you to configure your 4Runner with either one SS30 light bar or two SS30 light bars.

A single-bar configuration provides a clean, understated setup with substantial auxiliary illumination.

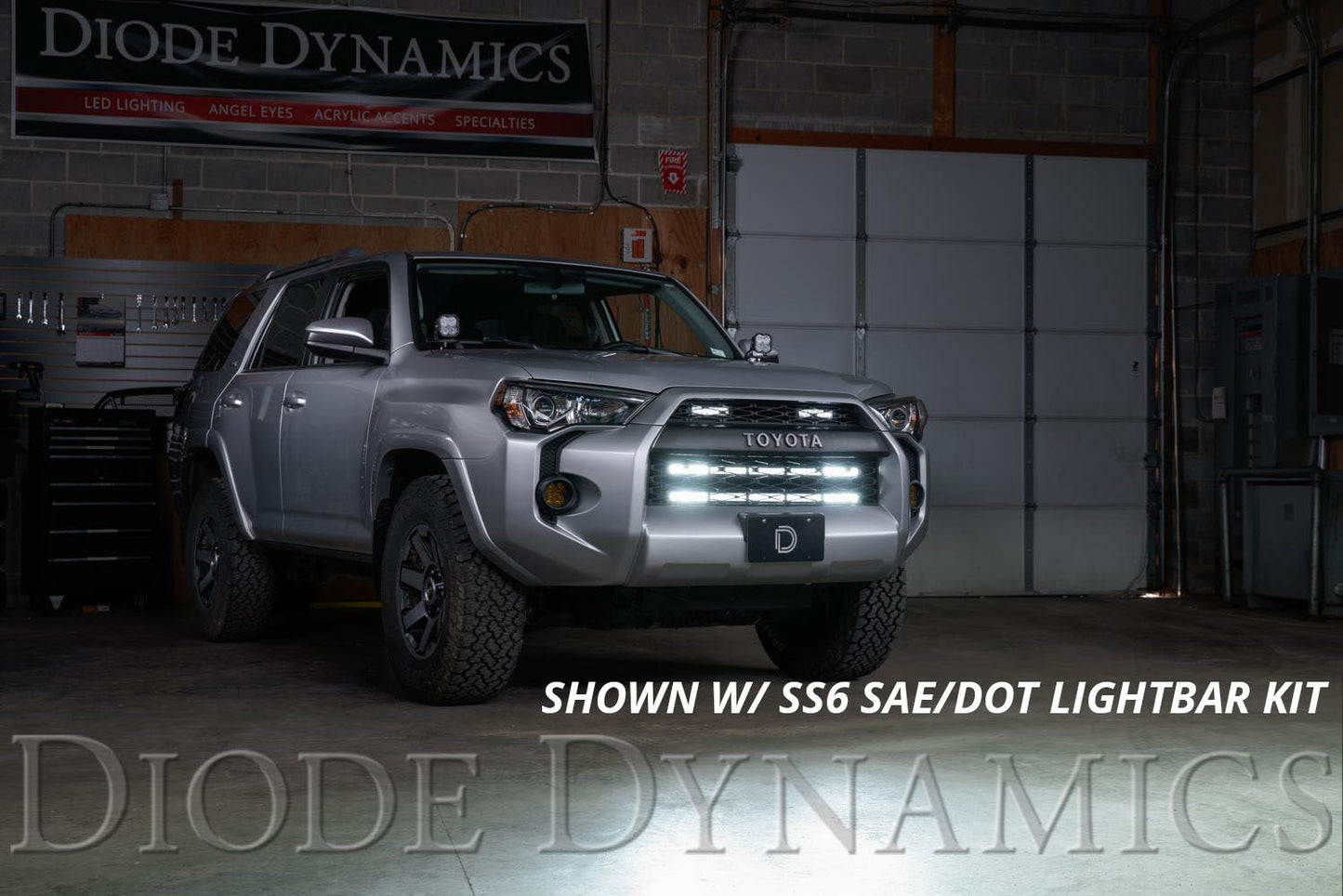

For drivers looking for significantly more lighting capability, the dual-bar configuration fills both available mounting positions for increased output while maintaining the same stealth appearance.

Stage Series SS30 Performance

Diode Dynamics Stage Series light bars are engineered around useful beam control rather than simply producing uncontrolled brightness.

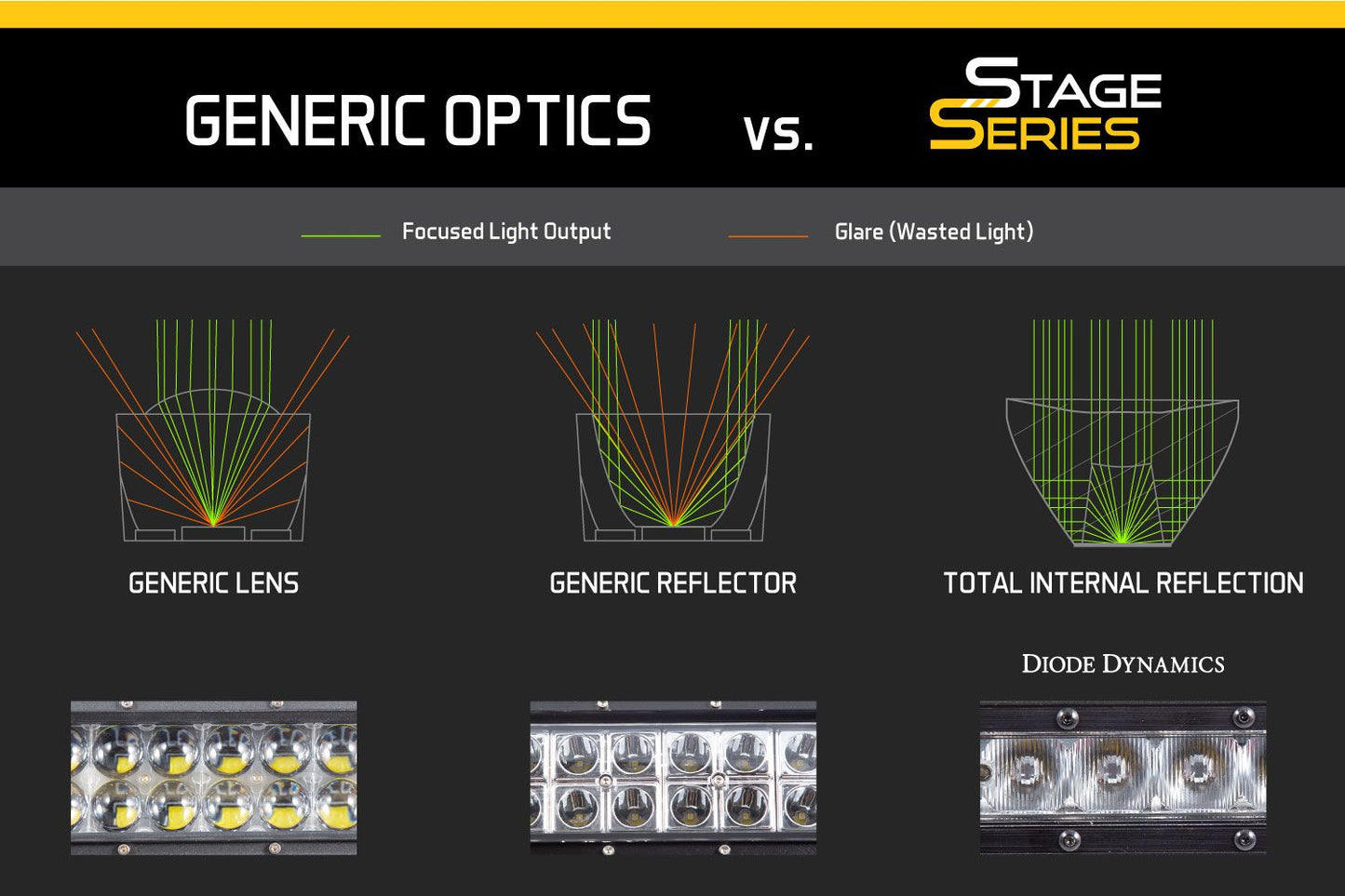

Custom-engineered TIR (Total Internal Reflection) optics collect and direct LED output into purpose-built beam patterns. This helps put more usable illumination where it’s needed while reducing wasted light.

The compact SS30 design also makes it well suited for installation behind the 4Runner’s lower grille.

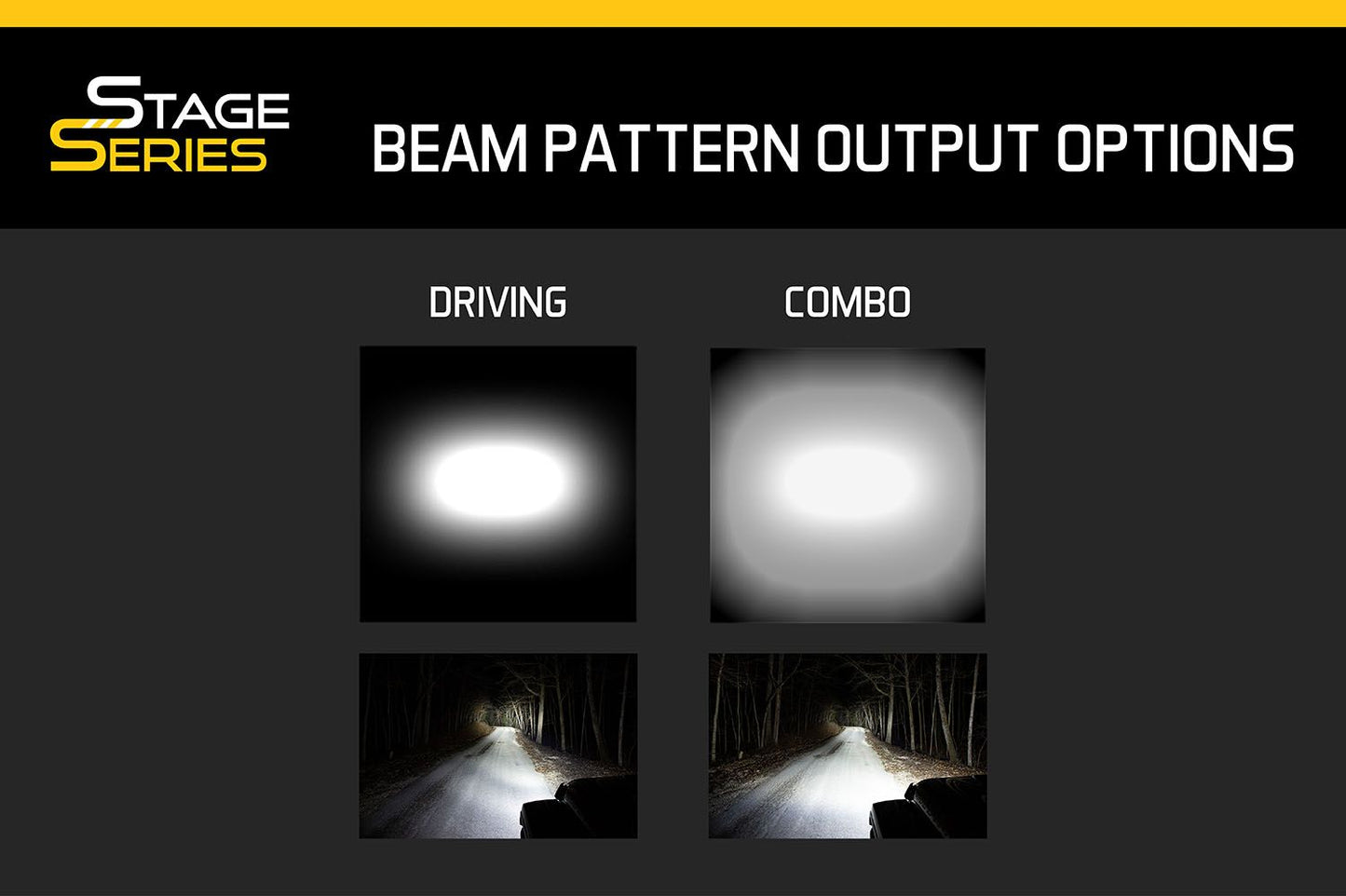

Driving Beam Pattern

The Driving pattern is designed for focused downrange illumination.

Instead of the extremely narrow output associated with a traditional spot light, the Stage Series Driving optic produces a rectangular 20° wide by 8° high pattern.

This provides useful distance while maintaining enough horizontal coverage for higher-speed nighttime driving.

Combo Beam Pattern

For more versatile off-road illumination, choose the Combo pattern.

The Combo SS30 combines Driving and Flood optics to provide both downrange visibility and additional peripheral illumination.

The center Driving optics produce a focused 20° x 8° beam, while the Flood optics expand illumination around the primary beam to approximately 80° x 50°.

This makes Combo an excellent all-around choice for trails, overlanding, backroads, and other environments where both distance and nearby visibility are important.

Built for the 5th Gen Toyota 4Runner

Unlike universal light bar brackets, this kit is engineered specifically around the fifth-generation Toyota 4Runner.

Vehicle-specific mounting hardware provides a more integrated installation while avoiding unnecessary fabrication. The hidden placement also protects the clean styling that makes the 5th Gen 4Runner popular for both daily-driven and dedicated off-road builds.

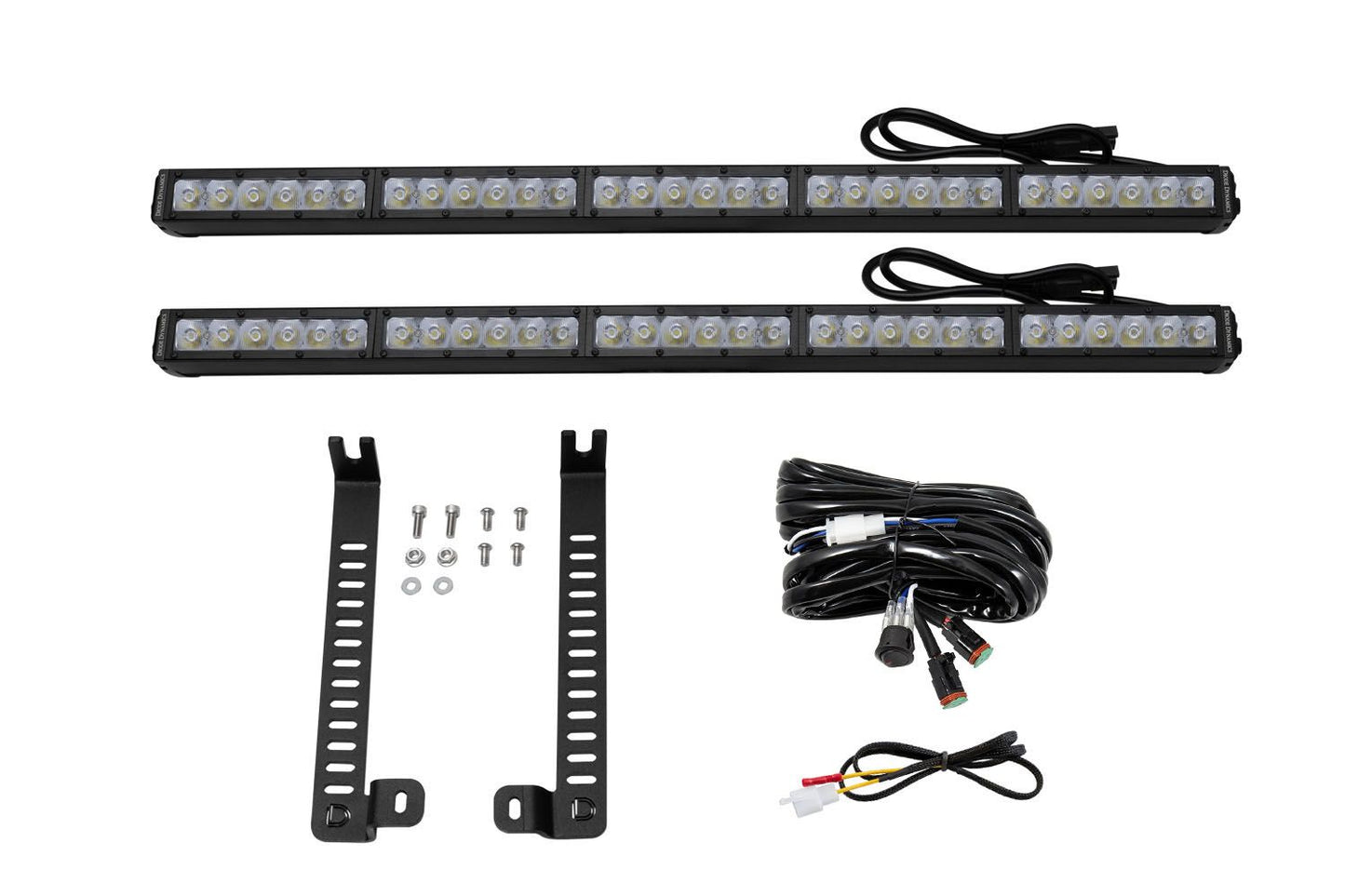

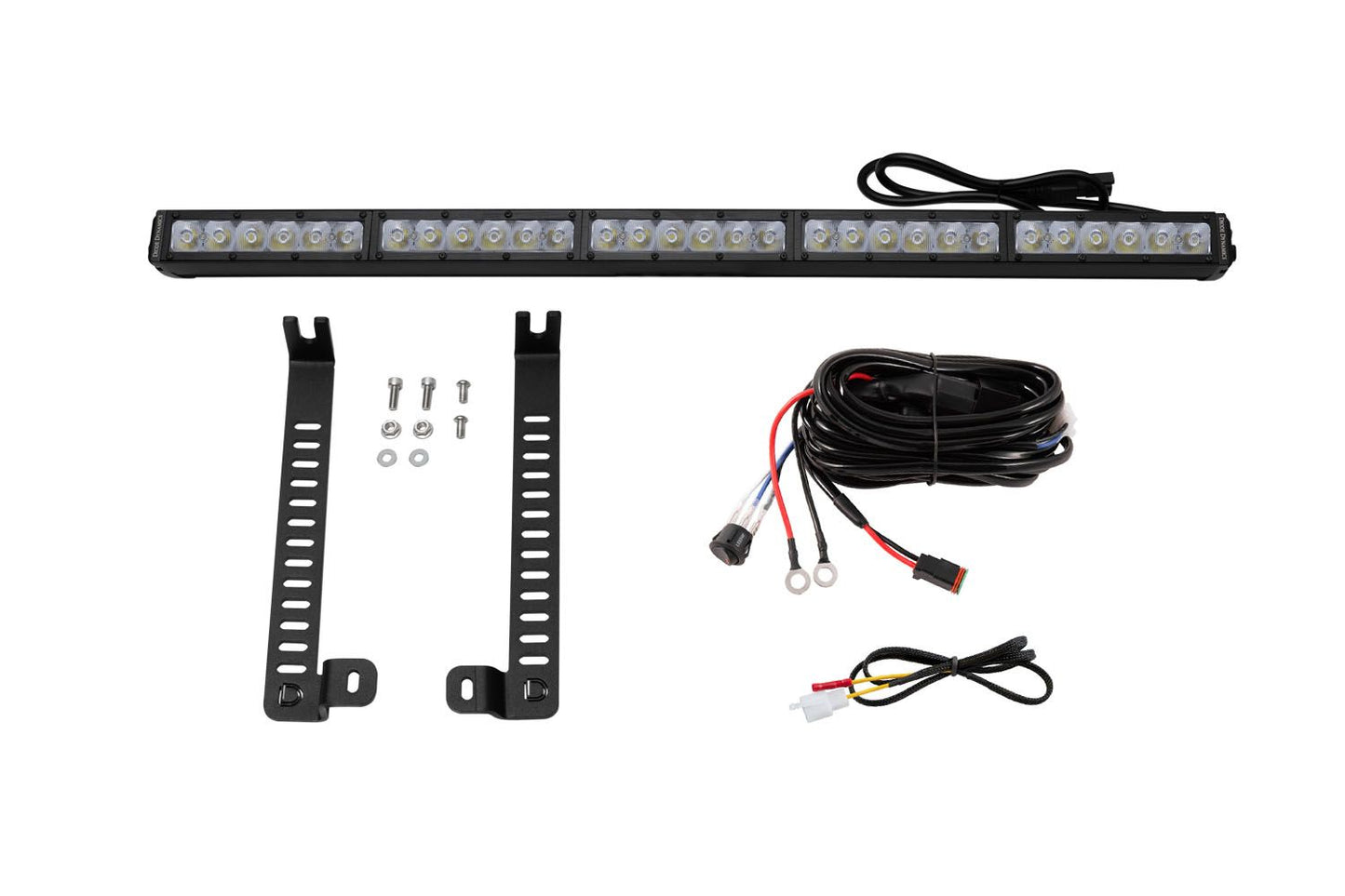

What’s Included

Depending on the configuration selected, the kit includes:

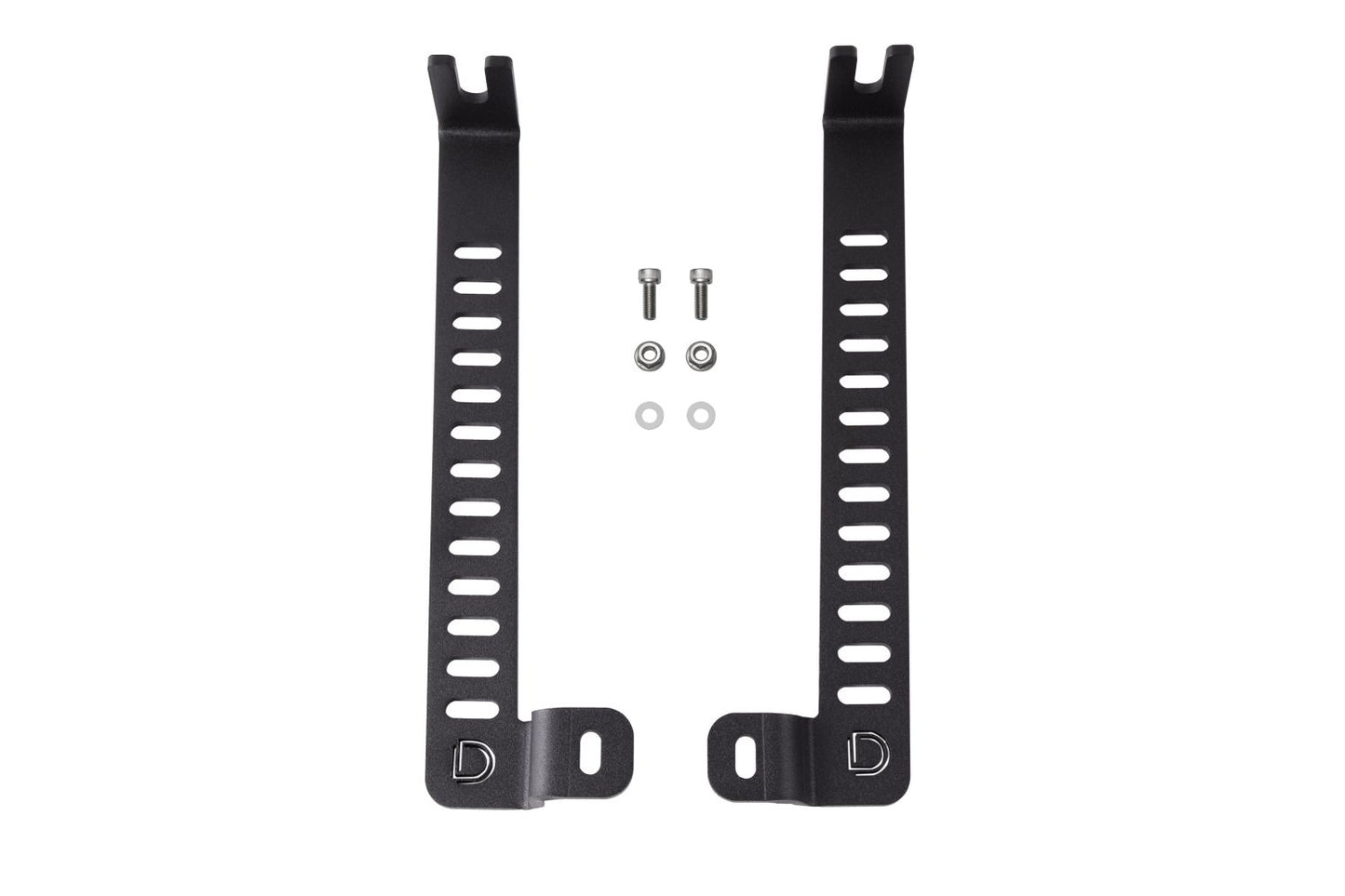

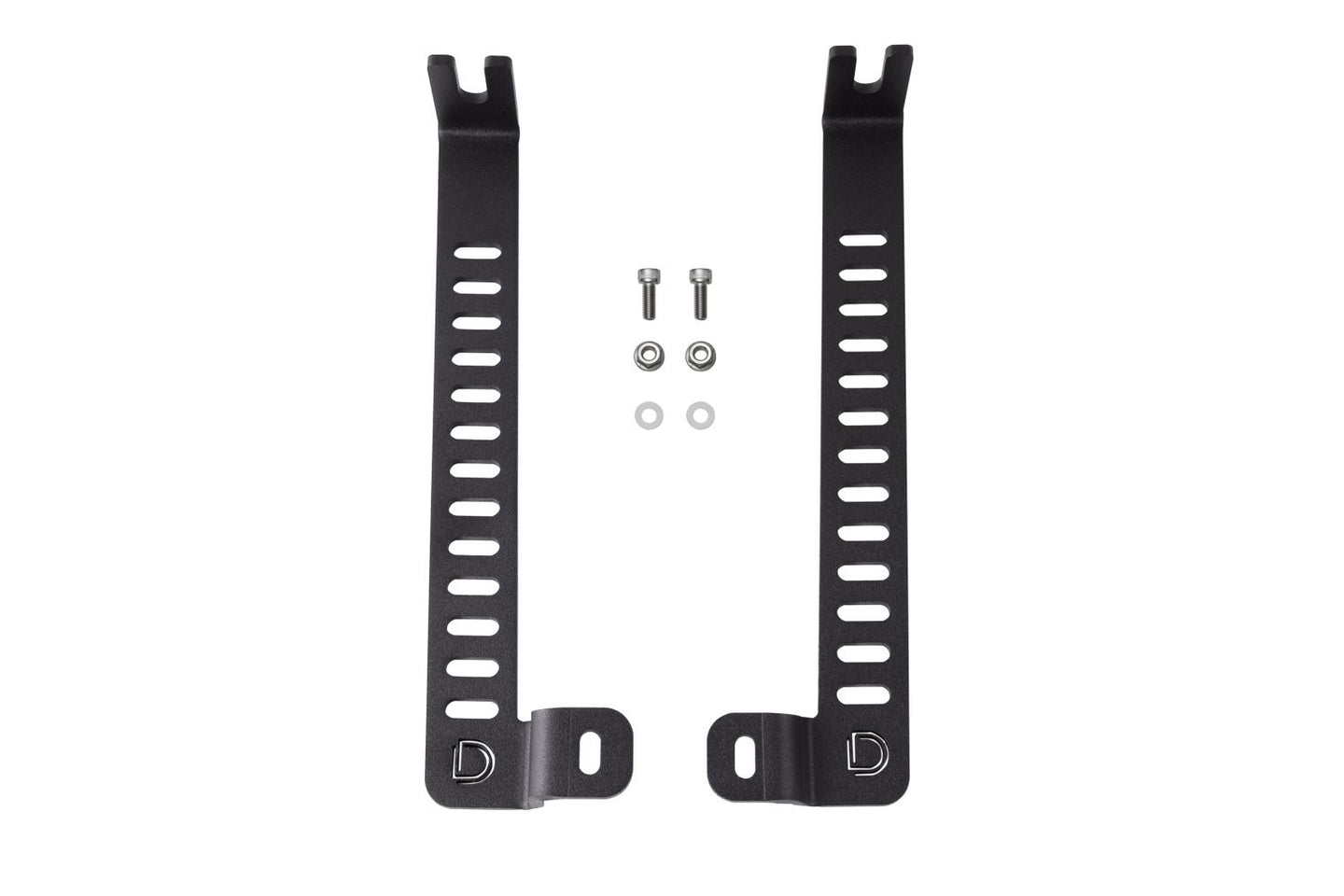

• Two (2) application-specific SS30 mounting brackets
• One (1) or Two (2) Stage Series SS30 30-inch LED Light Bars
• Heavy-duty off-road wiring harness
• One (1) Aux Switch Adapter Wire
• Mounting hardware
• Installation guide

Warranty: 8-Year Warranty

Vehicle Fitment

Make: Toyota
Model: 4Runner
Years: 2014-2019

Electrical Compatibility: Tested and confirmed with no electrical issues.

Important Fitment Note: This kit is not compatible with Limited or Nightshade trim levels.
