Diode Dynamics C2R White Flood Flush Mount LED Pod – Single | DD8573S

Diode Dynamics C2R White Flood Flush Mount LED Pod – Single

Add three rear-lighting functions in one compact, low-profile package with the Diode Dynamics Stage Series C2R White Flood Flush Mount LED Pod (DD8573S). Designed for installation on bumpers, truck beds, and other suitable mounting surfaces, the Diode Dynamics C2R combines powerful white reverse illumination with high-power and low-power red outputs.

This 3-in-1 LED pod can function as an auxiliary reverse light, brake light, and running light when properly integrated into your vehicle’s lighting system.

Part Number: DD8573S
Quantity: One (1) LED Pod

Key Features

• Single Diode Dynamics Stage Series C2R LED Pod
• Ultra-compact flush-mount design
• High-power cool white main beam
• High-power red main output
• Low-power red accent output
• Three independently controlled lighting functions
• 70x45-degree Flood beam pattern
• Patented TIR (Total Internal Reflection) optics
• Designed for auxiliary reverse-light applications
• Copper-core circuit board
• Pin-fin heatsink design for thermal management
• Durable powder-coated aluminum housing
• Integrated DT-type Deutsch-style connector
• 4-pin wiring pigtail included
• Snap-On Lens Cover compatible
• Tested for vibration, moisture intrusion, corrosion, and extreme temperatures
• Made in the USA with global materials
• Limited Lifetime Warranty

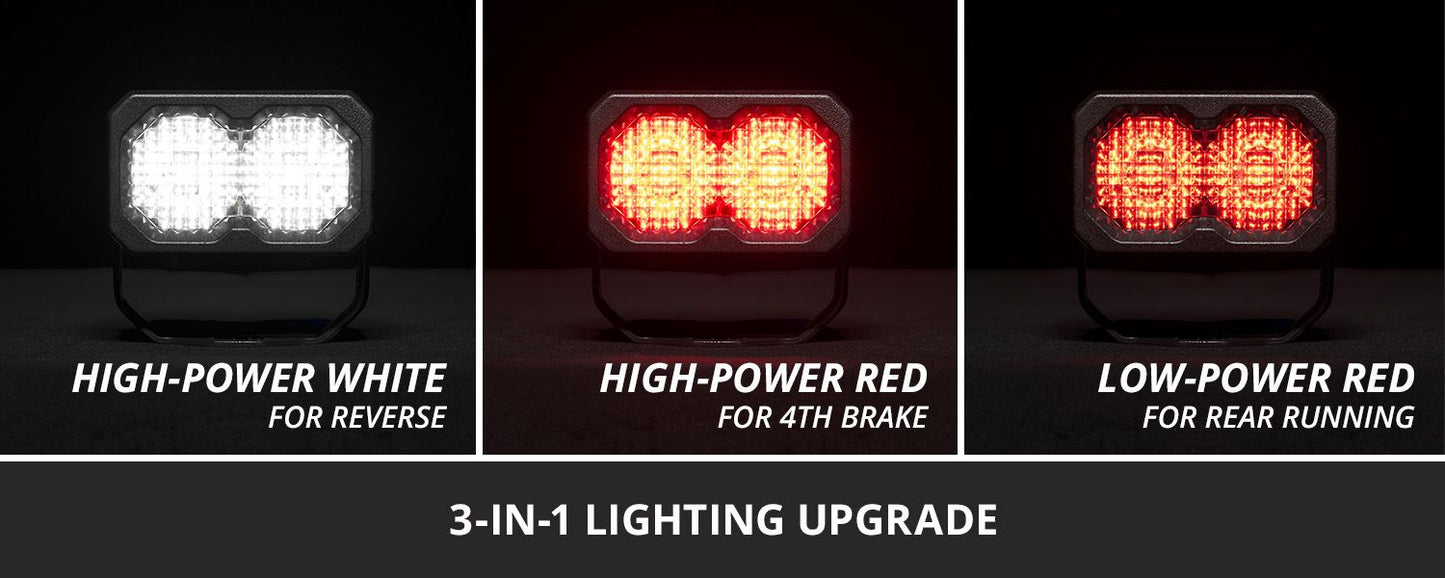

3-in-1 Reverse, Brake & Running Light

The Stage Series C2R combines three independently controlled lighting functions into a single compact LED pod.

High-Power White: Designed to supplement your vehicle’s factory reverse lights with additional illumination behind the vehicle.

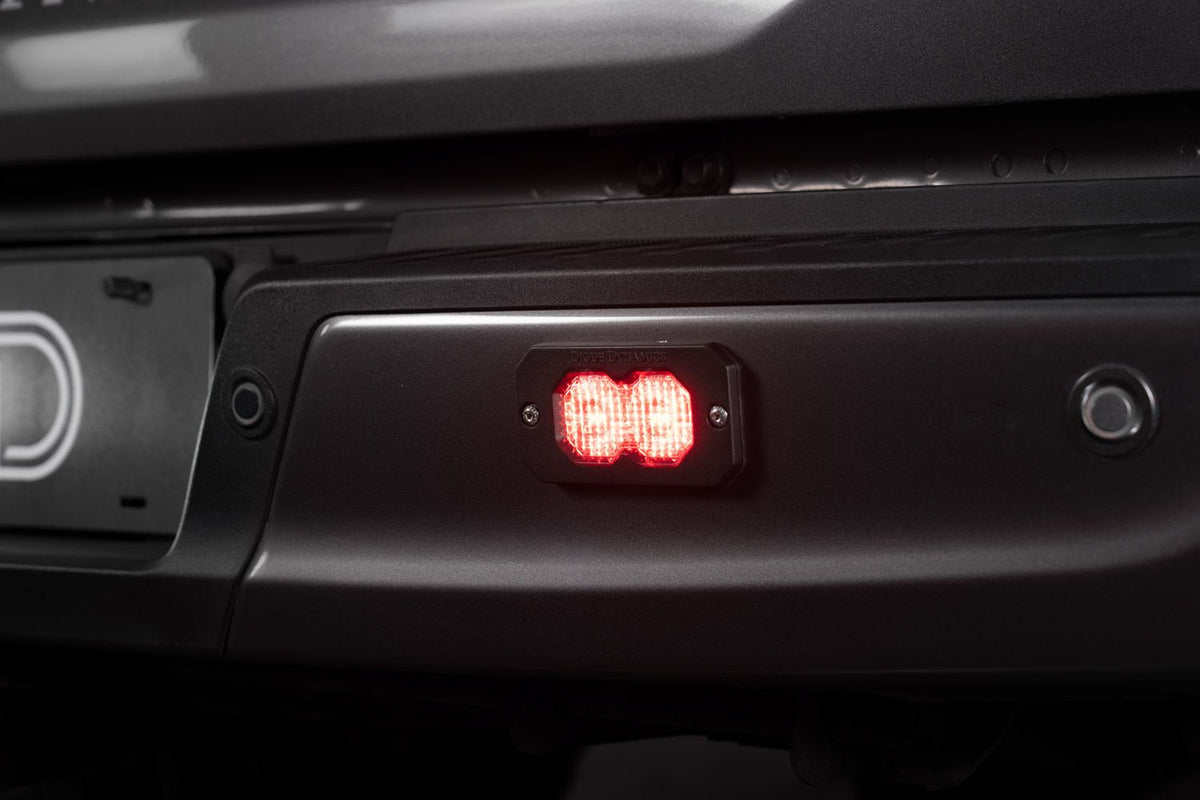

High-Power Red: Can be integrated as an auxiliary brake-light function for additional rear visibility when the brakes are applied.

Low-Power Red: Provides a lower-intensity red output for use as a secondary running or accent light.

This triple-function design makes the C2R a versatile solution for custom rear-lighting installations where space is limited.

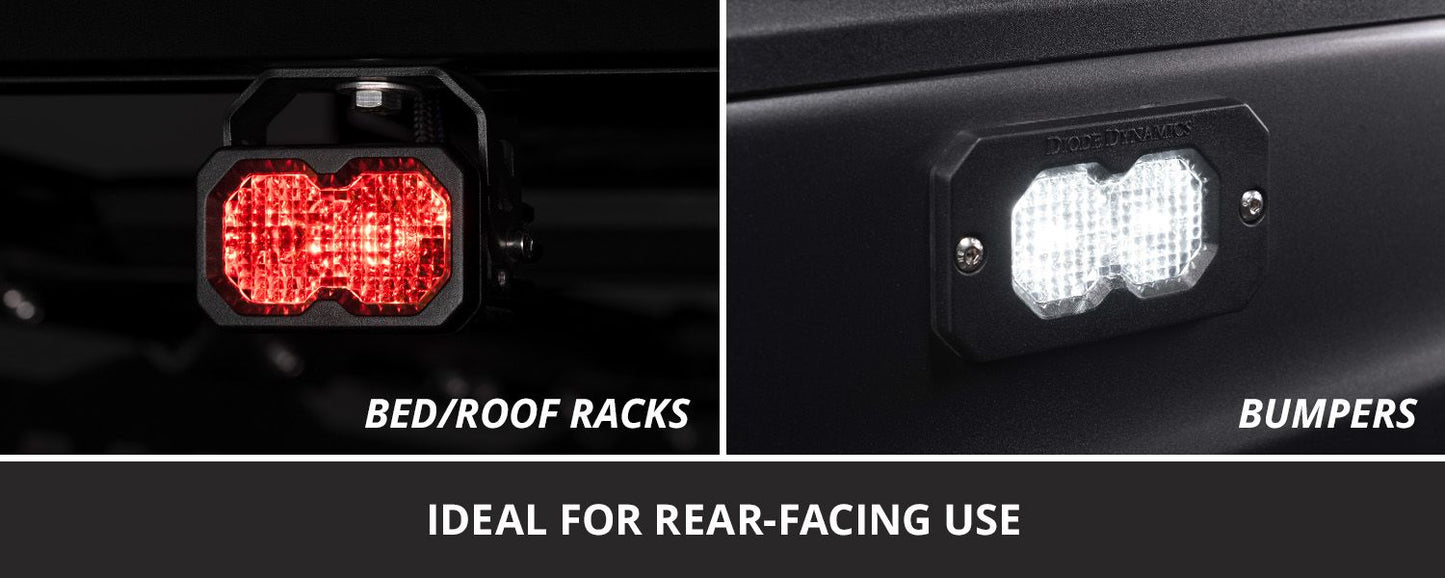

Clean Flush-Mount Installation

The C2R Flush Mount is designed for a clean, low-profile installation on bumpers, truck beds, and other compatible mounting surfaces.

Its ultra-compact footprint makes it ideal for locations where larger LED pods may not fit, while the flush design creates a clean, integrated appearance.

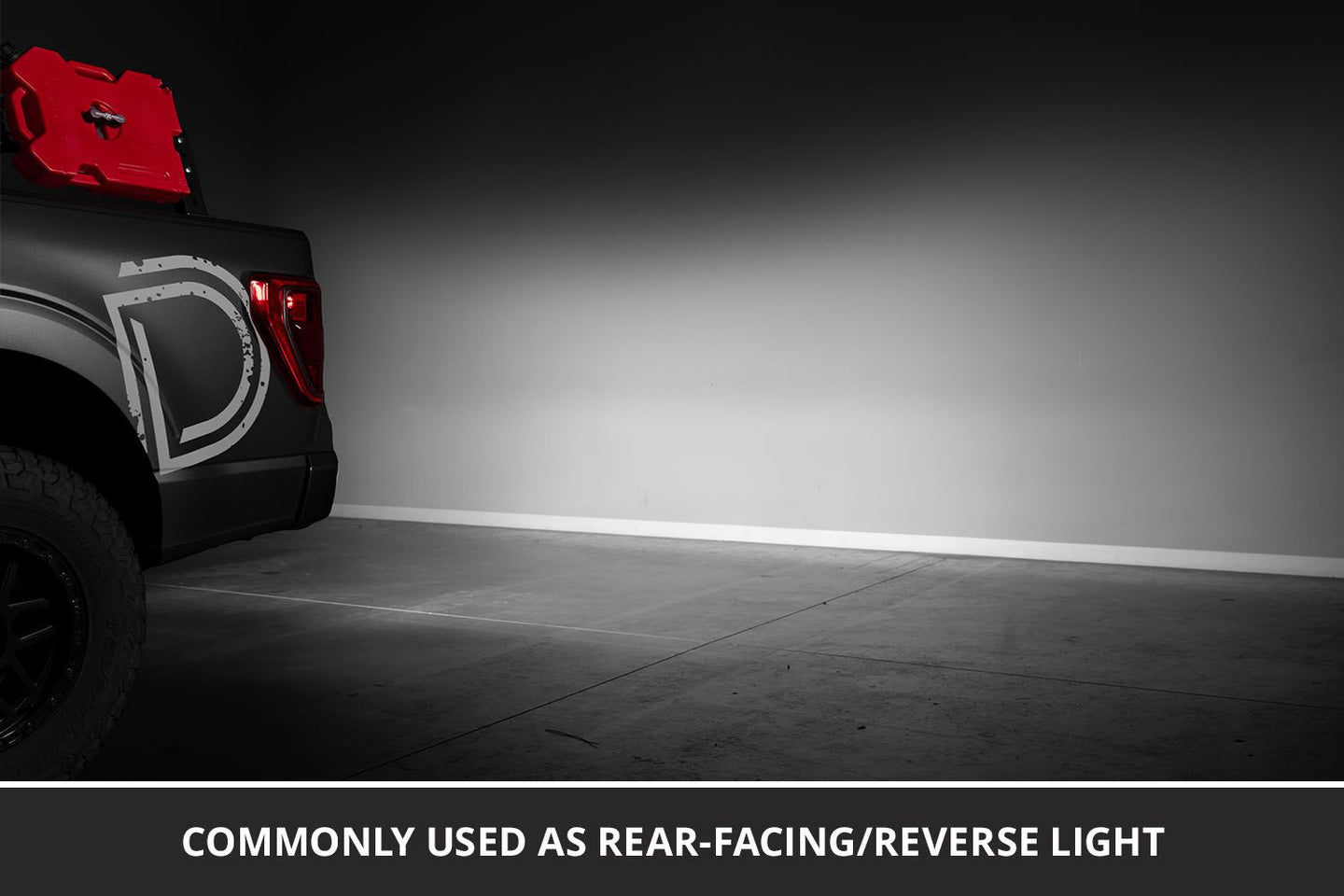

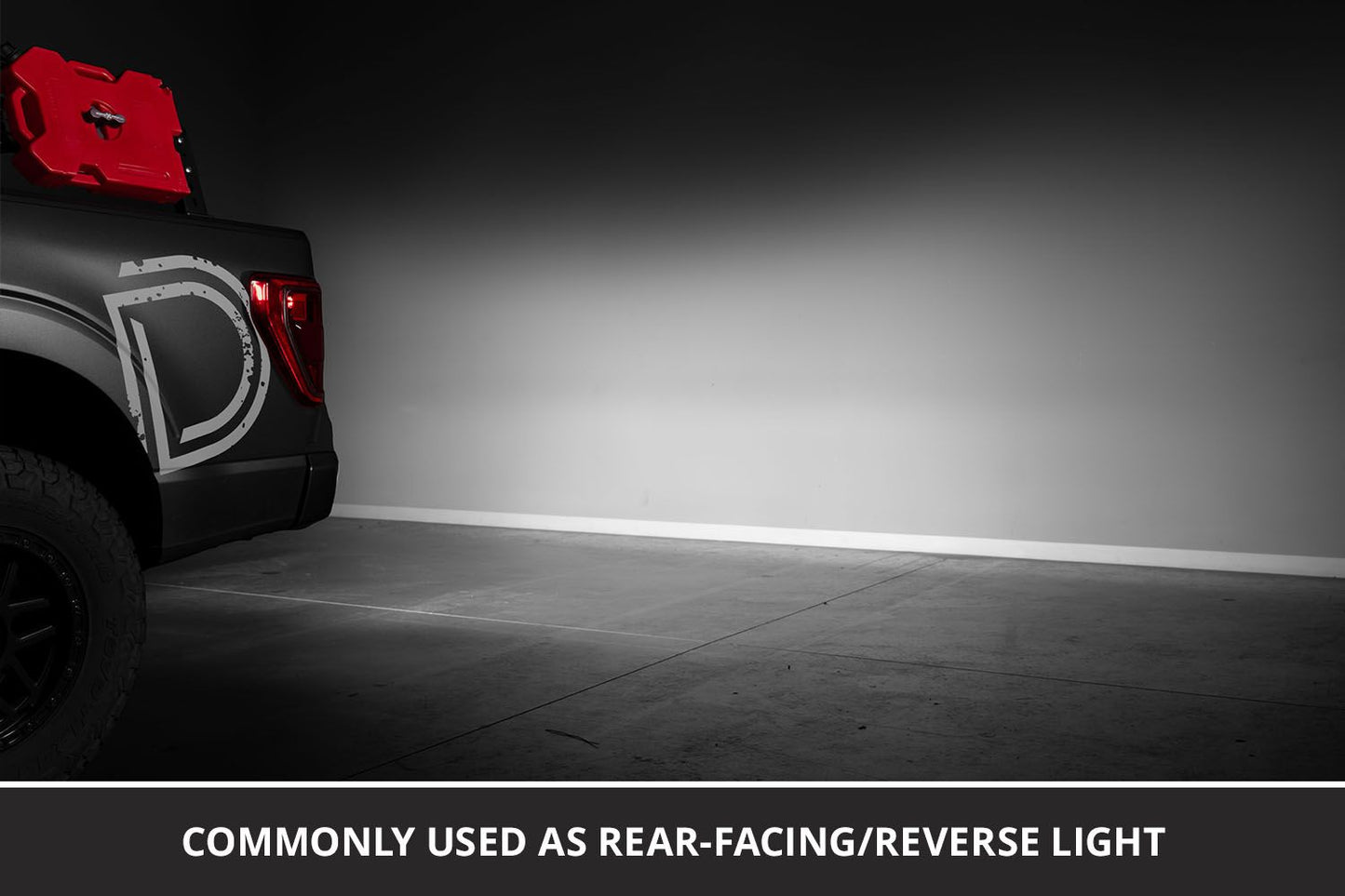

White Flood Beam for Reverse Lighting

The C2R uses a 70x45-degree Flood beam pattern to provide broad, even illumination behind your vehicle.

Advanced pillow optics distribute the light across a controlled field rather than simply diffusing a narrow spotlight. This makes the C2R particularly useful as an auxiliary reverse or backup light, where illuminating a wide area behind the vehicle is important.

Patented TIR Optics

The C2R uses Diode Dynamics’ patented Total Internal Reflection (TIR) optics to collect light from the LEDs and precisely direct it into the intended beam pattern.

The custom-molded TIR optic also functions as the main lens, helping reduce internal light loss and unwanted glare while maximizing usable output and optical efficiency.

Performance-Driven Construction

Building on the C2 2.0 platform, the C2R features a copper-core circuit board bonded directly to the LED chips for efficient thermal transfer.

Combined with a powder-coated aluminum housing and pin-fin heatsink design, the C2R is engineered to dissipate heat efficiently while delivering high-output performance from its compact housing.

Simple 4-Wire Connection

The C2R features an integrated DT-type Deutsch-style connector and includes a 4-pin, 6-inch pigtail with bare leads.

Yellow Wire: High-power red output
Red Wire: High-power white main beam
Blue Wire: Low-power red output
Black Wire: Ground

The independent circuits allow each lighting function to be connected to the appropriate vehicle circuit for your application.

Always verify your vehicle’s wiring requirements and applicable lighting regulations before installation.

Snap-On Cover Compatible

Compatible Diode Dynamics Snap-On Lens Covers are available separately for additional protection or customization.

Available cover options include amber, clear, yellow, smoked, and black, with a tool-free snap-on design.

Proven Stage Series Reliability

Stage Series LED lighting has been tested for long-term operation from -40°F to 185°F, along with vibration, moisture intrusion, and corrosion testing.

Combined with its compact construction and flush-mount design, the C2R is well suited to demanding truck, off-road, utility, and custom automotive applications.

What’s Included

• One (1) Diode Dynamics Stage Series C2R LED Pod
• One (1) 4-pin Deutsch-style wire pigtail
• Mounting hardware

Part Number: DD8573S
Quantity: 1 LED pod
Mounting Style: Flush Mount
Main Output: Cool White
Beam Pattern: Flood
Beam Spread: 70x45 degrees
High-Power Secondary Output: Red
Low-Power Accent Output: Red
Warranty: Limited Lifetime Warranty
Made in: USA with global materials
