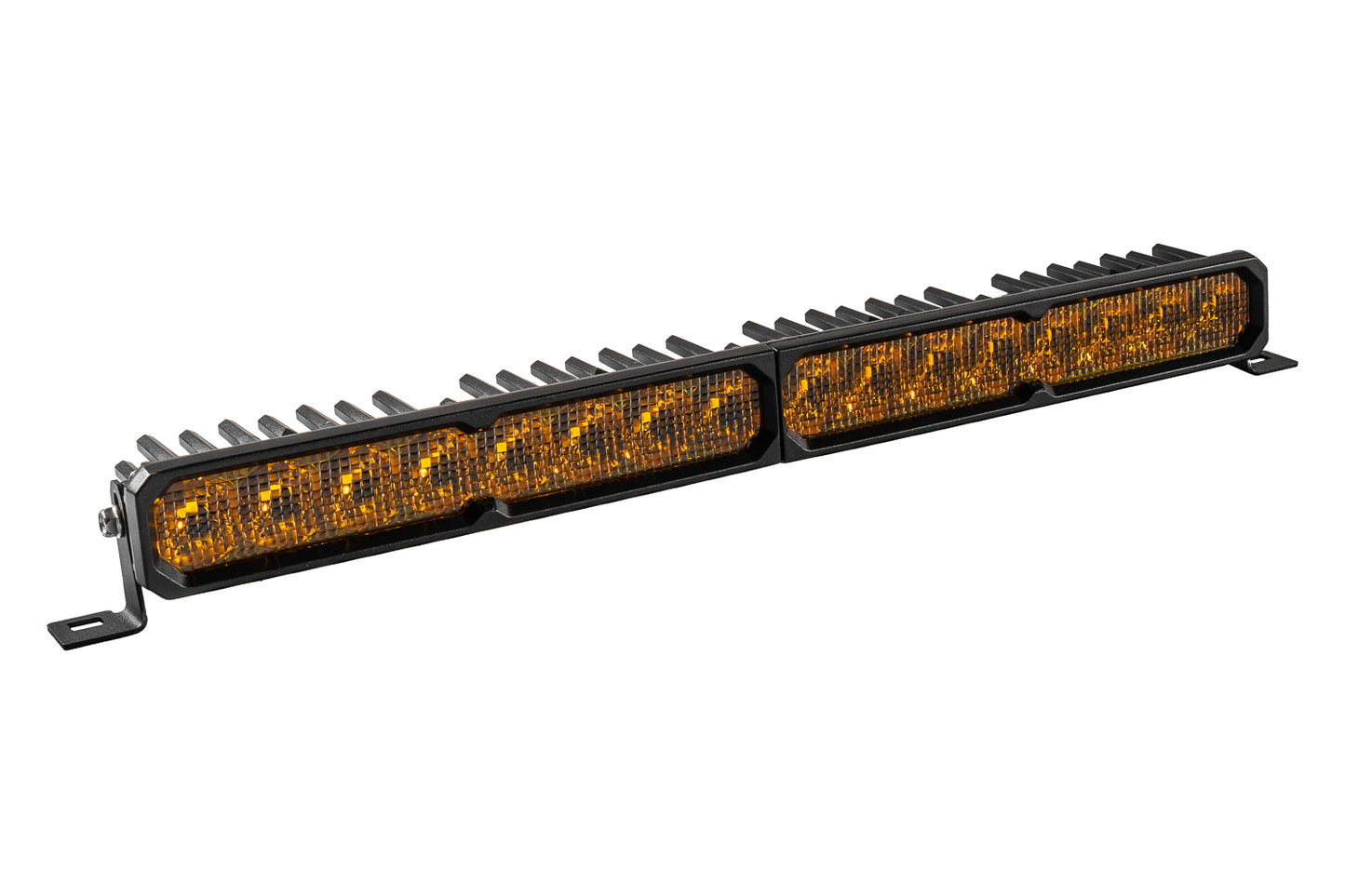

Diode Dynamics SS20 Yellow Stage Series LED Light Bar with Amber Backlight (Single)

Diode Dynamics SS20 Yellow Stage Series LED Light Bar with Amber Backlight (Single)

Conquer poor weather and challenging terrain with the Diode Dynamics SS20 Yellow Stage Series LED Light Bar. Featuring 3000K Selective Yellow LED output, patented Total Internal Reflection (TIR) optics, and a fully illuminated amber backlight, the Diode Dynamics SS20 light bar delivers exceptional visibility, reduced glare, and outstanding performance in fog, rain, snow, dust, and off-road conditions.

Available in Sport and Pro power levels, the SS20 can be configured with Combo/Driving, SAE Driving, Flood, or Spot beam patterns to suit everything from daily driving to overlanding, work trucks, and high-speed off-road adventures. Designed for maximum optical efficiency and durability, the SS20 provides industry-leading light output with precise beam control where you need it most.

Constructed with a rugged powder-coated aluminum housing, advanced thermal management, and an IP69K waterproof rating, the SS20 is built to handle the harshest environments. Proudly engineered and assembled in the USA with global materials and backed by a Limited Lifetime Warranty, it’s a premium lighting solution built for years of dependable performance.

Key Features

• Sold individually (1 LED Light Bar)
• 3000K Selective Yellow LED output
• Available in Sport and Pro power levels
• Choice of Combo/Driving, SAE Driving, Flood, or Spot beam patterns
• Patented Total Internal Reflection (TIR) optics
• Fully illuminated amber LED backlight
• Swappable Stage Series lenses and optics
• Compatible with Stage Series CrossLink mounting systems
• Durable aluminum housing with ASTM-standard powder-coated finish
• Copper-core circuit boards on Pro models for superior thermal management
• IP69K waterproof and dustproof construction
• Tested for vibration, corrosion, moisture, and temperatures from -40°F to 185°F
• Universal mounting brackets included
• Made in the USA with global materials
• Backed by a Limited Lifetime Warranty

Selective Yellow Performance

The 3000K Selective Yellow output is designed to improve visibility in poor weather by increasing contrast while reducing glare reflected by moisture and airborne particles.

Ideal for:

• Fog
• Rain
• Snow
• Dust
• Smoke
• Low-light trail driving

Selective yellow lighting helps reduce eye fatigue during extended nighttime driving while making road hazards and obstacles easier to identify.

Patented TIR Optics for Superior Light Output

Unlike traditional reflector-style light bars, the SS20 uses patented Total Internal Reflection (TIR) optics to capture nearly all available light and project it exactly where it’s needed.

Benefits include:

• Greater optical efficiency
• Reduced glare
• Higher usable light output
• Smooth, evenly distributed beam patterns
• Excellent long-distance visibility

Combined with premium automotive-grade LEDs and advanced thermal management, the SS20 delivers exceptional performance both on and off the road.

Choose the Right Beam Pattern

The SS20 is available in multiple beam patterns to match your driving style.

Combo/Driving

A balanced beam pattern that combines long-distance projection with wide foreground illumination.

Perfect for:

• Overlanding
• Trail riding
• Rural highways
• General-purpose auxiliary lighting

SAE Driving

Designed to supplement your factory high beams with increased distance while maintaining excellent beam control. When installed as a pair and properly aimed, this pattern meets SAE J581 standards for auxiliary driving lights.

Flood

A broad 100° x 80° beam pattern ideal for:

• Reverse lighting
• Work trucks
• Campsites
• Utility vehicles
• Low-speed maneuvering

Spot

A focused 8° x 8° beam designed for:

• Desert racing
• Rally competition
• High-speed off-road driving
• Maximum forward visibility

Sport or Pro Performance

Choose the output level that best fits your application:

• Sport: Excellent value and performance for daily driving and recreational off-road use.
• Pro: Increased brightness and intensity for demanding off-road, overland, and professional applications.

Integrated Amber Backlight

Every Yellow SS20 Stage Series LED Light Bar features a fully illuminated amber backlight that lights the entire TIR optic, creating a distinctive OEM+ appearance even when the primary beam is off.

Perfect for:

• Parking lights
• Daytime running lights
• Accent lighting
• Trail staging
• Off-road styling

The amber backlight provides increased visibility while adding a premium custom appearance.

Modular Stage Series Design

Like every Stage Series light, the SS20 is fully customizable.

Compatible with:

• Replacement lenses
• Snap-On Lens Covers
• CrossLink mounting systems
• Multiple beam patterns
• White or selective yellow lens options

Customize your lighting setup without replacing the entire light bar.

Built for Extreme Conditions

Every SS20 Stage Series LED Light Bar is engineered for dependable performance in harsh environments.

Features include:

• Heavy-duty aluminum housing
• ASTM-standard powder-coated finish
• Copper-core circuit boards (Pro models)
• Optimized heat dissipation
• IP69K waterproof protection
• Corrosion-resistant construction
• SAE-tested durability

Built to withstand rain, snow, mud, dust, vibration, and extreme temperatures year after year.

What’s Included

• (1) Diode Dynamics SS20 Yellow Stage Series LED Light Bar
• (1) Wire Pigtail
• Universal Mounting Bracket Set
• Mounting Hardware

Quantity: One (1)

Warranty: Limited Lifetime Warranty
